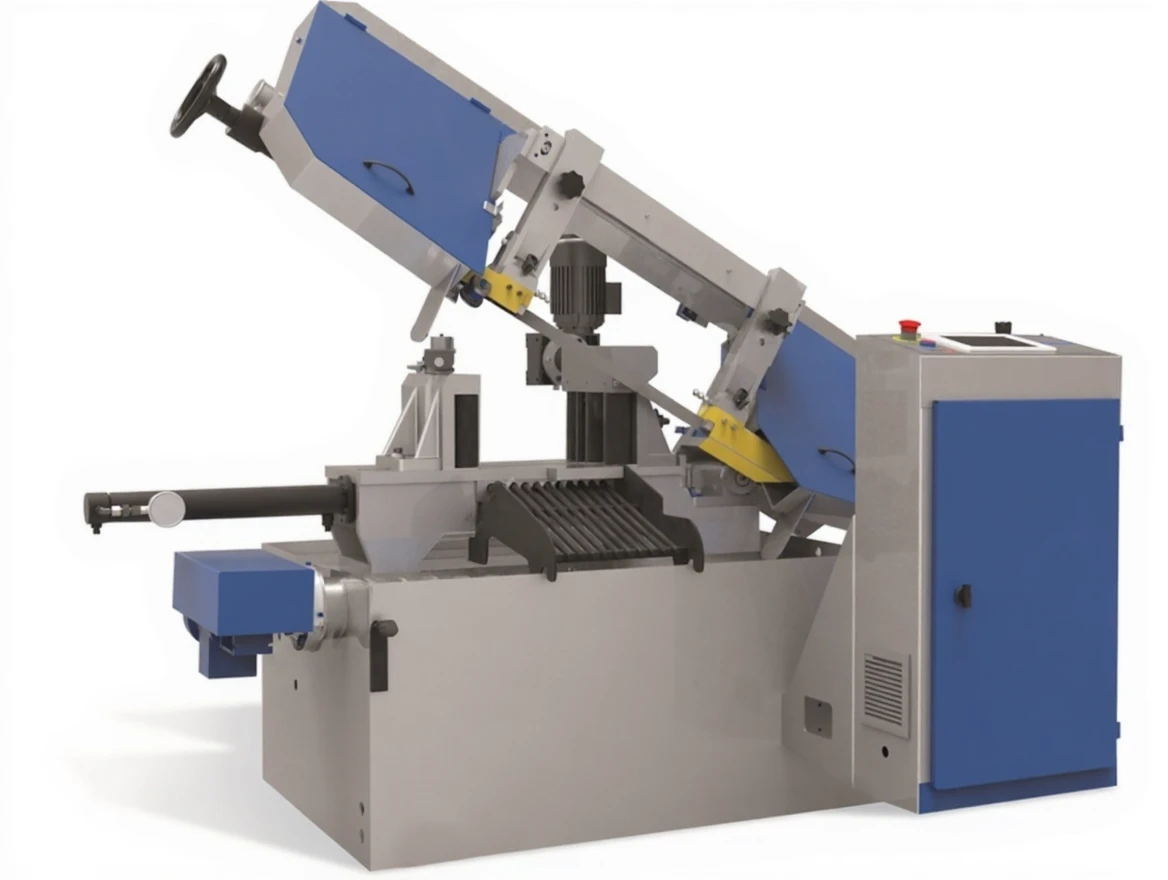

280 mm Fully Automatic PLC Controlled Mitre Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PAR 280 PLC |
Description
Cuteral PAR 280 PLC
280 mm Fully Automatic PLC Controlled Mitre Band Saw Machine
Cuteral PAR 280 PLC Technical Specifications
| A | 1215 mm | |||
| B | 2010 mm | |||
| C | 1410 mm | |||
| D | 750 mm | |||
| E | 525 mm | |||
| F | 2630 mm | |||
| hmax | 1850 mm | |||
| Automatic | ||||
| Blade Size | 27 x 0.9 x 3670 mm | |||
| Blade Motor | 1.5 kW – 1500 rpm | |||
| Drive Motor | 0.37 kW – 1000 rpm | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 2.92 kW | |||
| Cutting Speed | 15 m/min – 100 m/min | |||
| Weight | 870 kg | |||
| Chip Conveyor Motor | 0.18 kW 1500 rpm | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 280 mm | |||
| Cutting Capacity 90° Width | 290 mm | |||
| Material Cutting Angle | 0° | 280 mm | 250 x 250 mm | 150 x 290 mm |
