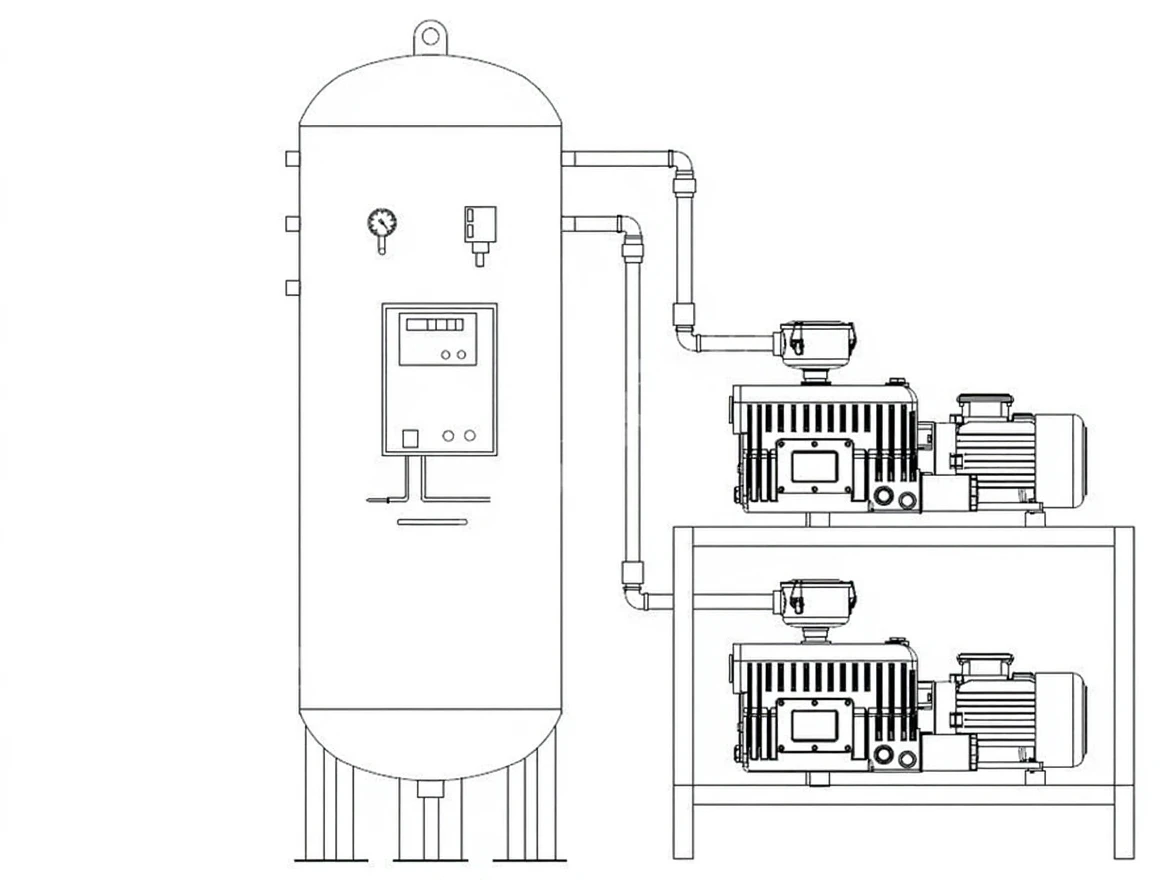

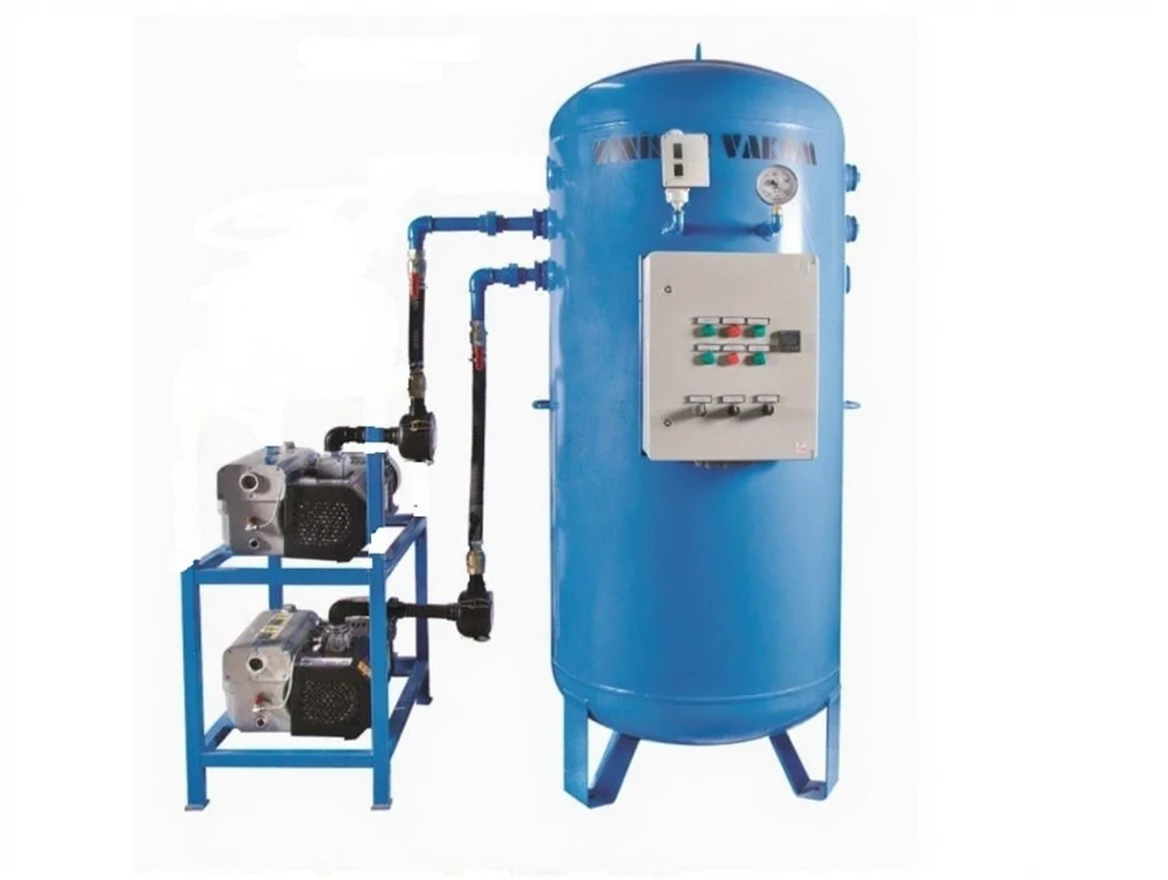

2P * 1000 Lt. Oil Circulation Vacuum System

2P * 1000 Lt. Oil Circulation Vacuum System

Technical Specifications:

• Model Type:ZYVP-250 (2 units)
  The system consists of two high-efficiency vacuum pumps, model ZYVP-250. This model is designed for large industrial applications and offers high capacity and powerful performance.

• Capacity:250 m³/h
  Each pump has an air suction capacity of 250 m³ per hour. This capacity enables fast and efficient vacuum operations in large areas, resulting in more efficient production processes.

• Ultimate Vacuum Efficiency (Absolute):755 torr (at sea level, 20 °C)
  The system provides a vacuum efficiency of 755 torr at sea level and 20°C temperature conditions. This provides a very deep vacuum level, proving that the system is high performing and works efficiently.

• Rated Engine Power:5.5kW
  The system uses a 5.5 kW motor for each pump. This engine power ensures efficient operation of the system and helps maintain high performance even during long-term use.

• Rated Engine Speed:1450rpm
  The engines operate at a speed of 1450 revolutions per minute. This speed allows the system to effectively create a vacuum, ensuring energy efficiency and ensuring trouble-free operation of the system.

• Working Voltage:380V – 50Hz
  The system is designed to operate with 380 V voltage and 50 Hz frequency. This complies with electrical standards widely used around the world, making installation and integration easy.

• Suction Mouth Size:2 inches
  The suction port of the system is 2 inches in diameter and this size is compatible with industrial connections. This allows the system to be easily connected to a variety of applications.

• Sound Level (DIN 45635):70dB (absolute)
  The sound level produced by the system during operation is 70 decibels. This sound level is suitable for industrial applications and does not cause any disturbance in the working environment.

• Operating Temperature:75°C
  The system is resistant to a maximum operating temperature of 75°C. This makes it ideal for operating the system safely under various temperature conditions.

• Oil Capacity:6 liters
  The system has an oil capacity of 6 liters. Oil is necessary to ensure efficient operation of the vacuum pump and to prevent wear that may occur due to friction.

• Approximate Weight:190kg
  The system weighs approximately 190 kg per pump. This weight increases the durability and stability of the pump and also provides a structure suitable for long-term use.

• Dimensions:120 x 71 x 65cm
  The dimensions of the system are 120 cm long, 71 cm wide and 65 cm high. These measurements show that the system is compact yet delivers powerful performance.

System Elements and Technical Specifications:

• Vakustad:Danfoss Brand, Made in Denmark
  The Danfoss brand is a world-renowned brand for vacuum gauges and the Vakustad used in the system provides high accuracy and reliability.

• Vacumeter:Pakkens Brand, Turkish Production
  Pakkens brand offers high performance with its domestically produced vacuum meters. This vacuum meter is a reliable tool for monitoring and controlling the operating conditions of the system.

• Vacuum Tank:1000 liters Vertical Tank
  The system is equipped with vertical vacuum tanks with a capacity of 1000 liters. This tank effectively stores the vacuumed air and ensures efficient operation of the system.

• Fasteners:Check Valve, Conical Union, Pipe Connections etc.
  The system comes with all necessary fasteners. These elements enable the safe and efficient connection of the pump, tank and other components.

• Chassis:Profile Pump Chassis
  The system is mounted on a robust and durable profile pump chassis. This chassis ensures the safe placement of all components and helps ensure the long life of the system.

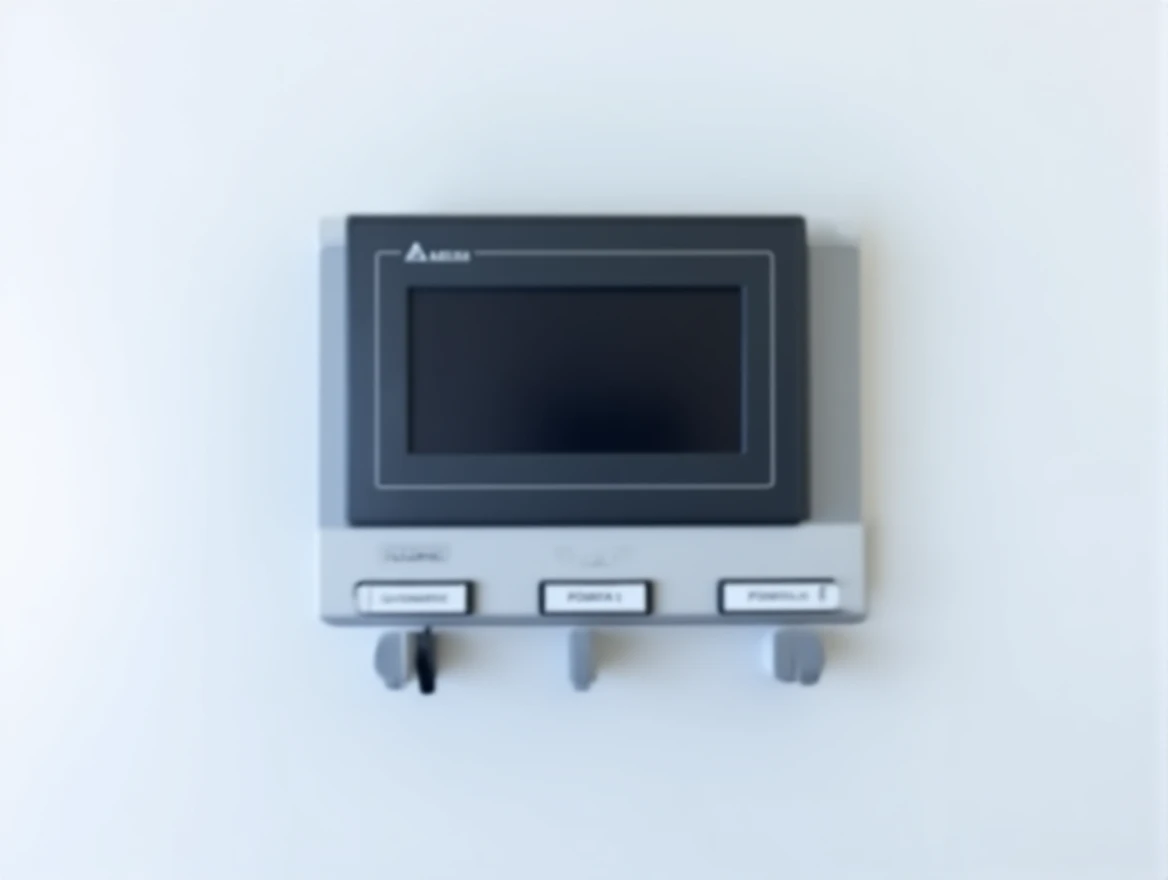

• Control Panel:Double Pump Automatic Time Adjustment PLC Screen
  The system provides high efficiency by using double pumps, and the PLC-controlled control panel allows continuous monitoring and control of the system with automatic time settings.

• Chest (Optional):Cage Type Crate for Trouble-Free Shipment
  Optionally, a cage type crate specially designed for vacuum pumps can be used for safe shipment of the system. This crate prevents any damage during transportation of the system.
