3 Dingilli Lowbed
| Brand | Odabaşı Makina |
|---|---|
| Model Type |
O-LD-001 |

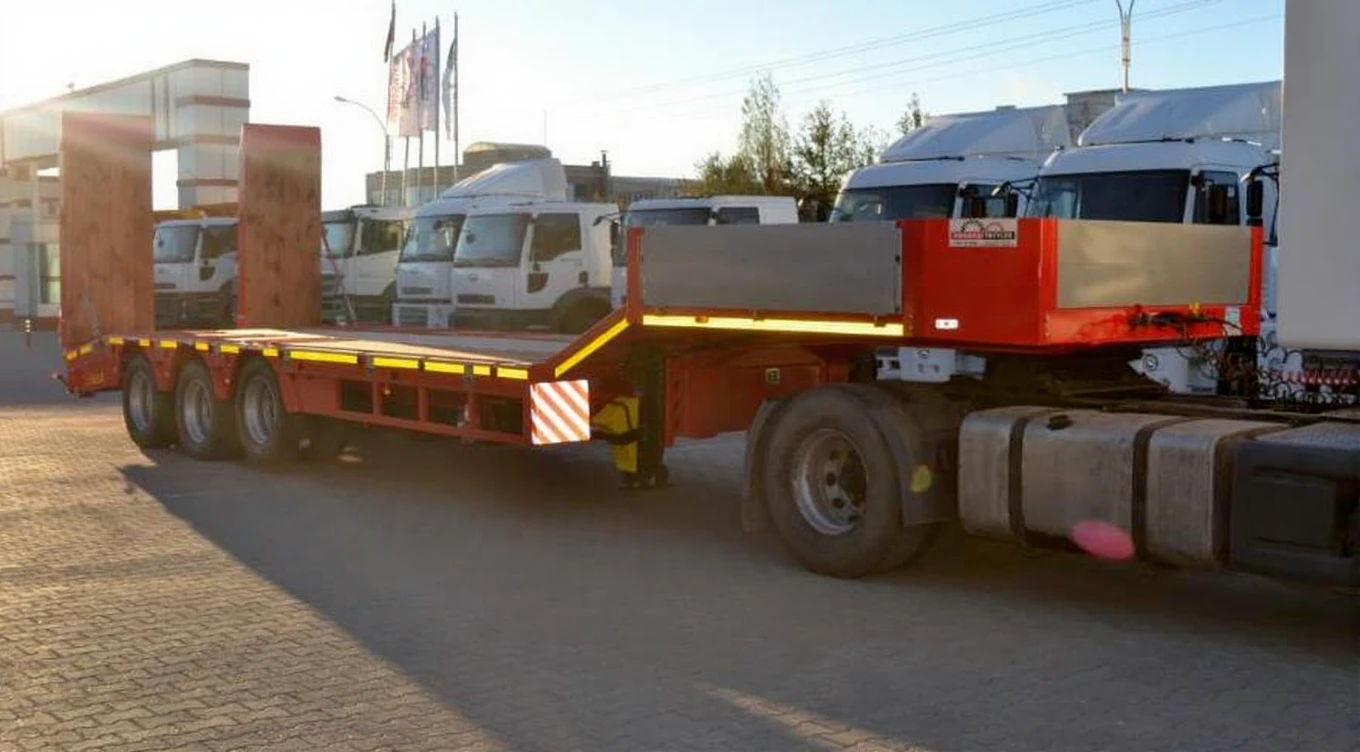

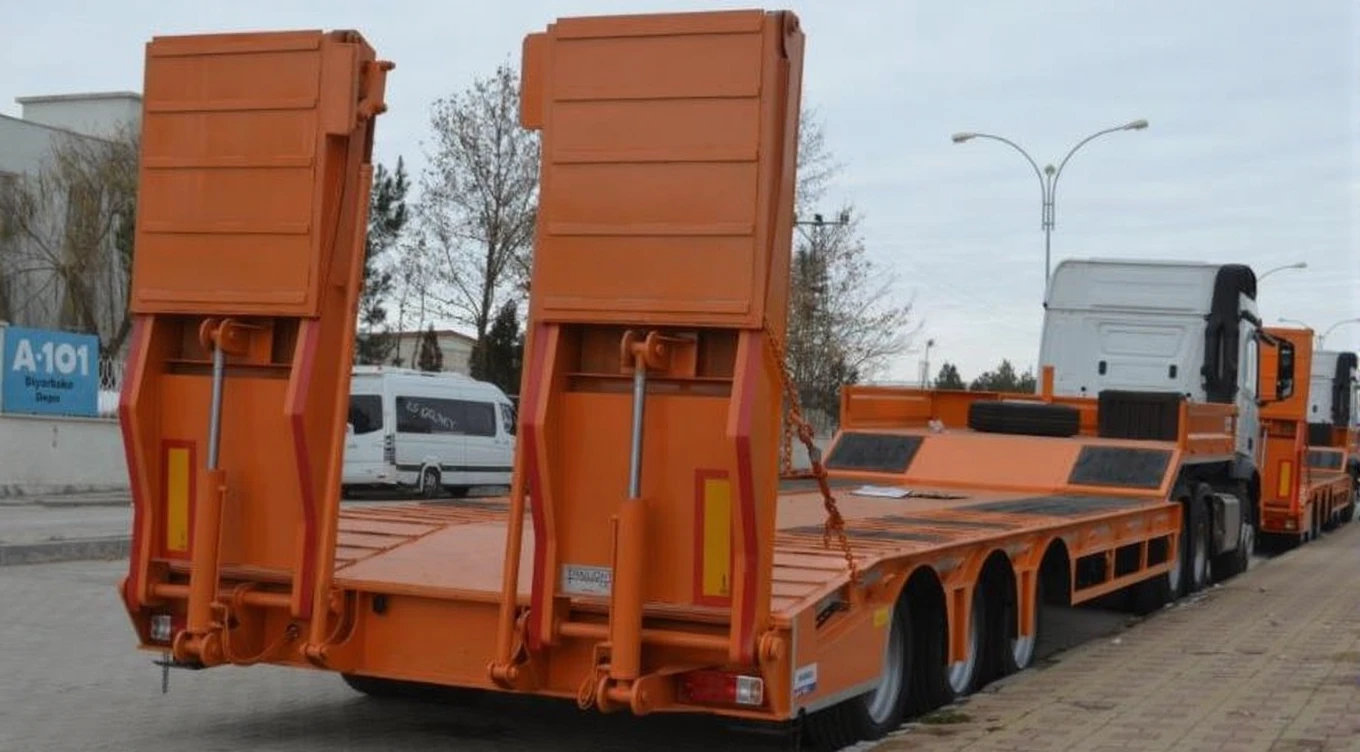

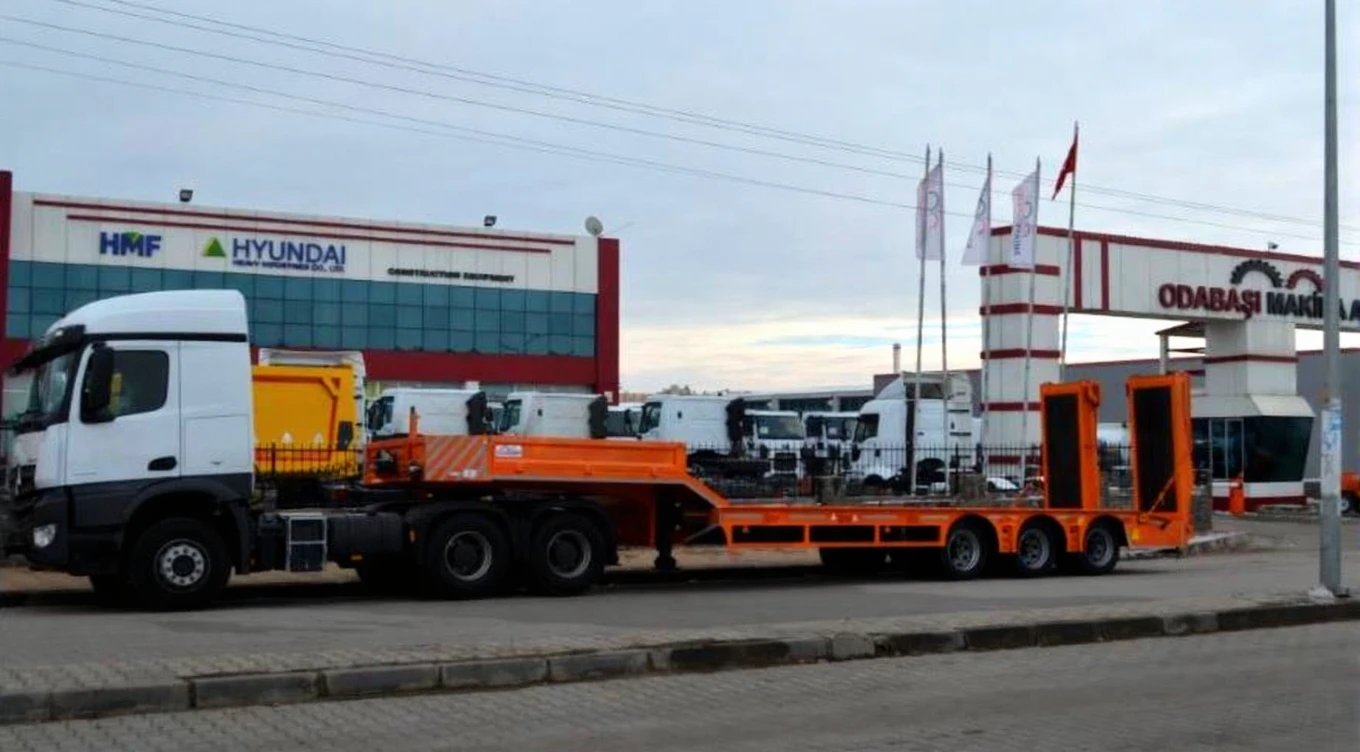

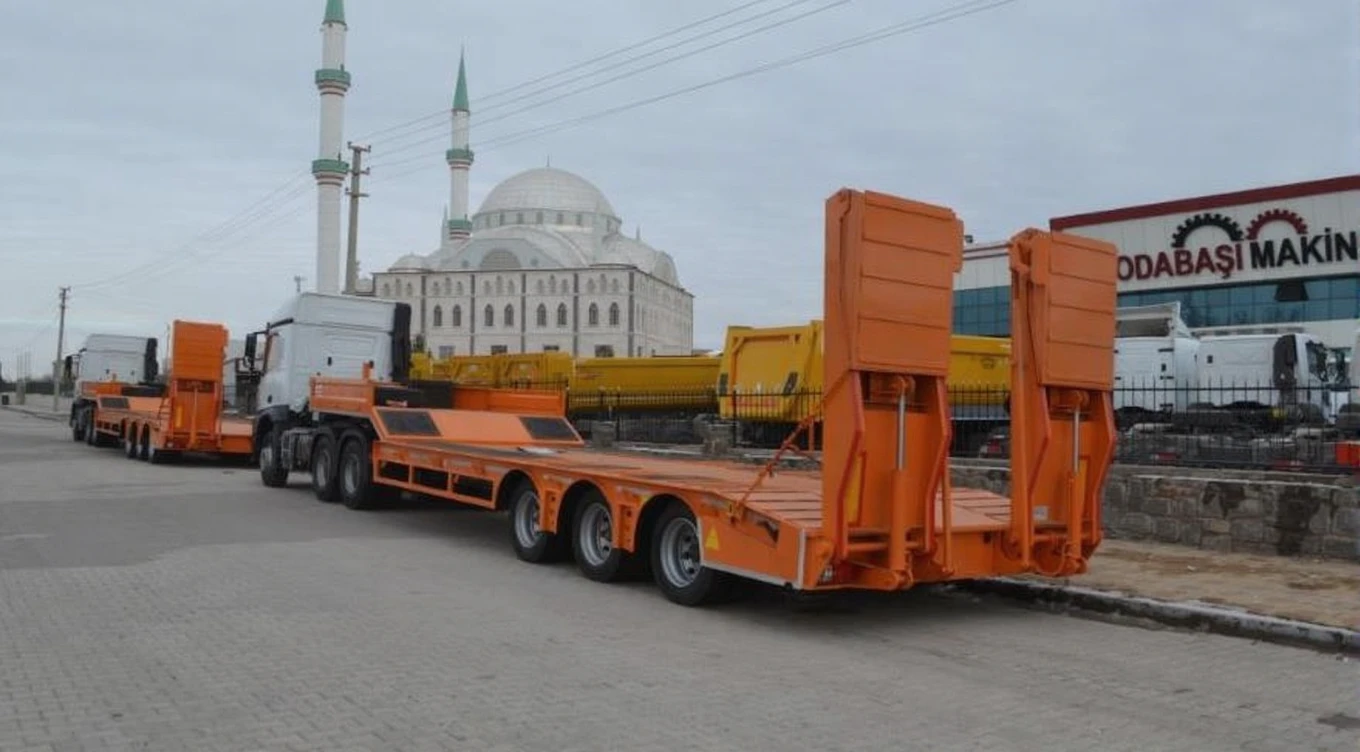

3 Axle Lowbed Trailer
Designed to be light, eco-friendly, and legally capable of carrying more load, the 3-axle Light Low-bed Trailer is at least 25% lighter than its competitors thanks to its 8-ton light chassis and has an 860 mm platform height. With a wide range of options, it is the most preferred product in the transportation of machinery, agricultural machinery, and all kinds of light equipment up to 40 tons.

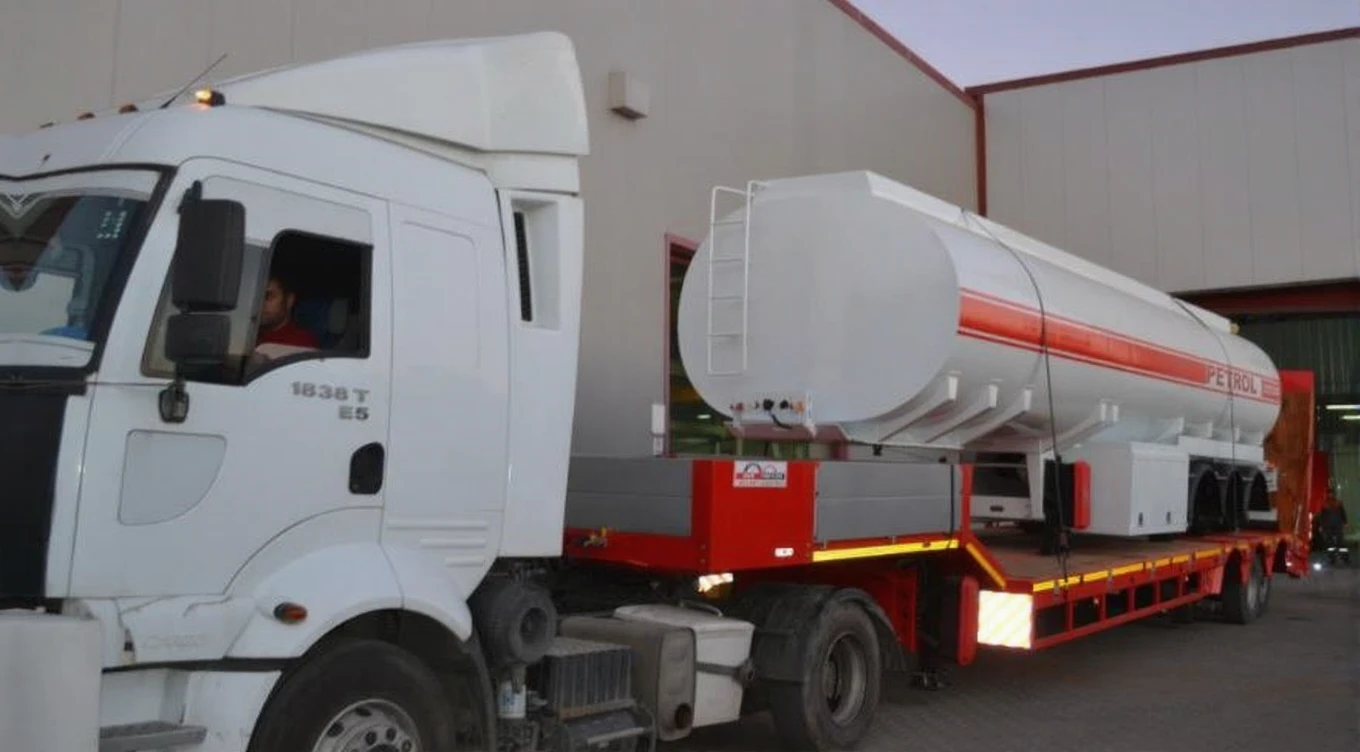

Heavy vehicles with low-beds, such as construction and industrial machinery, boats and sailboats, pipeline segments, wind turbines, bridge beams, steel cage structures, and wheeled cranes, can be transported.
-
Standard Accessories
-
1 toolbox
-
1 water tank
-
Side extension brackets (250mm + 250mm)
-
Spare tire holder
-
Fire cabinet
-
Side extension labels on both sides and rotating warning light at the back
-
Low-bed Trailer Technical Specifications
|
Platform Length |
9000 mm |
|
Gooseneck Length |
3850 mm |
|
Overall Width |
2550 mm (2750mm (3000mm) |
|
Trailer Length |
12930 mm |
|
5th Wheel Height |
1300mm |
|
Loading Platform Height |
910 mm load |
|
Chassis |
Chassis made of high tensile ST 52-3 steel with (I) section |
|
Floor |
60mm hardwood + wheel top tread plate |
|
Brake |
Dual circuit electro-pneumatic brake system with EBS 2S / 2M anti-locking system compliant with 71/320/EEC directive |
|
Axles |
3×12 ton capacity air suspension and drum axles |
|
Axle Type |
3 fixed axles |
|
Ramp Type |
Air or hydraulic one-piece + mechanical sliding |
|
Tires |
12+1 pcs [ PHONE HIDDEN ] |
|
King Pin |
3.5” Kingpin + 2” Kingpin |
