3 Fonksiyonlu Gazsız Gaz Altı Kaynak Makinesi

Available for use in two different types, whether used as a normal welding electrode or as a gasless wire welding.
Has 3 functional features lift tig mig and mma welding can be used.

Lift Tig welding: Lift TIG welding is commonly used in the automotive industry for repair and manufacture of various components such as exhaust systems, engine components, and suspension parts. The process is ideal for welding thin gauge materials such as sheet metal and produces a high-quality weld without splatter and distortion.

MIG welding: Metal inert gas (MIG) welding is a subtype of gas metal arc welding (GMAW). In this welding process, the main materials are joined together with a welding current. The filler metal is continuously fed from the welding gun. While the electric arc melts the electrode wire, it is melted together with the base metals in the welding pool. At the same time, the shielding gas moves along the welding gun to keep the weld away from atmospheric pollution.

MMA welding: Manual metal arc welding (MMA) is an arc welding method performed by the heat required for welding, the arc that occurs between the coated consumable electrode and the workpiece. The tip of the electrode, the welding pool, the arc, and the areas close to the workpiece are protected by the gases formed by the burning and decomposition of the coating material from the harmful effects of the atmosphere.

Works with 1 kg wire compatible with wire diameters up to 0.8 mm 0.9 mm 1 mm, wire is also available in our stock, the machine works wirelessly from the spool.

220 volt bag type gas submerged welding machine 300 ampere specifications 1 phase 230v-50/60 hz mains voltage and works with generators, tolerates voltage fluctuations up to 15%.

Thanks to inverter technology, it has high energy efficiency compared to conventional machines. It provides excellent welding characteristics with steel, aluminum, and various wire types. It has positive (+) and negative (-) pole options.

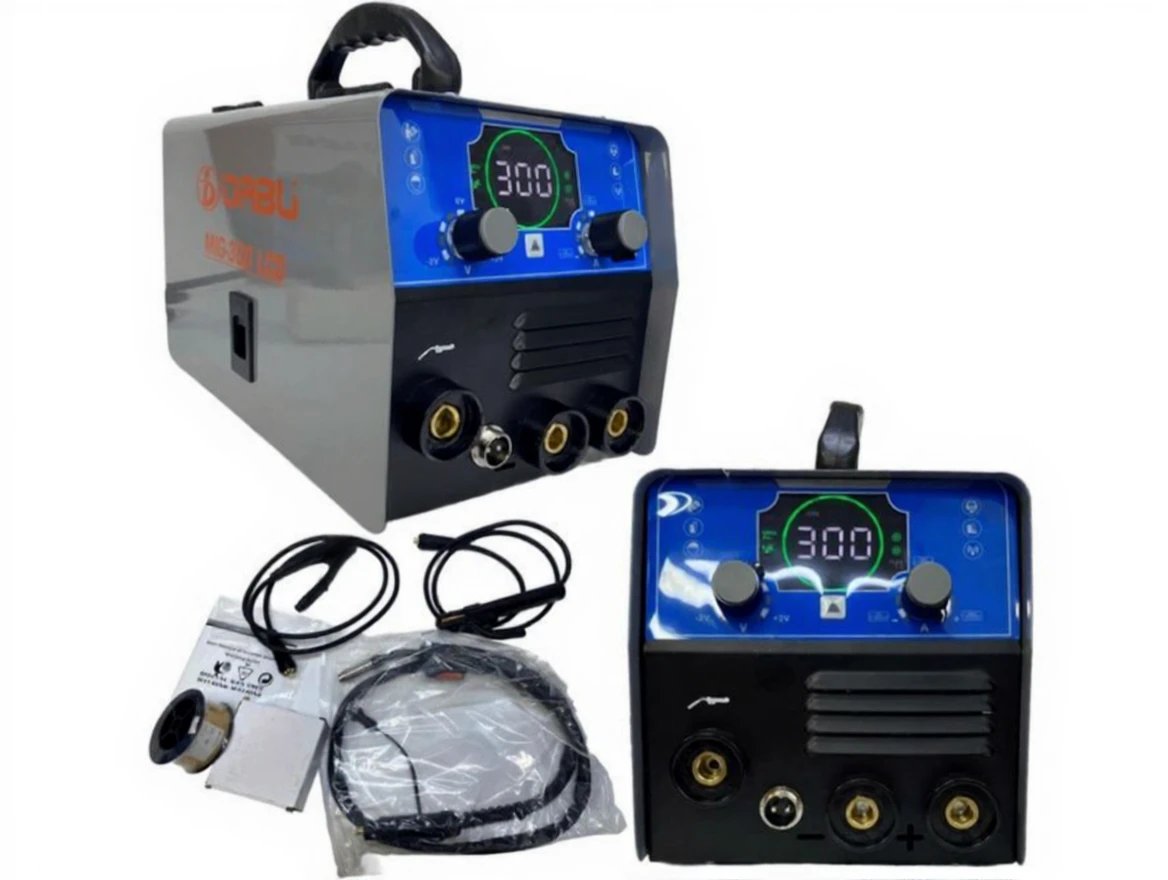

Welding voltage, wire feeding speed (current), soft start, pre-Gas, post-Gas, burn-Back settings, and 2/4 trigger options are controlled from the front panel. Welding parameters are very easy to monitor from large digital displays. There are free wire feeding and gas test buttons.

Technical Specifications

Type: Portable Gas Submerged Welding Machine

Power: 8.21 (20%) kva

Voltage: 220-230 volt 50Hz

Current range: 30-300 Ampere

Min. Generator Power: 7kva

MMA Electrode Diameter: [ PHONE HIDDEN ]

Protection Class: IP23

Product weight: 4kg

Product size: 340 x 200 x 180mm

Protection class: p21

Wire feeding system: Welding wire diameter [ PHONE HIDDEN ]mm, Standard wire feeding coil size [ PHONE HIDDEN ]mm

Wire feeding coil diameter: 1x30mm

Wire feeding speed: 1 – 18m/min

Torch trigger control: 2 / 4

Welding thickness: 1 ~ 5mm

Wire coil capacity: 1kg

Cooling System: Fan Cooling

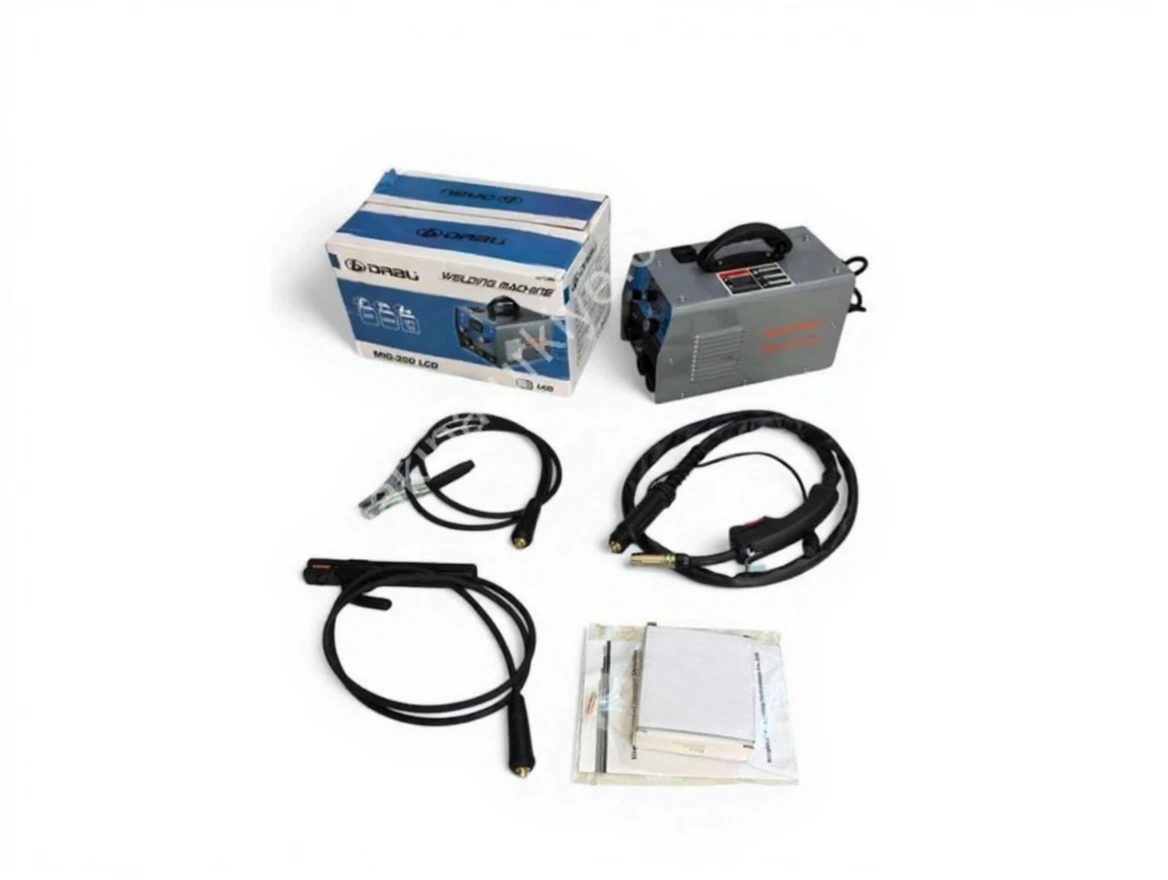

Accessories: 1 machine box, 1 body, Extra parts

Functions

• Ø300, ø270, and ø200 mm reels can be used with barrel packaging (requires accessory attachment) and spool gun with ø100 mm reels.

• It is compact and easy to carry into the workshop and field.

• It is fan-cooled and thermally protected against overheating.

• Standard accessories come with the machine.

• There are free wire feeding and gas test buttons.

• 3d cooling system

• Can be used as gas submerged or normal electrode welding

• 1 kg wire capacity
