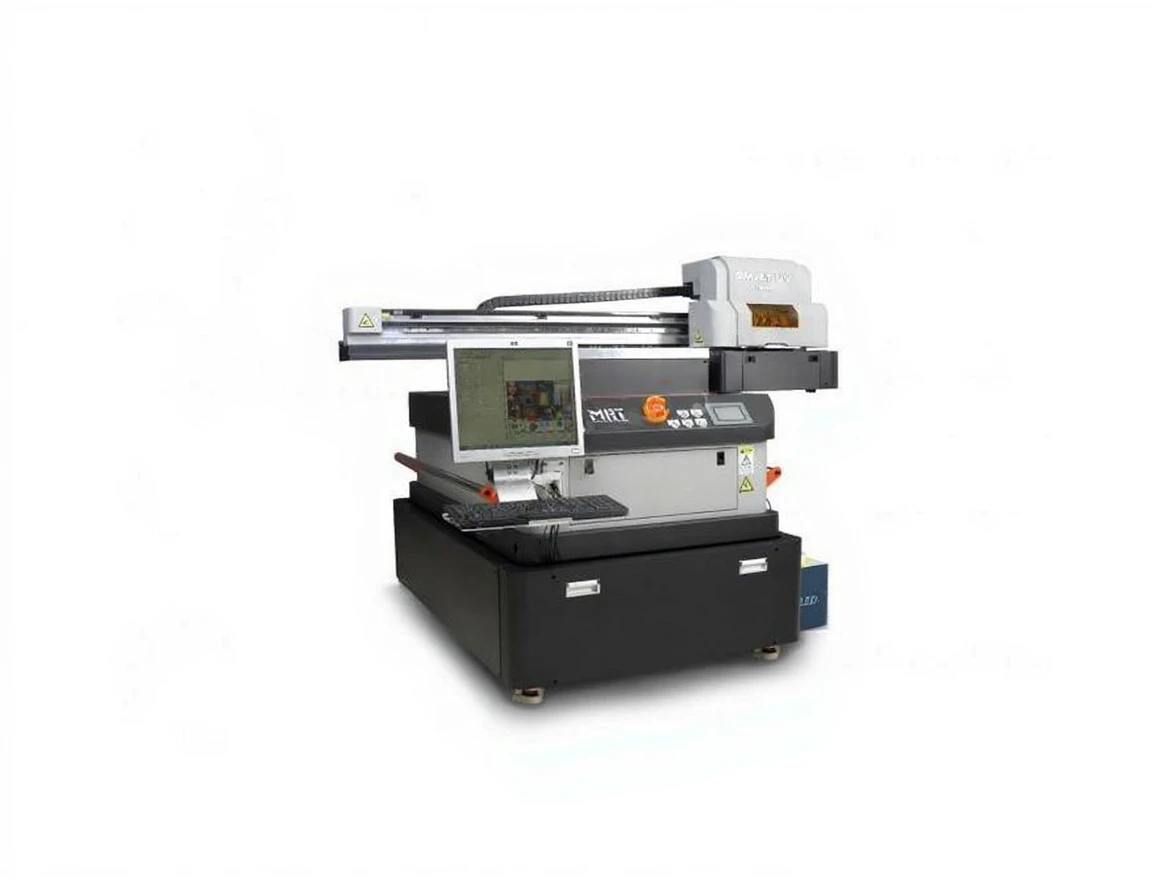

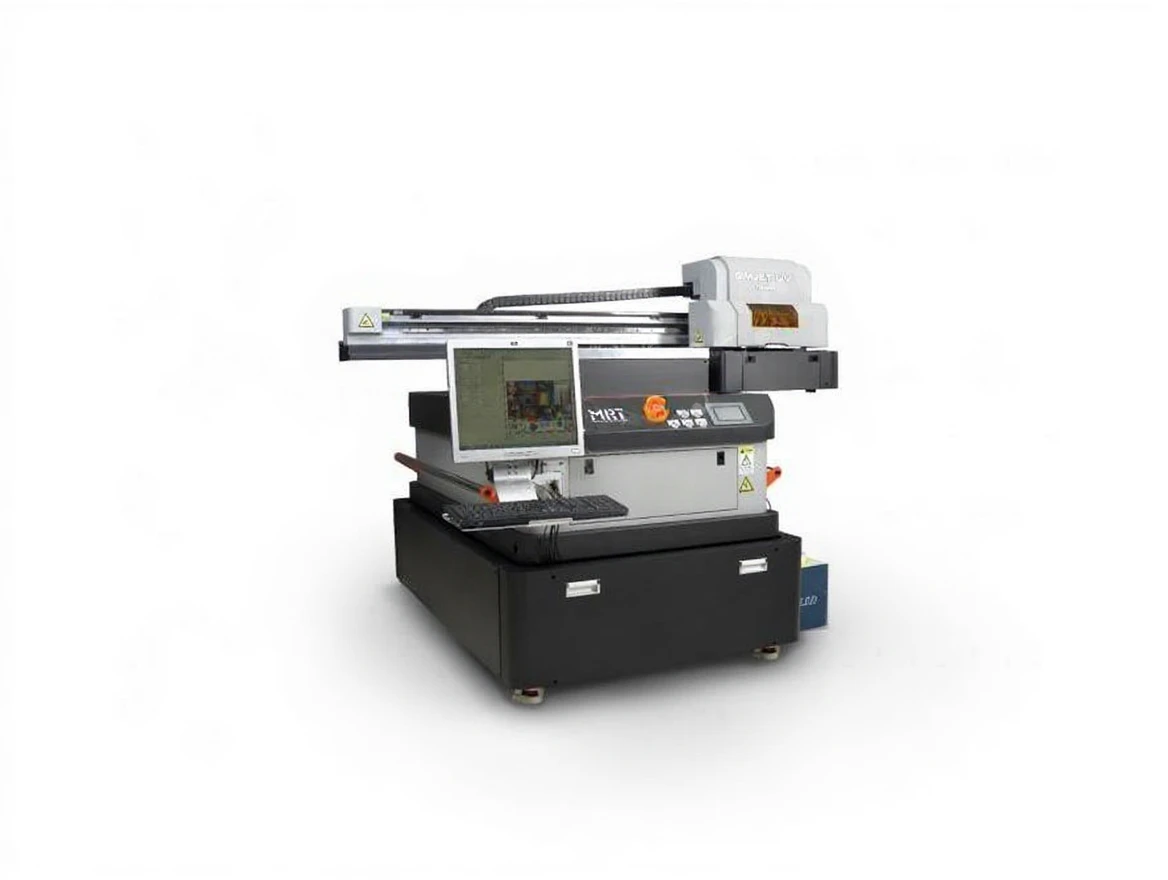

3-Head 2 Color UV Printing Machine
| Brand | Toshiba |
|---|---|
| Model Type |
QMJET 6090-UV |
Description
3-Head 2 Color UV Printing Machine
| Feature | Details |
|---|---|
| Print Head Type | Toshiba 3 Heads / Varnish (optional) |
| Number of Heads | 3 Units |
| Drop Volume | 5 PL |
| Print Speeds | 4 pass – 11 m²/hour |
| 6 pass – 9.6 m²/hour | |
| 4 pass – 7.1 m²/hour | |
| Print Height | 30 cm |
| Color Scale | CMYKx2 – White |
| Ink Type | UV-Led |
| Curing System | 3 UV-Led Units |
| Print Width | 60 cm x 90 cm |
| Print Resolution | 2880 dpi |
| Supported File Formats | PSD/HPG/PLT/PS/EPS/2GP/JPG/TIF |
| Ink Tank Capacity | 1 Liter |
| Computer/Hardware | Windows 10 – PC |
| Weight | 305 kg |
| Power | 220V ; 50-60Hz ; 1000W |
| Machine Dimensions | L: 1872mm W: 1580mm H: 946mm |
| Other Features | Special Casting Table Supports up to 80 kg material |
| Prints on both rigid and flexible materials | |
| White Ink Recycling | |
| 3D Printing Capability | |
| Ability to skip white backgrounds | |
| Ink Tank Timer System | |
| Automatic Ink Cost Calculation Program | |
| 24-hour On-site Technical Service throughout Turkey | |
| Dual Negative System | |
| Heated Subtank | |
| Ink Mixer System | |
| Material Height Sensor |
