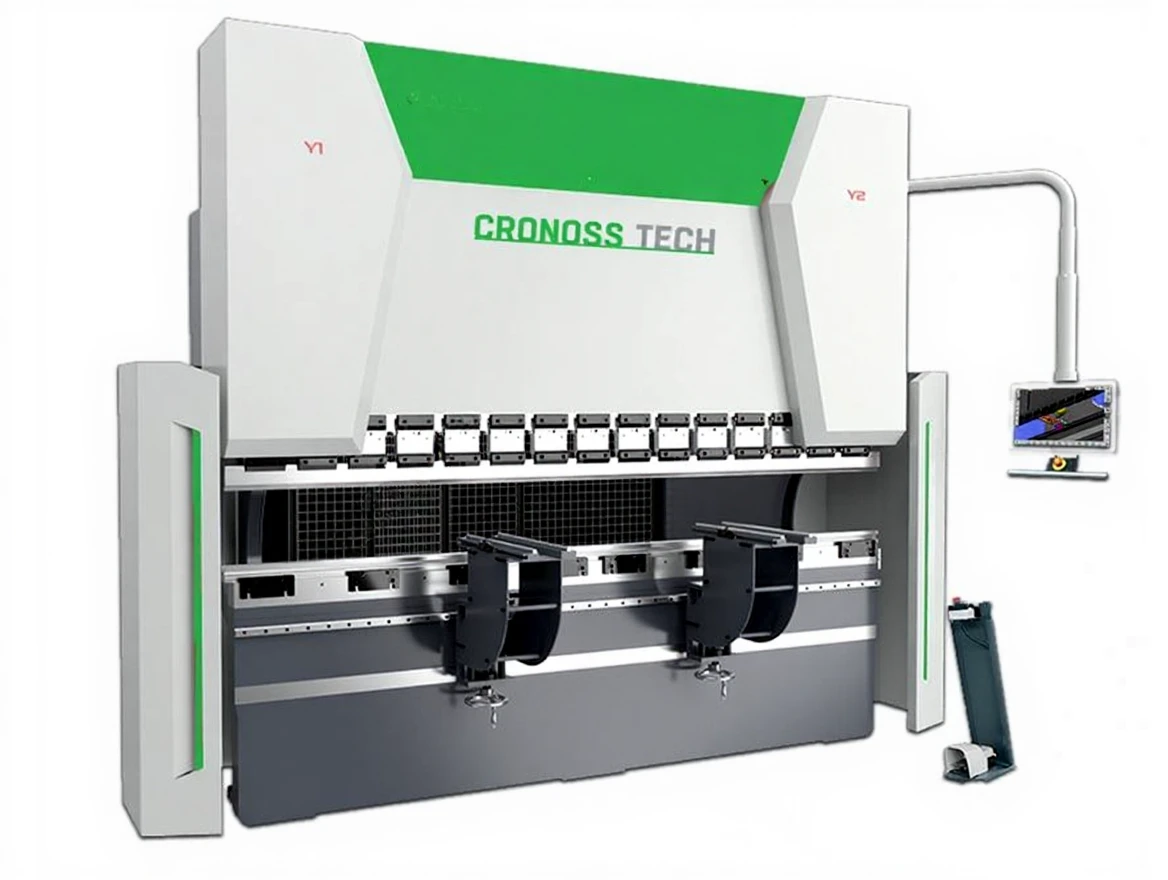

3 Meter X 135 Ton – Hydraulic Press Brake

HPB [ PHONE HIDDEN ] – CNC HYDRAULIC PRESS BRAKE

STANDARD FEATURES

• Y1, Y2, X, R 4 axis CNC controlled (X + R servo)

• 410 mm stroke, 510 mm throat depth

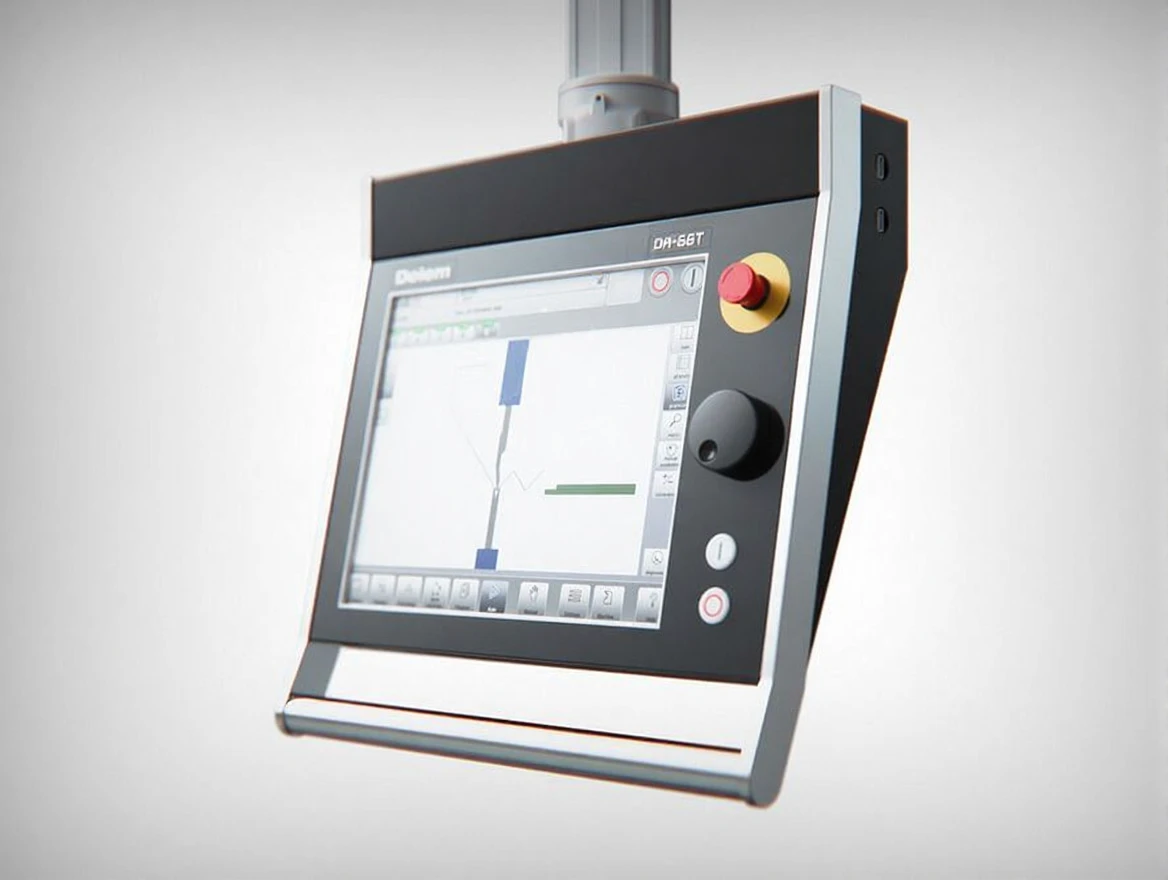

• ESA S650 CNC control unit

• ±0.03 mm precision servo motorized back gauge

  • X axis: 750 mm

  • R axis: 250 mm

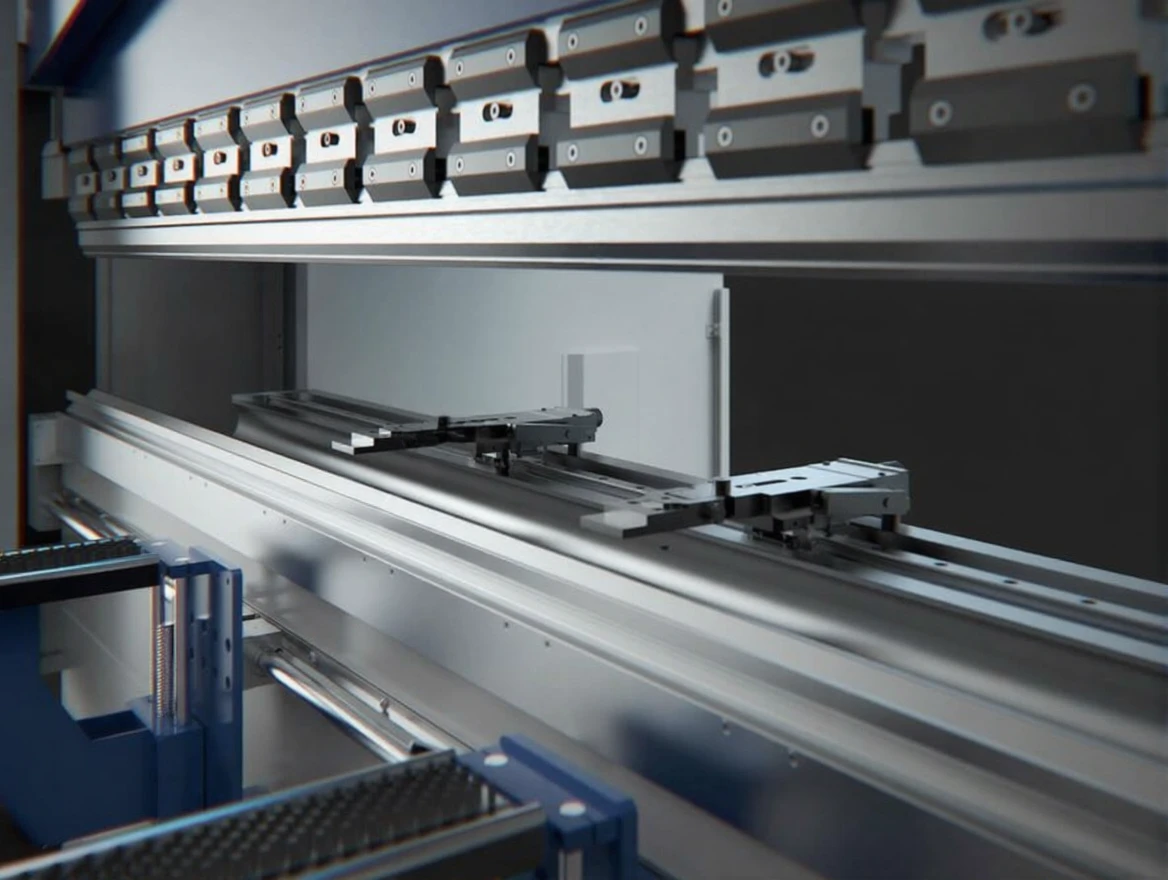

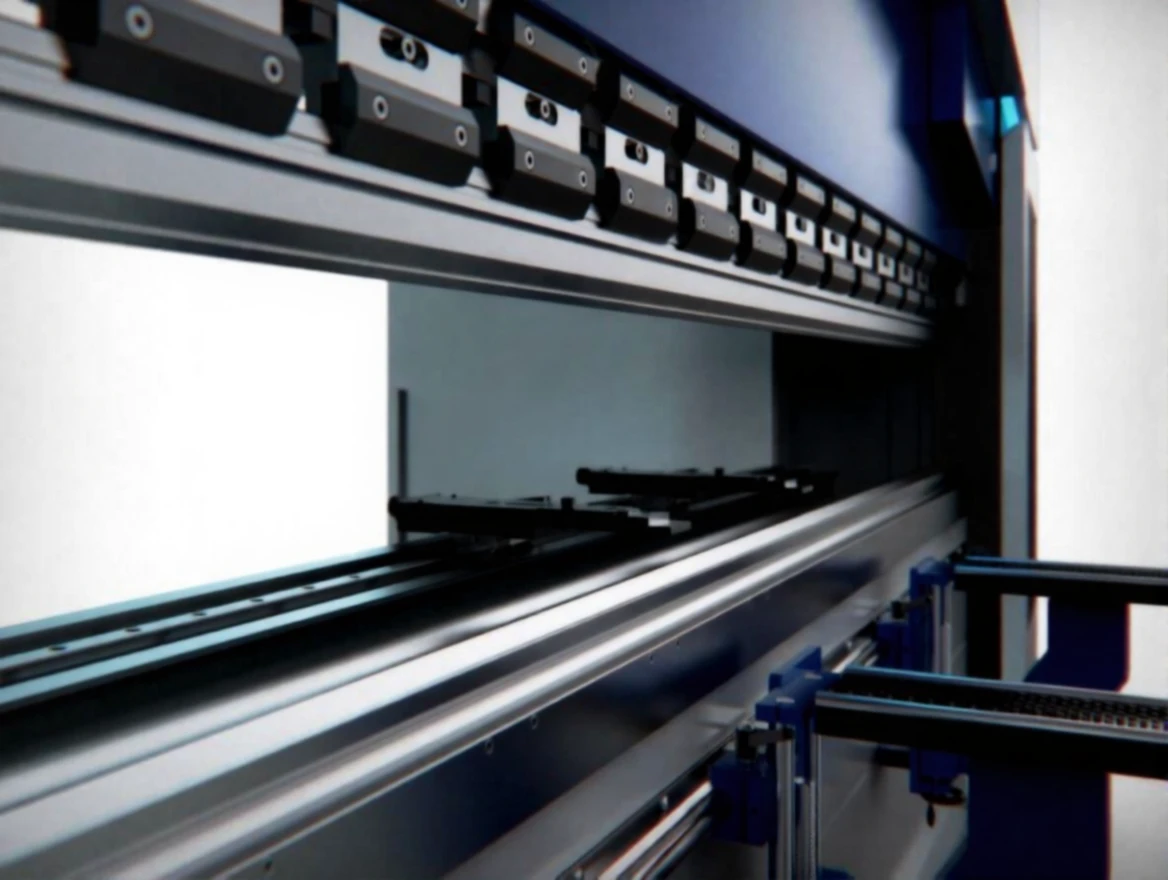

• European type Promecam quick die clamping system

• Sliding front support system

• Manual crowning system (original WILA cam)

• Narrow lower table (European type)

• GIVI brand linear scales

• Standard upper die (H: 67 mm – 85° – R: 0.8)

• Standard lower die
  (60×60 mm – 4 channel V: [ PHONE HIDDEN ] mm – H: 60)

• LED lighting

OPTIONAL FEATURES

• Starting from X + R 4 / 6 / 8 axis back gauge options

• ROLLERI Roll200 hydraulic die clamping

• WILA hydraulic upper and lower die clamping

• Wide lower table for multi-channel dies

• Increasing back gauge X distance to 1000 mm

• AKAS or DSP laser beam front safety system

• Additional back gauge fingers

• Additional back gauge tongue

TECHNICAL SPECIFICATIONS

• Bending Force: 135 tons

• Bending Length: 3100 mm

• Distance Between Walls: 2600 mm

• Stroke: 310 mm

• Lower – Upper Jaw Gap: 515 mm

• Throat Depth: 410 mm

• Table Height: 935 mm

• Descending Speed: 210 mm/s

• Return Speed: 130 mm/s

• Press Speed: 10 mm/s

• Oil Tank Capacity: 180 lt

• Machine Weight: 8,350 kg

• Main Motor Power: 11 kW

• CNC Control Unit: ESA S640

• CNC Axis Count: Y1 – Y2 – X – R (4 axes)

• Back Gauge X: 750 mm

• Back Gauge R: 250 mm

• Crowning: Manual (WILA cam)

• Safety System: Laser front safety

• Origin: Turkey

🔒 PRODUCTION NOTE (FIXED USE)
This machine is produced in Turkey. Configuration, sales, and after-sales processes are carried out by CRONOSS TECH.
