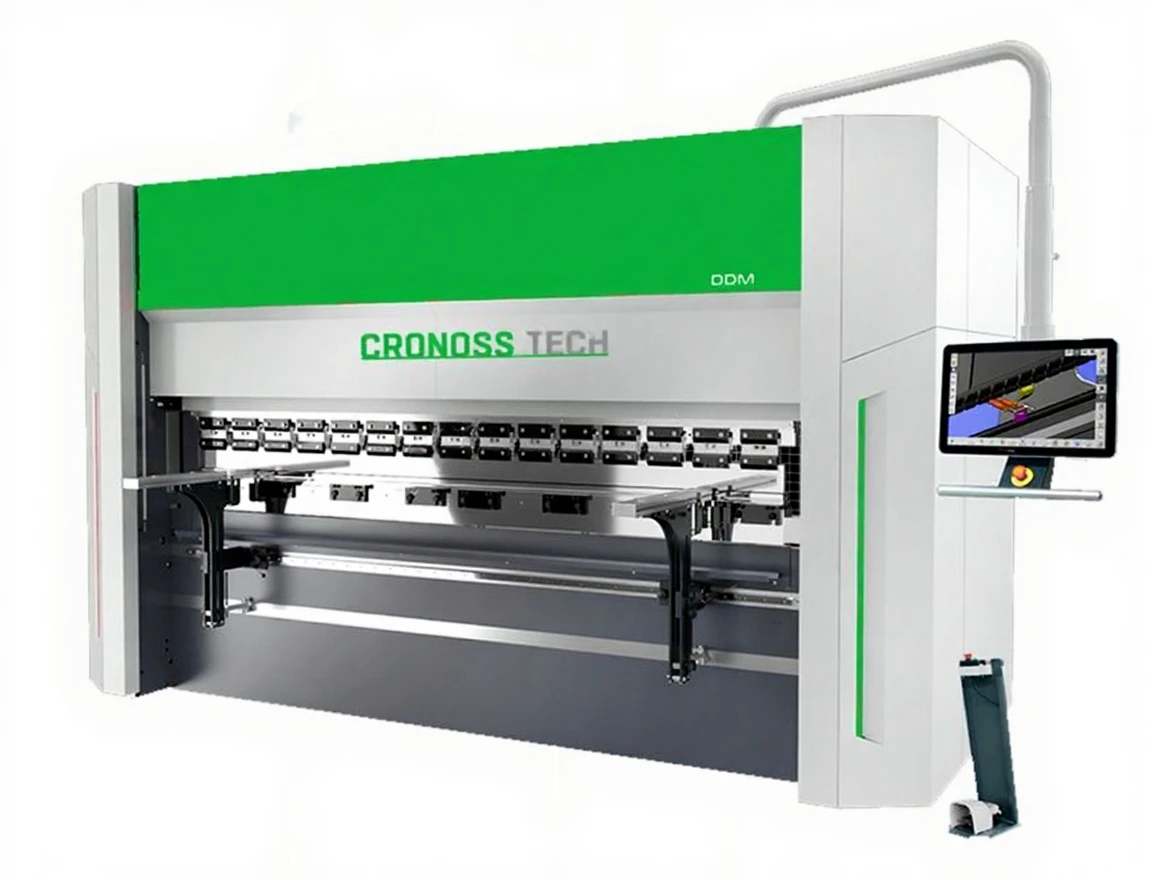

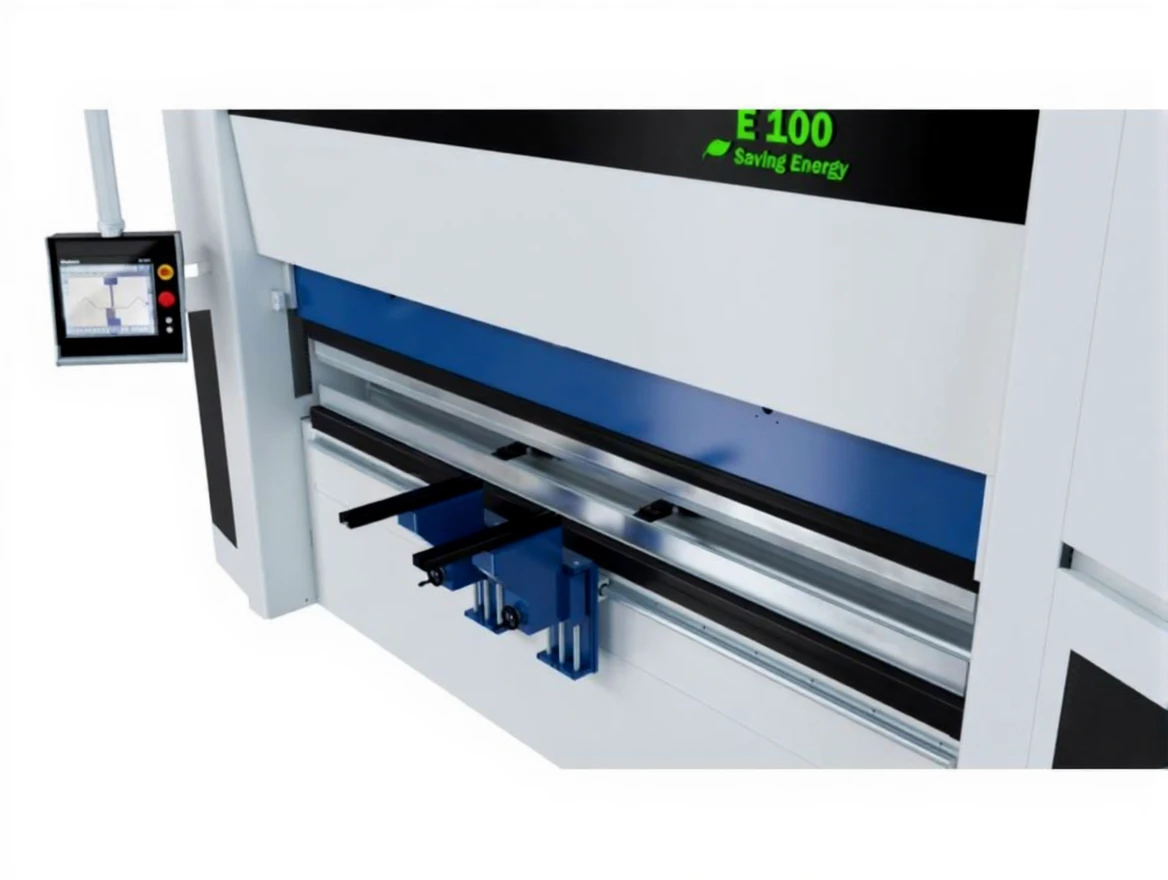

3 Meter X 160 Ton – Servo Press Brake

SPB E[ PHONE HIDDEN ] – SERVO ELECTRIC CNC PRESS BRAKE

STANDARD FEATURES

• CNC controlled belt-driven servo electric press brake

• Y1 – Y2 – X – R 4 axis CNC controlled

• ESA S830 CNC control unit
  (10” touch screen, 2D graphic interface)

• Automatic bending calculation and collision prevention functions

• High precision synchronous servo drive system

• Oil-free, low maintenance belt-driven upper table movement system

• Spring-supported upper table structure that supports energy recovery

• O-Type rigid body design (minimum deformation)

• 300 mm stroke

• 410 mm throat depth

• Servo motorized back support system (X + R axes)

• Back support positioning accuracy: ±0.03 mm

• Back support movement distances:

  • X axis: 750 mm

  • R axis: 250 mm

• Hardened ball screws and linear guides

• 2 pieces, 3-stage back support fingers

• European type Promecam quick upper die clamping system

• European type narrow lower table

• Standard upper die
  (H: 67 mm – 85° – R: 0.8 mm)

• Standard lower die
  (60×60 mm – 4 V: [ PHONE HIDDEN ] mm – H: 60 mm)

• High precision optical linear scales

• LED working area lighting

• Sliding type front support arms

• Double foot pedal

• Emergency stop buttons

• Safety equipment compliant with CE standards

OPTIONAL FEATURES

• Additional back support axes (Z1 – Z2 – X5)

• Increasing back support X distance to 1000 mm

• Motorized crowning system

• Hydraulic upper and lower die clamping systems

• AKAS or DSP laser front safety system

• Rear safety light barrier

• CNC controlled sheet support arms

• Laser bending line

• Laser angle measurement system

• Automatic angle measurement systems

• Air conditioning cooling system for electrical cabinet

• Additional back support fingers

• Custom die and table solutions

TECHNICAL SPECIFICATIONS (E[ PHONE HIDDEN ] MODEL)

• Bending Force: 160 tons

• Bending Length: 3100 mm

• Distance Between Walls: 3345 mm

• Stroke: 300 mm

• Lower – Upper Jaw Range: 515 mm

• Table Height: 900 mm

Speeds

• Descending Speed: 90 mm/s

• Bending Speed: 10 mm/s (CE standard)

• Return Speed: 90 mm/s

Back Support

• X axis: 750 mm

• R axis: 250 mm

• X axis speed: 400 mm/s

• R axis speed: 100 mm/s

• Z axis speed: 600 mm/s

General

• Main Motor Power: 2 × 7.5 kW

• Machine Weight: ~9,500 kg

• Machine Dimensions (LxWxH):
  approximately 4600 × 2100 × 2700 mm

🔒 PRODUCTION NOTE (FIXED USE)
This machine is manufactured in Turkey with CRONOSS TECH engineering.
All sales, configuration, and after-sales processes are handled by CRONOSS TECH.
