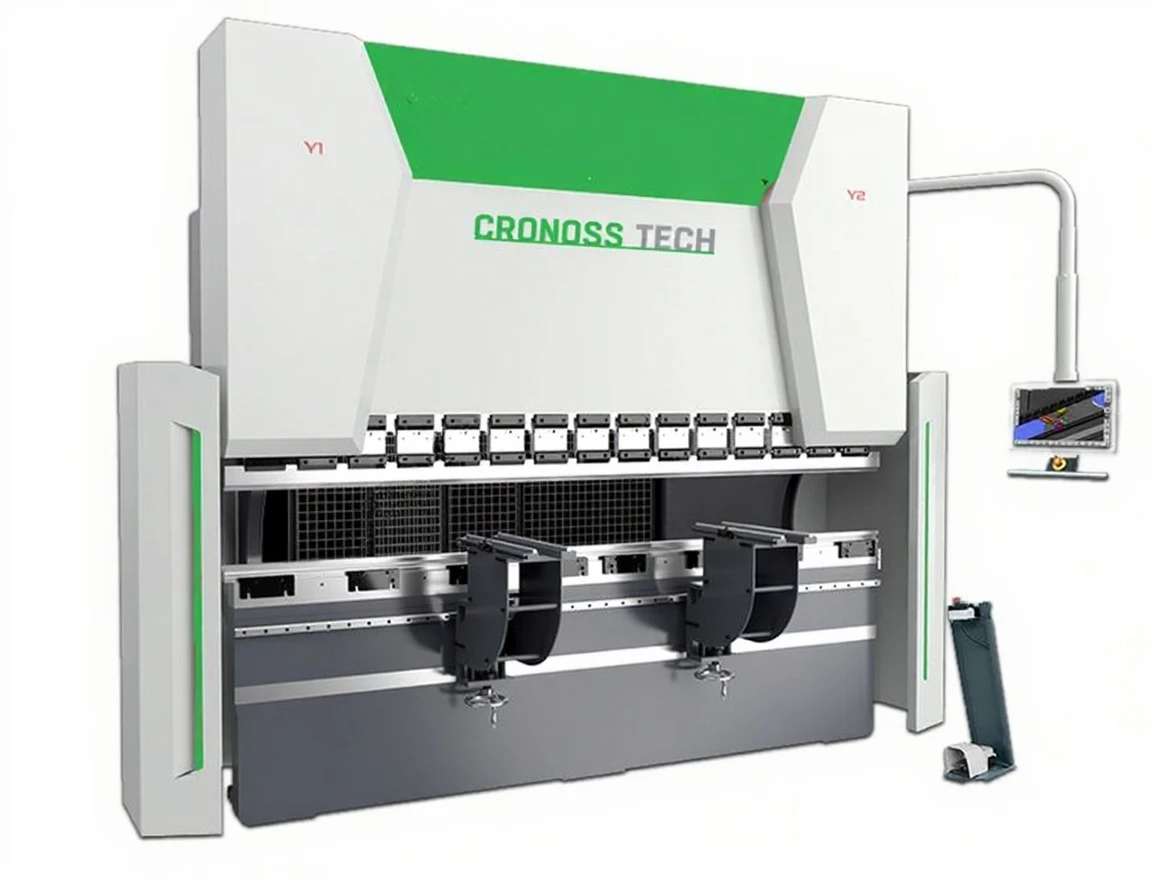

3 Meter X 220 Ton – Hydraulic Press Brake
| Brand | Cronosstech |
|---|---|
| Model Type |
HPB 220 / 3100 |
HPB [ PHONE HIDDEN ] – CNC HYDRAULIC PRESS BRAKE
STANDARD FEATURES
-
Y1, Y2, X, R 4 Axis CNC Control (X + R Servo)
-
ESA S650 CNC Control Unit
-
Servo motorized back support – ±0.03 mm precision
-
X axis: 750 mm
-
R axis: 250 mm
-
-

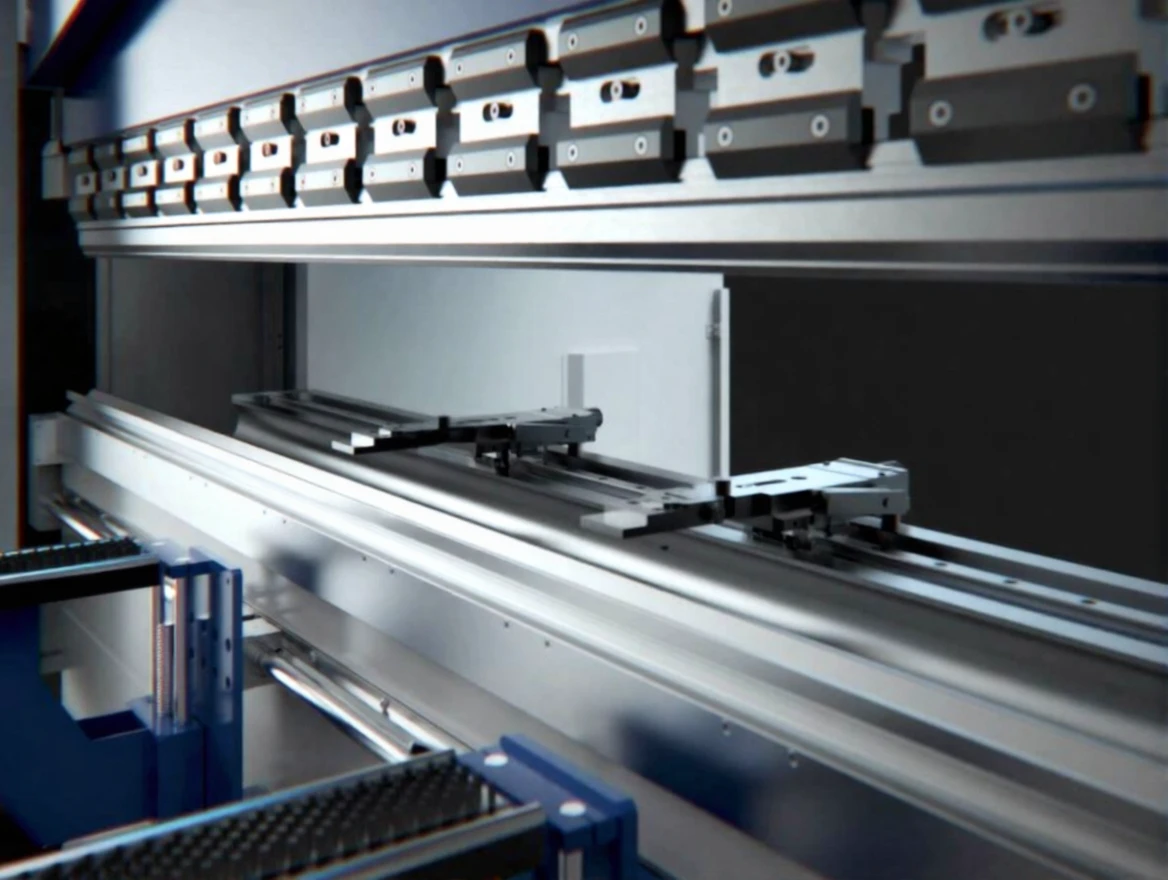

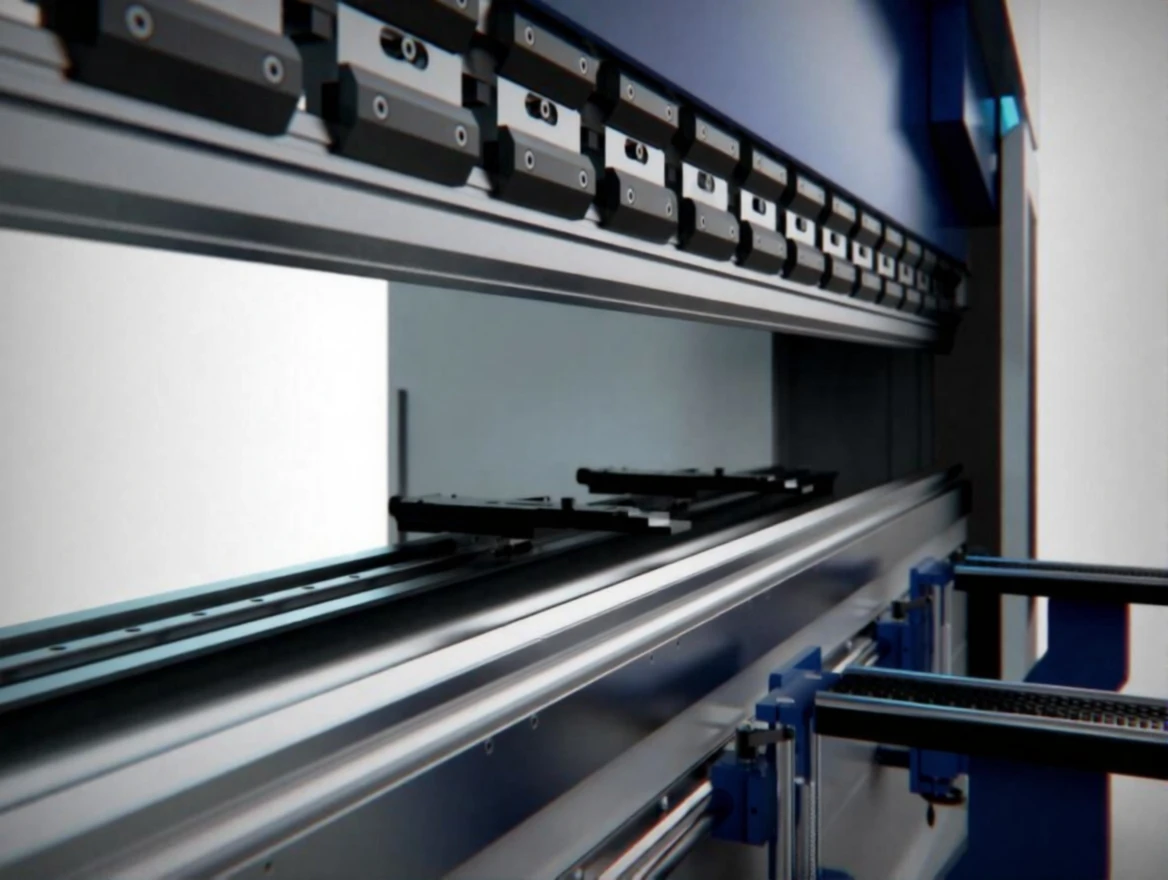

European type Promecam quick die clamping system
-
Sliding type front support system
-
Manual crowning system (Original WILA cam)
-
Narrow lower table (European type)
-
GIVI brand linear scales
-
Standard upper die (H: 67 mm, R: 0.8)
-
Standard lower die
(60×60 mm, 4 channel – V: [ PHONE HIDDEN ] mm, H: 60) -
LED working area lighting
-
Safety equipment compliant with CE standards
OPTIONAL FEATURES
-
Starting from 4 axes 6 or 8 axis CNC back support
-
ROLLERI Roll200 hydraulic die clamping
-
WILA hydraulic upper & lower die clamping
-
For multi-channel dies wider lower table
-
Back support X distance: 1000 mm
-
AKAS or DSP laser beam front safety system
-
Additional back support fingers
-
Additional back support tongue
TECHNICAL SPECIFICATIONS
| Feature | Value |
|---|---|
| Bending Force | 220 Ton |
| Bending Length | 3100 mm |
| Distance Between Side Frames | 2600 mm |
| Stroke | 310 mm |
| Jaw Opening | 515 mm |
| Throat Depth | 410 mm |
| Table Height | 940 mm |
| Descending Speed | 180 mm/s |
| Pressing Speed | 10 mm/s |
| Return Speed | 140 mm/s |
| Oil Tank Capacity | 290 lt |
| Main Motor Power | 18.5 kW |
| Machine Weight | 11,300 kg |
| CNC Control Unit | ESA S640 / S650 |
| Number of CNC Axes | Y1 – Y2 – X – R (4 Axes) |
| Back Support X Distance | 750 mm |
| Back Support R Distance | 250 mm |
| Crowning | Manual (WILA cam) |
| Safety System | Laser front safety |
| Origin | Turkey |
🔒 PRODUCTION NOTE (FIXED USE)
This machine is manufactured in Turkey under OEM production and the supply, configuration, commercial management, and after-sales processes are managed by CRONOSS TECH.
