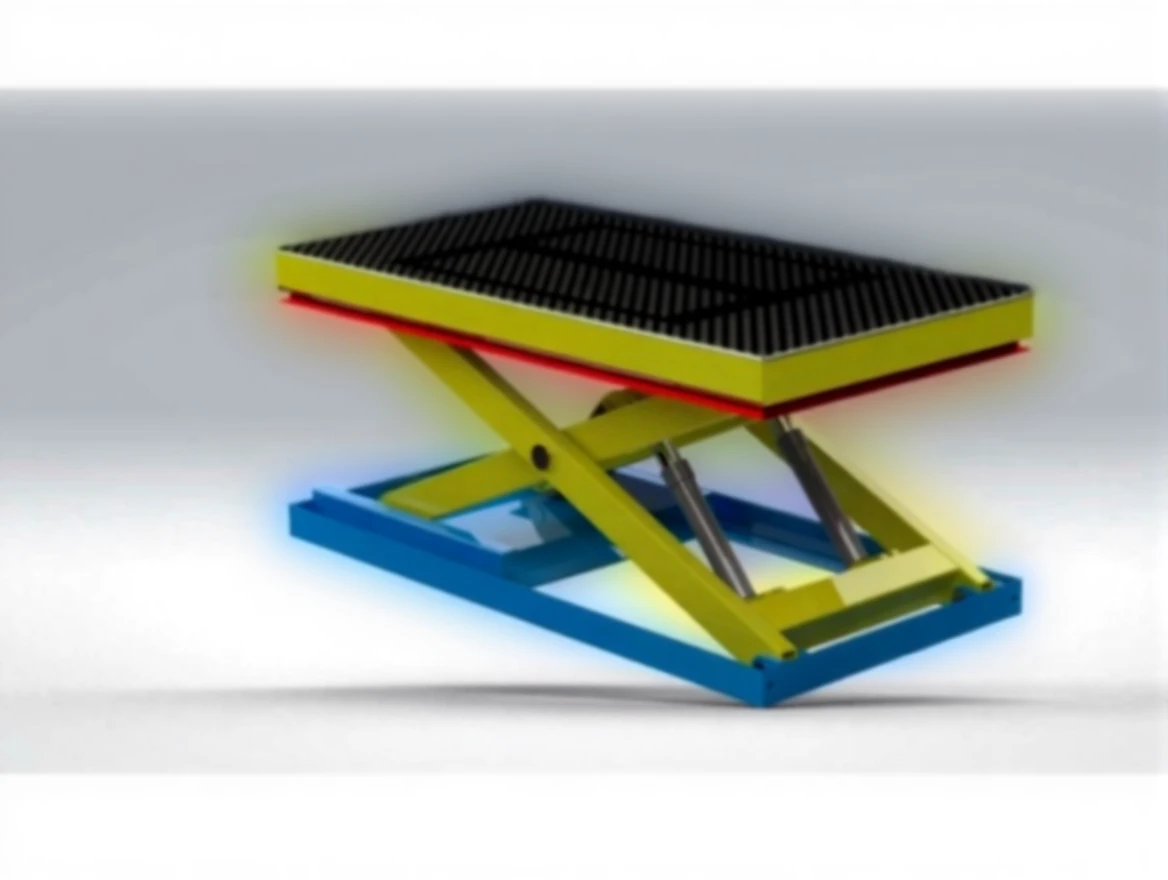

3 Ton Hydraulic Scissor Lift Platform
| Brand | Expert Lifting |
|---|---|
| Model Type |
ERL-3 |
Description
Expert Lifting ERL-3 3 Ton Scissor Hydraulic Cargo Platform
GENERAL FEATURES
Scissor cargo platforms are designed and manufactured in dimensions required by companies
Product variety ranging from 20 kg to 10,000 kg capacity in desired intervals as standard
Hydraulic hoses resistant to high pressure
Hydraulic cylinders made of honed steel tubes and chrome-plated mild steel
Products produced according to EN 1570-1 standards and CE certified with type approval
IP54 protection class electrical installation
By-pass return line for overload protection in the hydraulic unit
Safety barrier to prevent jamming under the platform
Additional safety with hose burst valve against hydraulic hose deformations
Low maintenance cost with roller bearings in moving parts that do not require lubrication
Mounting connections for transport operation
Internal safety arm to be activated in case of breakdown & maintenance operations
Optional rotating, sliding or tilting table on the platform according to the need
Option of safety accordion or telescopic sheet barrier around the scissor
Optional pneumatic mechanical step lock system
|
PRODUCT NAME
|
HYDRAULIC RECEPTION LIFT
|
|---|---|
|
PRODUCT CODE
|
ERL-3
|
|
MAX.LIFTING CAPACITY
|
3 TON
|
|
WORKING SYSTEM
|
ELECTRO HYDRAULIC
|
|
LOCKING SYSTEM
|
ELECTROMAGNETIC OR PNEUMATIC
|
|
CLOSED HEIGHT
|
110 mm
|
|
MAX.HEIGHT IN OPEN POSITION
|
1000 mm
|
|
PRODUCT DIMENSIONS
|
1845 X 1950 X 110 mm
|
|
PRODUCT WEIGHT
|
400 KG
|
|
MOTOR / ELECTRIC
|
2.2 KW – 220 / 380 VAC
|
