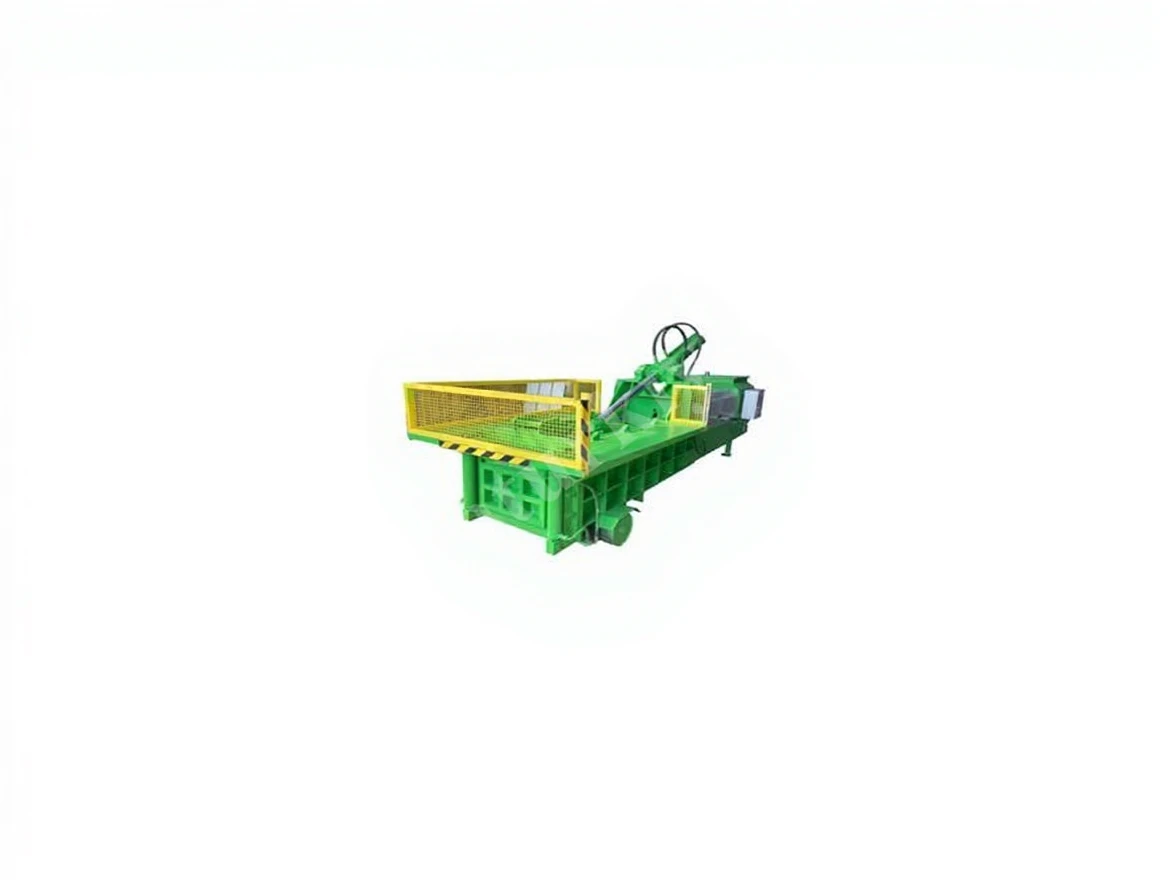

3 Ton Metal Waste Baler Press

A scrap press machine in the "very powerful" body category that compresses waste such as metal and aluminum.

• Bale size: 400×600 mm

• Chamber size: 1350x600x650 mm

• Cycle time: 90 sec (idle)

• Hydraulic cylinders: 1 x main cylinder 200-230 h pipe shaft 120 mm chrome shaft. 1 x top cover cylinder 160-185 h pipe 100 chrome shaft. 2 x 70-85 h pipe 40 chrome shaft.

• Press Force: Upper piston 80 tons, lower piston 120 tons. (total 200 tons)

• Control: Manual

• Motor power: 11 kw (optional 22 kw)

• Pump: 71 cc variable displacement piston pump, 275 bar operating pressure.

• Capacity: 3 tons per hour (may vary depending on the material being pressed).

• Press Body: ST52 ST37 steel plates hardox 450 wear plate chamber mouth 4-way 55-58HRC blade

• Machine Dimensions: 5500x1400x2400

• Machine weight: Average 5000 kg
