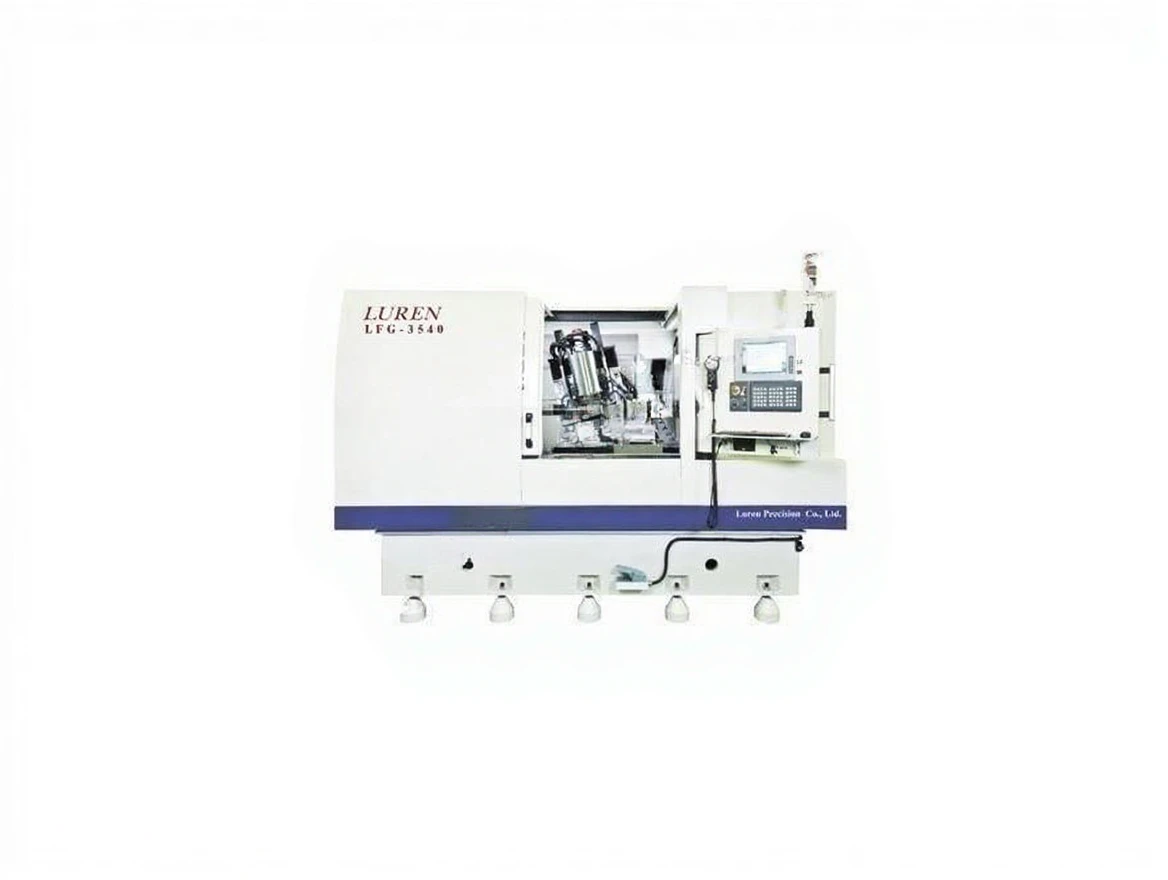

Ø 30-250 mm Gear Grinding Machine

Luren LFG-2540

Ø 30-250 mm Gear Grinding Machine

PRODUCT FEATURES:

LFG-2540 LFG-3040 LFG-3540 MIN./MAX.

WORKPIECE DIAMETER Ø30 / Ø250 mm Ø30 / 400 mm Ø30 / Ø400 mm

HELIX ANGLE ±35° ±35° ±45° MIN./MAX.

CENTER DISTANCE 80 / 800mm 80 / 800mm 80 / 1260mm MAX.

GRINDING SLIDE MOVEMENT 250mm 450mm 270mm MIN./MAX.

GRINDING WHEEL DIAMETER 200/320mm 260/400mm 210/320mm MAX.

WHEEL SPEED 6000rpm 6000rpm 6000rpm MAX.

WHEEL WIDTH 30mm 30mm 40mm

WHEEL MOTOR 17kw 17kw 17kw

VOLTAGE 220V 220V 220V FANUC 21I-TB

LENGTH X WIDTH X HEIGHT 3620 x 3800 x 2200mm 4000 x 3500 x 2300mm 3836 x 4074 x 2443mm

WEIGHT 7000kg 7000kg 8000kg

**Comes with Fanuc Control Unit and Standard Accessories.
