30-75 A Plasma Cutting Machines
| Brand | Ex-Trafire |
|---|---|
| Model Type |
75SD |
Description

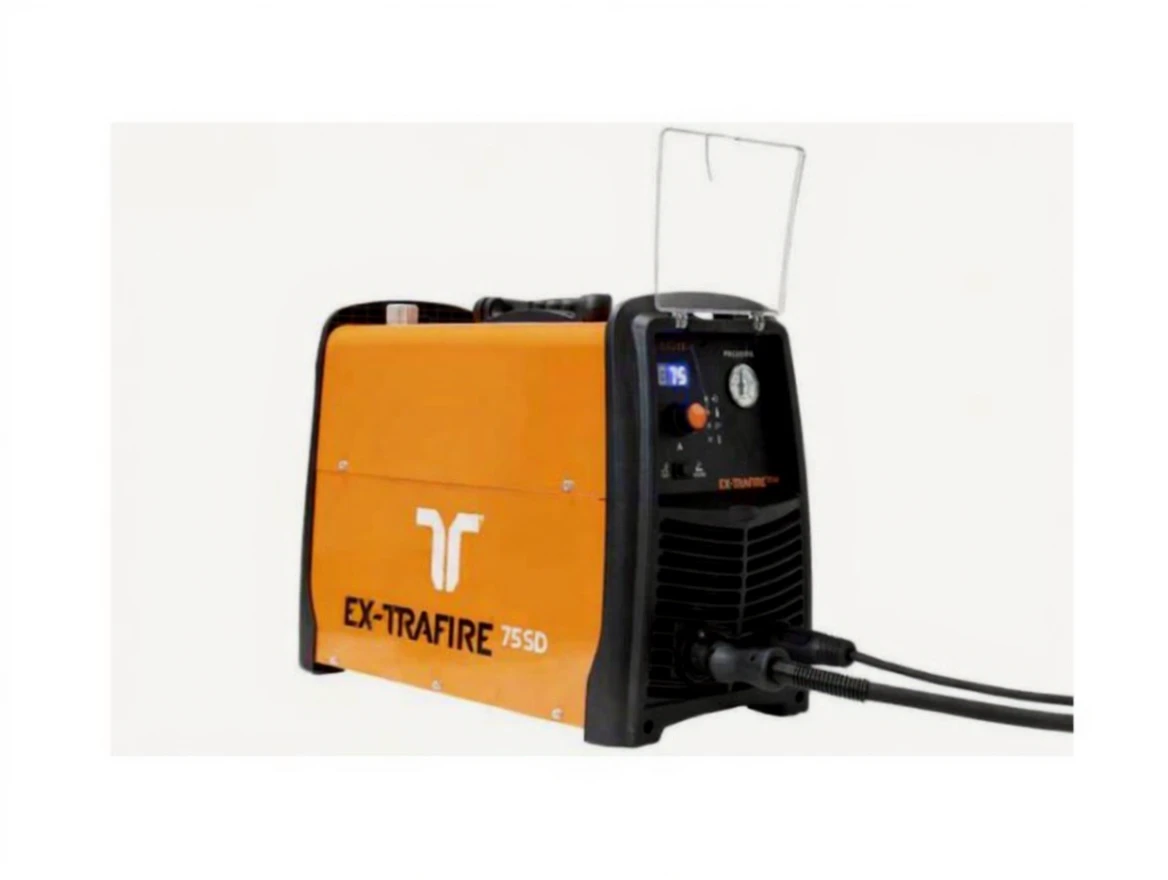

Ex-Trafire 75SD Plasma Cutting Machine
30-75 A 75SD Plasma Cutting Machine
Cutting Capacity
Severans [mm]: 35 (1)
Recommended [mm]: 25 (1)
Drilling [mm]: 20 (1)
Cutting Current
Recommended [mm]: 25 (1)
Drilling [mm]: 20 (1)
Cutting Current
It provides flexible usage with its cutting current varying between 30–75A.
Duty Cycle (40°C / 170V):
Duty Cycle (40°C / 170V):
100% @75A
Exit
Exit
Nominal Voltage [V]: 170
Extra Boost [V]: 220
Entrance
Extra Boost [V]: 220
Entrance
Input Voltage (VAC) [V/Hz]: 3×400 ± 15% (2) 50/60 Hz
It operates with 3-phase 400V supply in accordance with the input power.
Compressor Air Flow:
It operates with 3-phase 400V supply in accordance with the input power.
Compressor Air Flow:
Provides sufficient airflow for cutting at 5.2 bar pressure at 110 lpm.
Machine Features
Machine Features
Dimensions (W×L×H) [mm]: 265x560x400
Weight [kg]: 24
Torch (Hand/Machine)
Weight [kg]: 24
Torch (Hand/Machine)
FHT-EX® 105 RTX provides flexibility to the user with hand and machine torch options.
Ex-Trafire 75SD Technical Specifications
Severance [mm] 35 (1)
Recommended [mm] 25(1)
Piercing [mm] 20(1)
Cutting current [A] 30–75
DUTY CYCLE (40°C / 170V)
100% @75A
OUTPUT (VDC)
Nominal Voltage [V] 170
Extra Boost [V] 220
INPUT
Recommended [mm] 25(1)
Piercing [mm] 20(1)
Cutting current [A] 30–75
DUTY CYCLE (40°C / 170V)
100% @75A
OUTPUT (VDC)
Nominal Voltage [V] 170
Extra Boost [V] 220
INPUT
Voltage (VAC) [V/Hz] 3×400±15%(2) 50/60
Compressed air flow [lpm/bar] 110/5.2
Pressure (max.) [bar/psi] 10/145
MACHINE DATA
Dimensions W×L×H [mm] 265x560x400
Weight [kg] 24
TORCH (HAND/MACHINE)
FHT-EX® 105 RTX
Compressed air flow [lpm/bar] 110/5.2
Pressure (max.) [bar/psi] 10/145
MACHINE DATA
Dimensions W×L×H [mm] 265x560x400
Weight [kg] 24
TORCH (HAND/MACHINE)
FHT-EX® 105 RTX
