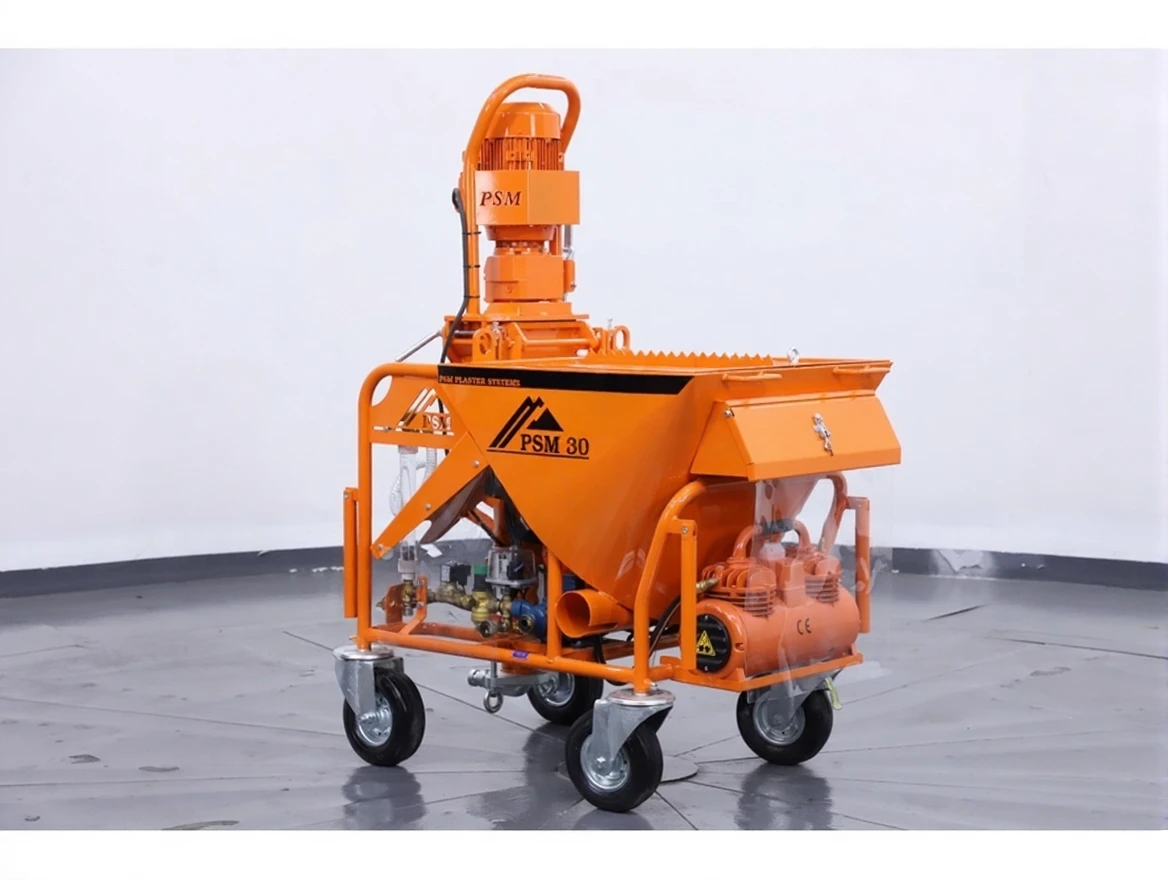

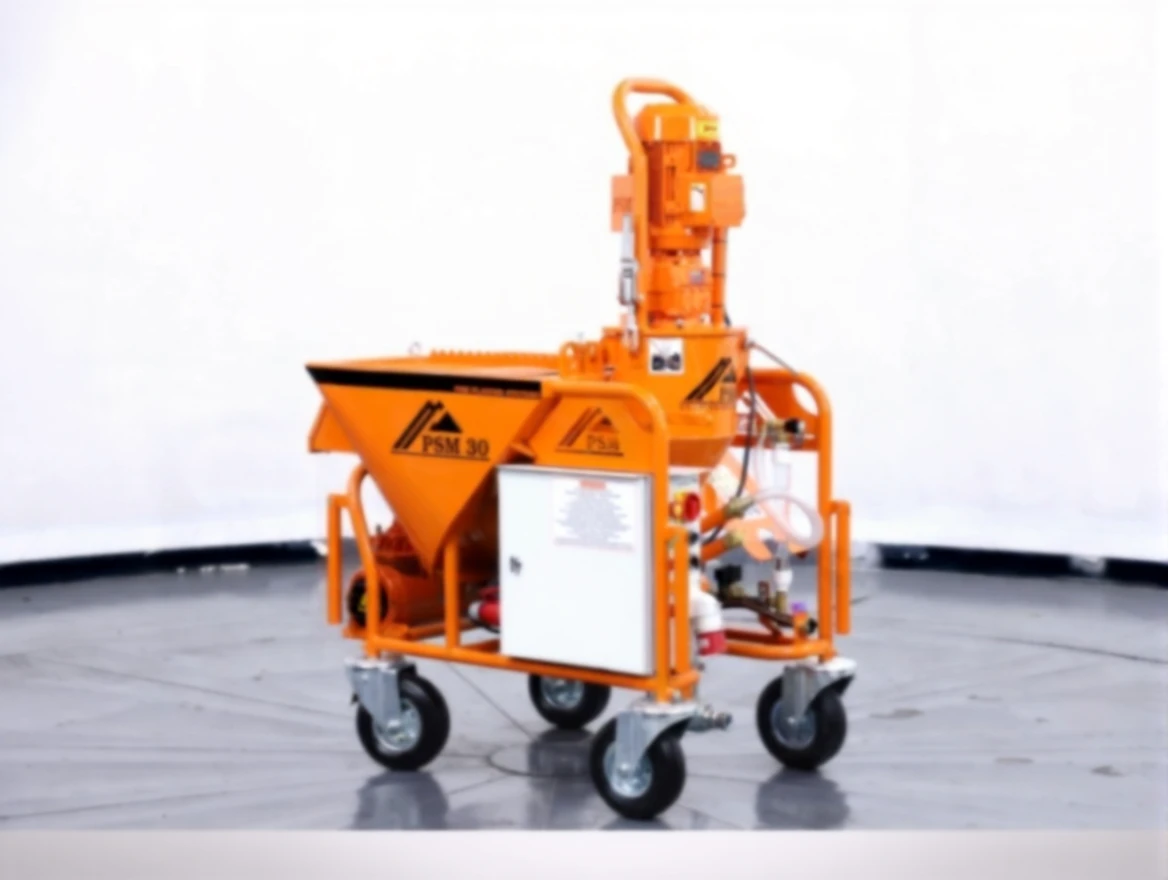

30 Bar 5.5 Kw Plastering Machine



The PSM 30, preferred by corporate companies and professional craftsmen, is a ready plaster machine operating at 380 V, favored in both domestic and foreign markets. The reason for its preference is its wide service network, the use of economical and durable spare parts produced by experienced technical personnel.



With its improved chassis and large tool box, the installation protected from dust and water with a spiral bearing and assembly unit, can be used for many years with minimal maintenance thanks to its advanced automation system, providing ease of use on construction sites.



The PSM 30, which operates with 380 V electricity, is a high-performance ready plaster machine that continuously and fully automatically mixes, pumps, and sprays all kinds of ready dry mixture materials based on plaster in a homogeneous state.



● Pumping Capacity: 20 l/min

● Pumping with Different Pump

Capacity: 6-35 l/min

● Pumping Pressure: 30 bar

● Pumping Distance (Horizontal): 40

m (Max)

● Operation: 380 V, 50 Hz

● Pump Motor: 5.5 kW

● Mill Motor: 0.55 kW

● Main Power Cable: 4*4 mm²

● Protection Fuse: 3*32 A

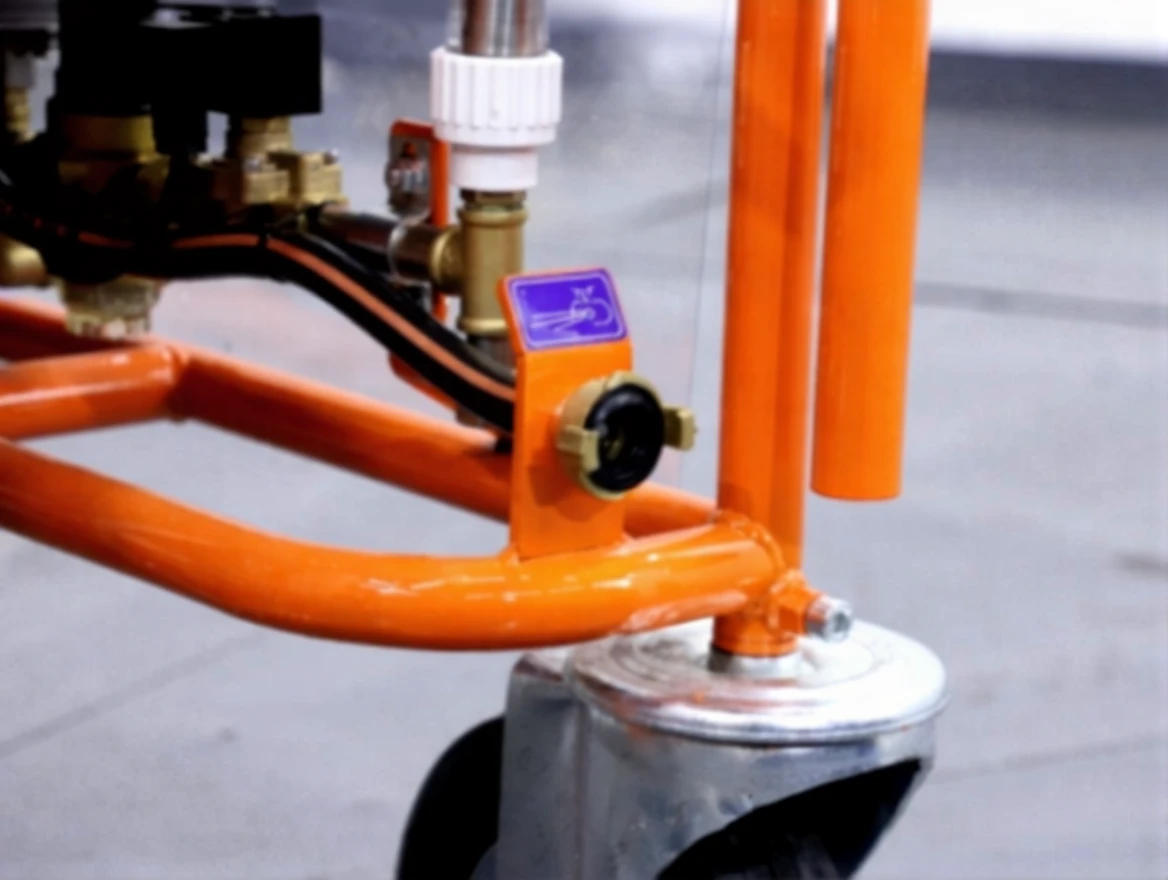

● Water Connection: 3/4"

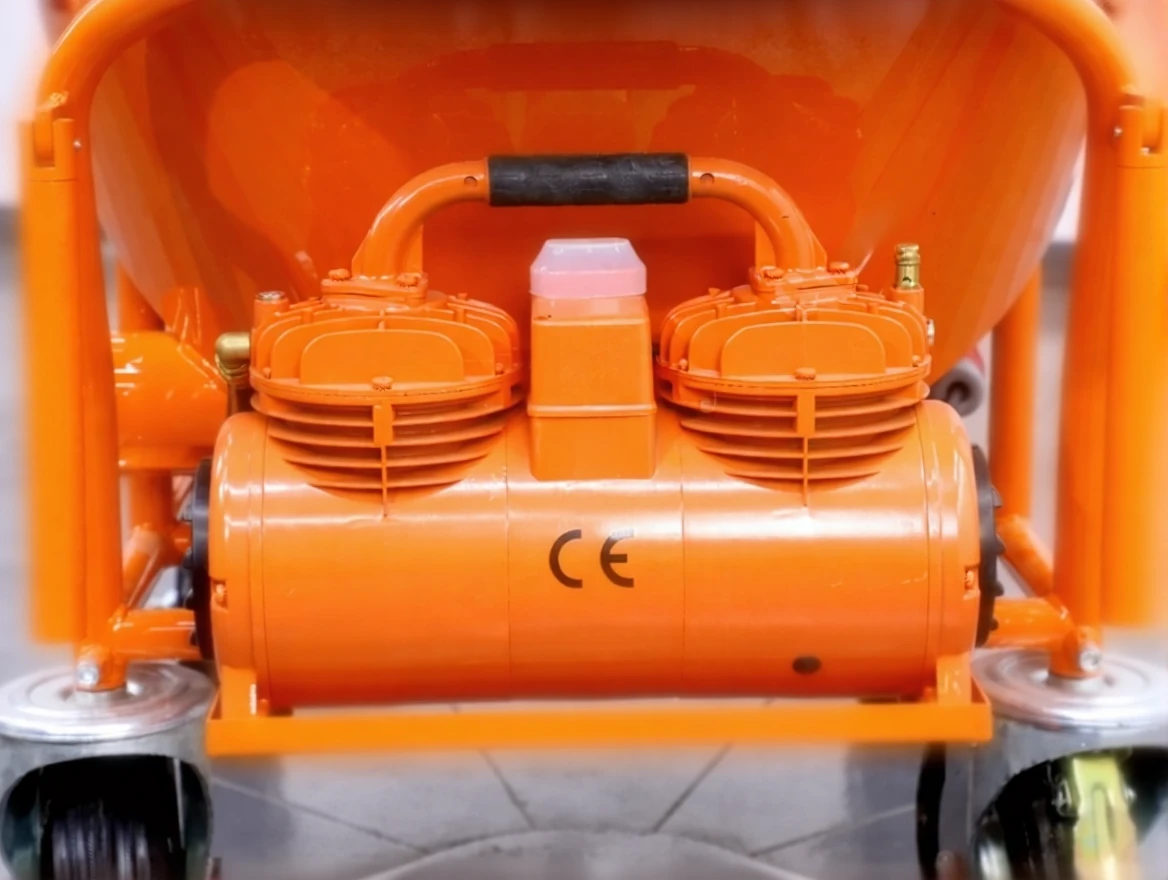

● Compressor Capacity: 0.9 kW, 250

l/min

● Remote Control: Pneumatic

● Pumping Hose: Ø 25 mm

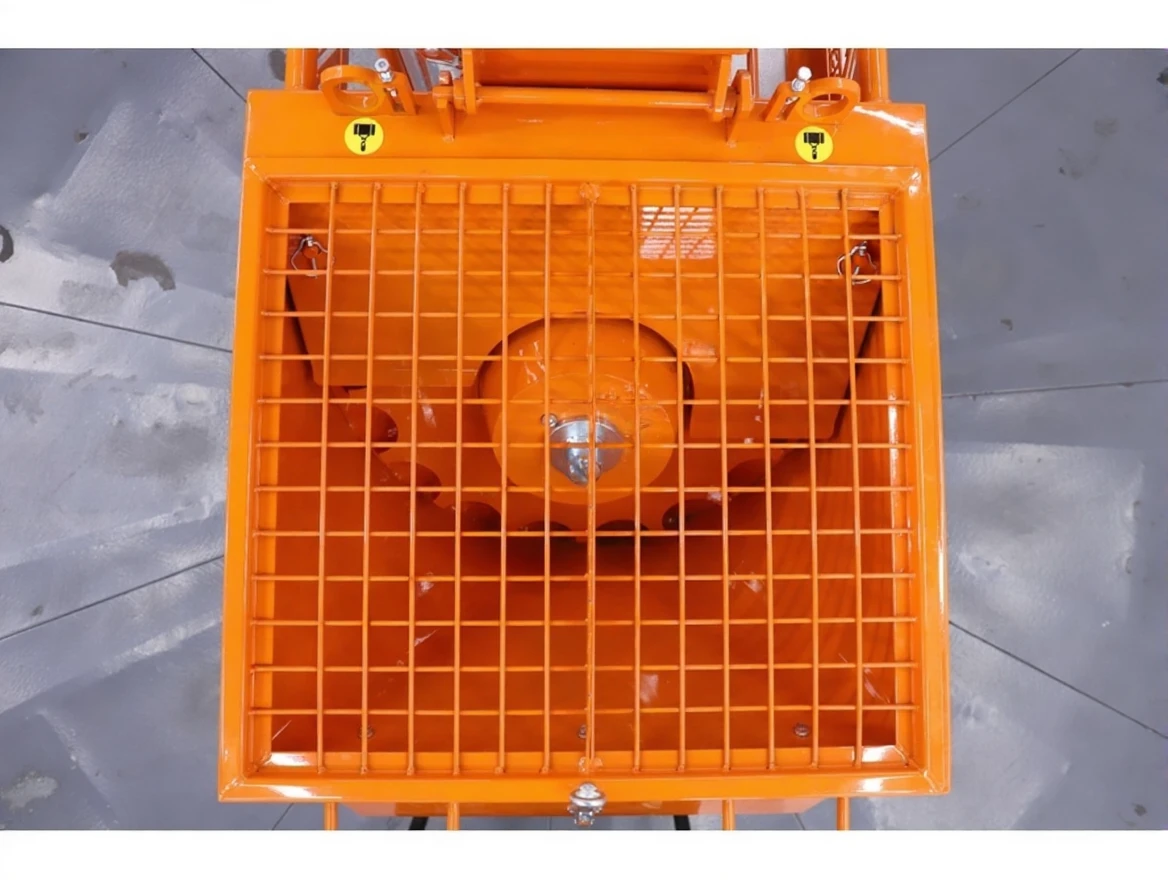

● Boiler Capacity: 150 l

● Length: 1250 mm

● Width: 750 mm

● Height: 1620 mm

● Loading Height: 950 mm

● Weight: 320 kg

ERROR-FREE ROBOT WELDING ON CHASSIS
LONG-LASTING INDUSTRIAL POWDER COATING
SYNTHETIC OIL AND FELT MOTORS
ANTI-BLOCKAGE SYSTEM, ITALIAN SEA LAND WATER MOTOR
EATON GERMAN PHASE PROTECTION RELAY

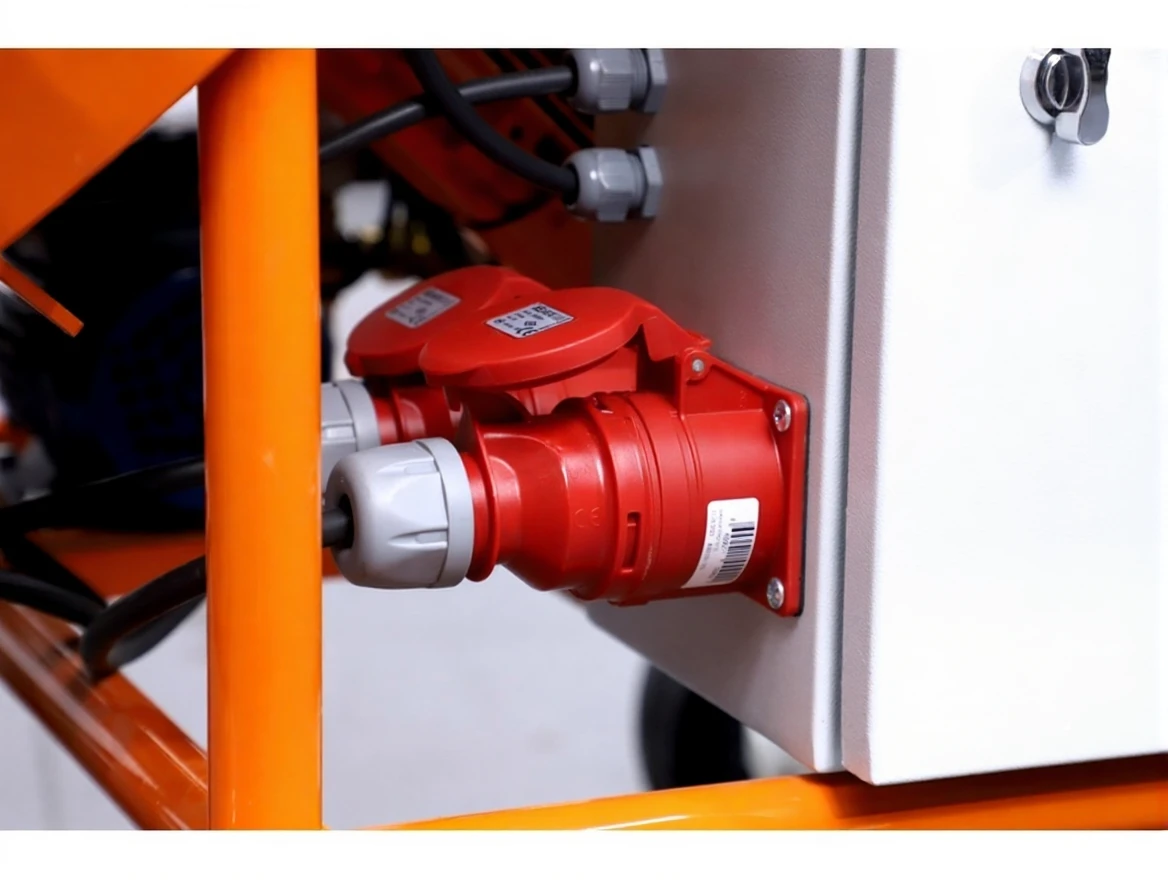

SCHNEIDER GERMAN LARGE MACHINE SOCKET

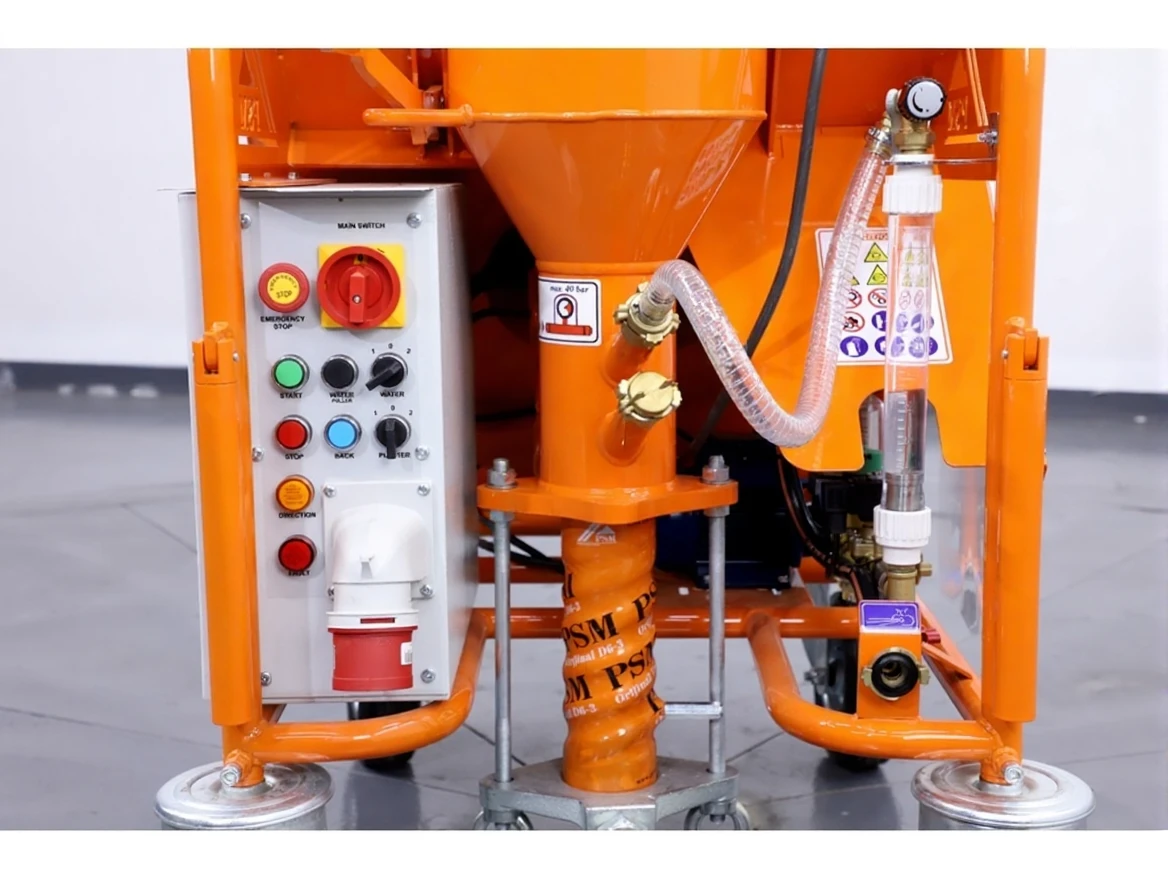

EATON GERMAN SILICONE PROTECTED BUTTONS
5X4 ELECTRIC CABLE
28MM DIAMETER MORTAR HOSE

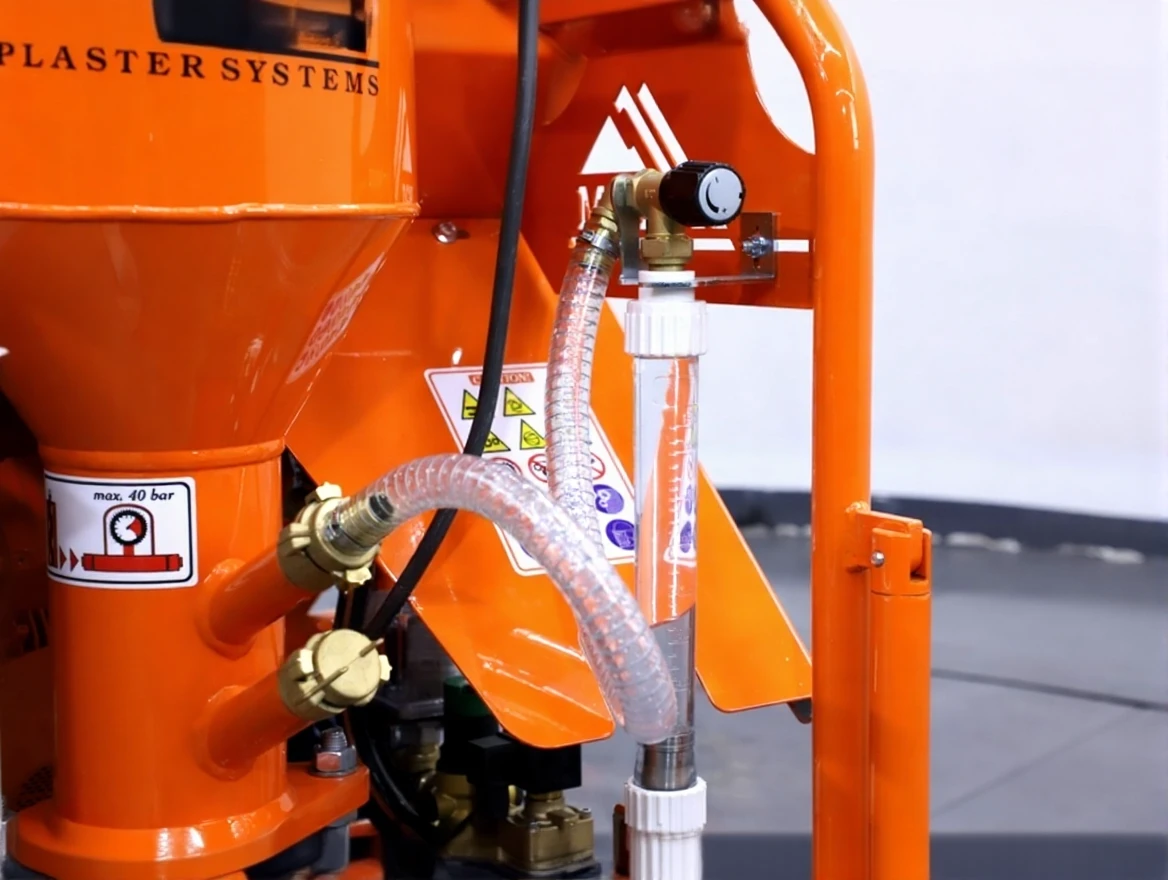

PRECISION ADJUSTABLE, 11 TURN FLOW METER
EASILY DISMANTLED AND INSTALLED COMPLETE YELLOW MATERIAL INSTALLATION
MACHINE TEST CONTROL REPORT
COMPLIANCE REPORT WITH INTERNATIONAL REGULATIONS
DEVICE SAFETY AND COMPLIANCE REPORTS
2 YEAR WARRANTY
