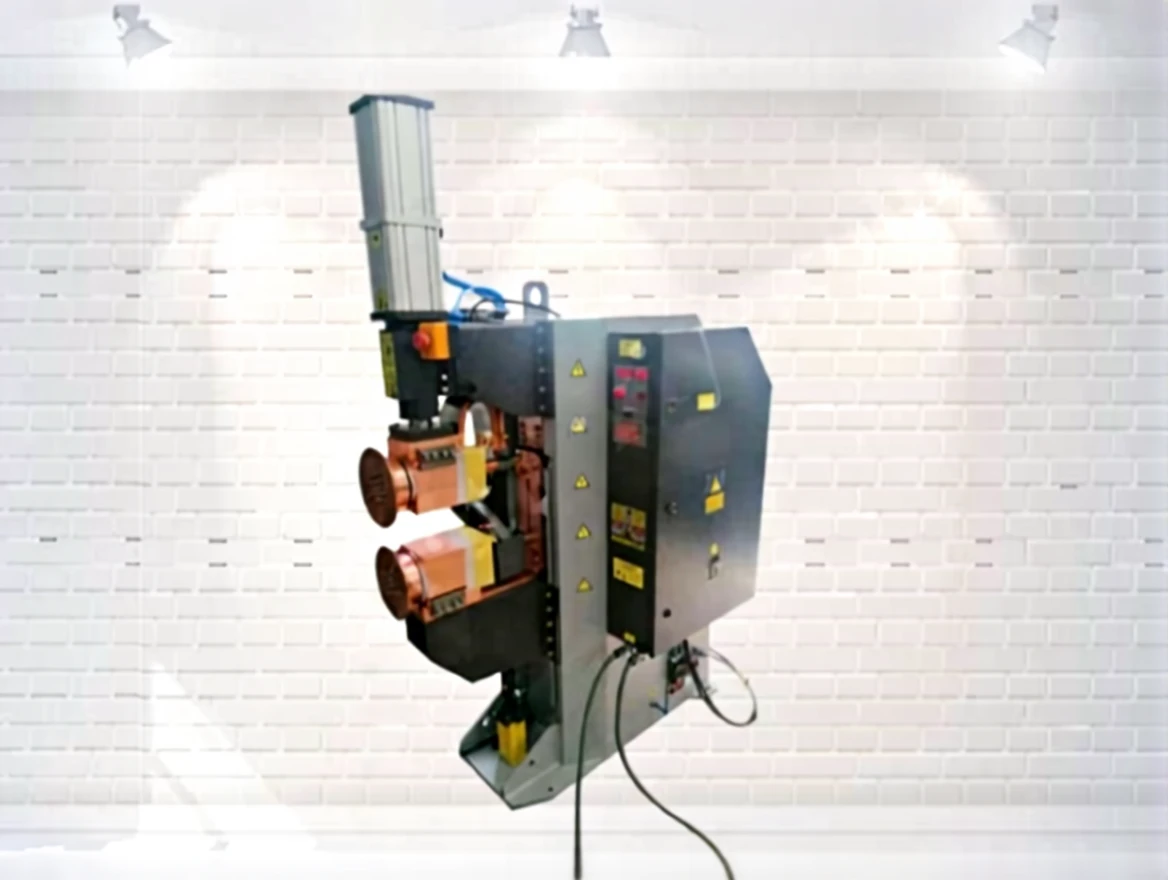

30 kVA Seam Point Welding Machine

Fast Machine FMDP – 30KVA 30 KVA Stitch Spot Welding Machine provides a durable and high-performance solution. With its 30 KVA nominal power and advanced features, it ensures quality and fast results in various metalworking processes. This machine meets the demands for reliability, speed, and efficiency, especially in metal joining tasks.

Technical Specifications

• Nominal Power (%50): 30 KVA
• Nominal Current: 75 A
• Secondary Voltage: 5.5 V
• Arm Size: 300 mm
• Piston Diameter: Ø80 mm
• Electrode Pressure Force: 300 daN
• Air Pressure: 2/8 bar
• Cooling Water Inlet Pressure: 2/5 bar
• Cooling Water Inlet Temperature: 15/25 °C
• Cooling Water Inlet Flow Rate: 15 lt/min
• Delayed Network Fuse: 63 A
• Power Supply Cable (up to 5 meters): 2×16+6
• Machine Dimensions (ExBxY): 720 x 1280 x 1950 mm
• Weight: 400 kg
