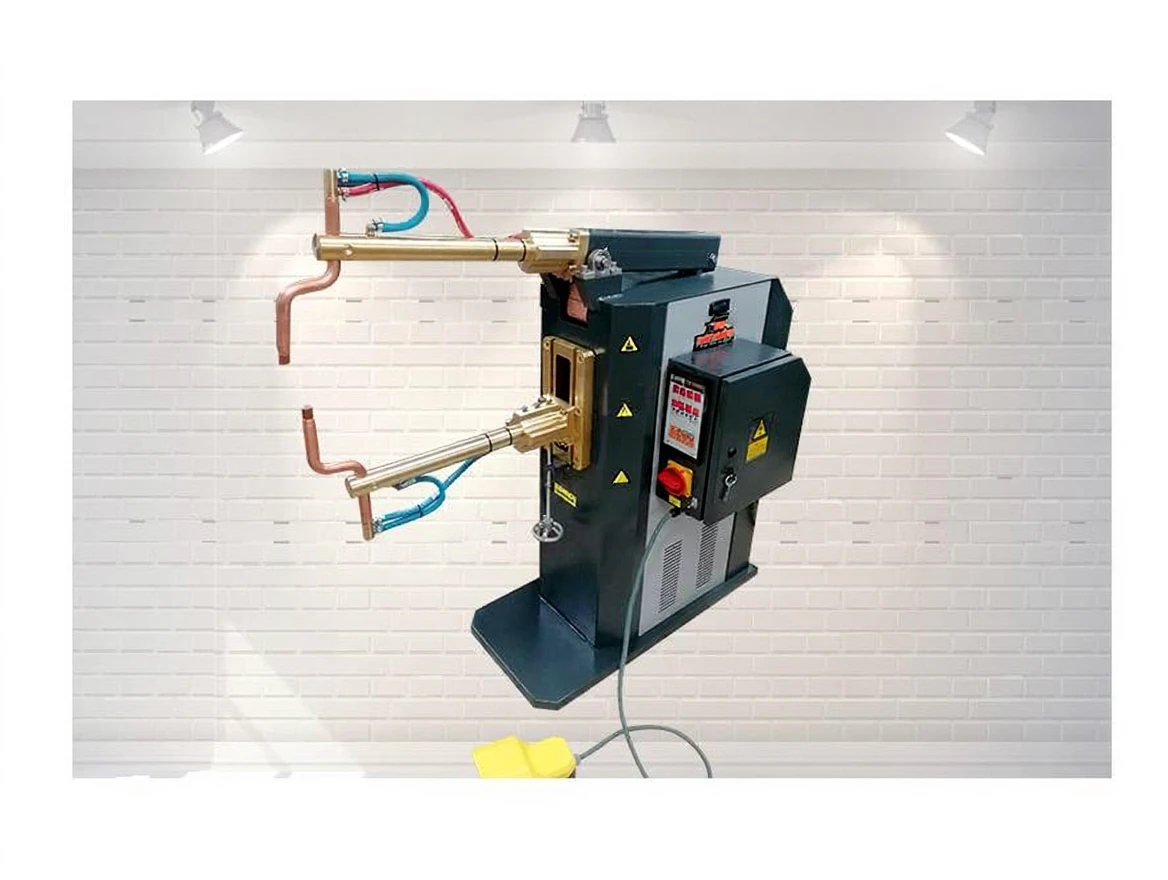

30 kVA Steel Furniture Type Pneumatic Spot Welding Machine
| Brand | Fast Makina |
|---|---|
| Model Type |
FMCET – 30KVA |
Fast Makina FMCET – 30KVA 30 kVA Steel Goods Type Pneumatic Spot Welding Machine
Pneumatic, microprocessor, water-cooled 2 phase 400v/50Hz Steel Goods Type Spot Welding Machines
Usage areas:
Ventilation
Household appliances
chandelier products
Electric heaters and stoves
billboard makers
shelf industry
* Special electrodes are made on the machine according to the work to be done.
FMCET – 30KVA Technical Specifications
|
|
FMCET – 30KVA |
|
|---|---|---|
|
Rated power |
30 KVA |
|
|
Rated current |
75 A |
|
|
Secondary voltage |
5.5 V |
|
|
Arm size |
600 mm |
|
|
Piston diameter |
ø80 |
|
|
Electrode pressure force |
850 daN |
|
|
Air pressure |
2/8 bar |
|
|
Cooling water inlet pressure |
2/5 bar |
|
|
Cooling water inlet temperature |
15/25 §C |
|
|
Cooling water inlet flow rate |
15 lt/dk |
|
|
Delayed mains fuse |
80 A |
|
|
Supply cable (up to 5 meters) |
2×16+6 |
|
|
Machine dimensions(WxLxH) |
600x1400x1500 |
