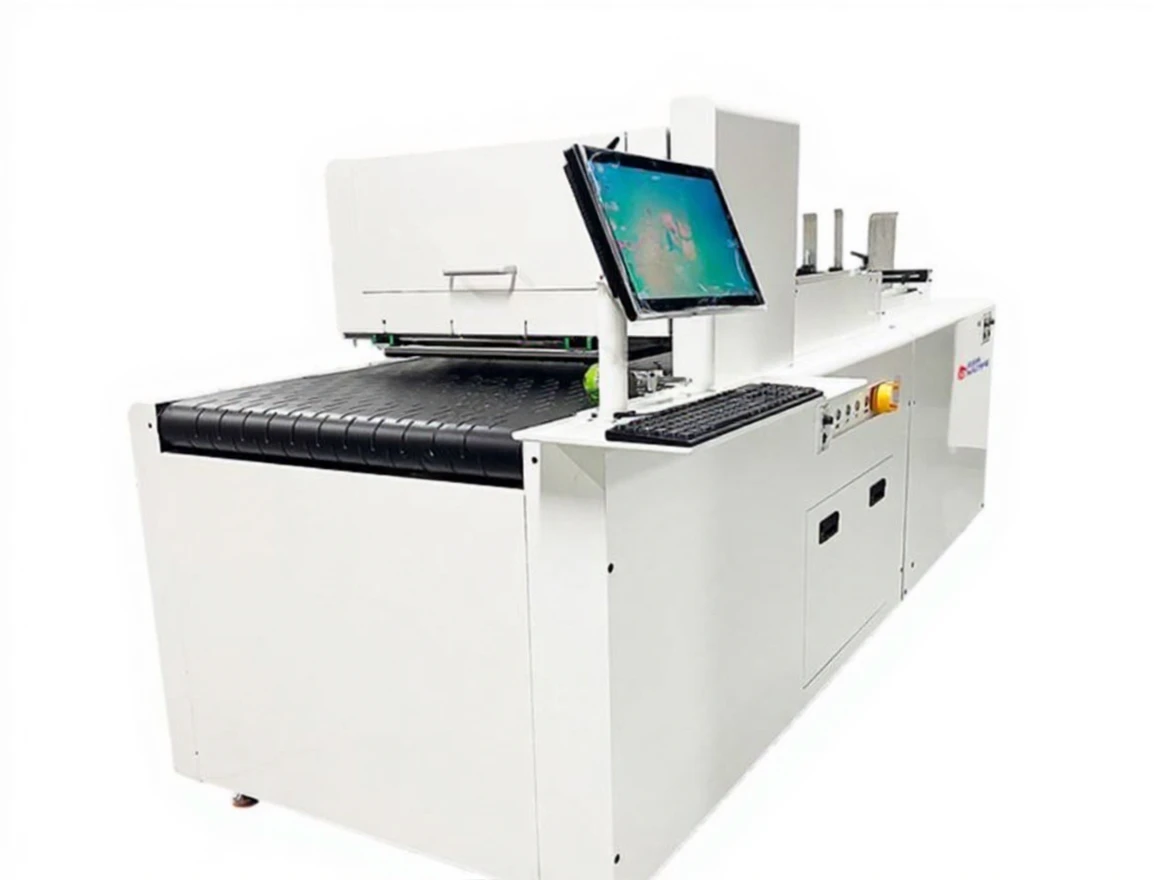

30 M./Min. Print Speed Single Pass Color Digital Printing Machine

Transform your print with a single pass printer
We present Sura Machine's single pass printer
A state-of-the-art solution for efficient, high-quality digital printing across a wide range of materials. Ideal for packaging, textiles, and other industries, this printer offers unmatched flexibility and cost savings.

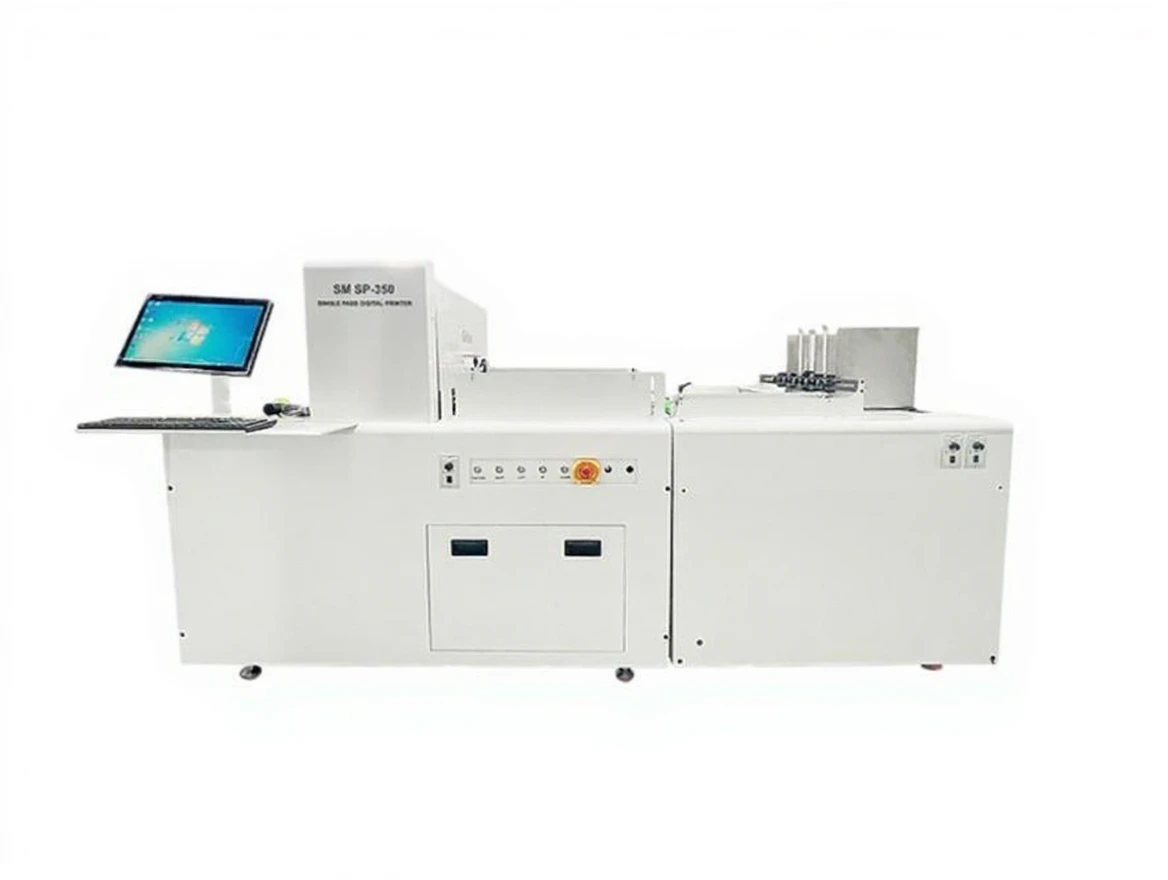

Sura Machine SM SP-350 Key Features

Single pass digital printing: No need for molds, clichés, or gravures. Save time and money by easily switching between designs for one-off or series production.
Low printing cost: Print at a low cost of just $0.027 per square meter.
Industrial print heads: Equipped with HP large format industrial print heads supporting up to three print heads for a maximum print width of 620 mm. OEM size customization is available.
Labor savings: Operated by a single person, requires no technical skills.
High speed: Print up to 30 meters per minute with an automatic conveyor belt and vacuum table, producing over 30,000 printed boxes per hour.
Precise printing: An infrared sensor ensures accurate printing by determining the precise position of incoming products. Eco-friendly ink: Uses eco-friendly, water-resistant, water-based, quick-drying ink for printing.

Sura Machine SM SP-350 Technical Specifications

Print Heads: HP Industrial Large Format Print Heads 1–3 Maximum Print
Height: 200 mm (7.82 inches)
Print Width: A4: 8.46 inches – 25.39 inches (214.8×644.90 mm)
A3: 11.81 inches – 35.43 inches (299.97×899.92 mm)
Material/product width: Up to 47.24 inches Color
System: CMYK (4 colors)
Print Resolution: 1200×300/1200×600/1200×1200 dpi Printer
Dimensions: A4: 59 x 33.5 x 51.6 inches – 65 x 60.2 x 70.1 inches
A3: 59 x 33.5 x 51.6 inches – 65 x 60.2 x 70.1 inches
Machine Weight: Net weight ranges from 300 kg to 450 kg

Gross weight ranges from 400 kg to 550 kg. (Varies depending on the number of print heads and additional options).

Ink feeding system: Water-based/pigment ink and continuous ink supply system (CISS), with 3000 ml tanks per color.

Operating conditions: Temperature: 15°C-30°C (59°F-86°F)
Humidity: %30-%70
Voltage: AC 220V (±10%), 50Hz, 1kW (max.)
Noise level: 70dB(A)

The single pass printer is versatile and can print on:
Cardboard boxes and corrugated boxes
Pizza boxes
Non-woven materials
Bags
and fabric bags
Canvas and cotton bags
Wooden boards
Paper and cardboard

Disposable paper cups

Egg cartons and more
