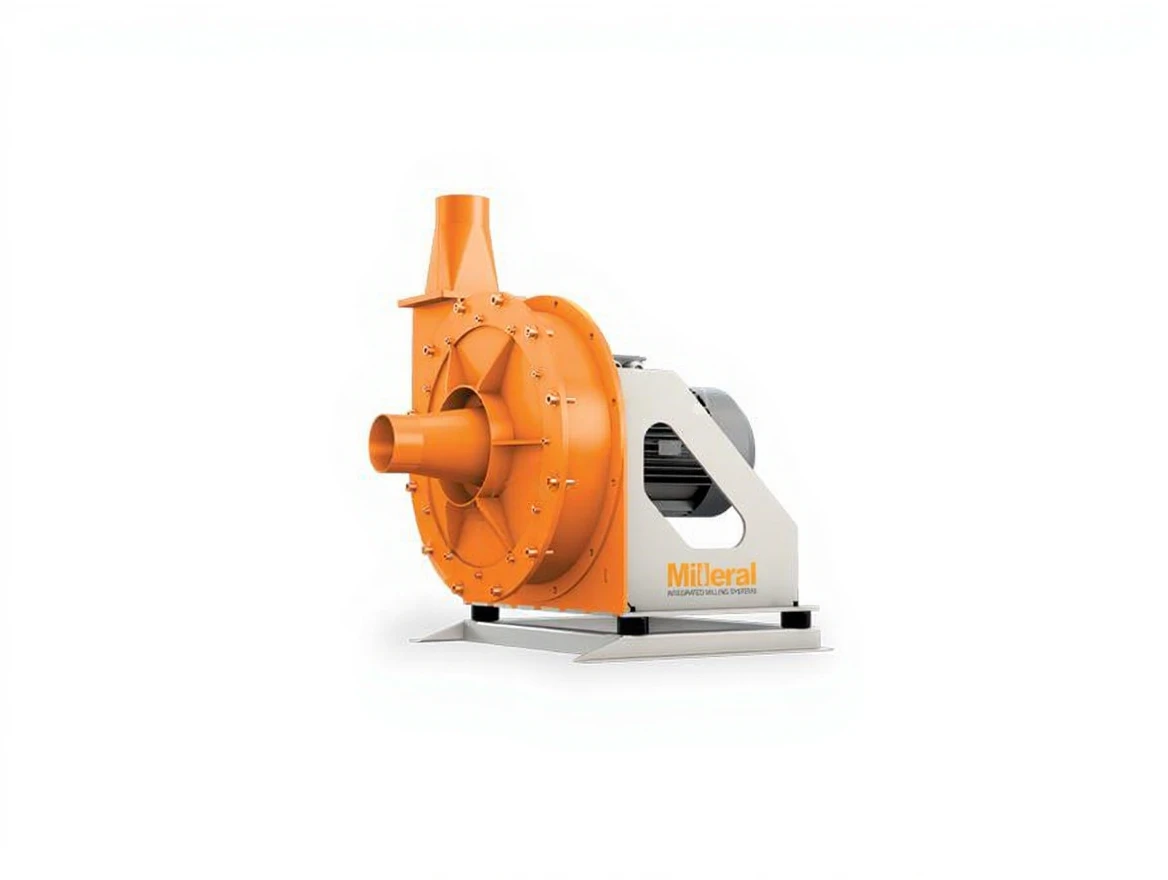

30 Ton / Hour Larva Crusher
| Brand | Milleral |
|---|---|
| Model Type |
MLD-P 15 |
Description
Milleral MLD-P 15
30 Ton / Hour Larva Crusher
Milleral MLD-P 15 Technical Specifications

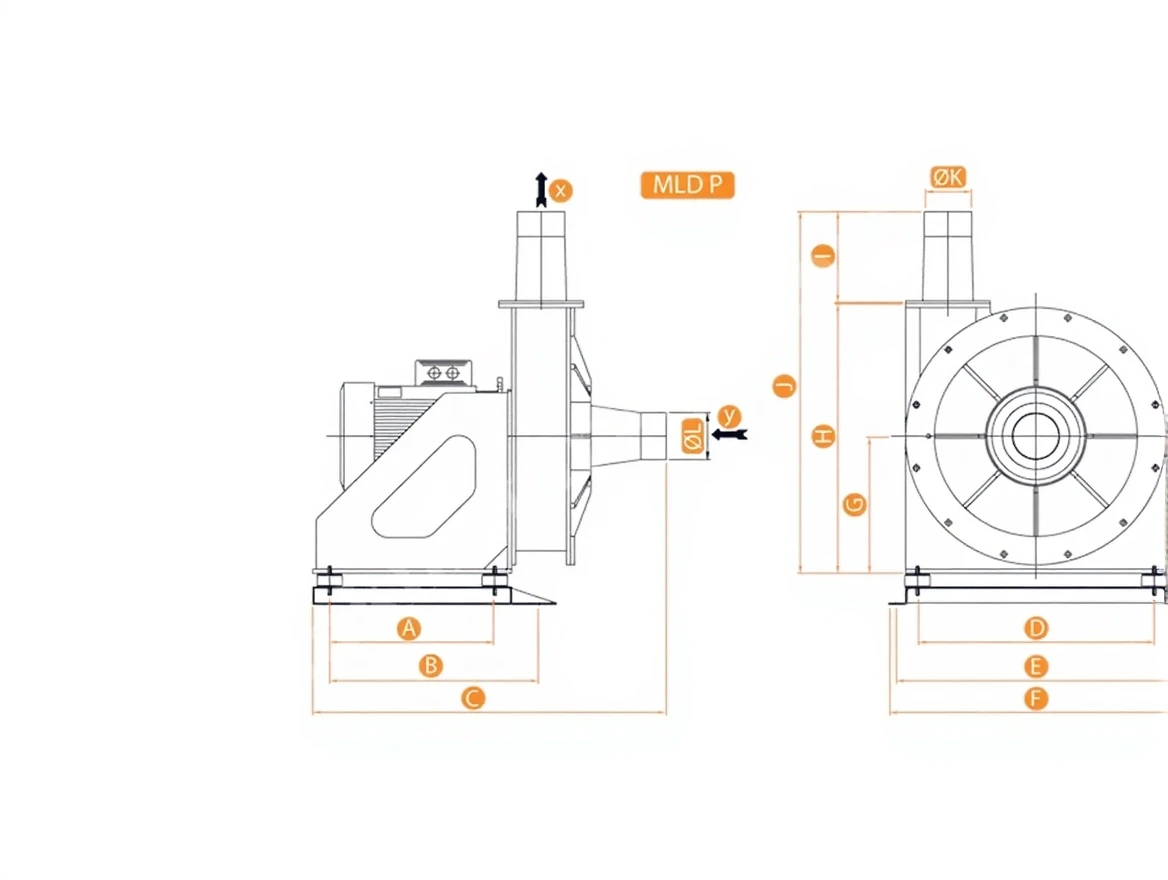

| Model | A | B | C | D | E | F | G | H | I | J | ØK | ØL | Motor (kw) | Capacity (t/h) | Weight (kg) |
| MLD-P 4 | 488 | 620 | 1015 | 700 | 830 | 870 | 410 | 807 | 275 | 1082 | 48-208 | 48-208 | 4 | 11 | 375 |
| MLD-P 8 | 8 | 18.5 | 400 | ||||||||||||
| MLD-P 12 | 12 | 22 | 425 | ||||||||||||
| MLD-P 15 | 1060 | 15 | 30 | 475 |
| Model | ØA | ØB | ØC | H | Motor | Capacity | Weight |
| MLD 5 | 665 | 150 | 150 | 1134 | 5.5 | 3-5 | 200 |
| MLD 7 | 7.5 | 5-7 | 215 | ||||
| MLD 11 | 740 | 1450 | 11 | 10-12 | 315 | ||
| MLD 15 | 15 | 12-15 | 350 | ||||
| MLD 18 | 850 | 1195 | 18.5 | 15-18 | 420 | ||
| MLD 22 | 22 | 18-20 | 450 |
