300/100 Ton Column Type Hydraulic Press

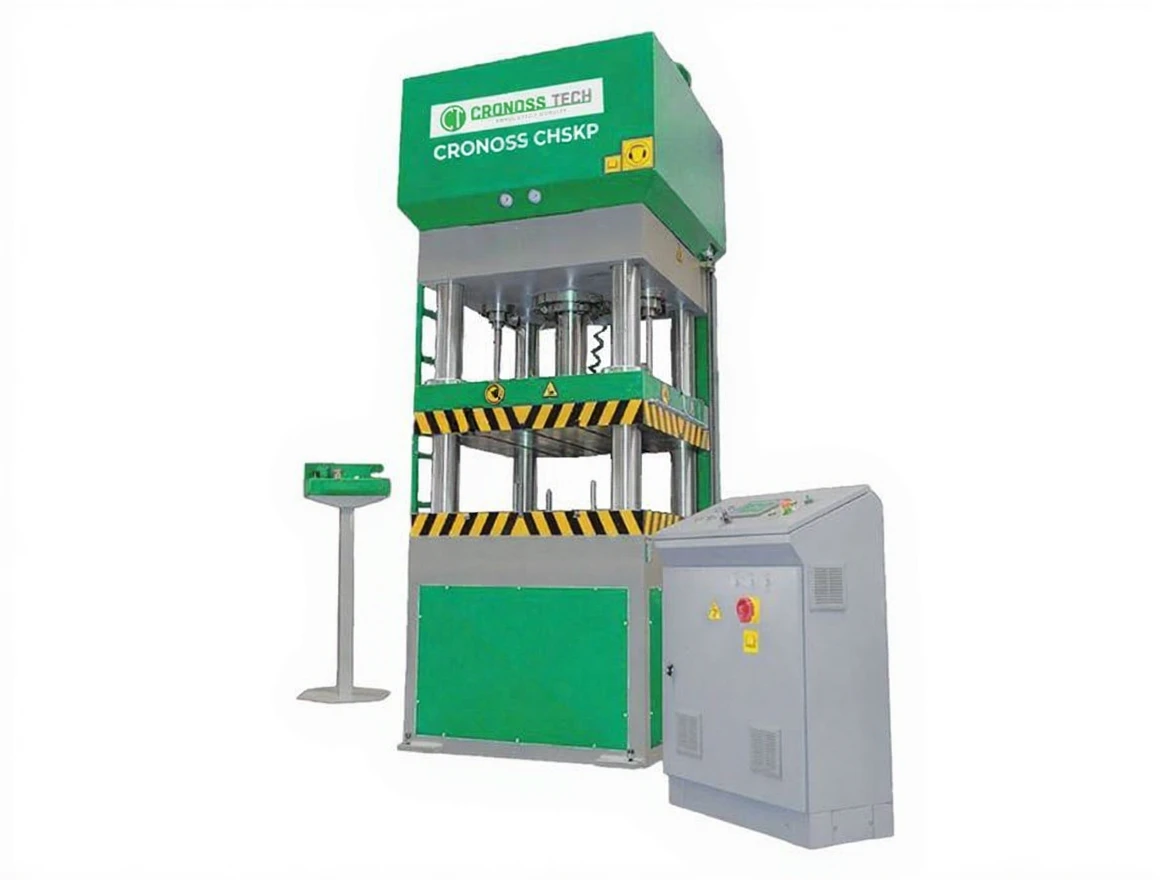

CHKSP 300/100 – COLUMN TYPE HYDRAULIC PRESS

GENERAL DESCRIPTION

CHKSP 300/100 Column Type Hydraulic Press is developed for deep drawing, forming applications that require high tonnage.
The rigid body structure with 4 columns, precise parallelism tolerances, and proportional speed-pressure control minimize the deformation effects on the mold and material.

STANDARD FEATURES

• 4-column high rigidity press body

• St52 (ERDEMİR) steel construction

• Bronze Zr14 sliding bearing system

• Independent stroke and pressure control for ram and pot

• Proportional speed and pressure controlled hydraulic system

• Electronically controlled filter contamination warning

• Automatic lubrication system

• Mold memory and recipe management

• Monitoring of system errors and press status information on the screen

• Industrial class hydraulic and electrical components

OPTIONAL FEATURES

• CE application

• Safety PLC (Siemens Failsafe / Pilz PNOZ Multi)

• Light barriers (Leuze / Pilz / Sick)

• Traceable feedback valves

• Hydraulic ram locking system

TECHNICAL SPECIFICATIONS

Type: 4 Column
Body Material: St52 – ERDEMİR
Column Shaft Diameter: Ø 90 mm – 4 pcs. (Induction chrome plated)
Sliding Bearing: Bronze Zr14

Capacity (Ram): 300 Tons
Capacity (Pot): 100 Tons

Distance Between Columns: 1000 × 1000 mm
Parallelism Tolerance: 120 micron/mt.
Perpendicularity Tolerance: 60 micron/mt.

Stroke (Ram): 800 mm
Stroke (Pot): 200 mm
Min. Gap: 100 mm
Max. Gap: 900 mm

Max. Operating Pressure: 250 Bar
Total Motor Power: 30 kW – IE3
Main Pump: 45 cm³ – Rexroth or Parker

Moving Table Fast Descent Speed: 150 mm/s
Moving Table Pressing Speed: 12 mm/s
Moving Table Return Speed: 170 mm/s
Pot Table Forward Speed: 30 mm/s

Main Cylinder Inner Diameter: Ø 390 mm – Ck45
Pot Cylinder Inner Diameter: Ø 230 mm – Ck45
Auxiliary Acceleration Cylinders: 2 pcs.

Approximate Height of Press: 4000 mm
Approximate Width of Press: 1450 mm
Approximate Depth of Press: 1450 mm
Height of Lower Table from Ground: 1300 mm

Pre-Filling Valve: NG 125
Hydraulic Unit: Rexroth or Parker
Cooling System: Emmegi / Ciesse / Parker
Off-line Filtration: Rexroth or Parker

Level Indicator: Rexroth or Parker
Air Filter: 10 Micron
Return Filter: 25 Micron
Oil and Temperature Indicator: Available

Linear Distance Measuring Device: Novatechnik or Turck
PLC: Delta
Touch Panel: Delta 7”
Switching Materials: Siemens – Schneider

Approximate Weight: 18 Tons

🔒 PRODUCTION NOTE (FIXED USE)

This machine is produced on a custom project basis according to the requested technical configuration.
Technical values are for reference and may be revised according to the application.
