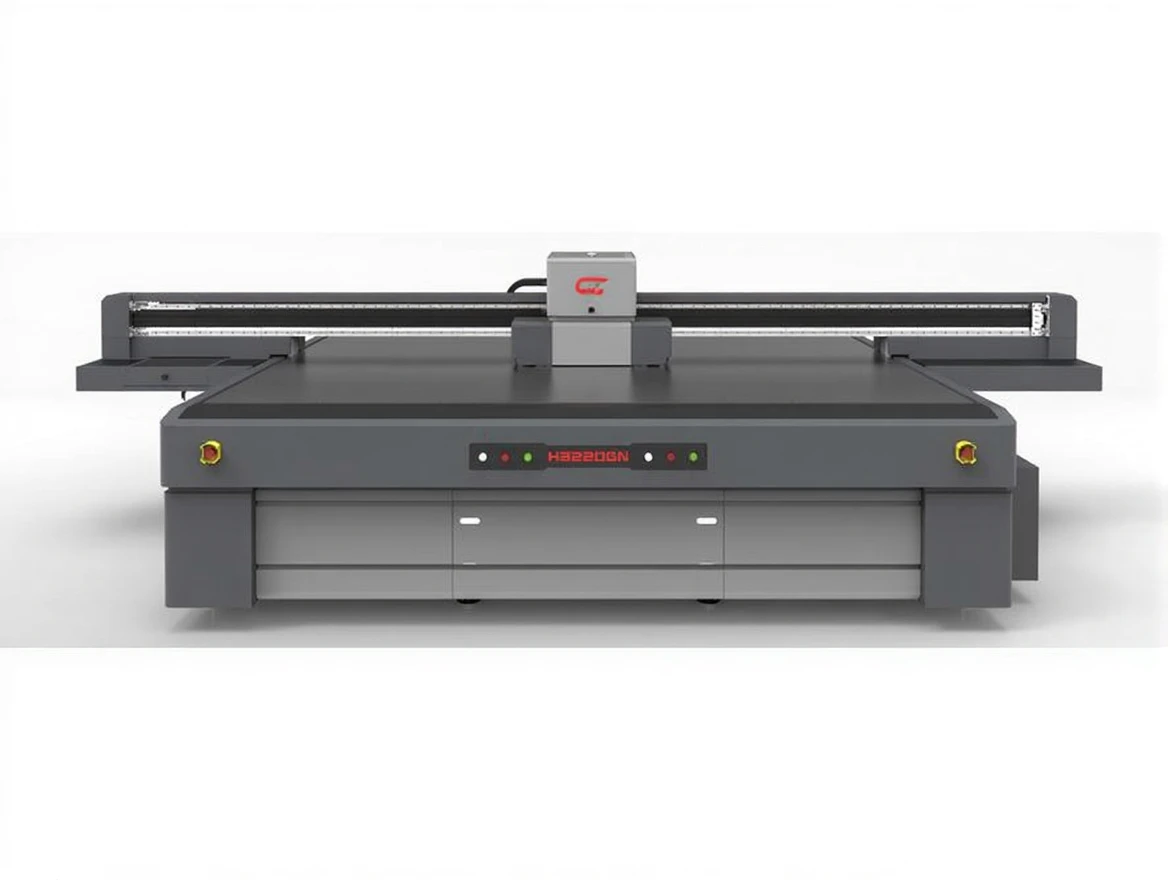

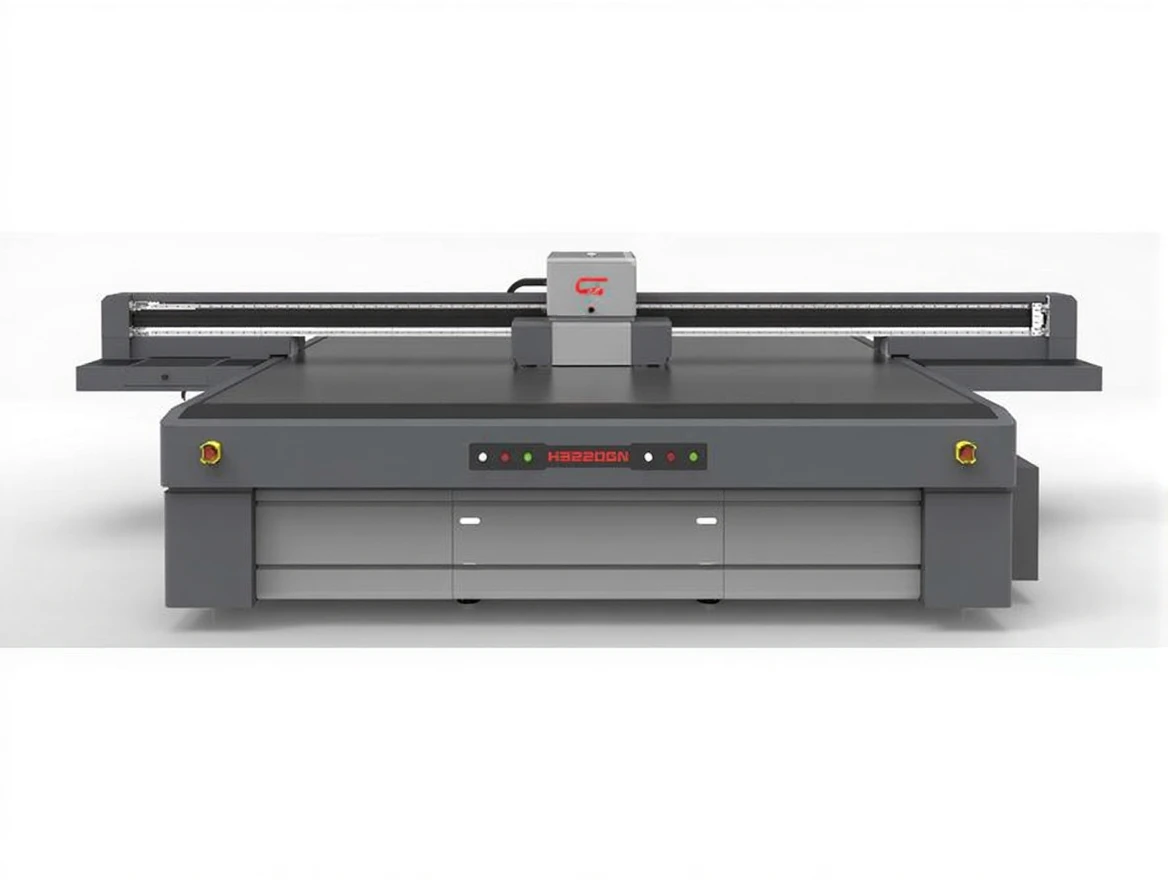

300 Cm X 200 Cm Flatbed (Sheet) Led Uv Printing Machine

300 cm x 200 cm Flatbed (Tabaka) Led UV Printing Machine

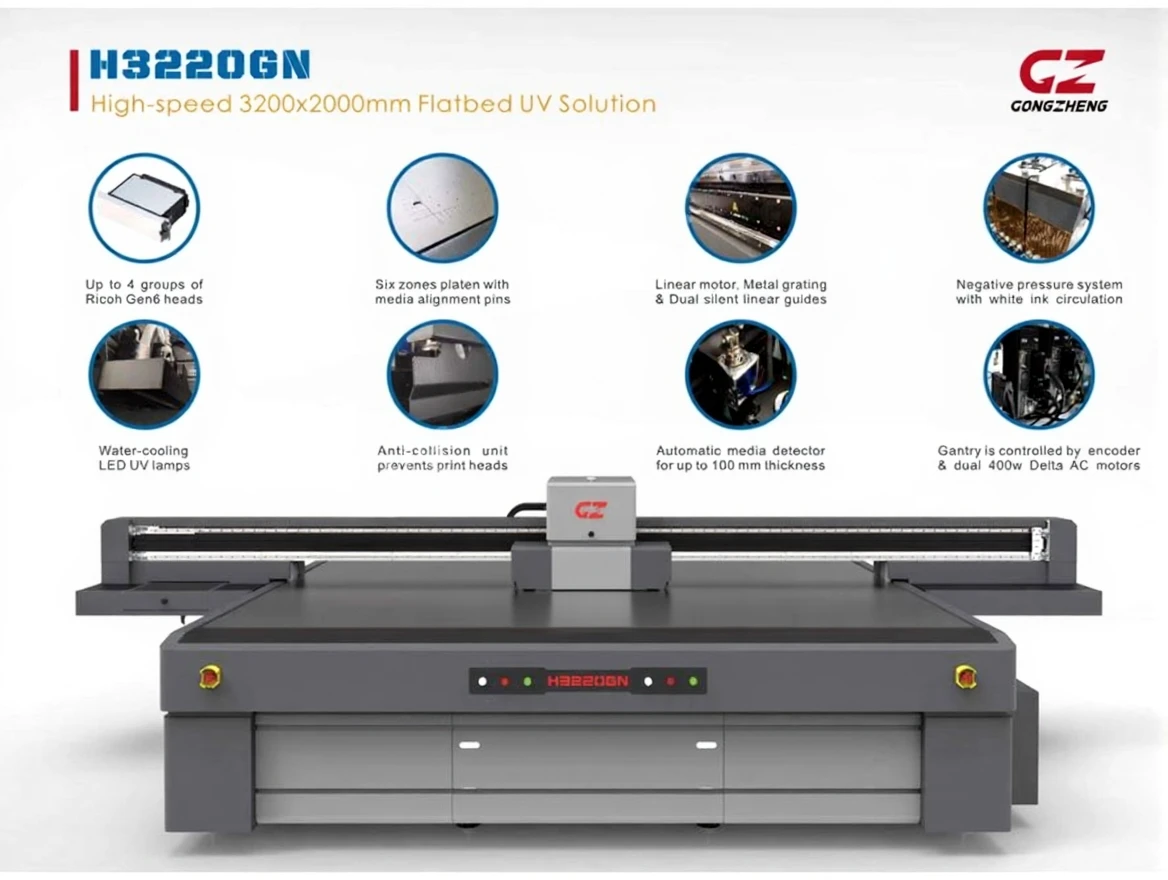

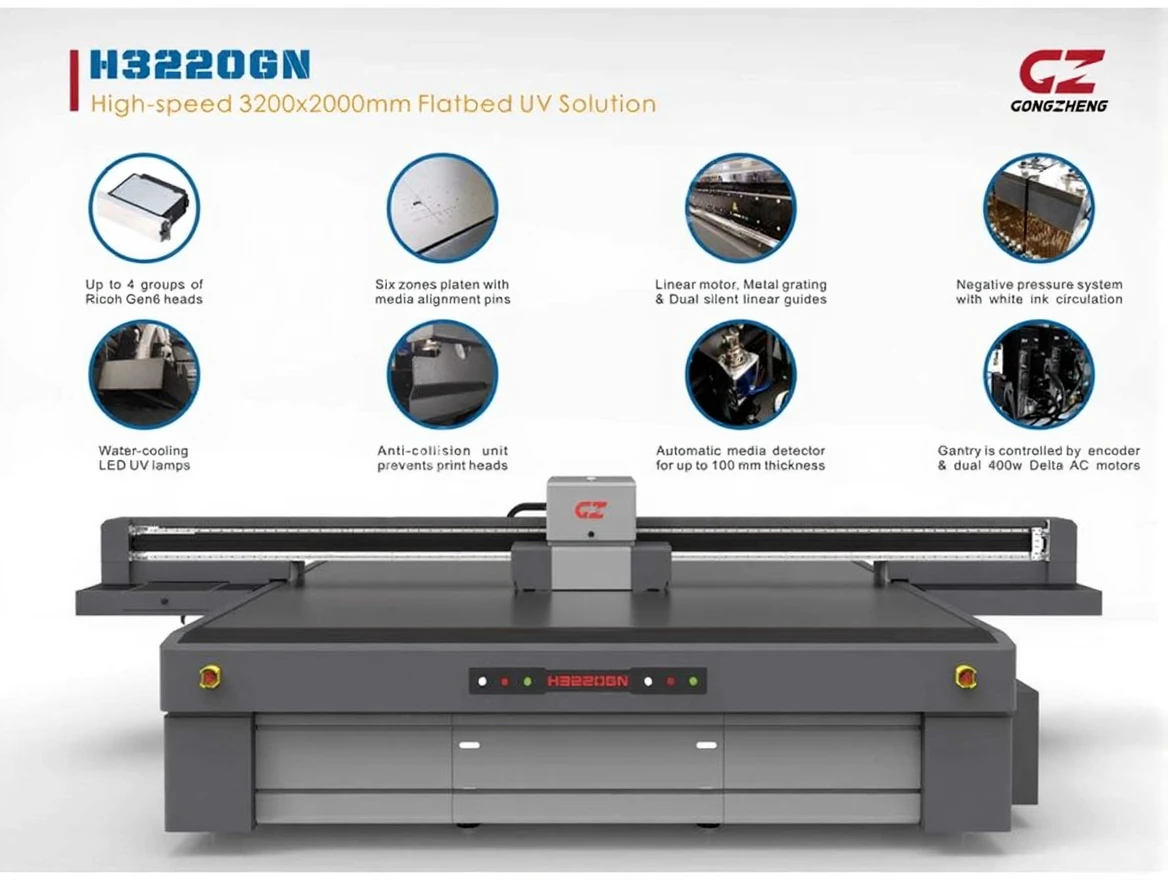

High Speed Wide Width (320cm x 200cm) Flatbed UV Printing Machine

Max. 320 cm x 200 cm Printing Width
Max. 8 Pieces New Generation Ricoh Gen5 Printheads 30% Faster Ricoh Gen6 Printheads
2 x CMYK+ 1 x WW , 2 x CMYK+ 2 x WW, 3 x CMYK+ 1 x WW, 3 x CMYK+ 2 x WW , 4 x CMYK

High Energy Saving with Water Cooled Led UV Lamps

Automatic Material Height Sensor

Anti Static Bar

6 Chamber Strong Vacuum System
Separate Negative Pressure Control System for CMYK and White Paint
Highly Effective Energy Saving Water Cooled Dual UV LED Curing System
Automatic Head Height Adjustment, Max. 100 mm Material Thickness
Protection System Against Head Collisions
Separately Controllable 4 Chamber Vacuum System
Panasonic 750w Servo Motor (X Axis) 400w Servo Motor (Y Axis)
PhotoPrint RIP Software and GZ Control Software

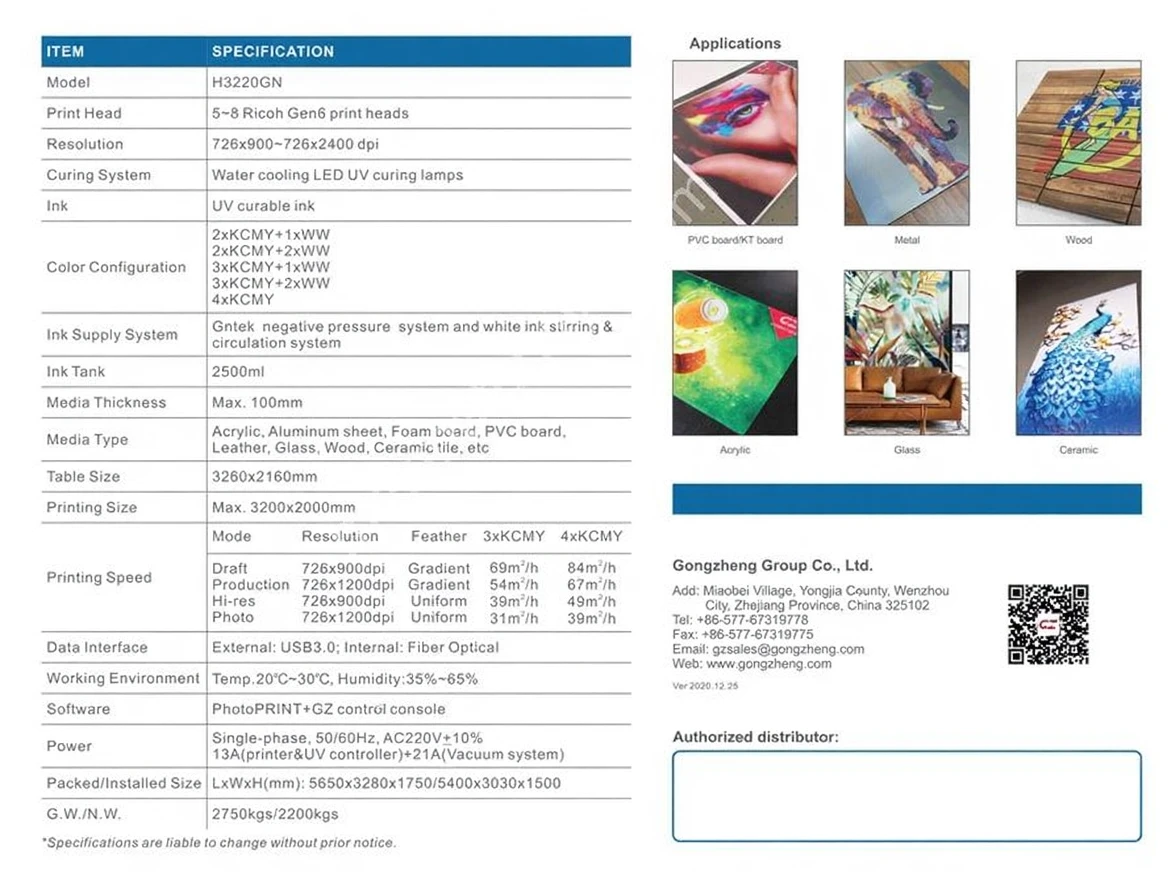

Maximum Printing Size: 300 cm x 200 cm

Number of Print Heads: 2-8 Pieces

Print Head: Ricoh G6

Printing Speed: 85 m² / hour

Printing Resolution: 1200 dpi
