300 Kg Electric Winch Compatible 3 Axis Mobile Vacuum Lifting System
| Brand | Single Lift |
|---|---|
| Model Type |
SL-PVL-300VRT-EW |

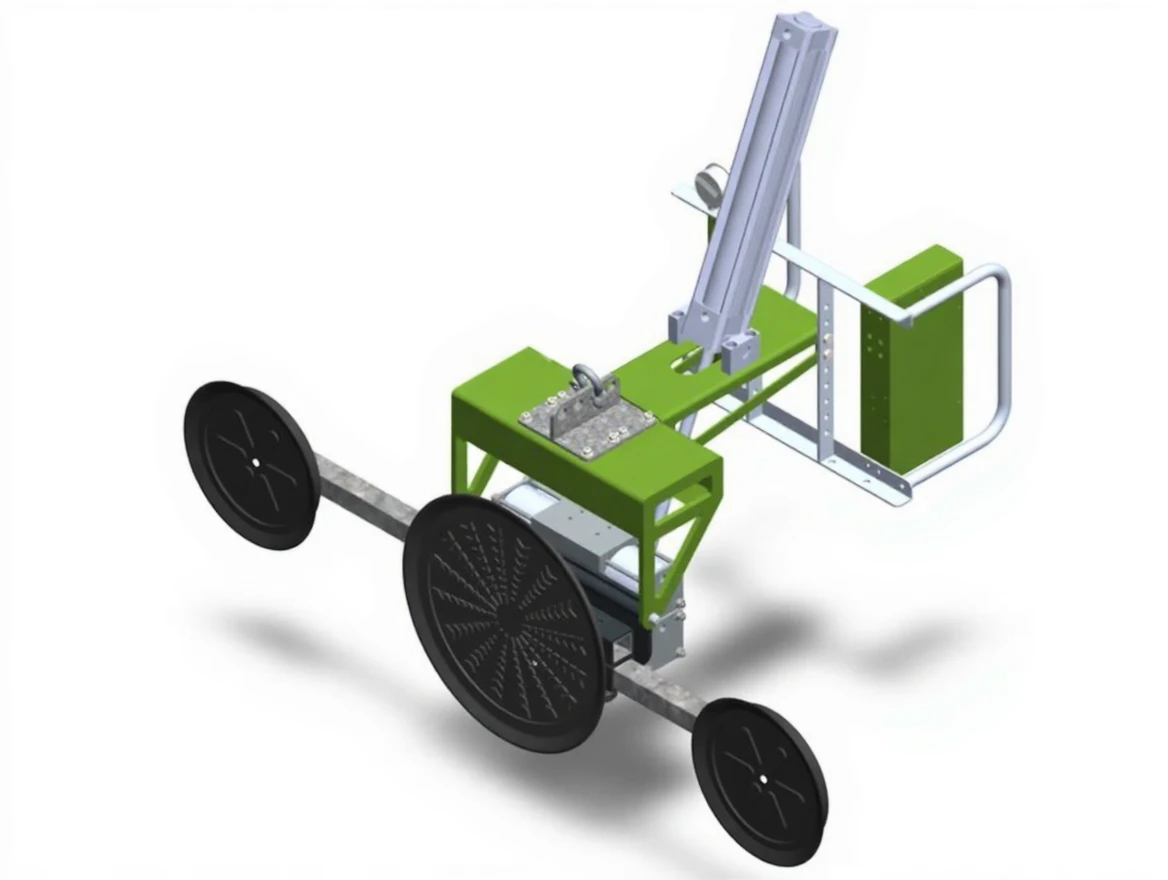

PVL-300VRT-EW – Electric Winch Compatible, 3 Axis Mobile Vacuum Lifter
Especially developed for the vertical transportation, tilting, and rotation of delicate surface materials such as glass, marble, ceramic, and panels, this is a compact vacuum lifting solution that can be integrated with electric winch systems.
In this model, lifting operation is carried out with an electric winch, making it easier to access high points. The material to be transported can be tilted automatically from 0°–90° and also rotated from 0°–90° for positioning. With its advanced maneuverability, it provides great convenience in both vertical installation and facade applications.
The system operates with compressed air without the need for electricity. It has 1+2 vacuum pads (445 mm and 290 mm) which provide strong grip on both small and large surface materials. Optionally, automatic lifting distance up to 1000 mm can be integrated.
Technical Specifications
| Feature | Value |
|---|---|
| Box Dimensions (L x W x H) | 660 x 1050 x 1050 mm |
| Box Weight | 33 ± 2 kg |
| Machine Weight | 68 ± 3 kg |
| Number of Pads | 1 + 2 |
| Pad Diameter | 445 mm / 290 mm |
| Maximum Carrying Capacity | 300 kg |
| Operating System | Compressed air (Pneumatic) |
| Automatic Tilting Angle | 0° / 90° |
| Automatic Rotation Angle | 0° / 90° |
| Automatic Lifting Distance | 1000 mm (optional) |
| Winch Compatibility | Lifting with electric winch |
-
Glass and panel installation with electric winch
-
Vertical transportation + tilting + rotation applications in tight spaces
-
High-access points for marble and ceramic transportation
-
Electrically independent use in workshops and factories operating with pneumatic system
-
Precise positioning in interior facade and glass installation systems
