300 Kg Electric Winch Compatible Compact Vacuum Lifting System

Brand Single Lift
Model Type

SL-PVL-300VR-EW

Description

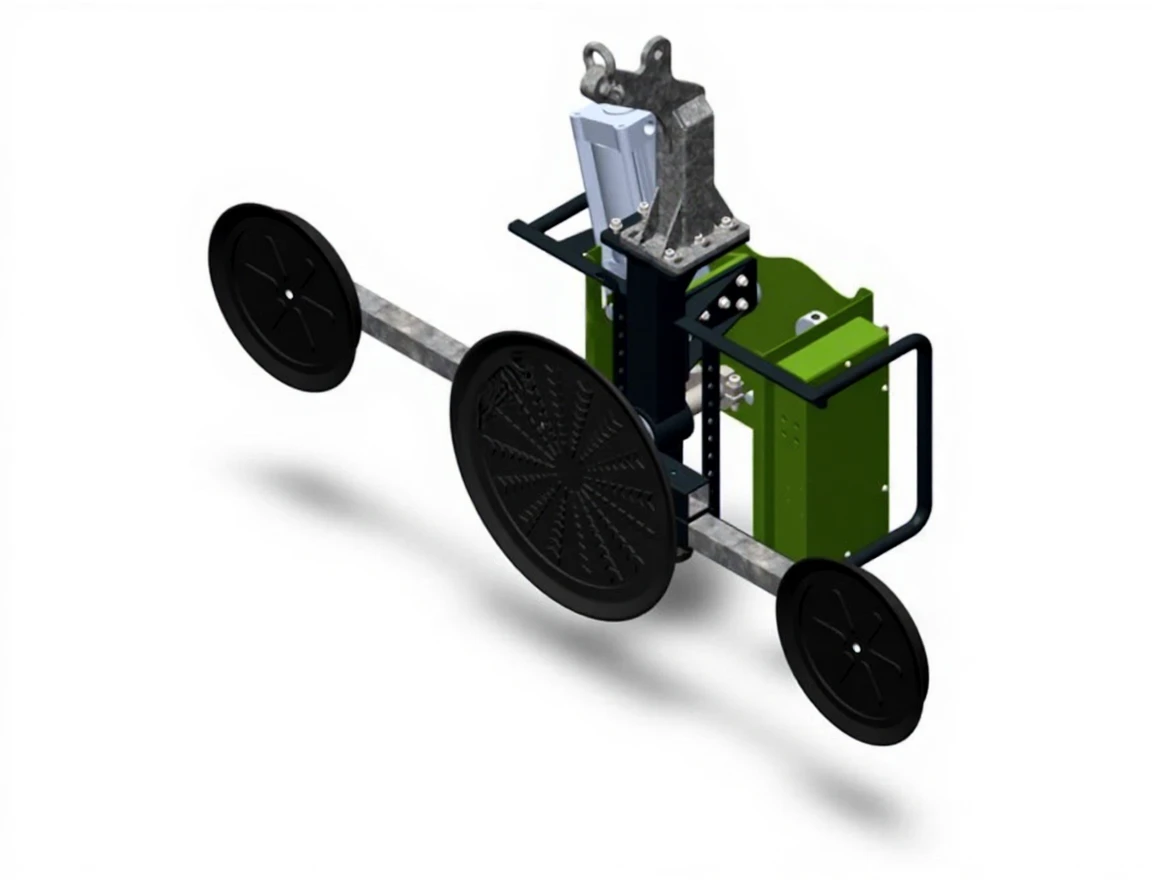

PVL-300VR-EW – Compact Vacuum Lifter Compatible with Electric Winch (300 kg)

PVL-300VR-EW is designed especially for transporting and positioning delicate materials such as glass, marble, ceramics, and is a compact vacuum lifter model compatible with electric winch systems. This model with a maximum lifting capacity of 300 kg offers high precision in small and medium-scale production areas.

The special lifting ring in the model allows direct connection of PVL-300VR-EW to electric winches. This enables lifting, positioning, and assembly operations at high points to be carried out more safely and conveniently.

The system operates with compressed air (pneumatic) and does not require electricity. 1+2 vacuum pads (450 mm and 290 mm in diameter) provide excellent adaptability to wide and narrow surfaces. The 0° / 90° automatic rotation feature allows precise changing of the material's position. Additionally, automatic lifting distance of up to 1000 mm can be integrated optionally.

Technical Specifications

Feature Value
Box Dimensions (LxWxH) 1100 x 450 x 650 mm
Box Weight 30 ± 2 kg
Number of Pads 1+2
Machine Weight 60 ± 3 kg
Operation System Compressed Air
Pad Diameter 450 mm / 290 mm
Maximum Lifting Capacity 300 kg
Automatic Rotation Angle 0° / 90°
Automatic Lifting Distance 1000 mm (optional)
Winch Compatibility Special ring for electric winches

Areas of Use
  • Winch supported glass installation lines

  • Ceramic and marble transportation applications

  • Vertical-horizontal transportation processes in compact spaces

  • Pneumatic system production areas without the need for electricity

  • Panel and assembly of sensitive surface structural elements
