300 Kg Four Column Pneumatic Lifting Cylinder Vertical Vacuum Lifting System
| Brand | Single Lift |
|---|---|
| Model Type |
SL-PVL-300VT-PL |

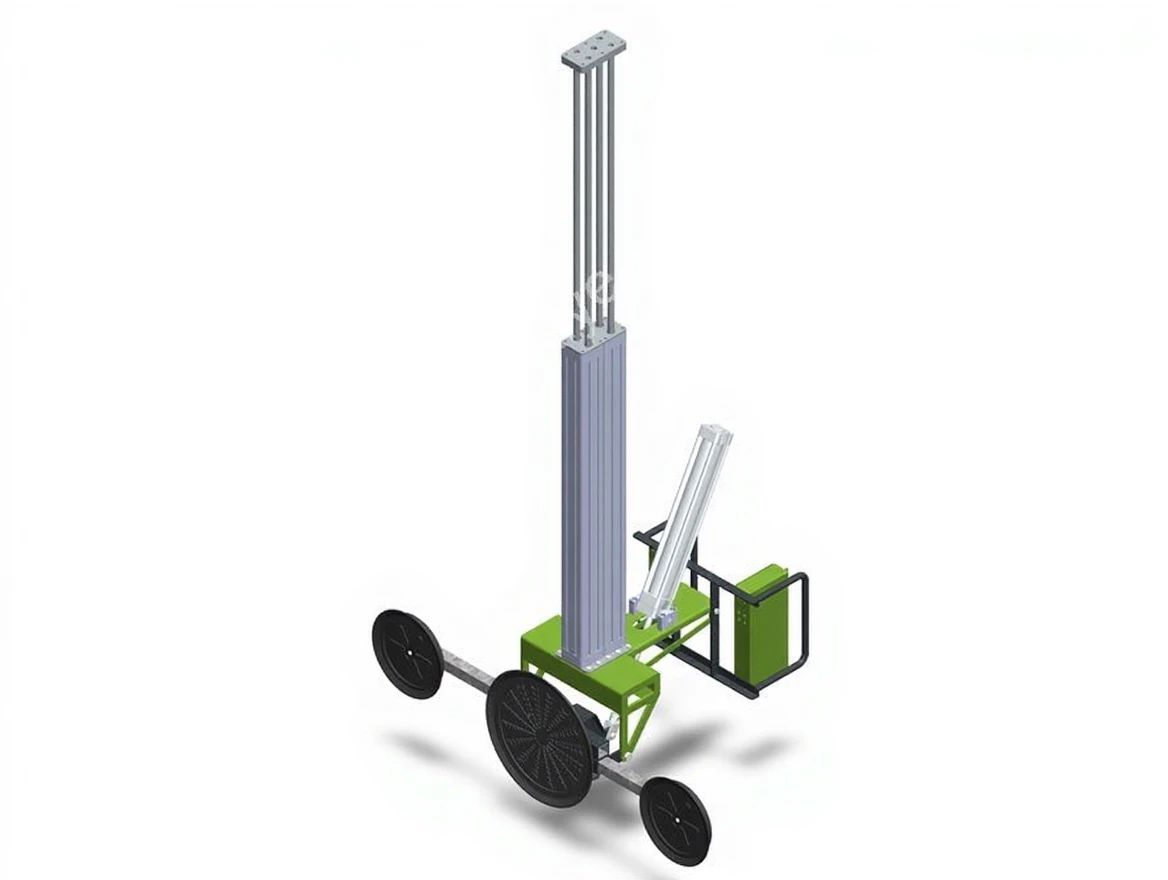

PVL-300VT-PL – Four Column Pneumatic Lifting Cylinder Vertical Vacuum Transport System
Designed for vertical transportation and tilting between 0°-90° of flat surface materials such as glass, marble, ceramic, and panels, the compact 300 kg lifting capacity vacuum transport system. The four-column pneumatic lifting cylinder used in this special model prevents mass slippage and swaying during transportation, ensuring maximum balance and safety.
The compressed air system operated PVL-300VT-PL offers high performance with low energy consumption without the need for electricity. The 2+4 vacuum pads with a diameter of 290 mm provide a strong and stable grip on materials. Additionally, an automatic lifting distance of up to 1000 mm can be integrated as an option.
Due to its compact structure, it can be easily used in narrow spaces both on construction sites and in factory environments. Its ergonomic design minimizes operator fatigue and increases work efficiency.
Technical Specifications
| Feature | Value |
|---|---|
| Box Dimensions (L x W x H) | 660 x 1050 x 1050 mm |
| Box Weight | 33 ± 2 kg |
| Number of Pads | 2 + 4 |
| Machine Weight | 62 ± 3 kg |
| Operating System | Compressed air (Pneumatic) |
| Pad Diameter | 290 mm |
| Maximum Load Capacity | 300 kg |
| Automatic Tilt Angle | 0° / 90° |
| Automatic Lifting Distance | 1000 mm (optional) |
| Lifting System | Four column pneumatic cylinder system |
-
Glass and panel assembly lines
-
Transporting and placing marble and ceramic slabs
-
Vertical lifting operations requiring prevention of mass slippage
-
Safe transportation in non-electric environments with pneumatic systems
-
Industrial applications in narrow spaces requiring high security
