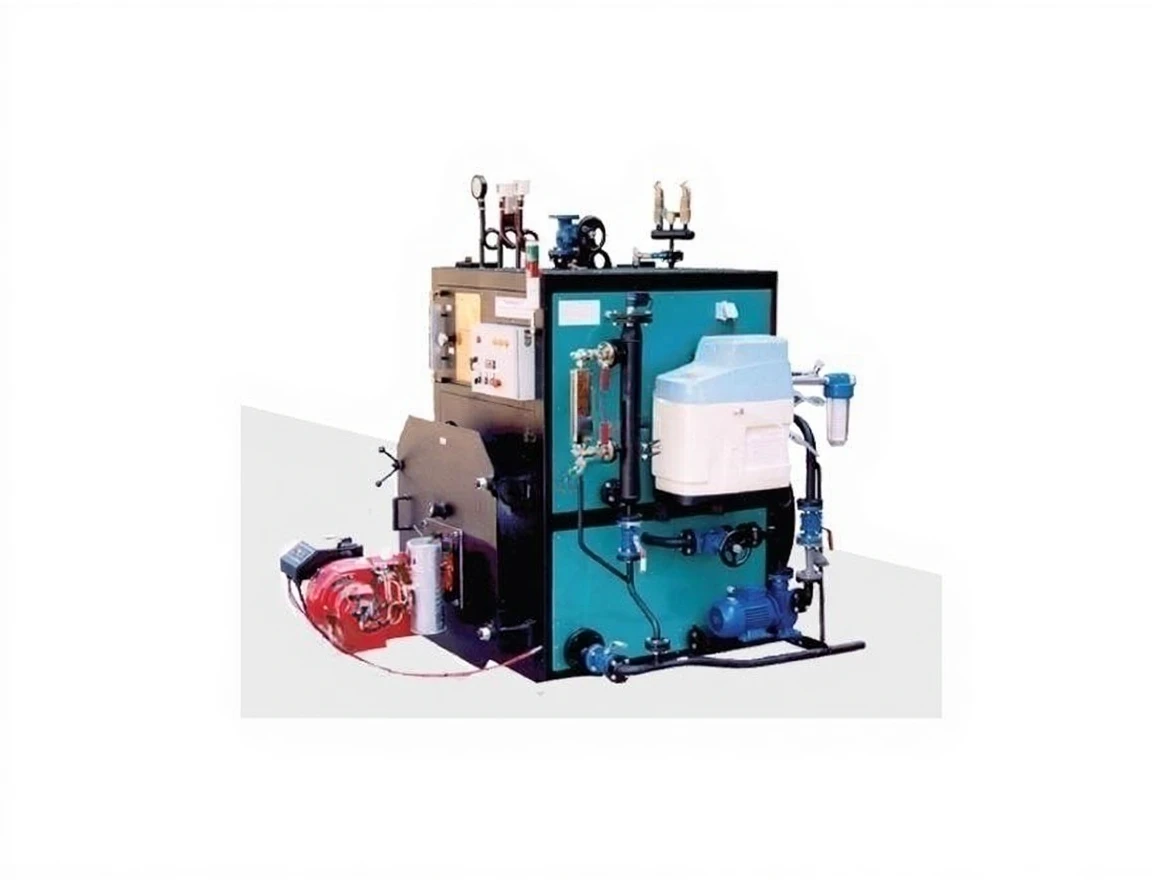

300 Kg/Hour Mini Steam Generator
| Brand | Universal |
|---|---|
| Model Type |
MBÜ-300 |
Description
300 Kg/Hour Mini Steam Generator
GENERAL FEATURES
- Takes up little space and produces economical steam in a very short time.
- Manufactured according to heavy-duty conditions. Not easily affected by hard and turbid waters.
- Operates automatically and safely. Has consecutive safety systems.
- Works without requiring excessive information, maintenance, and supervision.
- Proven with hundreds of examples operating in Turkey and abroad for years.
- It is a compact unit with a boiler, feed water pump, water purification unit, condensate tank, and electrical panel.
DESIGN
An ideal steam producer for hotels, laundries, garment and knitwear workshops, feed industry, concrete curing, dry cleaning, beverage bottling industry, steam washing and cleaning, sock industry, and similar industrial facilities that need steam in small capacities.
COMPONENTS
- Steam generator
- Boiler fittings
- Safety systems
- Feed water (condensate) tank and fittings
- Boiler feed pump and fittings
- Burner
- Automatic water softening device
- Water filter
- Electrical panel and installation

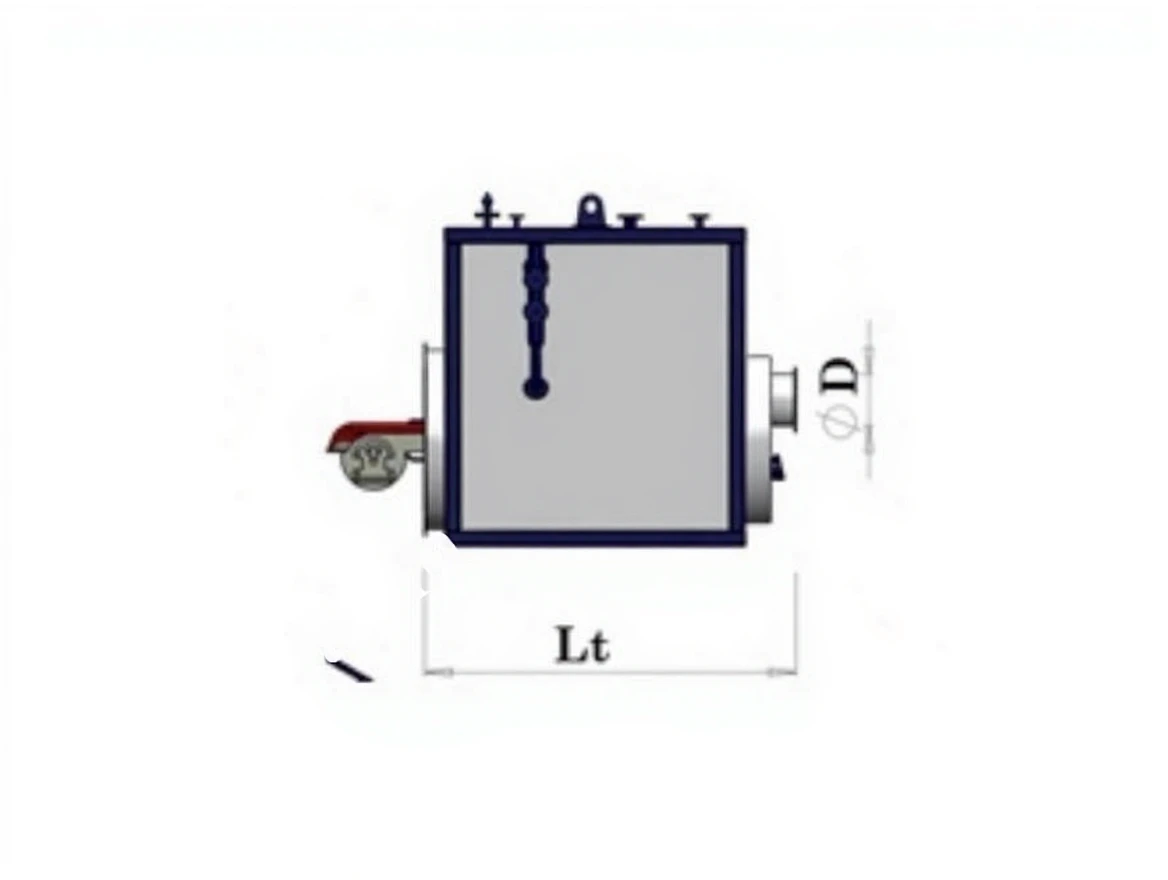

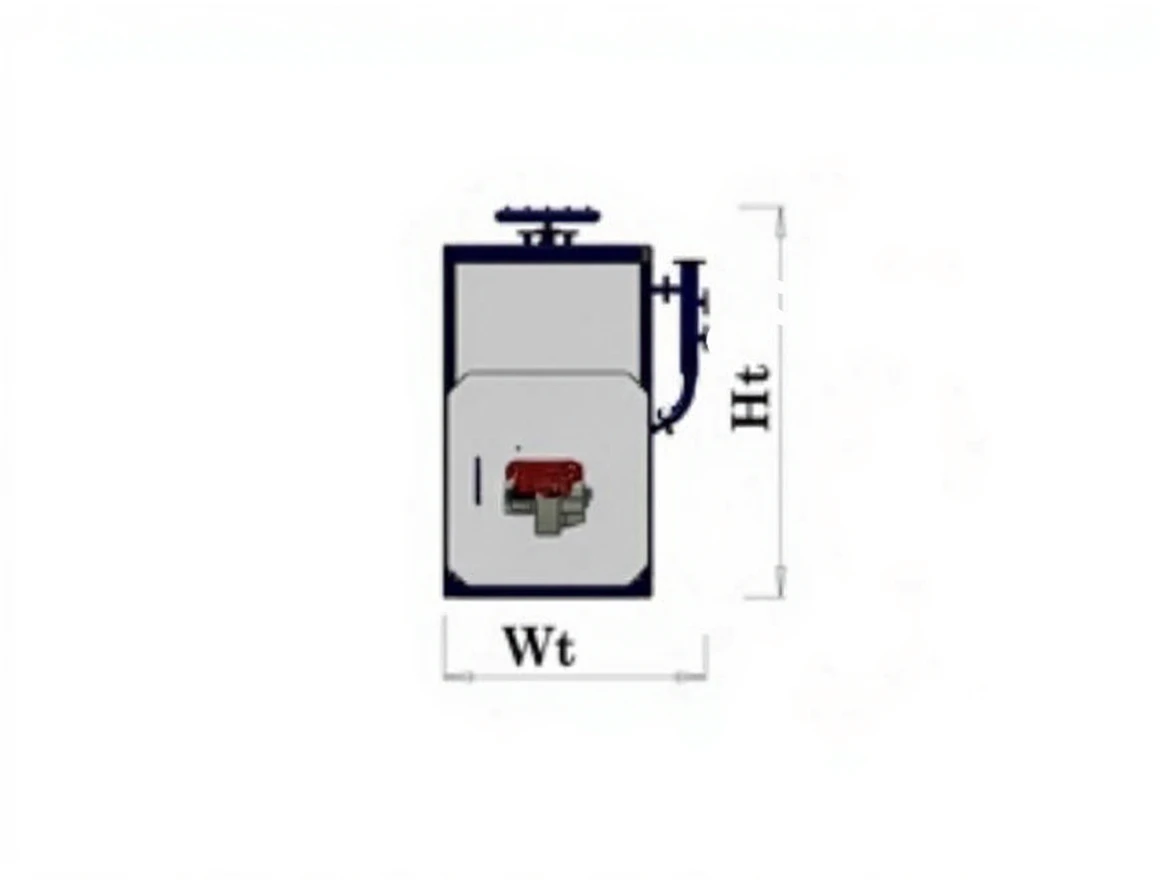

Universal Boiler MBÜ-300 Technical Specifications:
| MBÜ 300 | |
| Steam Capacity (kg/h) | 300 |
| Length Without Burner (mm) | 1800 |
| Width Without Armatures (mm) | 1200 |
| Height Without Armatures (mm) | 1920 |
| Total Length (mm) | 2600 |
| Total Width (mm) | 1530 |
| Total Height (mm) | 2170 |
| Water Volume (lt) | 430 |
| Flue Outlet (mm) | 250 |
| Approx. Weight (kg) | 1500 |
