300 Kg Vertical Transport, Tilt and Rotation Capable Compact Vacuum Lifting System
| Brand | Single Lift |
|---|---|
| Model Type |
SL-PVL-300VRT |

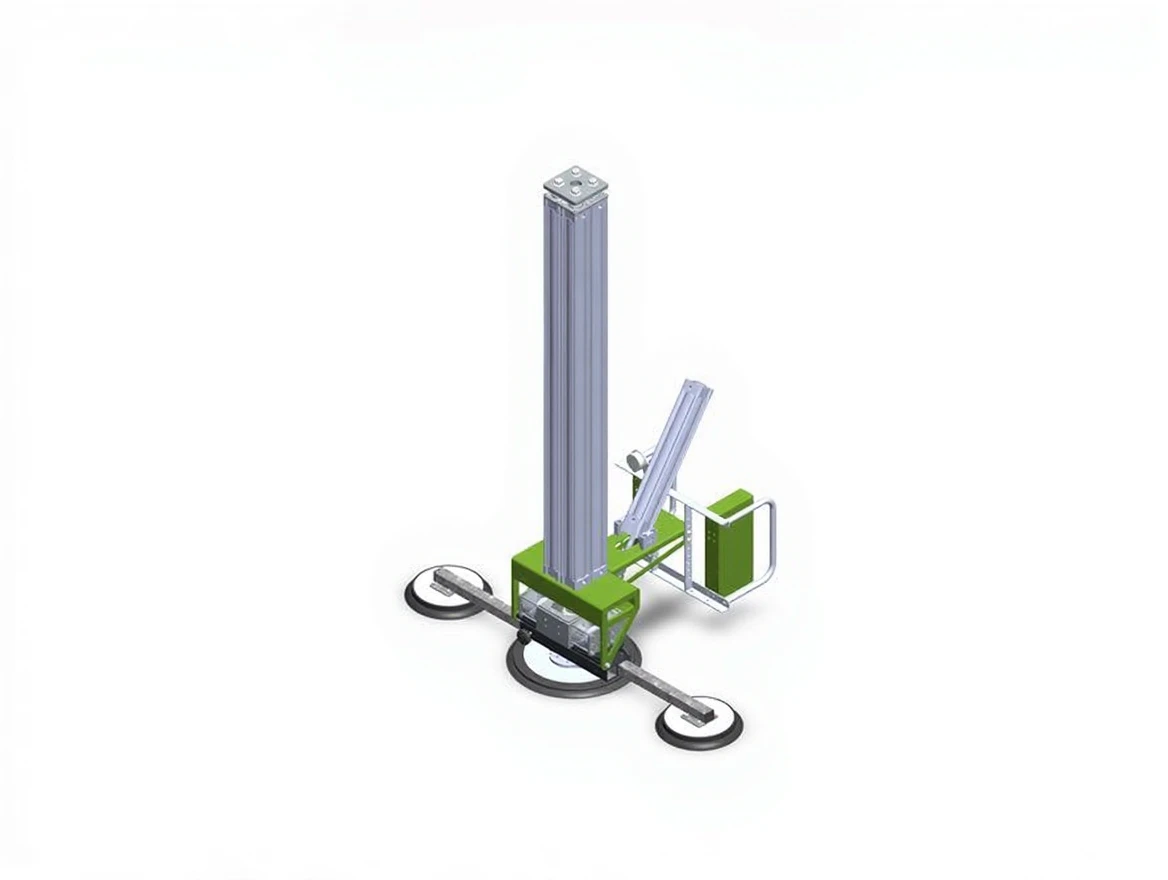

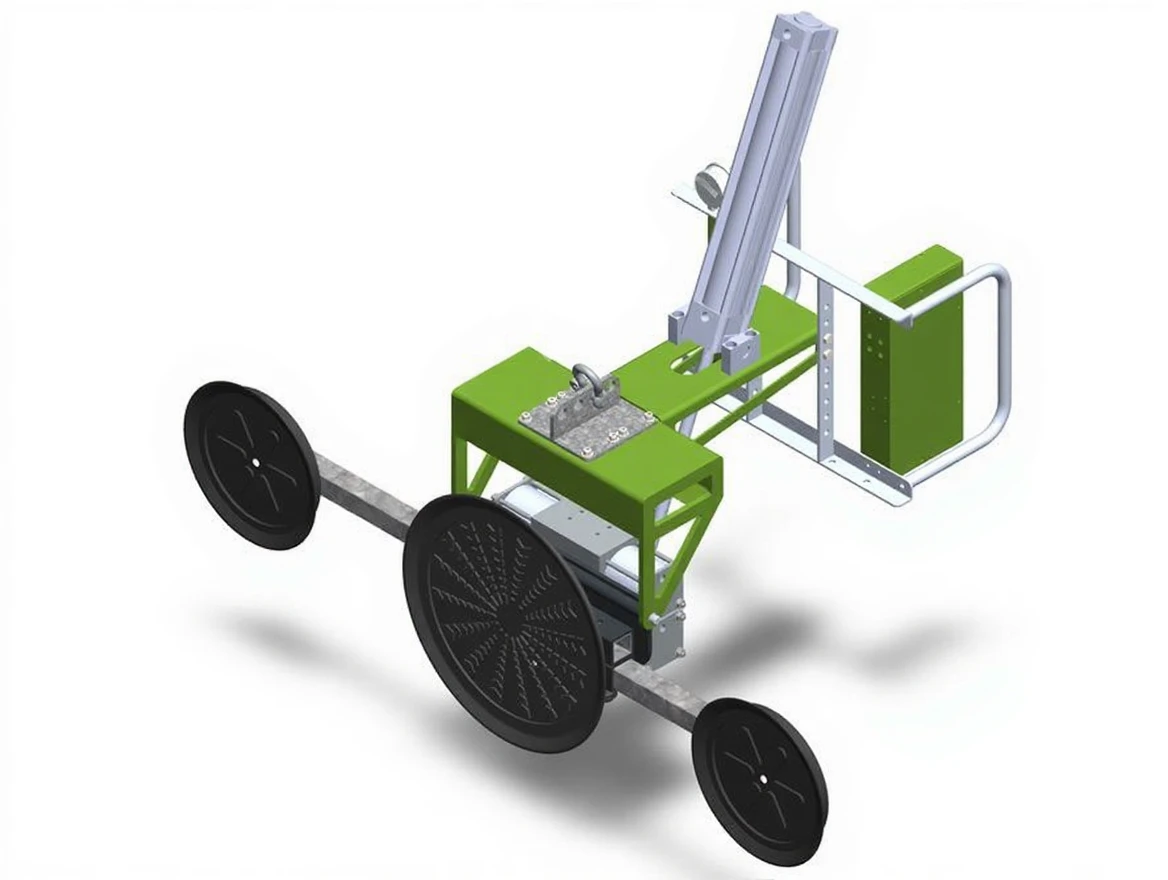

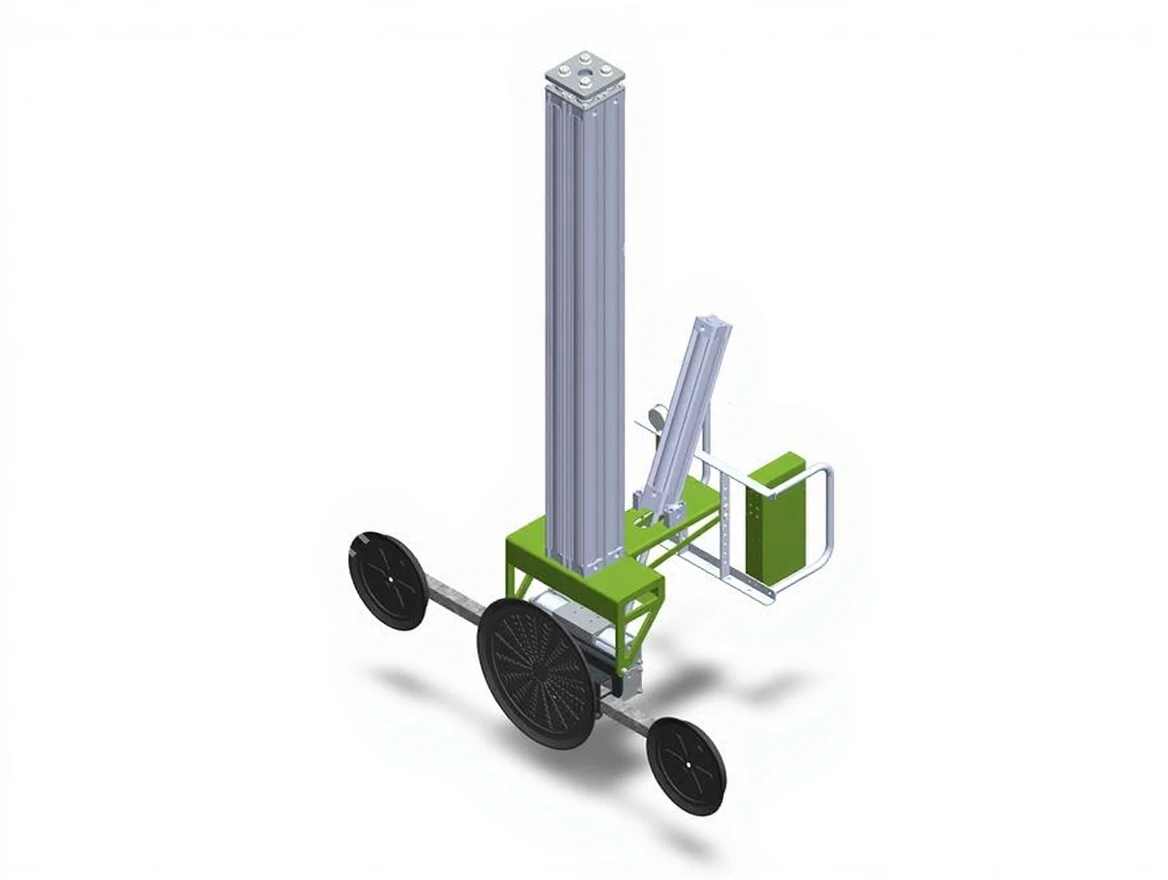

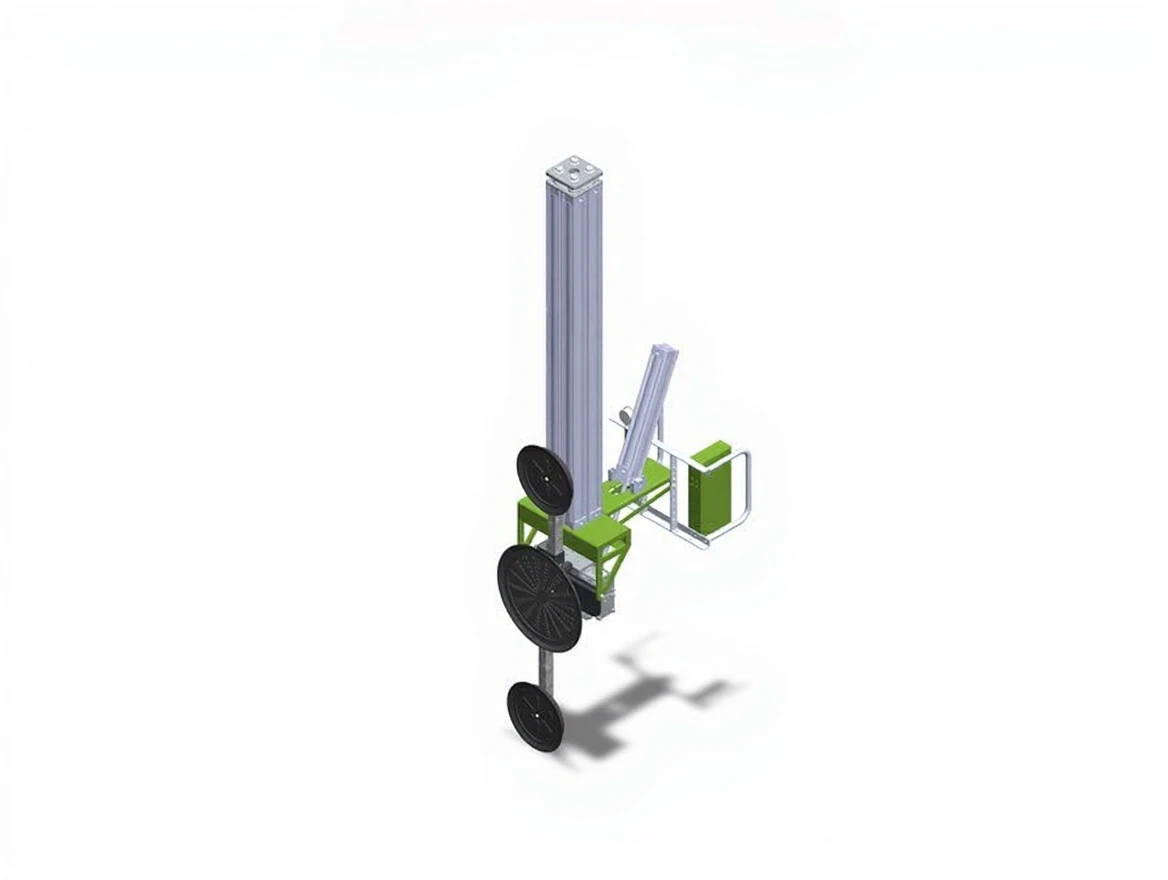

PVL-300VRT – Vertical Transport, Tilt and Rotate Capable Compact Vacuum System
It is an advanced vacuum carrier designed for vertical lifting, tilting 90°, and rotating 90° of delicate surface materials (glass, marble, ceramic, panels, etc.). With a 300 kg lifting capacity, 1+2 powerful vacuum pads (445 mm and 290 mm in diameter), and a compact structure, it provides safe and efficient operation both on production lines and assembly areas.
Operating with compressed air, the system offers high performance with low energy consumption without being dependent on electricity. Additionally, an optional 1000 mm automatic lifting distance can be integrated.
| Feature | Value |
|---|---|
| Box Dimensions (L x W x H) | 660 x 1050 x 1050 mm |
| Box Weight | 33 ± 2 kg |
| Machine Weight | 68 ± 3 kg |
| Number of Vacuum Pads | 1 + 2 |
| Pad Diameters | 445 mm / 290 mm |
| Maximum Lifting Capacity | 300 kg |
| Operating System | Compressed air (Pneumatic) |
| Automatic Tilt Angle | 0° / 90° |
| Automatic Rotation Angle | 0° / 90° |
| Automatic Lifting Distance | 1000 mm (optional) |
-
Glass and facade element installation
-
Marble and ceramic transportation
-
Guiding and positioning in panel production lines
-
Pneumatic solutions in environments without electricity
-
Industries requiring vertical transport + tilting + rotating during assembly
