300 Kg Vertical Transportation and Tilting Vacuum Lifting System

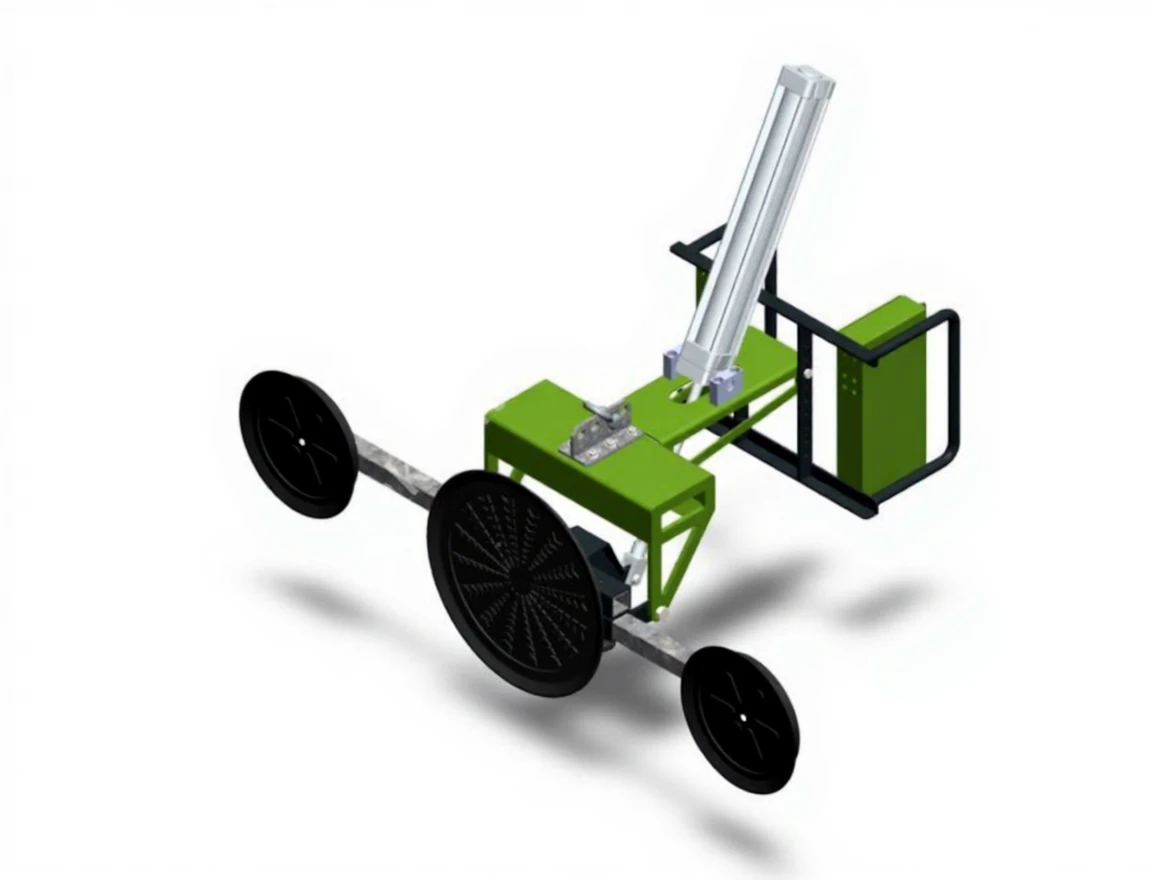

PVL-300VT – 300 Kg Capacity Vertical Transportation and Tilting Vacuum System

Developed for the vertical lifting and 90° tilting of flat and delicate materials such as glass, marble, ceramics, and panels, this is a compact and highly efficient vacuum handling system.

This model offers a maximum 300 kg lifting capacity and is ideal for applications requiring precise, quiet, and safe operation in production lines and assembly areas. The system operates with compressed air (pneumatic), providing energy savings without the need for electricity.

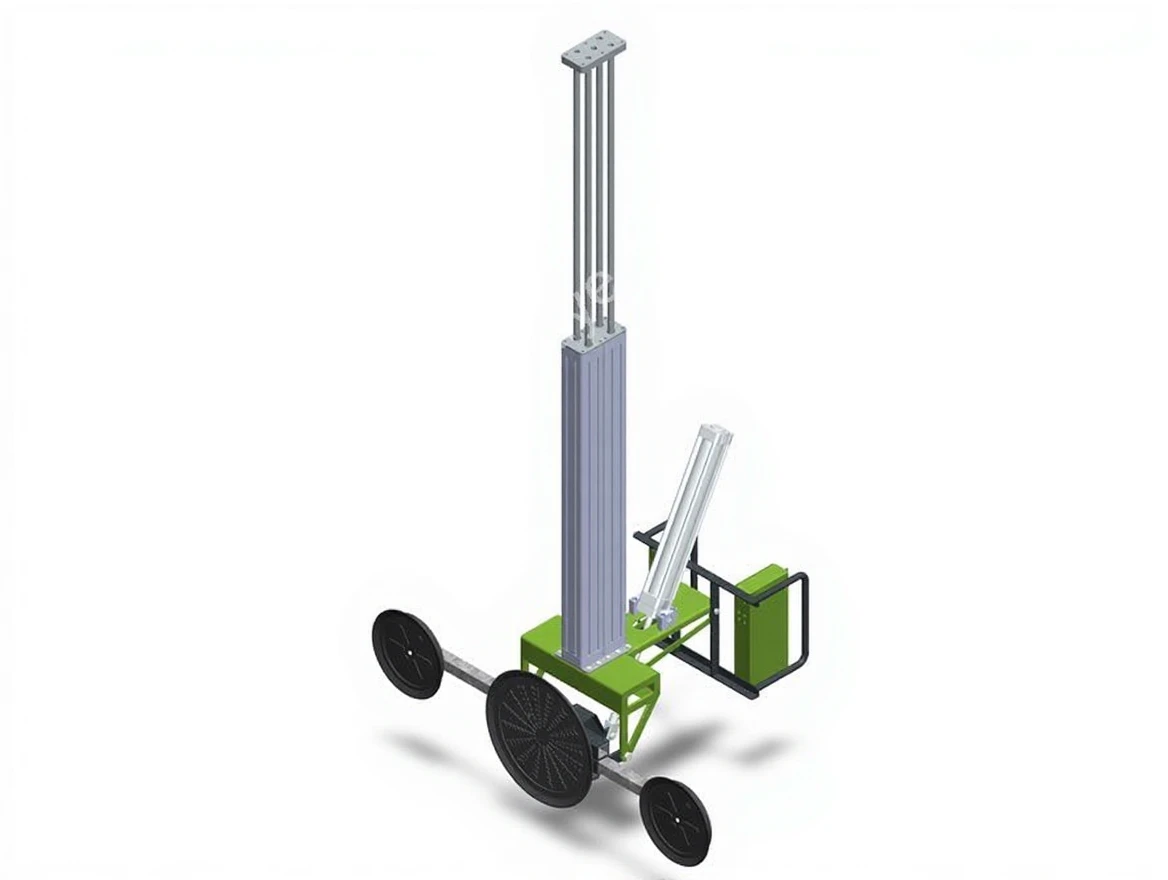

2+4 290 mm diameter vacuum pads provide strong grip on large surface materials. The automatic tilting from 0° to 90° feature allows quick and smooth positioning of glass and similar surfaces for assembly. Additionally, an optional 1000 mm lifting distance can be integrated.

Technical Specifications

• Vertical lifting in glass and panel production lines

• Positioning in ceramic and marble assembly areas

• Narrow space transportation in factories and workshops

• Lifting with pneumatic solutions in environments without electricity

• High precision surface transportation applications
