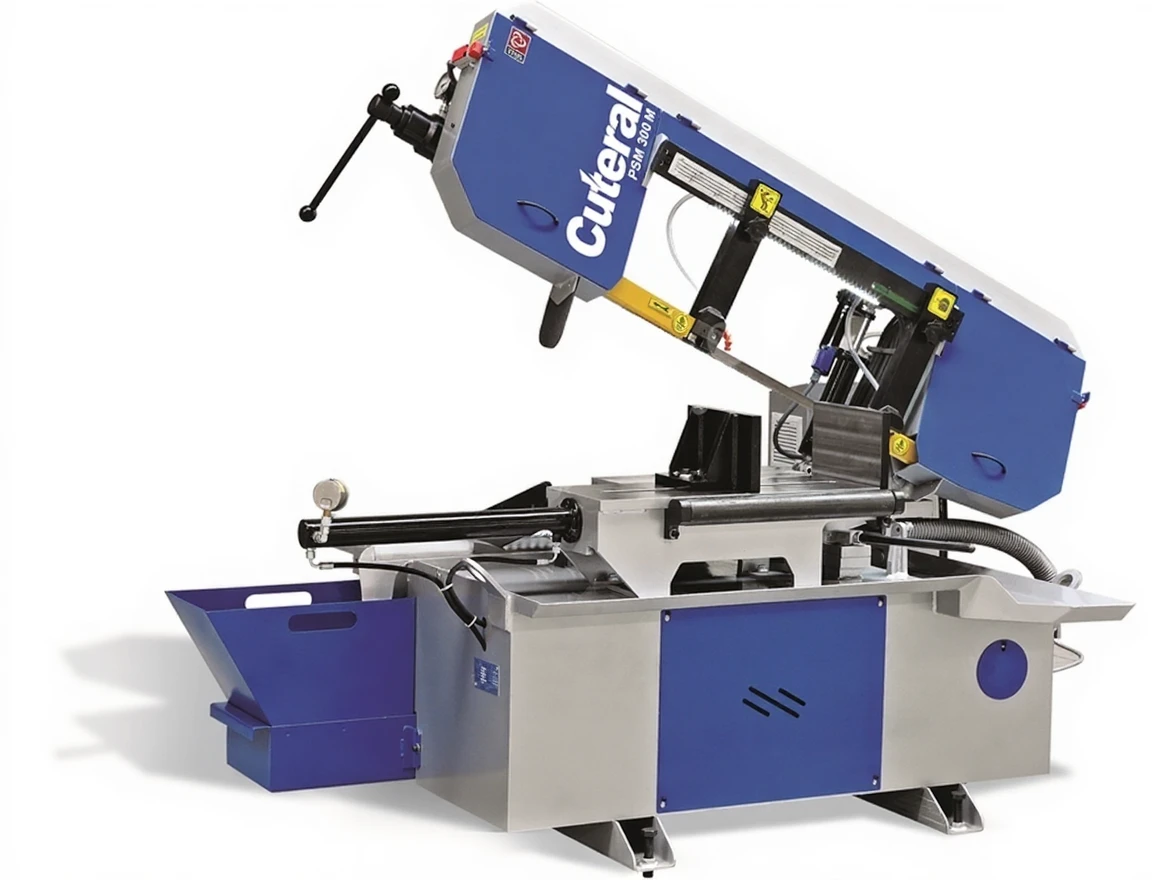

300 mm Angled Semi-Automatic Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PSM 300 M |
Description
Cuteral PSM 300 M
300 mm Angled Semi-Automatic Band Saw Machine
Cuteral PSM 300 M Technical Specifications
| A | 1392 mm | |||
| B | 2120 mm | |||
| C | 1415 mm | |||
| D | 810 mm | |||
| E | 1500 mm | |||
| hmax | 2036 mm | |||
| Semi-Automatic | ||||
| Blade Size | 27 x 0.9 x 3970 mm | |||
| Blade Motor | 1.5 kW – 1500 rpm | |||
| Drive Motor | Manual | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 2.37 kW | |||
| Cutting Speed | 15 m/min – 100 m/min | |||
| Weight | 950 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 300 mm | |||
| Cutting Capacity 90° Width | 470 mm | |||
| Angle of Cut Material | -60° | 230 mm | 210 x 210 mm | 210 x 210 mm |
| -45° | 300 mm | 220 x 220 mm | 220 x 325 mm | |
| -30° | 300 mm | 220 x 220 mm | 220 x380 mm | |
| 0° | 300 mm | 220 x 220 mm | 220 x 470 mm | |
