300 mm Single Direction Angled Semi-Automatic Band Saw Machine
| Brand | Cuteral |
|---|---|
| Model Type |
PAR 300 M |
Description

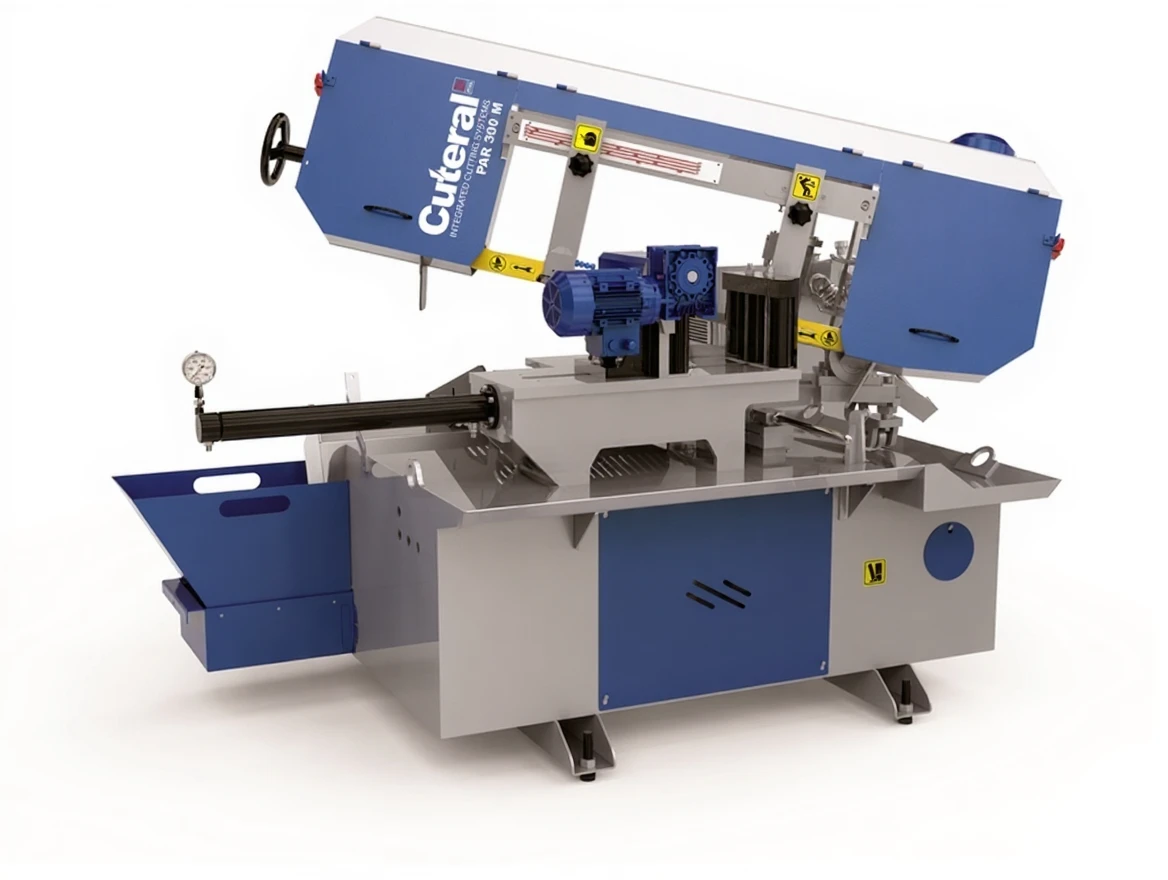

Cuteral PAR 300 M
300 mm Single Direction Angled Semi-Automatic Band Saw Machine
Cuteral PAR 300 M Technical Specifications
| A | 1392 mm | |||
| B | 2120 mm | |||
| C | 1415 mm | |||
| D | 810 mm | |||
| E | 2740 mm | |||
| F | 425 mm | |||
| hmax | 2010 mm | |||
| Automatic | ||||
| Blade Size | 27 x 0.9 x 3970 mm | |||
| Blade Motor | 1.5 kW – 1500 rpm | |||
| Drive Motor | 0.25 kW – 1500 rpm | |||
| Hydraulic Motor | 0.75 kW – 1400 rpm | |||
| Coolant Motor | 0.12 kW – 3000 rpm | |||
| Voltage | 400 V | |||
| Maximum Power | 2.62 kW | |||
| Cutting Speed | 15 m/min – 100 m/min | |||
| Weight | 1000 kg | |||
| Material Clamping System | Hydraulic | |||
| Blade Tensioning System | Hydromechanical | |||
| Cutting Capacity 90° Length | 300 mm | |||
| Cutting Capacity 90° Width | 340 mm | |||
| Angle of Cut Material | -60° | 170 mm | 160 mm | 110 x 170 mm |
| -45° | 270 mm | 220 mm | 170 x 270 mm | |
| -30° | 300 mm | 220 mm | 220 x 300 mm | |
| 0° | 300 mm | 220 mm | 220 x 340 mm | |
