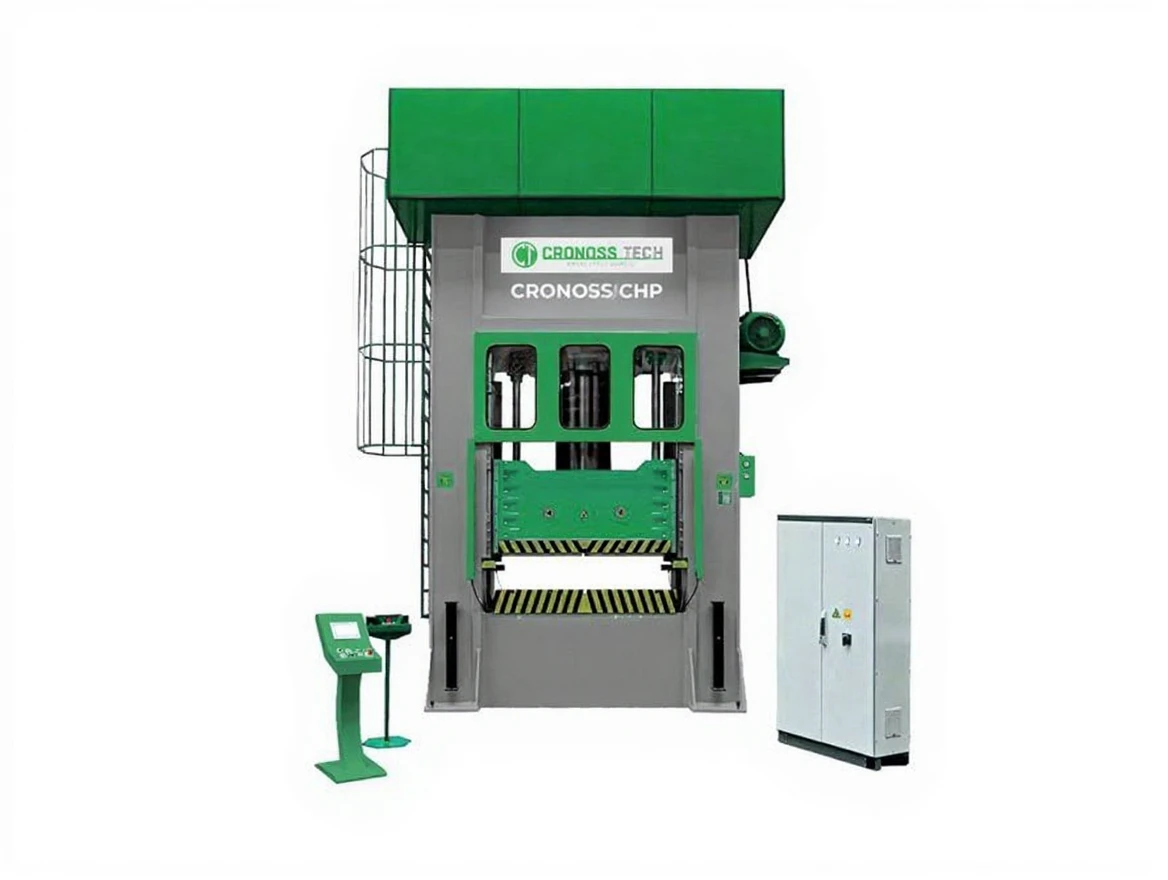

300 Ton H Type Single Acting Hydraulic Press

CHP – H Type Single Action Hydraulic Press | 300 Tons

STANDARD FEATURES

• Steel construction body and parts whose stress / welding tension is relieved by vibration method

• 8-surface slide/bearing for high precision and long-lasting use

• PLC control system and touch operator panel

• Argon welding application for fastening elements and drawn steel pipes

• Accredited by TÜRK-AK and approved by WPQR and WPS
  EN ISO 15614-1:2017 welding application certificate
  (Welding applications are supervised by welding coordination engineers certified according to EN ISO 14731)

• Parallelism and perpendicularity tolerances comply with ISO and DIN norms
  (≤ 120 microns/meter)

• PARKER / REXROTH hydraulic unit

• SIEMENS / SCHNEIDER electrical consumables

• Automatic central lubrication system

• Dual hand control system

OPTIONAL FEATURES

• CE application

• Security PLC (SIEMENS Failsafe / PILZ PNOZ Multi)

• Beam barriers (LEUZE, PILZ or SICK – 2 pieces)

• Traceable feedback valves (REXROTH or PARKER – 3 pieces)

• Hydraulic ram lock system (1 piece)

• Proportional speed and pressure application
  (By entering different speed, stop and pressure values ​​at different points of the pressing process,
  The effect of material and mold deformations on the work is minimized.)

TECHNICAL SPECIFICATIONS

• Press Type:Steel construction, H type press body with 8 slides

• Body Material:St52 – ERDEMİR

• Slide Bearing:Bronze Zr14

• Press Capacity (Coach): 300 Tons

• Movable Table Dimension:1000×1200mm

• Fixed Table Dimension:1000×1200mm

• Parallelism Tolerance:120 micron / mt.

• Perpendicularity Tolerance:60 micron / mt.

• Ram Stroke Distance:600mm

• Minimum Intermediate Clearance:100mm

• Maximum Intermediate Clearance:700mm

• Maximum Working Pressure:250 bars

• Total Engine Power:37 kW – IE3

• Main Pump:45 cm³ – REXROTH or PARKER

• Moving Table Fast Descent Speed:150mm/sec

• Movable Table Spinning Speed:12mm/sec

• Movable Table Return Speed:170mm/sec

• Main Cylinder Inner Diameter:Ø 390 mm – Ck45

• Auxiliary Acceleration Rollers:2 pieces

• Press Approximate Height:4400mm

• Press Approximate Width:3250mm

• Approximate Depth of Press:2200mm

• Bottom Table Height from Ground:1350mm

• Pre-fill Valve:NG 150

• Cooling System:EMMEGI – CIESSE – PARKER

• Off-line Filtering:REXROTH or PARKER

• Air Filter:10 micron transmittance

• Return Filter:25 micron transmittance

• Filter Pollution Warning:electronically controlled

• Lubrication Type:Automatic (adjustable on screen)

• Ram Stroke Adjustment:Adjustable from the screen

• Koç Tonnage (Pressure) Setting:Adjustable from the screen

• System Error / Pres Status Information:Can be viewed on screen

• Pattern Memory:Available

• Hydraulic Oil Temperature Information:Can be viewed on screen

• Linear Distance Table:NOVATECHNIK or TURCK

• PLC:DELTA

• Touch Panel:DELTA 7”

• Approximate Weight: 10.5 tons
