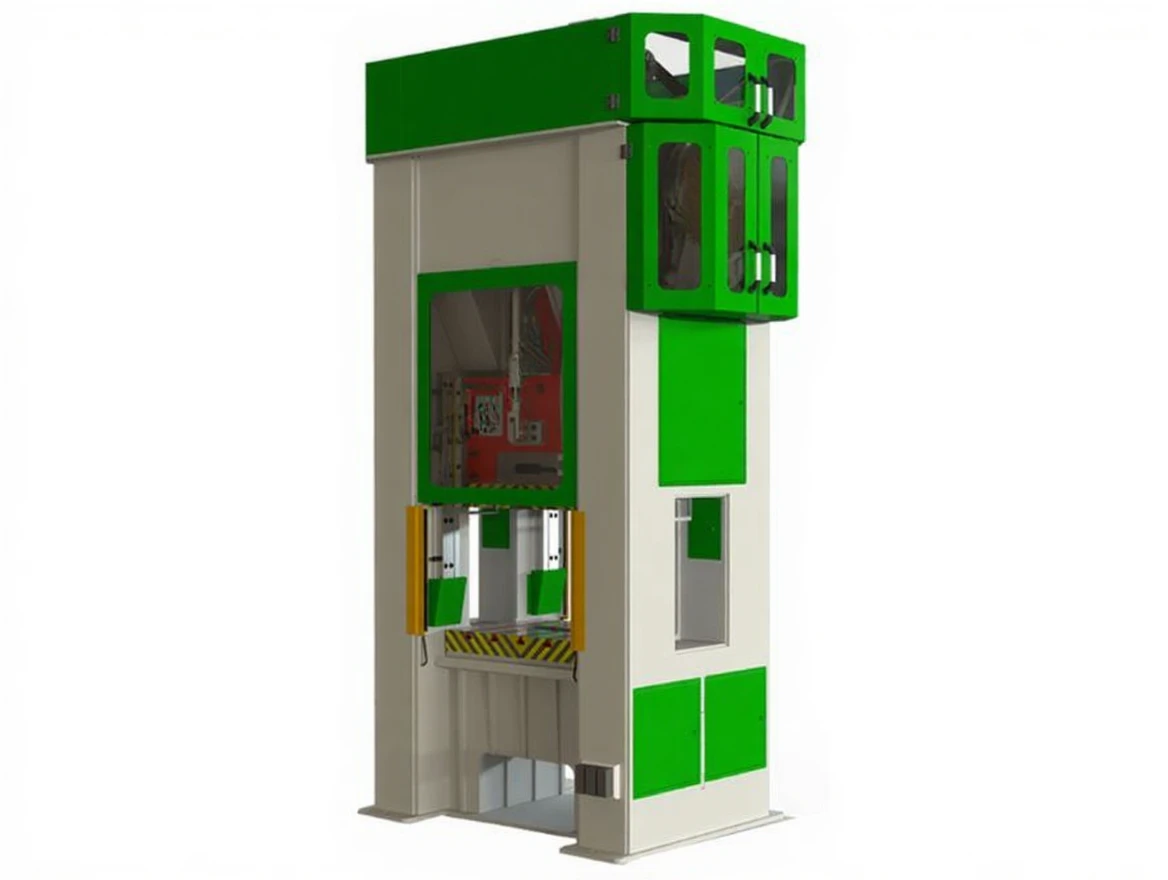

300 Ton H Type Single Crank Eccentric Press

Camshaft Eccentric Press – CEHP TB 300 Tons

Standard Features

• Steel construction body

• Pneumatic clutch – brake system

• T channel additional die plate

• 8 bearings coach

• Adjustable stroke in single crank arm

• Balancer piston on coach

• Automatic fine lubrication system

• PLC control system

• Grand type control panel

• Touch LCD screen

• Motor reverse movement

• Overload hydraulic fuse

• Motorized coach adjustment mechanism

• Photoelectric safety curtain

• Gearbox in closed oil reservoir

• Double-coil safety valve

• Compliance with CE standards

Optional Features

• Press feeding systems

• Waste material discharge systems

• Sliding safety cover in front of the table

• Mold with desired features

Technical Specifications

• Steel construction 8-way monoblock body

• Vibration stress relief on body and welded parts

• Usable area with moving table: 1400 × 1000 mm

• Usable area with fixed table: 1400 × 1000 mm

• Parallelism and perpendicularity tolerances conformity to ISO and DIN standards

• Stroke distance: 200 mm (fixed)

• Table – Coach distance (max.): 500 mm

• Coach adjustment (regulation): 120 mm

• Eccentric shafts: CK41

• Gears: Steel casting

• Motor-adjustable table – coach distance

• Approximate press height: 4700 mm

• Approximate press width: 3100 mm

• Approximate press depth: 2550 mm

• Press lower table height from ground: 900 mm

• Distance between walls: 1430 mm

• Press side window size can be adjusted as requested

• Flywheel bearing structure

• Slide bearings: Bronze (Zr14)

• Connecting rods, intermediate and main bearings: Bronze (Zr14)

• Central automatic grease lubrication

• Single crank structure

• Pneumatic clutch and combined brake system (OMPI)

• 4 coach cushioning cylinders

• Approximate press weight: 31,000 kg

Automation and Electrical Information

• Main motor: 37 kW – IE3

• Touch panel and PLC: Delta

• PLC program for mold adaptation to press

• Speed control device: Delta

• Operating speed: 25 – 45 pcs/min

• Mold recipe capacity: 100 pcs

• Switchgear materials: Siemens & Schneider

• Grand type or wall type electrical panel

• Distance measurement of table – coach distance can be monitored from the screen

Production Information

This machine is manufactured by CronossTech in Turkey.
