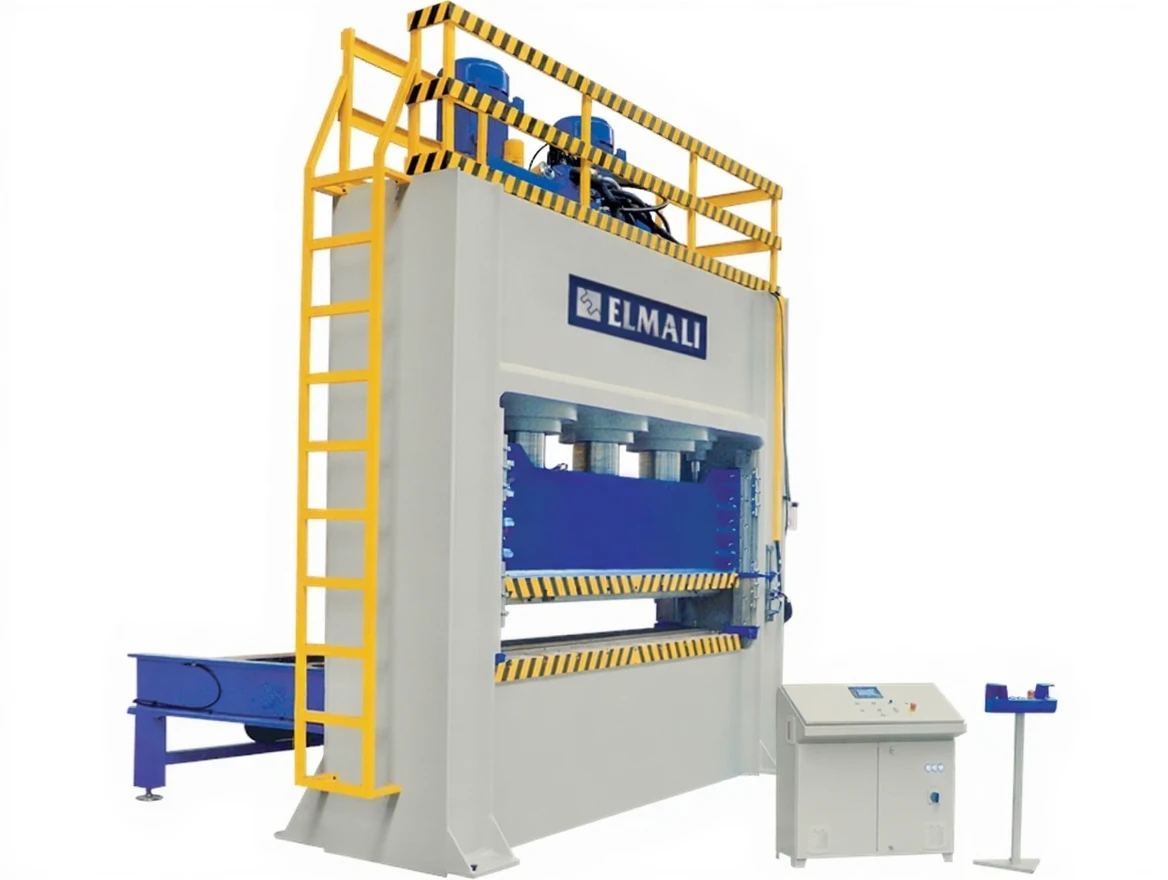

300 Ton Hydraulic Pattern Press
| Brand | Elmalı |
|---|---|
| Model Type |
EHDP-300 |
Description
Apple EHDP-300
300 Ton Hydraulic Pattern Press
Elmalı EHDP-300 Technical Specifications:
– Steel construction body
– Ram supported on 8 surfaces
– PLC application and display
– T-slot main table and ram
– Adjustable stroke
– Automatic central lubrication
– Dual hand control
– Electric counter
– Servo drive
– Speed control unit
– Photocell beam curtain
– Compliance with CE norms
– Custom table and stroke length
Elmalı EHDP-300 Technical Specifications:
| ton | mm | mm | mm | mm | b mm | C mm | d mm | mm | mm’sn | mm/sec | mm/sec | kW | |
| EHDP-300 | 300 | 500 | 550 | 600 1500 | 600 1500 | 3500 | 1350 | 2300 | 950 | 0390 | 250 | 30 | 10500 |
| EHDP-400 | 400 | 500 | 550 | 600 1500 | 600 1500 | 3500 | 1350 | 2300 | 950 | 0450 | 250 | 30 | 14000 |
| EHDP-500 | 500 | 500 | 550 | 600 1500 | 600 1500 | 3500 | 1650 | 2300 | 950 | 0500 | 250 | 45 | 17000 |
| EHDP-800 | 800 | 500 | 550 | 600 2600 | 600 2600 | 4100 | 1650 | 3600 | 1000 | 0360×3 | 250 | 55 | 27000 |
| EHDP-1000 | 1000 | 500 | 550 | 700 2600 | 700 2600 | 4100 | 1650 | 3600 | 1000 | 0410×3 | 250 | 55 | 36000 |
