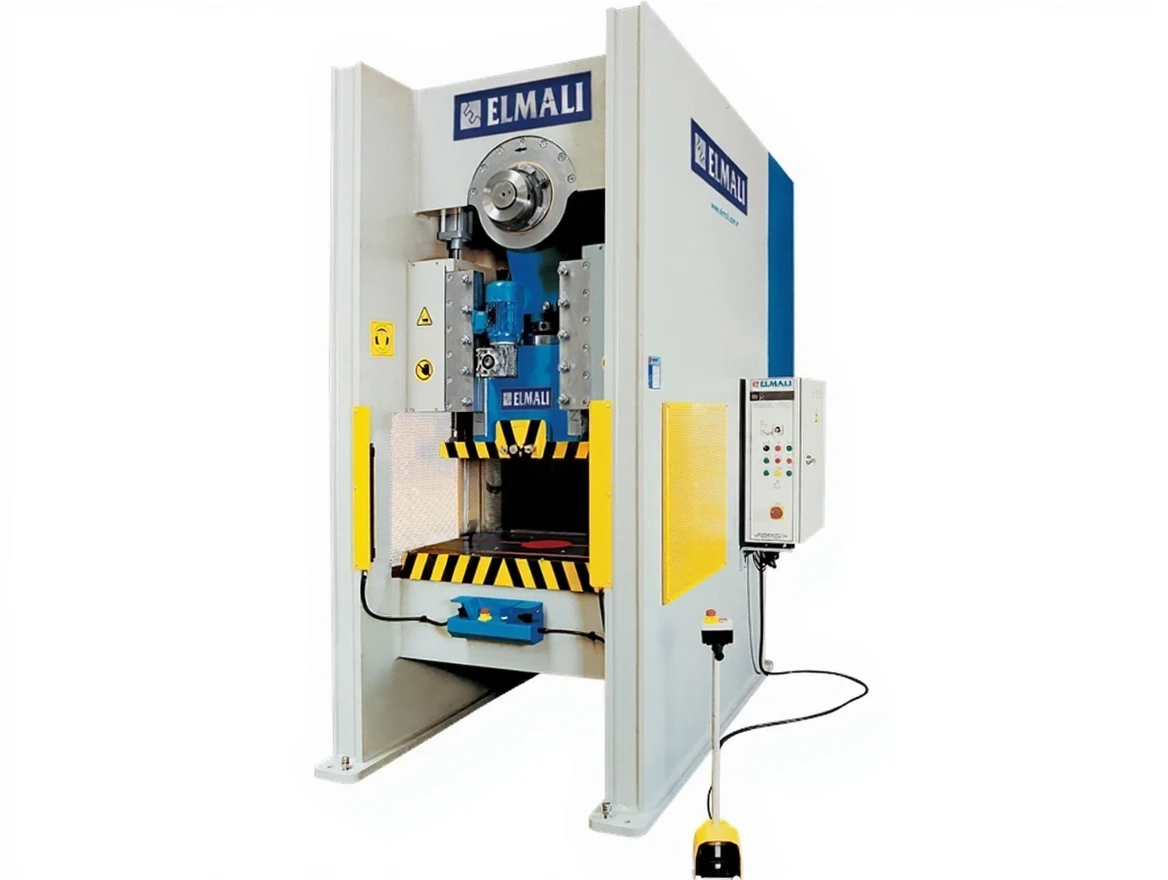

300 Ton Range D Type Eccentric Press
| Brand | Elmalı |
|---|---|
| Model Type |
EEPD 300 |
Elmalı EEPD 300
300 Ton Range D Type Eccentric Press
Elmalı EEPD 300 General Features:
– PLC application and screen
– Steel construction body
– Parts such as ram, connecting rod, and crank are steel castings
– Pneumatic clutch and brake combination
– Ram supported by 8 surfaces
– Motorized ram adjustment
– T-Slot main table
– Single stroke, continuous stroke features
– Pedal and two-hand control
– Automatic central lubrication
– Electric counter
– Ram cushioning cylinders
– Hydraulic safety
Optional Features
– Servo drive
– Speed control unit
– Photoelectric light curtain
– Compliance with CE directives
– Non-standard table and stroke
– Anti-vibration pad
Elmalı EEPD 300 Technical Specifications:
|
|
ton |
a mm |
b mm |
C mm |
d mm |
e mm |
f mm |
g mm |
h mm |
1 mm |
j mm |
l mm |
m.n mm |
O mm |
p.r mm |
S mm |
mm |
|
EEPD 80 |
80 |
400 |
880 |
85 |
1150 |
1500 |
2500 |
0190 |
600 800 |
040 |
245 410 |
850 |
10 100 |
50 |
7,5 |
1450 |
6500 |
|
EEPD 100 |
100 |
450 |
960 |
85 |
1230 |
1650 |
2650 |
0200 |
700 880 |
050 |
245 410 |
850 |
10 110 |
50 |
11 |
1450 |
7500 |
|
EEPD 125 |
125 |
500 |
1000 |
100 |
1250 |
1750 |
2850 |
0210 |
700 900 |
055 |
340 550 |
850 |
10 125 |
50 |
11 |
1450 |
8500 |
|
EEPD 150 |
150 |
500 |
1080 |
120 |
1400 |
1900 |
3000 |
0220 |
720 1000 |
055 |
450 800 |
900 |
10 125 |
50 |
15 |
1450 |
12000 |
|
EEPD 200 |
200 |
500 |
1150 |
130 |
1500 |
2000 |
3200 |
0240 |
800 1070 |
060 |
450 800 |
950 |
20 140 |
50 |
18,5 |
1450 |
14500 |
|
EEPD 250 |
250 |
520 |
1230 |
150 |
1600 |
2100 |
3400 |
0250 |
850 1150 |
060 |
470 900 |
950 |
20 160 |
40 |
22 |
1480 |
16500 |
|
EEPD 300 |
300 |
530 |
1280 |
150 |
1700 |
2200 |
3500 |
0260 |
900 1200 |
060 |
470 900 |
1000 |
20 200 |
32 |
30 |
1450 |
18000 |
