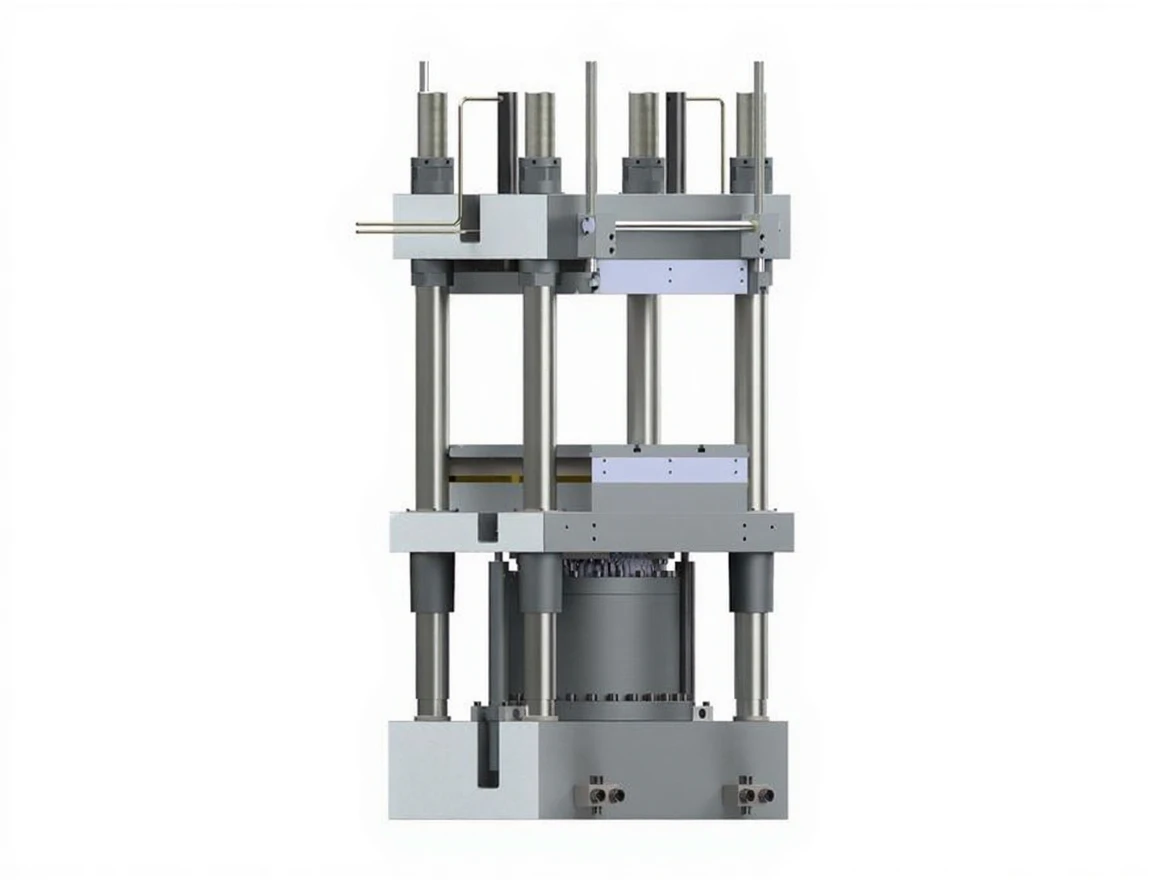

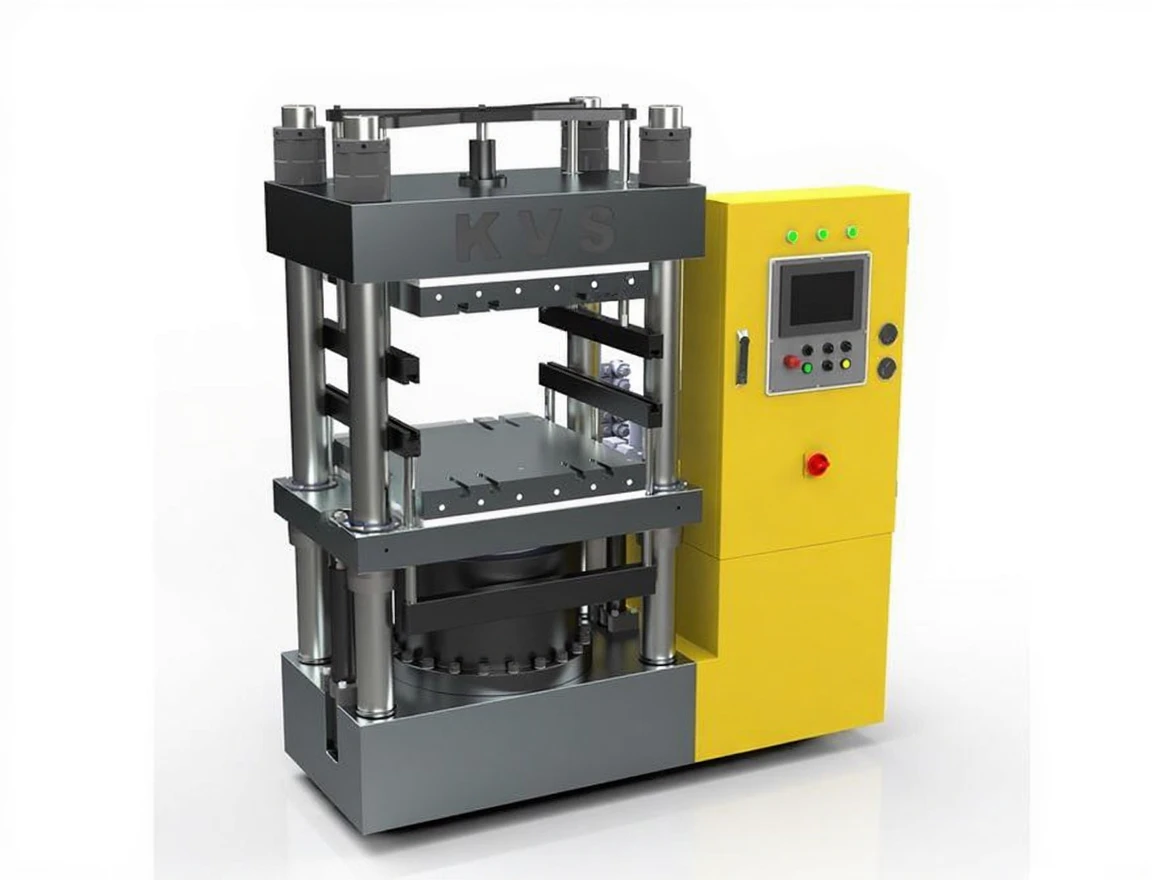

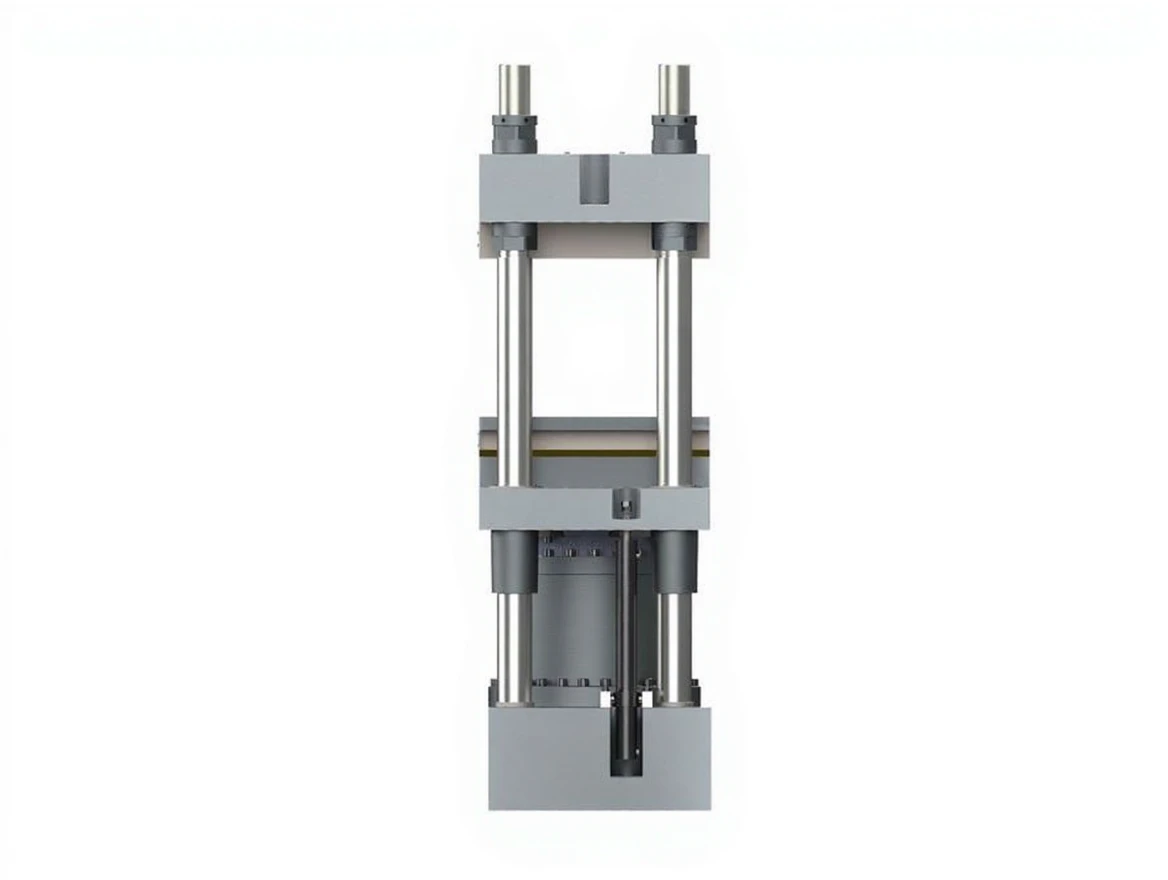

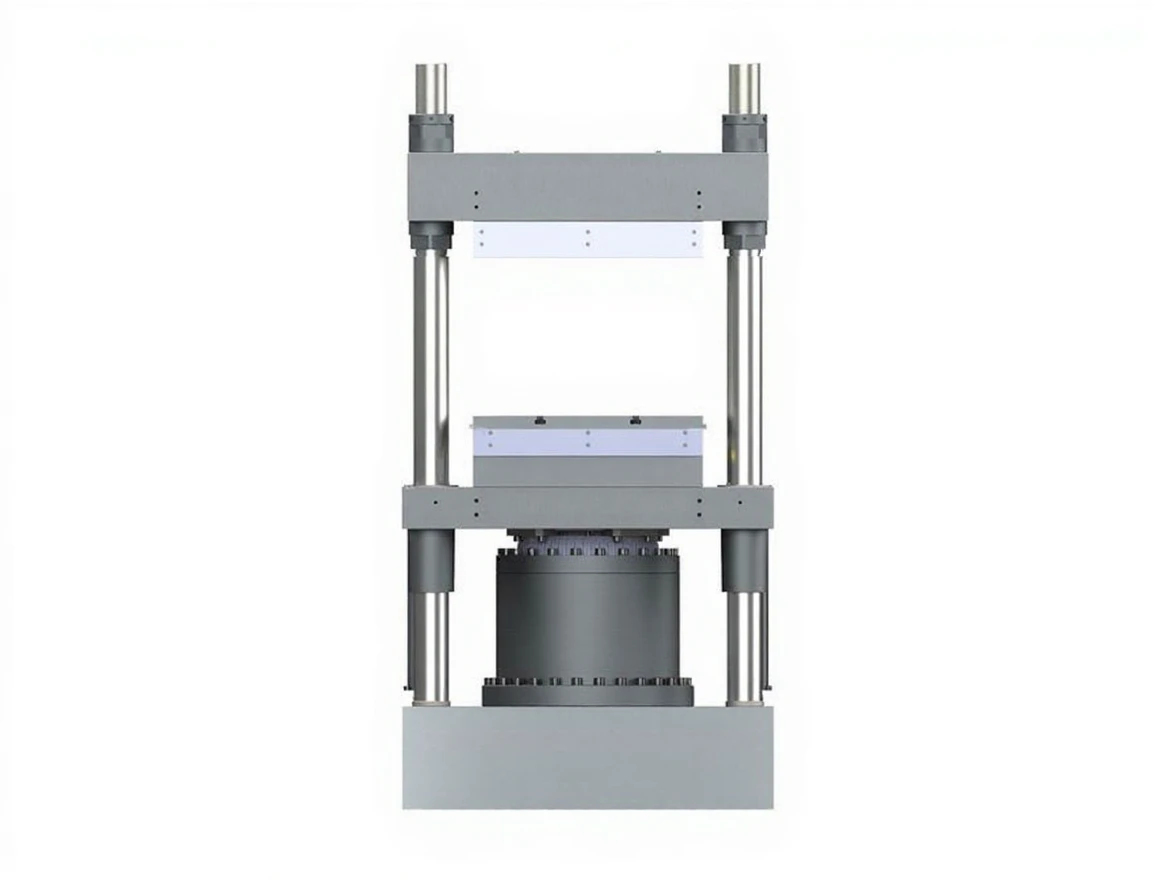

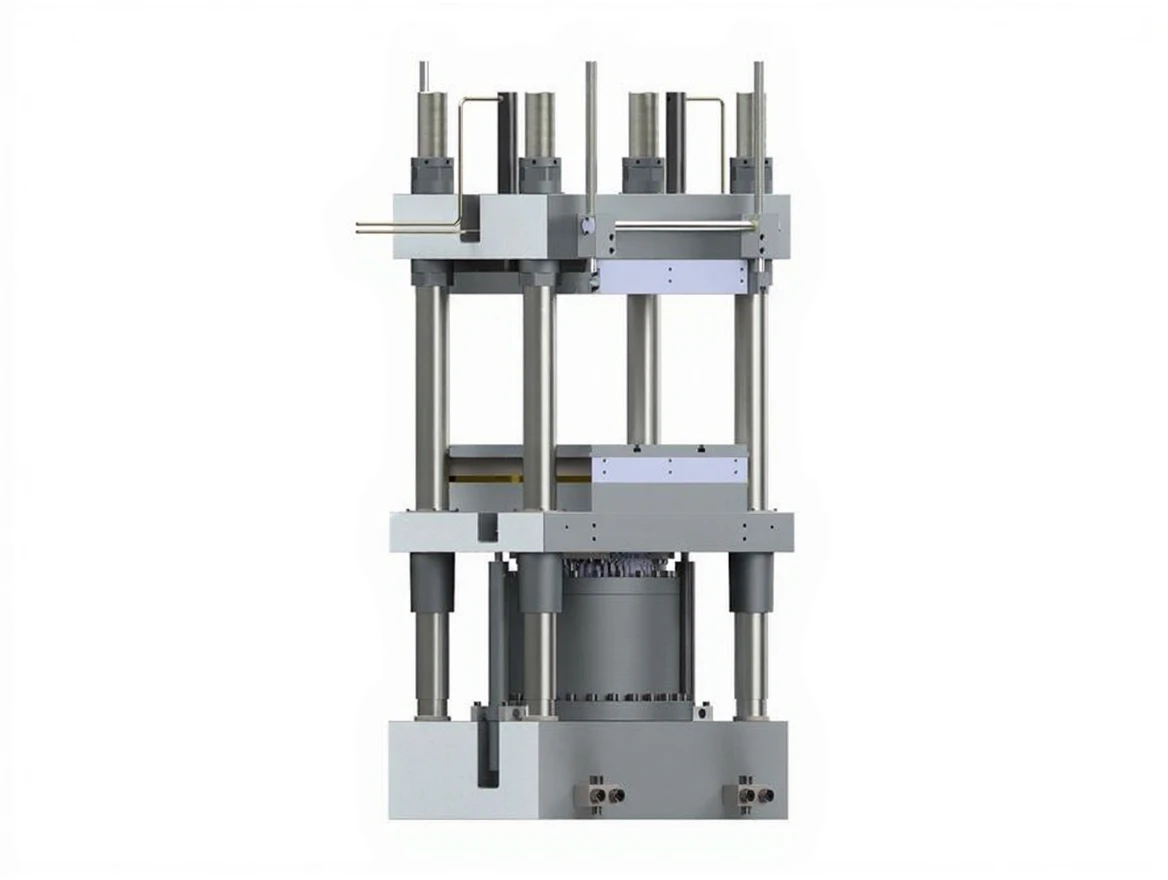

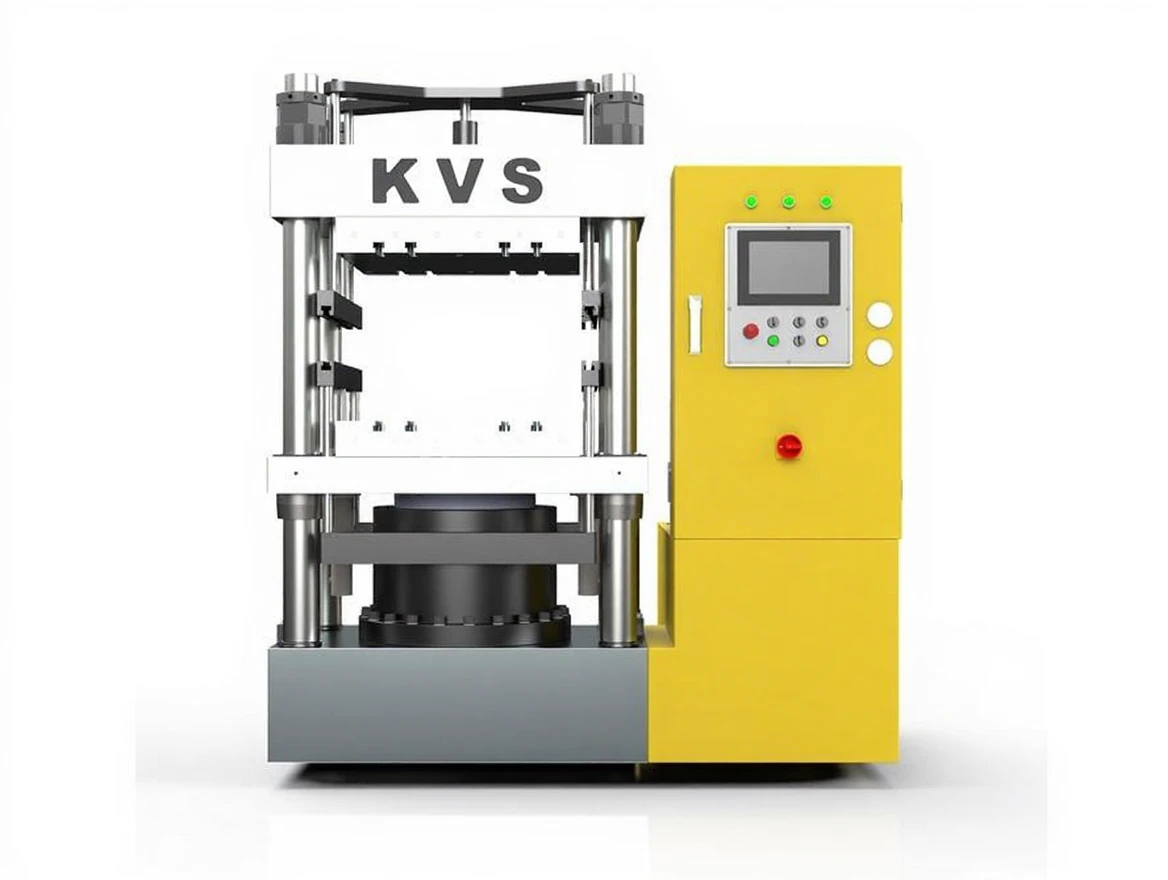

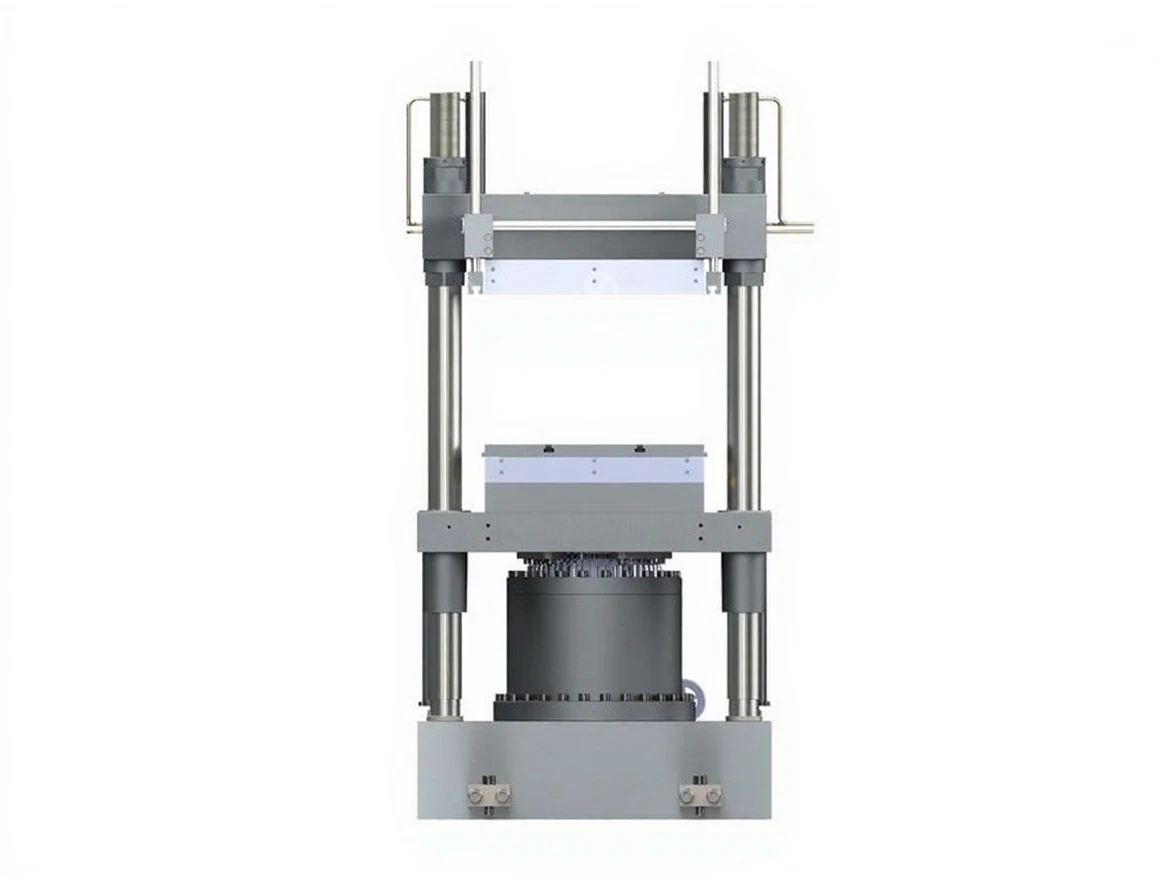

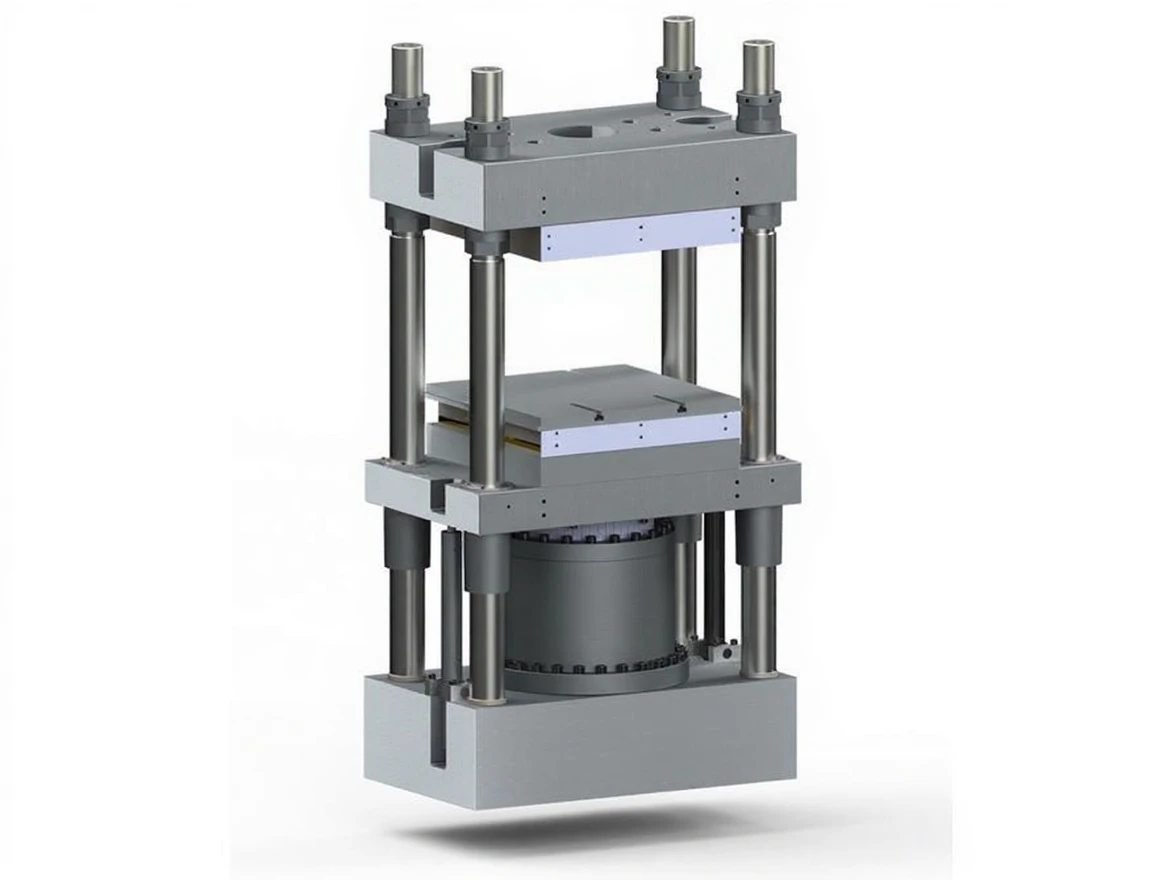

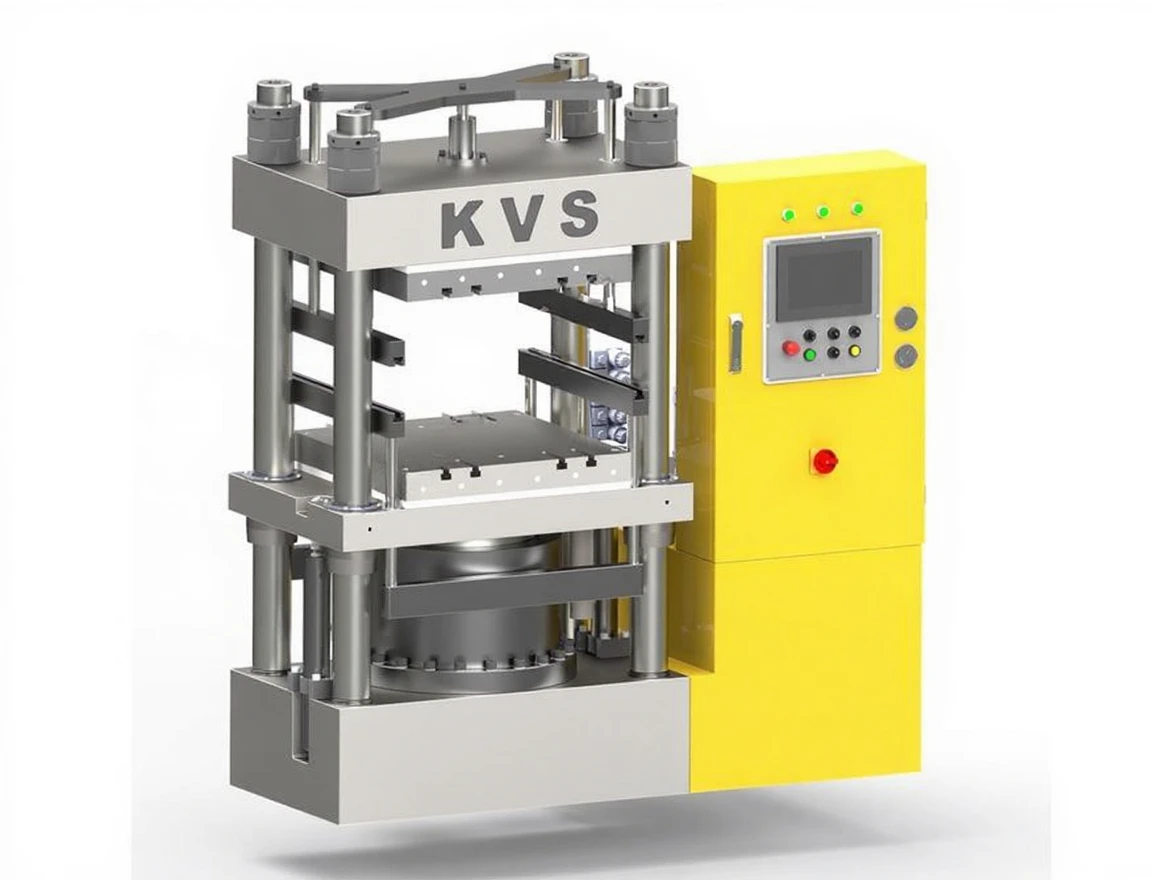

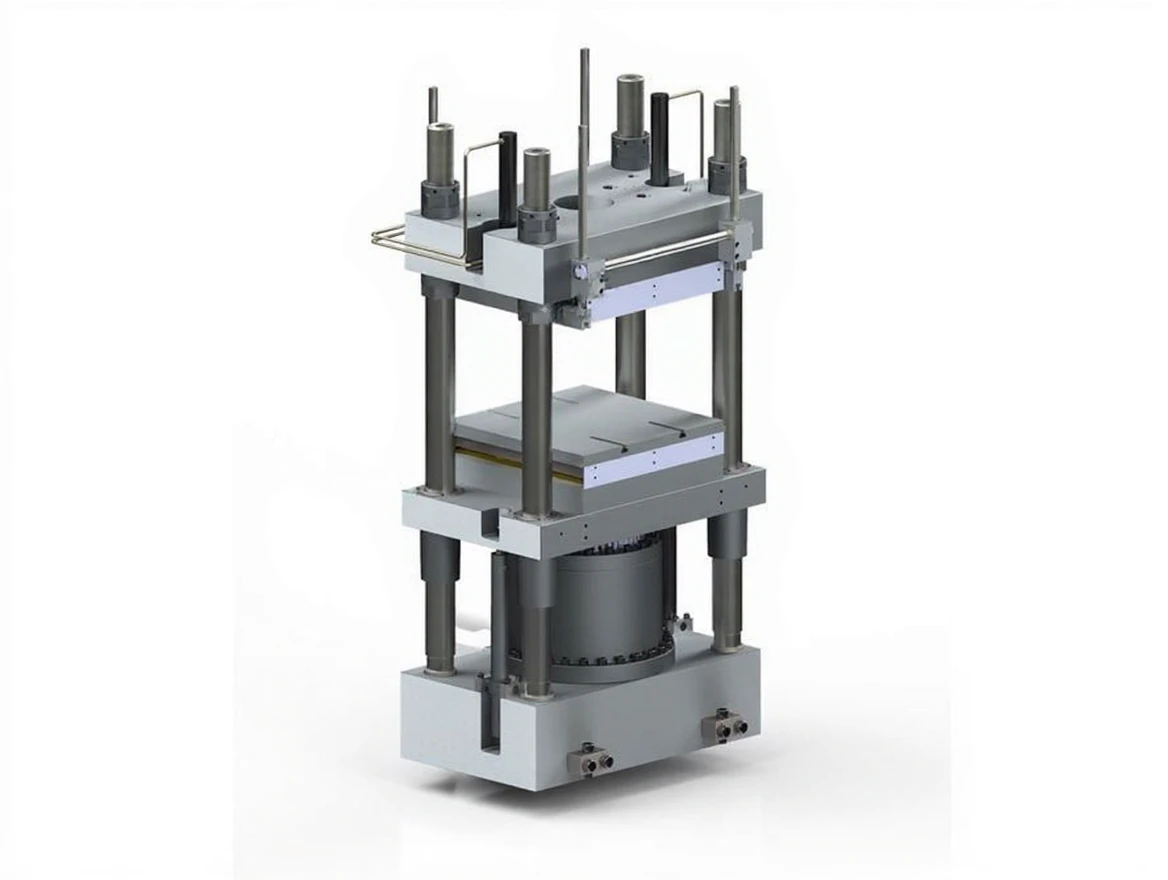

300 Ton Rubber Vulcanization Machine
| Brand | KVS |
|---|---|
| Model Type |
PRS / N-300 |
Description
300 Ton Rubber Vulcanization Machine
| MODEL | TYPE | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ | PRS/ |
| N-50 | N-80 | N-100 | N-150 | N-200 | N-250 | N-300 | N-400 | N-500 | ||
| Clamping Force | Ton | 50 | 80 | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
| Piston Stroke | mm | 250 | 250 | 250 | 250 | 300 | 300 | 400 | 400 | 400 |
| Table Size | mm | 300*300 | 400*400 | 450*450 | 500*500 | 600*600 | 650*650 | 700*700 | 750*750 | 900*900 |
| Mold Size | mm | 400*300 | 500*400 | 550*450 | 600*500 | 700*600 | 750*650 | 800*700 | 850*750 | 1,000*900 |
| Piston Diameter | mm | 180 | 230 | 270 | 310 | 355 | 400 | 430 | 500 | 550 |
| Heating Power | Kw | 10 | 10 | 12 | 12 | 15 | 18 | 20 | 25 | 30 |
| System Pressure | Bar | 210 | ||||||||
| Oil Tank | Lt | 150 | 150 | 200 | 200 | 250 | 250 | 400 | 400 | 450 |
| Pump Type | Pallet | |||||||||
| Dimensions W/H | Mt | 1.2*2.0 | 1.2*2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.5X2.0 | 1.8X2.2 | 2.0X2.5 | 2.0X2.5 |
| Weight | Kg | 4.5 | 5 | 5 | 5 | 5.5 | 6 | 6.5 | 7 | 8 |
| Height | Mt | 2.2 | 2.2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Machines that enable the easiest production of rubber products.
At Kavis Makine, we manufacture machines ranging from 50 tons to 5,000 tons.
The same 2RT, 3RT, 4RT mold separating systems used in other machines can also be easily used in this machine, providing a highly efficient production process with high safety.
With a fully enclosed cabin, it complies with CE safety procedures.
Options:
- Top Plate Lifter
- Bottom Plate Lifter
- Product extractor ejector
- 2RT / 3RT / 4RT
- External top and bottom ejectors
- Mold Plate rotation 180 degrees
Related products

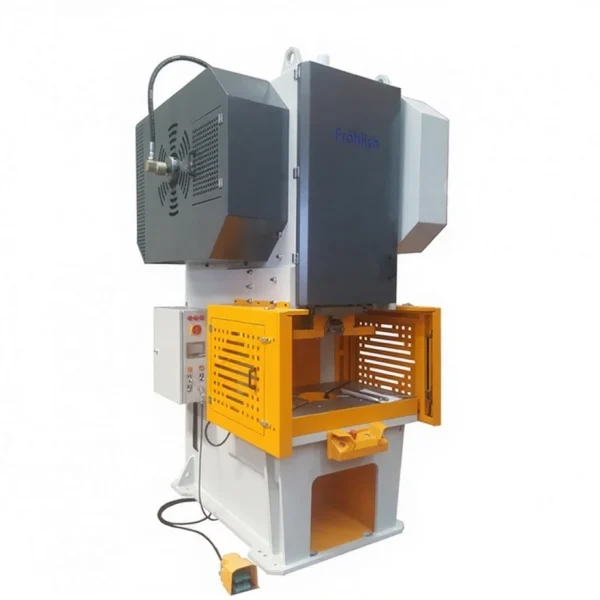

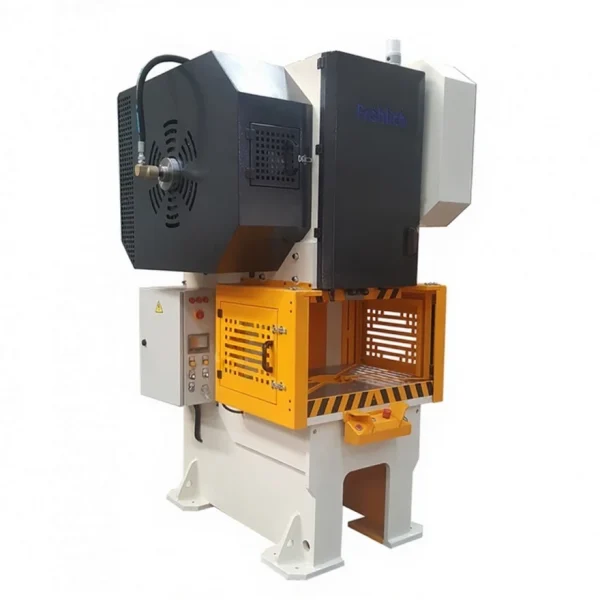

Fröhlich C Type Eccentric Press with a Capacity of 125 Tons
