3000 kN Double Test Area Hydraulic Universal Testing Machine
| Brand | İbertest |
|---|---|
| Model Type |
IBMU4 Serisi |

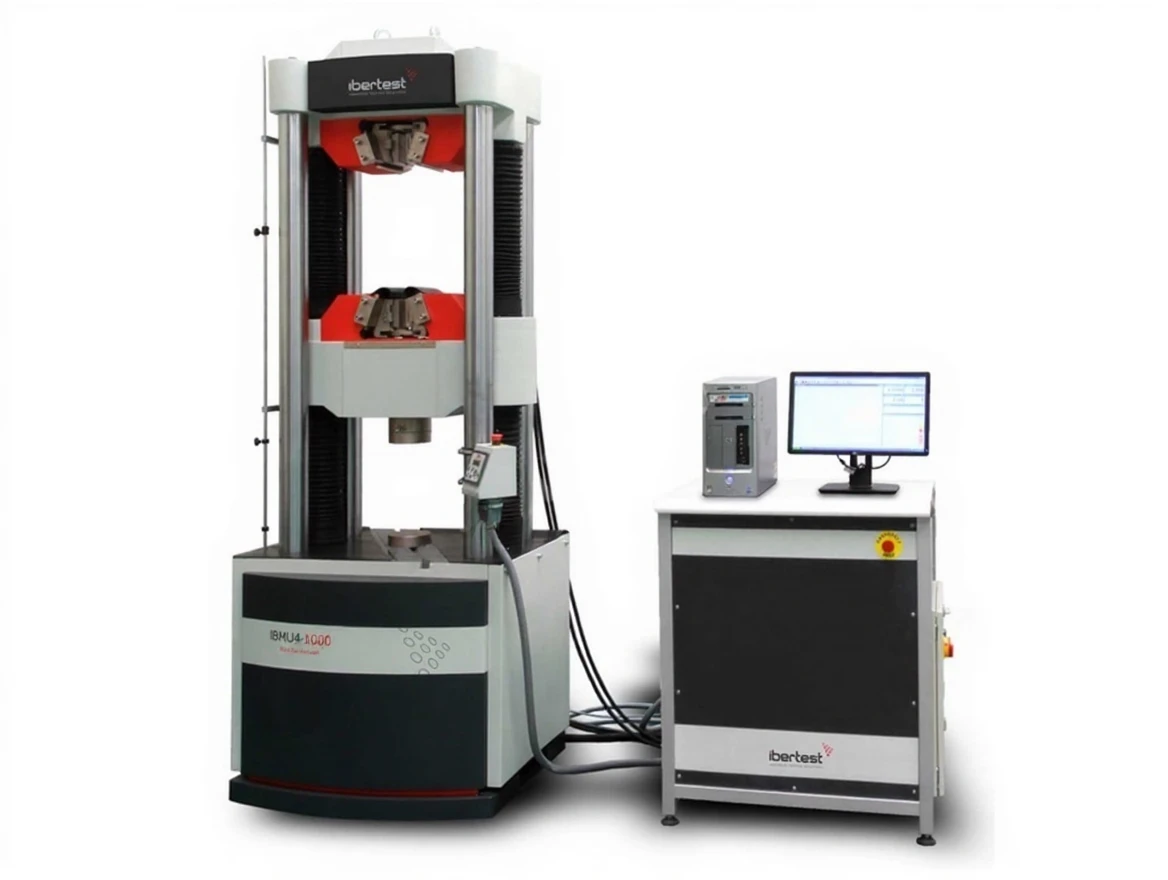

İbertest IBMU4 Series 3000 kN Hydraulic Universal Testing Machine with Dual Test Areas
It can be used up to a capacity of 3000 kN.

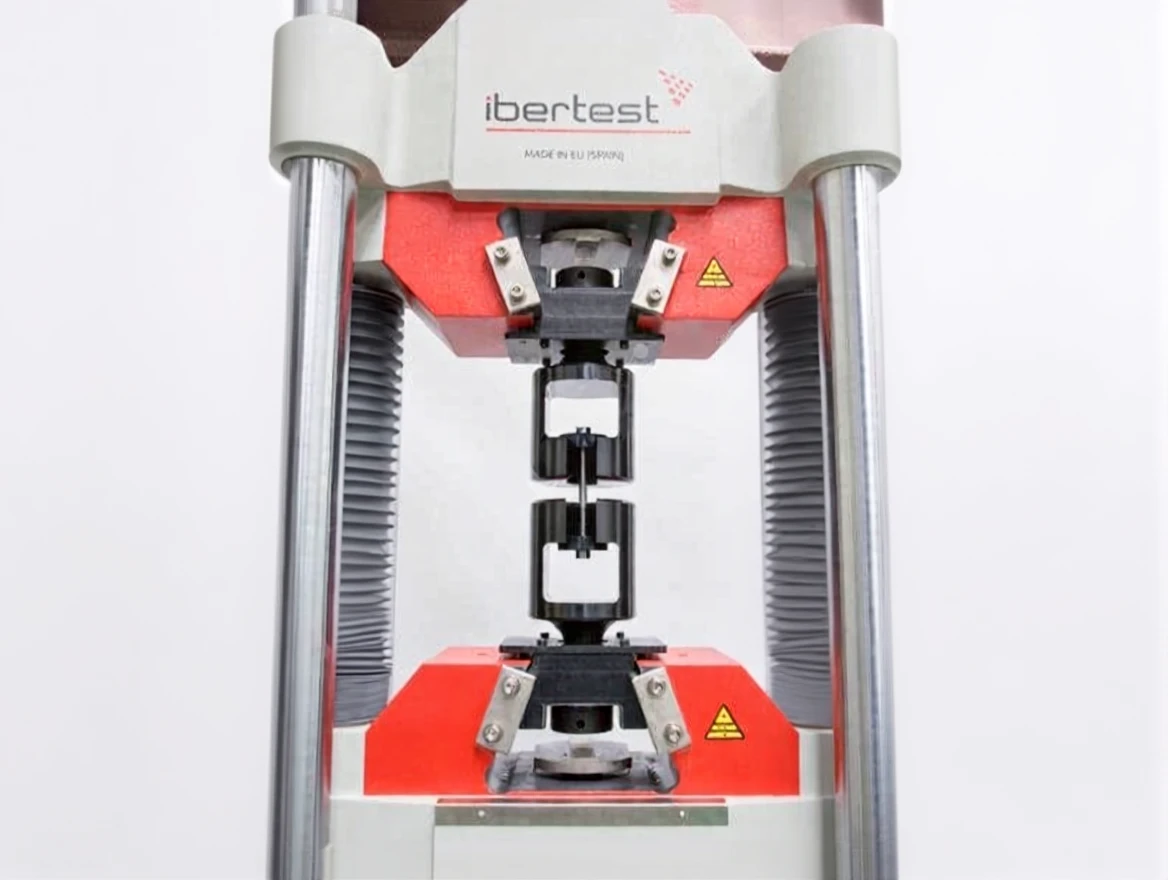

Double test area, tensile test and compression test, bending test etc. in a short time. Ideal for changing users. One test zone is established for tensile testing and the second test zone is configured for compression or bending testing, eliminating the changing time test accessory.
Test high capacities without excessive height in the compact design laboratory.

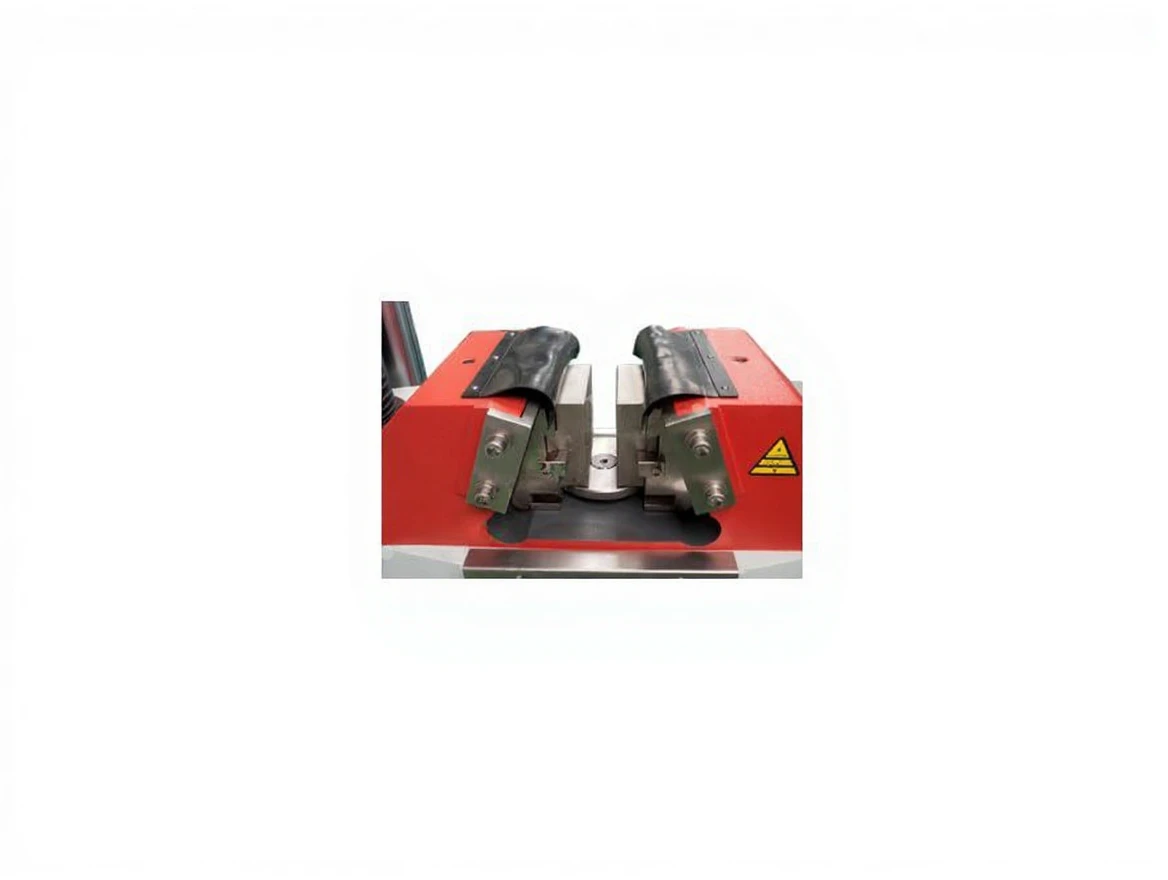

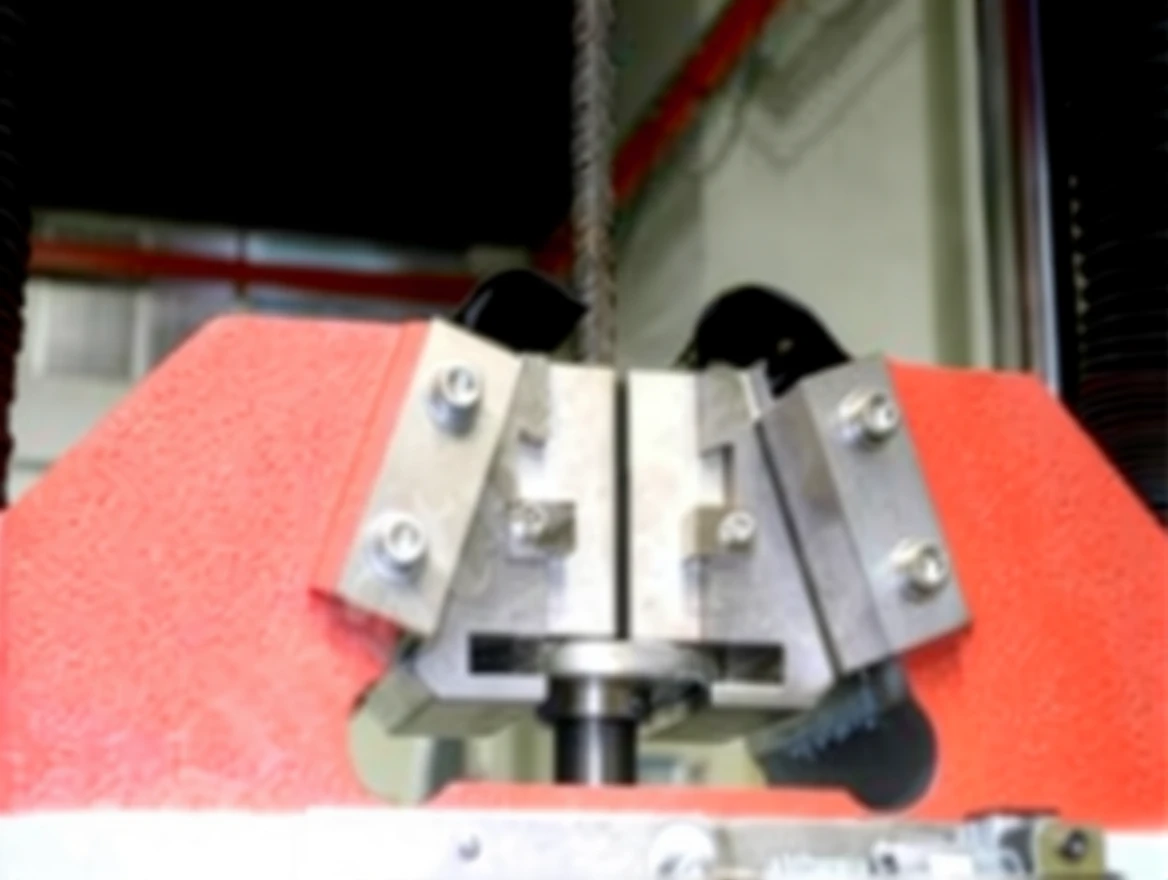

Hydraulic clutch heads embedded in the intermediate crossbar for remote management. Remote controlled opening and closing of the jaws and positioning of the intermediate crossbar.

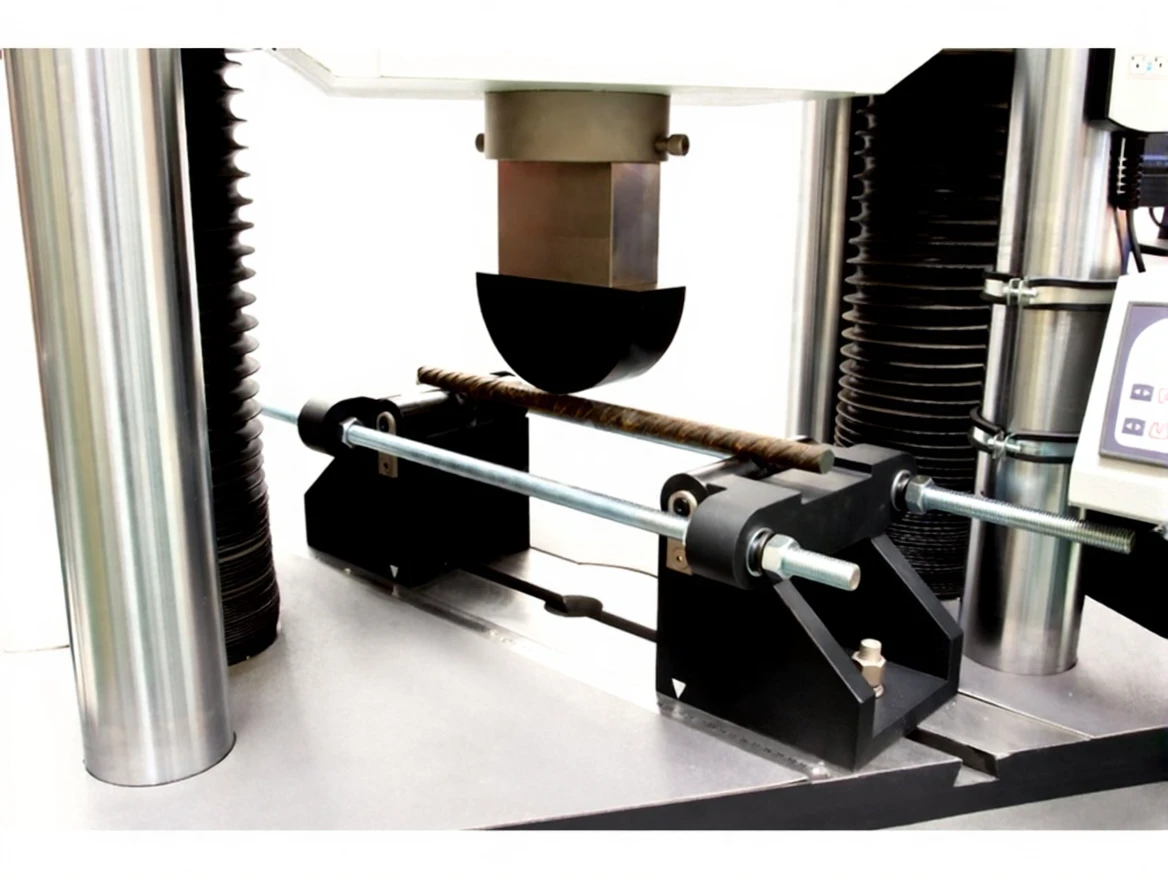

Including bending and clamping devices within standard feed.
|
MODEL |
IB-MU4-600 |
IB-MU4-1000 |
IB-MU4-1500 |
IB-MU4-2000 |
IB-MU4-3000 |
|
Maximum load |
600 kN |
1000kN |
1500kN |
2000kN |
3000 kN |
|
Class according to ISO 7500-1 |
Class 0.5 |
||||
|
Load measurement |
Strain-gage load cell |
||||
|
Measurement range |
From 2% to 100% of the load cell nominal capacity |
||||
|
Load resolution |
5 digits with floating point |
||||
|
Load cell repeatability |
Better or equal to ± 0.05 % |
||||
|
Columns nº (diameter) |
4 (ø 100 mm) |
4 (ø 110 mm) |
4 (ø 125 mm) |
||
|
Screw drivers nº (diameter) |
2 (ø 120 mm) |
2 (ø 140 mm) |
|||
|
piston stroke |
250mm |
||||
|
Maximum loading speed |
80mm/min |
50mm/min |
|||
|
piston displacement speed |
160mm/min |
100mm/min |
|||
|
Crosshead elevation speed |
350mm/min |
200mm/min |
|||
|
Free distance (between columns) |
540mm |
565mm |
760mm |
870mm |
|
|
[ URL HIDDEN ] between tensile gripping heads (piston stroke included) |
780mm |
1000mm |
1450mm |
||
|
Max. distance between compression plates |
780mm |
850mm |
1250mm |
||
|
Displacement resolution |
0.001mm |
||||
|
Testing frame dimensions:(width x depth x height) mm |
910 x 790 x 2640 |
1420 x 1150 x 3800 |
1500 x 1150 x 3860 |
||
|
Testing frame approx. weight |
2900kg |
10,120 kg |
11,000kg |
||
|
Hydraulic workframe dimensions (width x depth x height) in mm |
910 x 980 x 1100 |
||||
|
Approx weight of the hydraulic workframe |
325kg |
||||
|
power supply |
Three-phase 380 V plus neutral and earth, 50/60 Hz (to specify) |
||||
