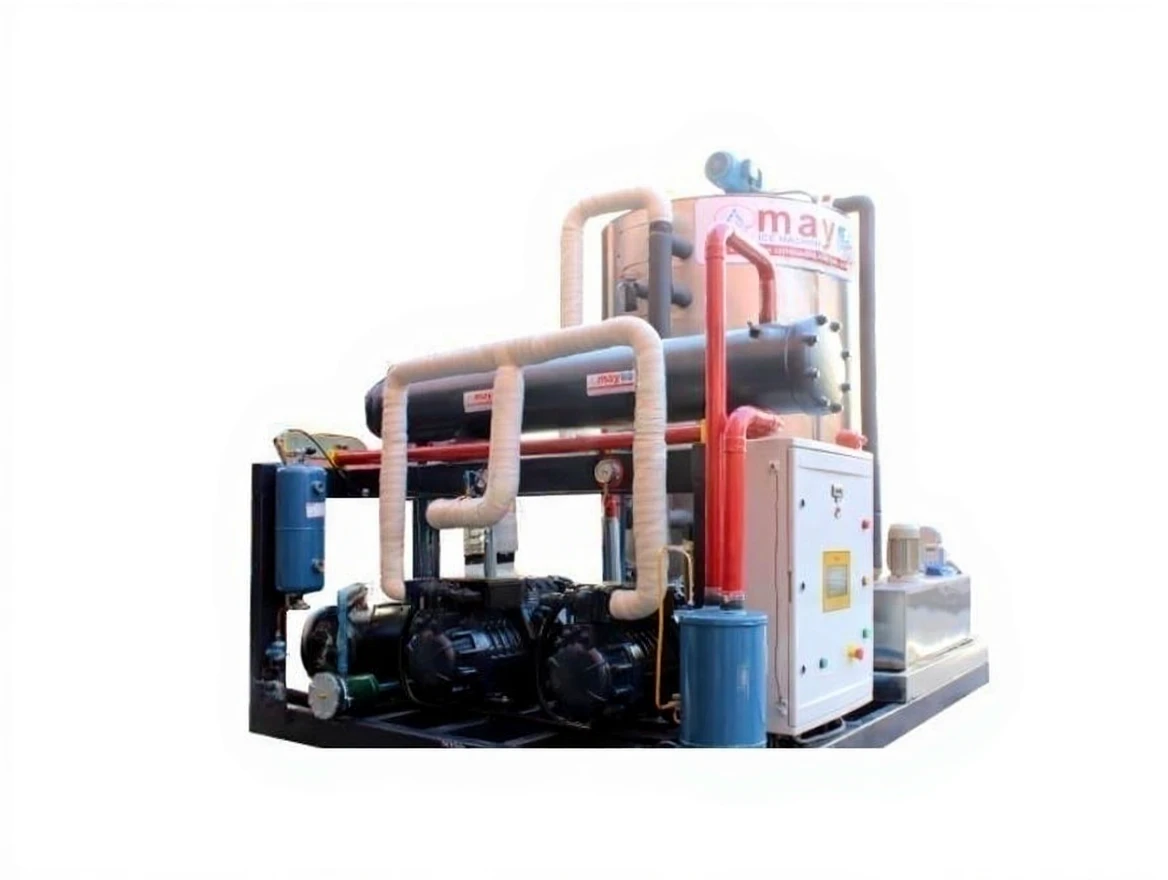

30,000 Kg / Day Fresh Water Flake Ice Machine
| Brand | Mayso Soğutma |
|---|---|
| Model Type |
MYBZ-FW / 30 T |
30,000 Kg / Day Fresh Water Flake Ice Machine
Mayso Cooling offers the most advanced technology solutions for Fresh Water Flake Ice Machines in the industry. The MYBZ-FW / 30 T model is designed to operate with high efficiency in all climate conditions. This machine is used in a wide range of applications from the food industry to medical applications by working with fresh water.
Features:
-
High Capacity: It has a production capacity of 30,000 kg of ice per day, making it an ideal solution for large-scale facilities.
-
Efficient Operation: Mayso Cooling machines can operate at full efficiency in all weather conditions and tropical climates. Ice production continues even in hot environmental conditions.
-
Vertical and Horizontal Evaporator Options: The machines are available with vertical and horizontal type ice evaporator options. This allows for the selection of the most suitable configuration according to the area of use.
-
Operation with Fresh Water: By using fresh water, it provides efficient ice production at low cost.
-
Scalable Capacity: Customizable according to needs with capacity options ranging from 500 kg to 30,000 kg.
Technical Specifications:
-
Capacity: Optional production between 500 kg – 30,000 kg
-
Ice Type: Flake ice
-
Water Type: Operation with fresh water
-
Evaporator Type: Options for vertical and horizontal types
Advantages:
-
Climate Independent Performance: Can operate in all weather conditions, including tropical climates, thus ensuring efficient production.
-
High Efficiency: Thanks to its modern design and advanced technology, it ensures efficient ice production and minimizes energy consumption.
-
Long Lifespan Usage: Machines produced with durable materials and quality workmanship are suitable for long-term use.
-
Flexible Usage Area: Has a wide range of applications in the food industry, medical products, and other industrial sectors.
Areas of Use:
-
Food and Beverage Industry: An ideal solution for cooling processes and ice supply.
-
Medical and Pharmaceutical Applications: High-quality ice supply for cooling medical materials and drugs.
-
Industrial Applications: Use in various industrial branches where ice is required.
Mayso Cooling meets all your cooling needs with high-capacity Fresh Water Flake Ice Machines. You can contact us to provide solutions suitable for your needs with different capacity options and technologies.
Mayso Cooling MYBZ-FW / 30 T Technical Specifications
|
Machine Model |
MYBZ-FW / 30 T |
|---|---|
|
Daily Ice Capacity |
30,000kg / 24h |
|
Cooling Capacity |
155,000 Watt |
|
Refrigerant |
R404A |
|
Compressor Type |
Semi-Hermetic |
|
Total Power Consumption |
99.5 kW |
|
Compressor Power |
85 kW |
|
Condenser Fan Power |
12 kW |
|
Reducer Power |
2.2 kW |
|
Water Pump Power |
0.37 kW |
|
Dosage Pump Power |
0.016 kW |
|
Power Supply |
380V/50Hz/3P |
|
Total Current Draw |
180 A |
|
Cooling Type |
Air-Cooled |
|
Evaporator Channel |
Spiral channel |
|
Evaporator Temperature |
-20°C |
|
Condenser Temperature |
45°C |
|
Ice Output Temperature |
-4 / -8 °C |
|
Ice Thickness |
1.5-2.2mm |
|
Water Supply Pressure |
0.1Mpa-0.5Mpa |
|
Water Inlet Pipe Diameter |
2 |
|
Operating Ambient Temperature |
25°C |
|
Water Inlet Temperature |
20°C |
|
Evaporator Unit Weight |
3,200 kg |
|
Evaporator Unit Dimensions |
1750×1400*2200 |
|
Machine Operating Water Type |
FRESH WATER |
