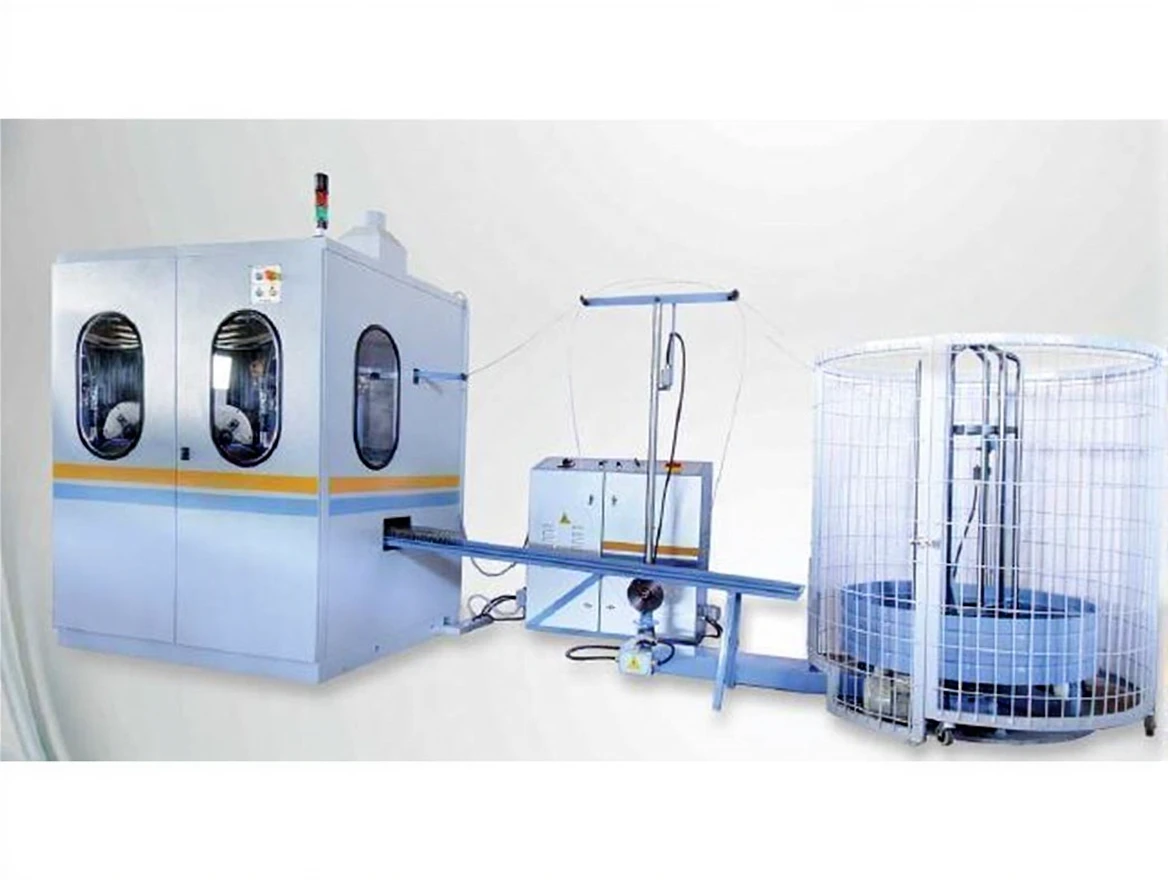

30000 Pieces / 8 Hours Automatic Bonnell Mattress Spring Machine

Veysel Kütüklü VKY-65A

Automatic Bonnell Spring Machine 30,000 Pieces / 8 hours

Technical Specifications
Total Production Capacity	30,000 pcs/8 hours
Spring Wire Thickness	1.9 mm – 2.4 mm
Adjustable Spring Outer Diameters	Ø 80 mm – Ø 95 mm
Spring Middle Diameter	Ø 40 mm – Ø 45 mm
Spring Height	70 mm – 160 mm
Production Speed	65 pcs/min
Coil Count	4 Coils 70 mm-110 mm 5 Coils 110 mm-140 mm 6 Coils 130 mm-160 mm Standard: 5 (Optional: 4 , 6)
Operating Temperature	0 °C – 40 °C
Spring Type	BONNEL
Maximum Basket Load	600 kg
Total Power Consumption	10 KW
No Air Requirement
Operating Voltage	Three phase 380V, single phase 220V, 50-60hz, Input fuse 63 A, Cable 4x4mm

30,000 Bonnell Spring production capacity per shift of 8 hours.

High work efficiency, low maintenance needs, long-term performance.

High-quality machines that you can have at the most reasonable prices.

Quick and easy to use.

All parts of our machines are manufactured by us, and as a result, we can achieve high-quality standards through our knowledge and expertise.
