3000×1700 mm CNC Bridge Type Machining Center

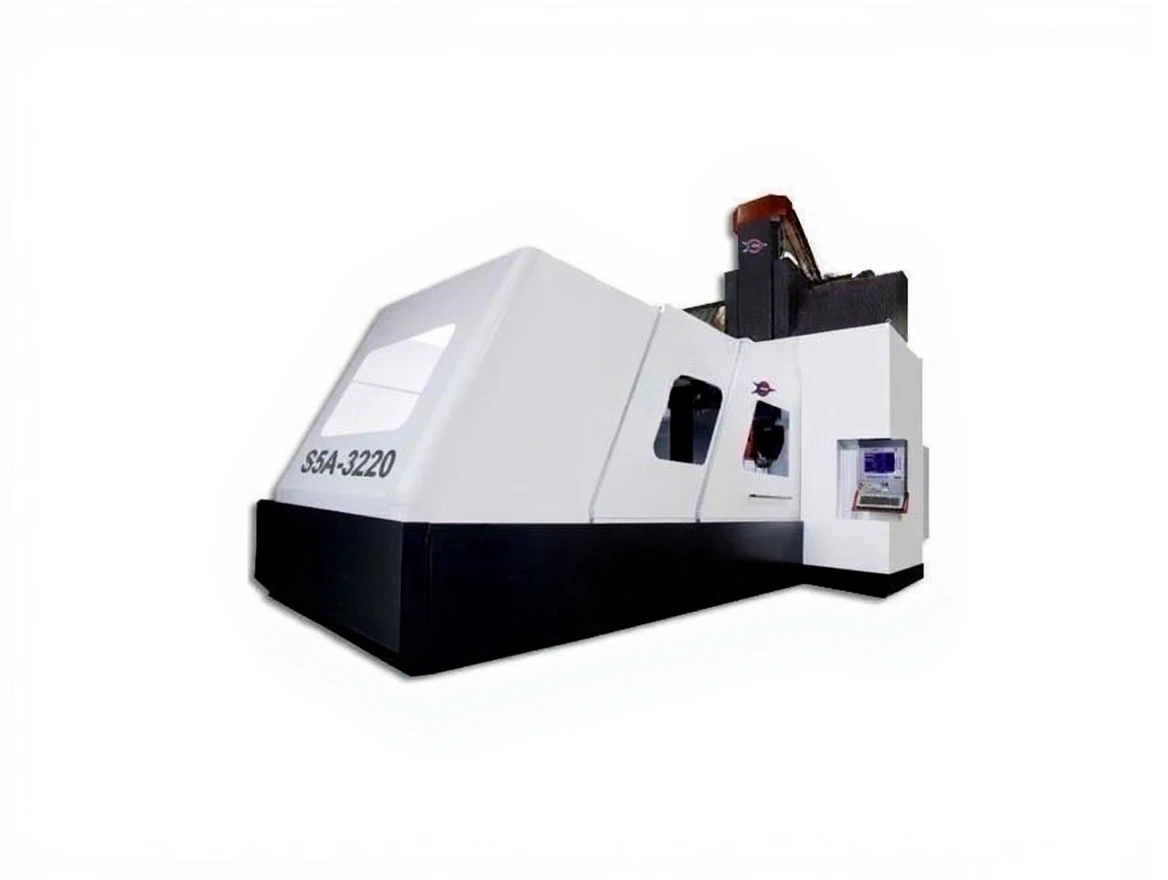

Sanco S5A-3220

3000×1700 mm CNC Bridge Type Machining Center

TABLE

TABLE DIMENSIONS 3000X1700

T NUTS 22X10

MAXIMUM LOAD CAPACITY 9000KG

MOTIONS

X AXIS MOTION 3200MM Y AXIS MOTION 2400MM Z AXIS MOTION 1200MM A AXIS +95° / -110° C AXIS ±360°

SPINDLE

SPINDLE BEARING DIAMETER 70MM SPINDLE SPEED 240-24000 SPINDLE TAPER HSK-63A SPINDLE OUTER DIAMETER 210MM

TRAVELS

COLUMN SPACING 2020MM SPINDLE NOSE TO TABLE DISTANCE 100-1300MM TABLE HEIGHT 875MM

FEED RATES

X,Y,Z RAPID FEED RATES 24/24/18 A AXIS SPEED 2000°/MIN C AXIS SPEED 1200°/MIN

MOTOR

SPINDLE MOTOR 55/42KW X/Y/Z

AXIS MOTORS 37/31/31

ATC

ATC CAPACITY 40 TAPER HSK-63A

TOOL SELECTION ABSOLUTE

TOOL CHANGE TIME 6.5 SECONDS

TOOL DIAMETER 95MM/180MM

TOOL LENGTH 300MM

TOOL WEIGHT 8KG

ACCURACY

X/Y/Z AXES ISO 230-2 STANDARD

A: 0.025 MM (POSITIONING)

R: 0.015MM (REPEATABILITY)

A/C AXES ISO 230-2 STANDARD

A: 6 ARC-SECONDS MM (POSITIONING)

R: 4 ARC-SECONDS (REPEATABILITY)

GENERAL MACHINE FEATURES

MACHINE DIMENSIONS 10X6X6.2M

MACHINE WEIGHT 30 TONS

CONTROL UNIT FIDIA C20

Equipped with Fidia Control Unit and Standard Accessories.
