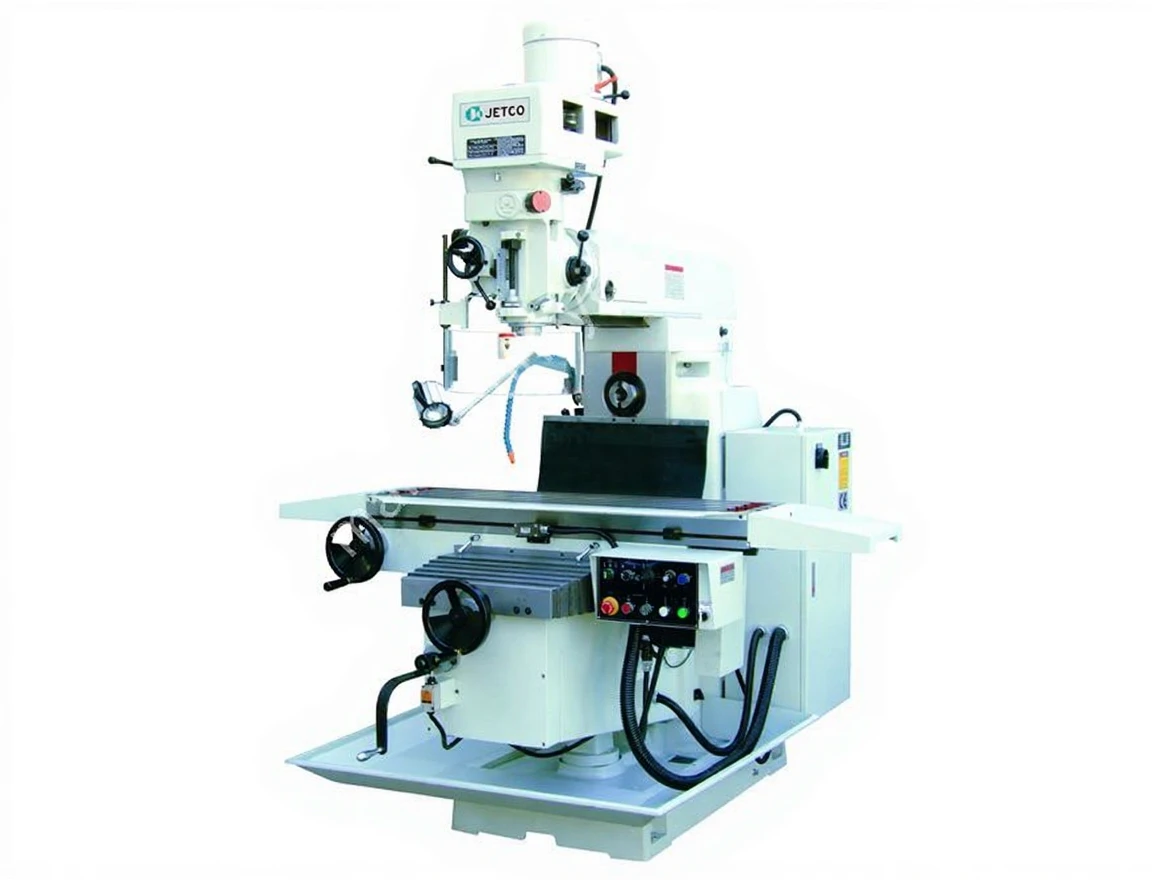

305×1524 mm Universal Milling Machine

JETCO JBE-6 Universal Milling Technical Specifications

Table size  mm  305 x 1524

T. slot     mm      16 x 3 x 63

Table X axis movement    mm      1200

Table Y axis movement    mm      460

Table Z axis movement    mm      500

Head up/down movement          mm      610

Spindle quill movement            mm      140

Quill diameter         mm      110

X & Y Axis SERVO Motor    HP     1

X & Y Axis feed rate     mm/minute       0-1.000

RAPID   motor           HP        3/4

Transmission feed rate     mm/minute       800

Distance between table surface and spindle    mm    -70 / 375

Motor (Vertical & Horizontal)       HP     5 & 3

Spindle taper (Vertical & Horizontal)         ISO40

Speed change              10 step speed

Spindle speed (Vertical & Horizontal )    rpm    80-3450 & 80-1355

Head rotation angle         Right/Left 90°

Net weight       kg          2600
