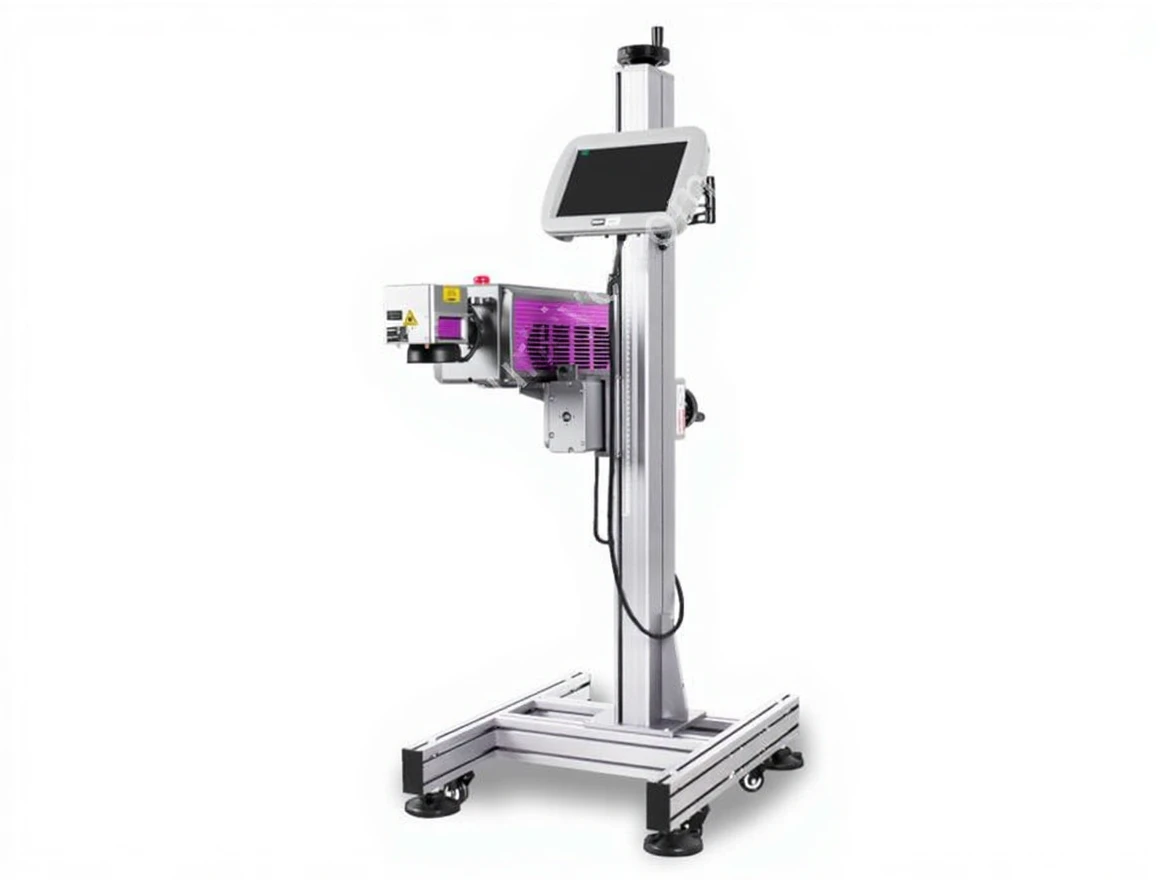

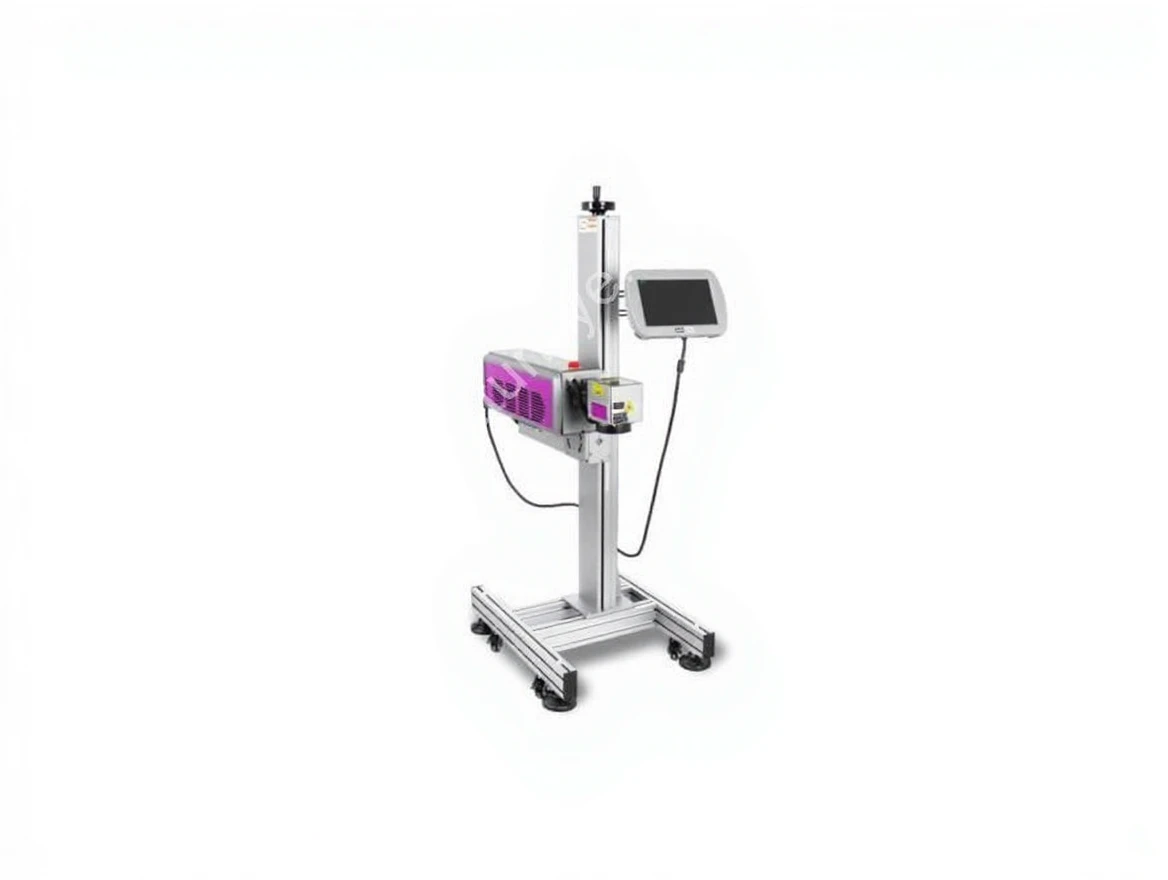

30W Carbon Dynamic Line Laser Marking Machine

30W Co2 Carbon Dynamic Line Laser Marking Machine

For more information, prices, and stock availability, please contact us.

There are very few products that cannot be covered by the Fiber, Co2, and UV Flymark Dynamic Line application. All of today's and future coding solutions will eventually be with a more eco-friendly solution with lasers over time. Ink systems lead to serious environmental pollution.

• English/Turkish marking design interface.
• Ability to change marking quality with power, speed, frequency, and scanning frequency adjustment.
• Ability to achieve marking speeds of up to 200 meters/minute. With photocell or encoder.
• Suitable reaction capability on many wood and plastic surfaces.
• Much more economical and environmentally friendly compared to ink coding.
• Built-in computerized system eliminating the need for an extra computer.

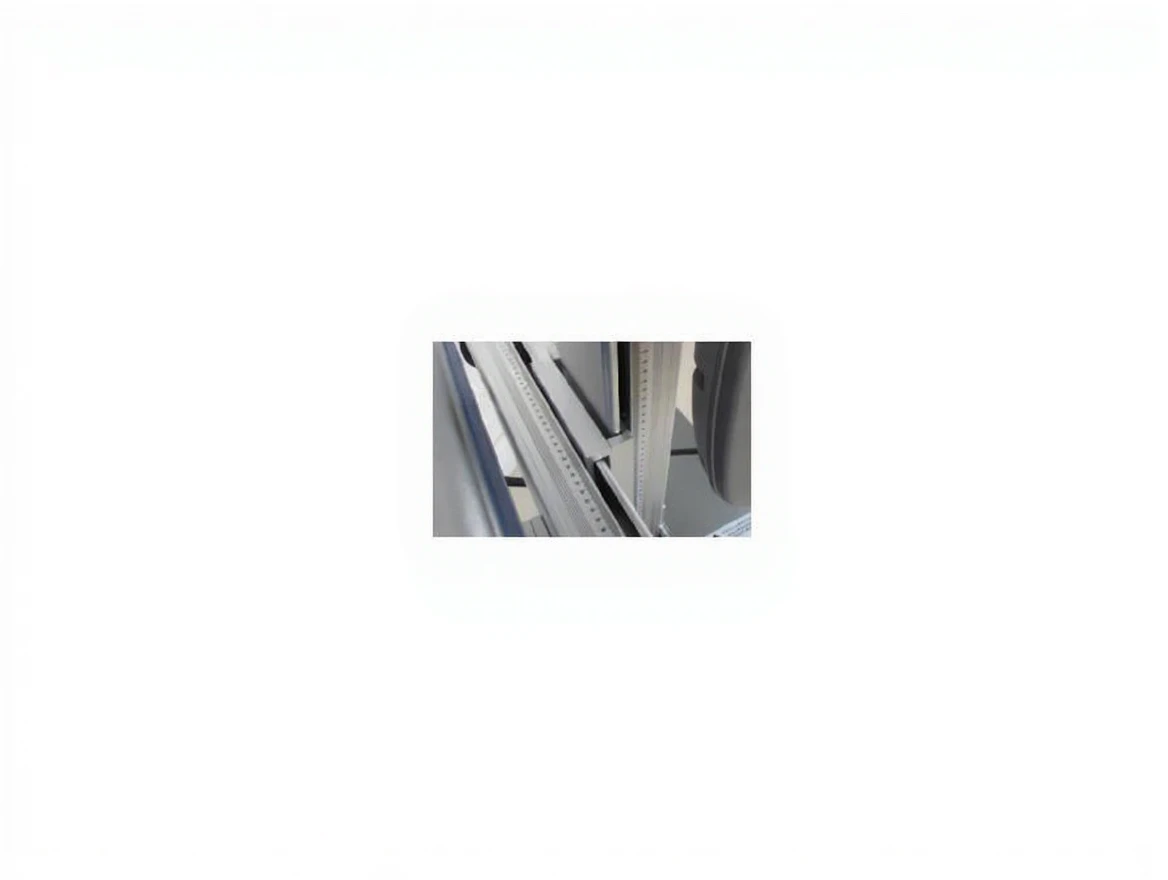

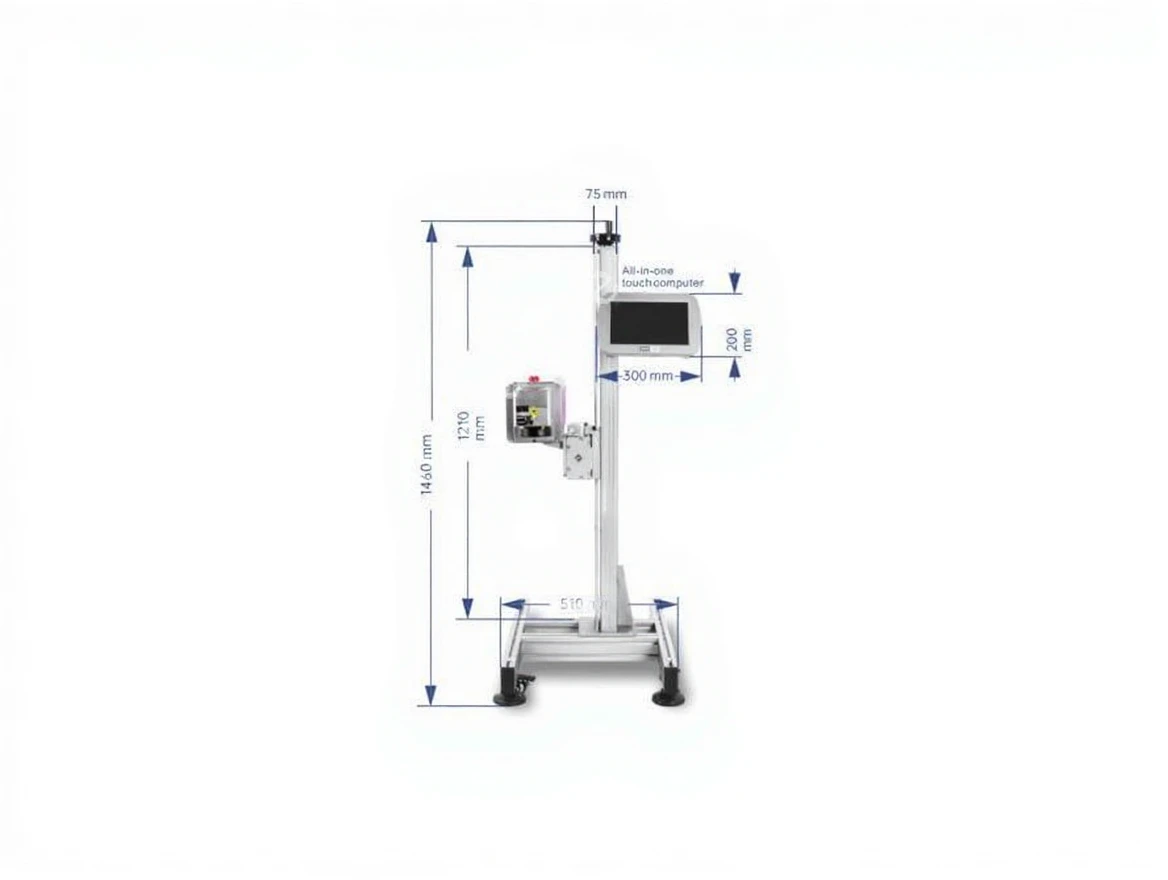

• Easy adjustment on top of the line with an adjustable lifting system.
• Air Cooled, manual lifting mechanism

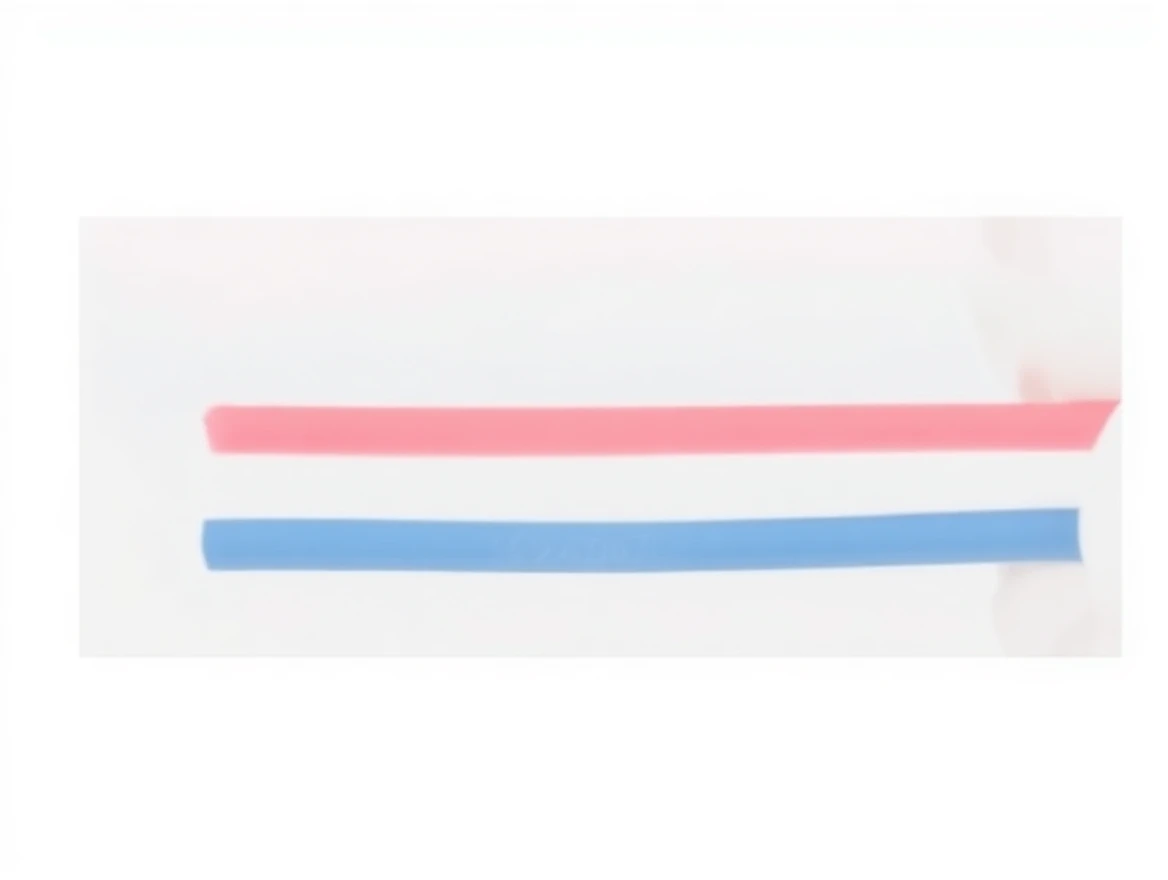

Successful results on cardboard packaging, kraft packaging, PET types, PE materials, PVC, PPR, and other materials.

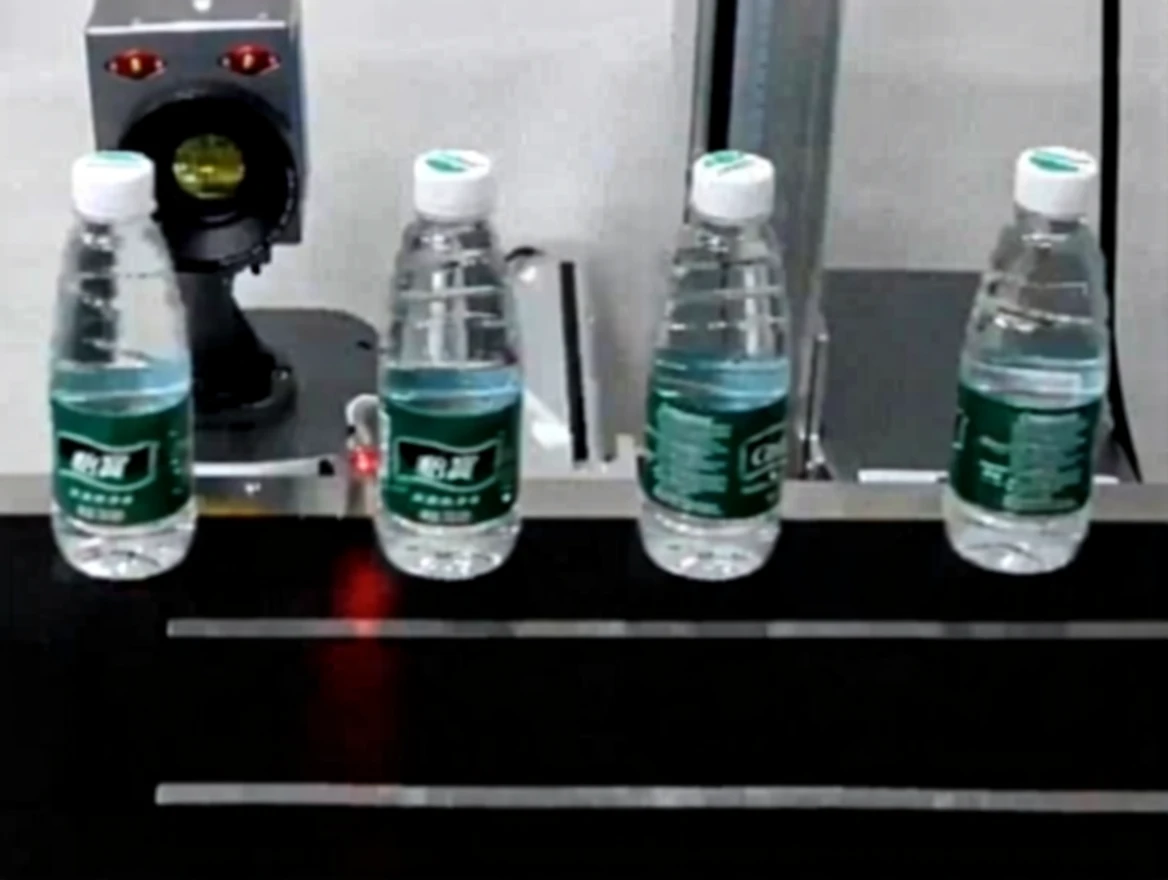

Applications that can be done: Water Bottle Coding, PET Bottle Coding, Oil Coding, Cardboard or Kraft Packaging.

TECHNICAL DATA
Marking Area X-Y (On Ground): 75x75mm / 100×100 mm
Required Voltage – Current Power Values: AC 220V – 50HZ*
Marking Speed: 11000mm/s
Laser Welding Output Power: 30W
Laser Welding Lifetime: 40,000* hours
PRF Rate 25kHz (for 30W)

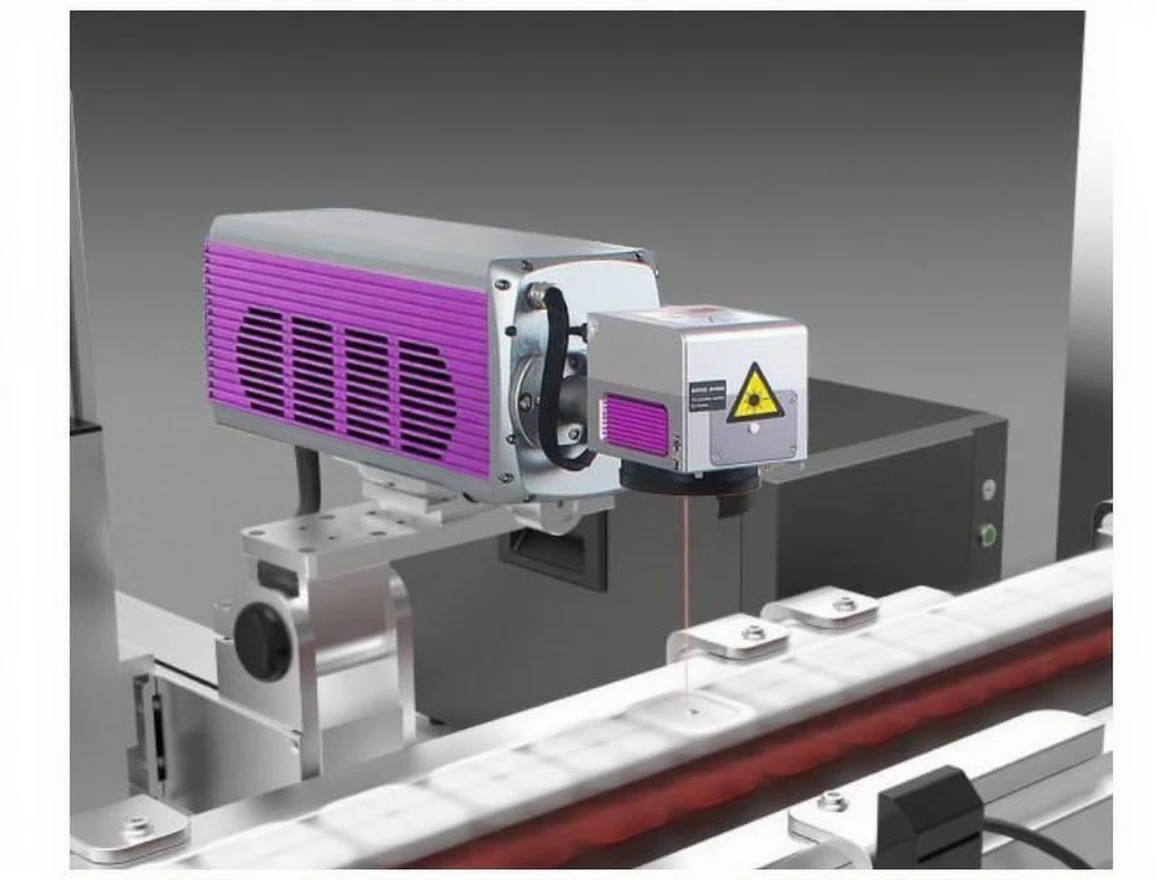

Conveyor Compatible Line Speed: Ability to code up to 200 meters/minute
Wavelength: ~10.6 um
Cooling Type Air Cooling: Fan supported
Power Consumption: 800W (Maks. at 20°C for 60 W)
Ambient Humidity and Temperature: %85 – 0°C ~ 40°C
Certification and Warranty Period: CE Certified and 2 years Warranty
Focus (Focusing) System: Manual
Communication Methods: RS232

As with any machine, it requires grounded mains voltage. It has a 3-year warranty. It easily communicates with automation-friendly command signals such as cutting signal, marking signal, and marking completion signals.
