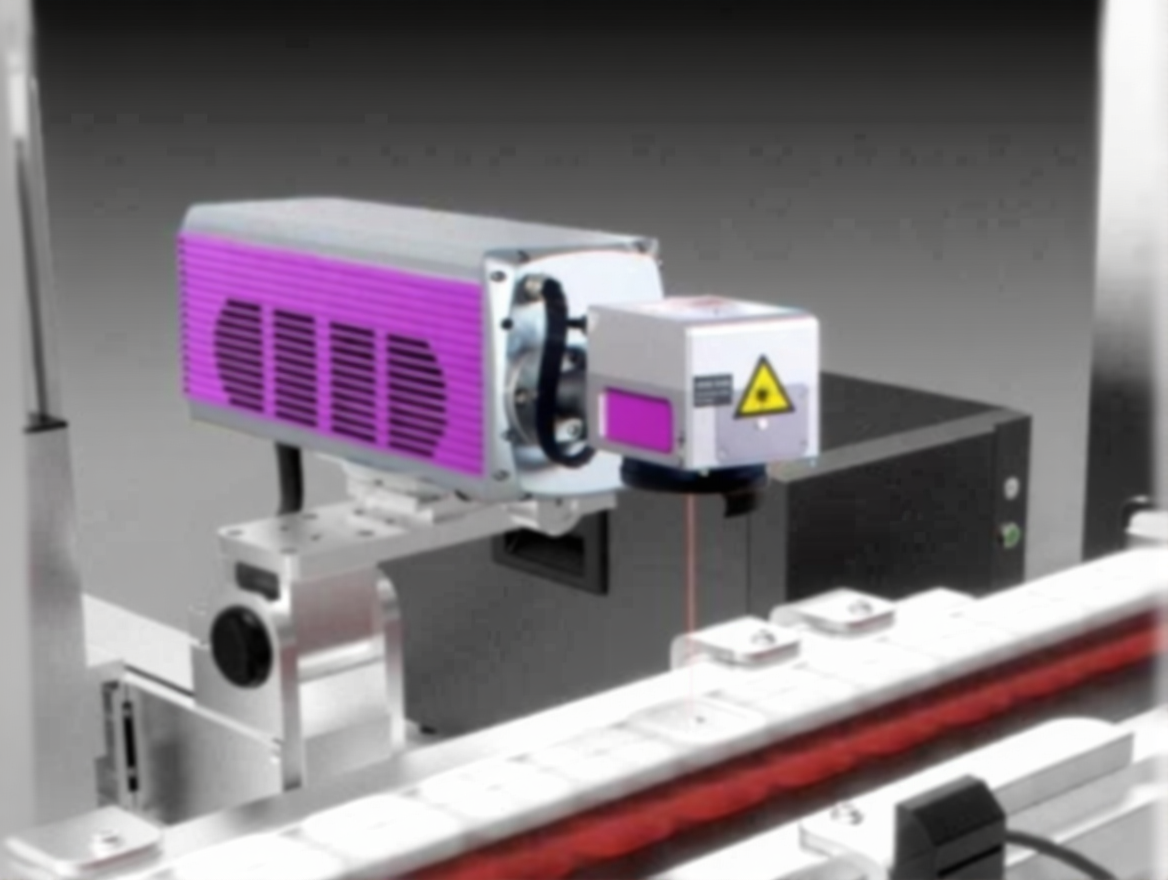

30W Fiber Dynamic Line Laser Coding Machine – 70×70 mm
| Brand | Flymark |
|---|---|
| Model Type |
FLY30 |
30W Fiber Dynamic Line Laser Coding Machine – FLYMARK application.
For more information, prices, and stock availability, please contact us.
There are very few products that cannot be covered with the Fiber, Co2 and UV Flymark Dynamic Line application. All of today's and future coding solutions will eventually be environmentally friendly with laser technology. Ink systems lead to serious environmental pollution.
We are proud to serve "Lean Manufacturing" with these machines.
• Design that doesn't require a computer or any external software.
• Ergonomic manual focus system.
• Turkish/English marking design interface.
• Ability to change marking quality with power, speed, frequency, and scanning frequency adjustment.
• Capability to achieve speeds of up to 200 meters/minute depending on the application.
• Easy marking on different products at different power levels.
• Suitable reaction ability on various metals and plastics with UV, CO2, Pulsed Fiber, picosecond lasers.
• Much more economical and environmentally friendly compared to ink coding.
• Flexibility with All-in-one or Laptop computer options.
• Suitable for Steel, Aluminum, and some polymers.
• Ergonomic forward-backward Cartesian system.

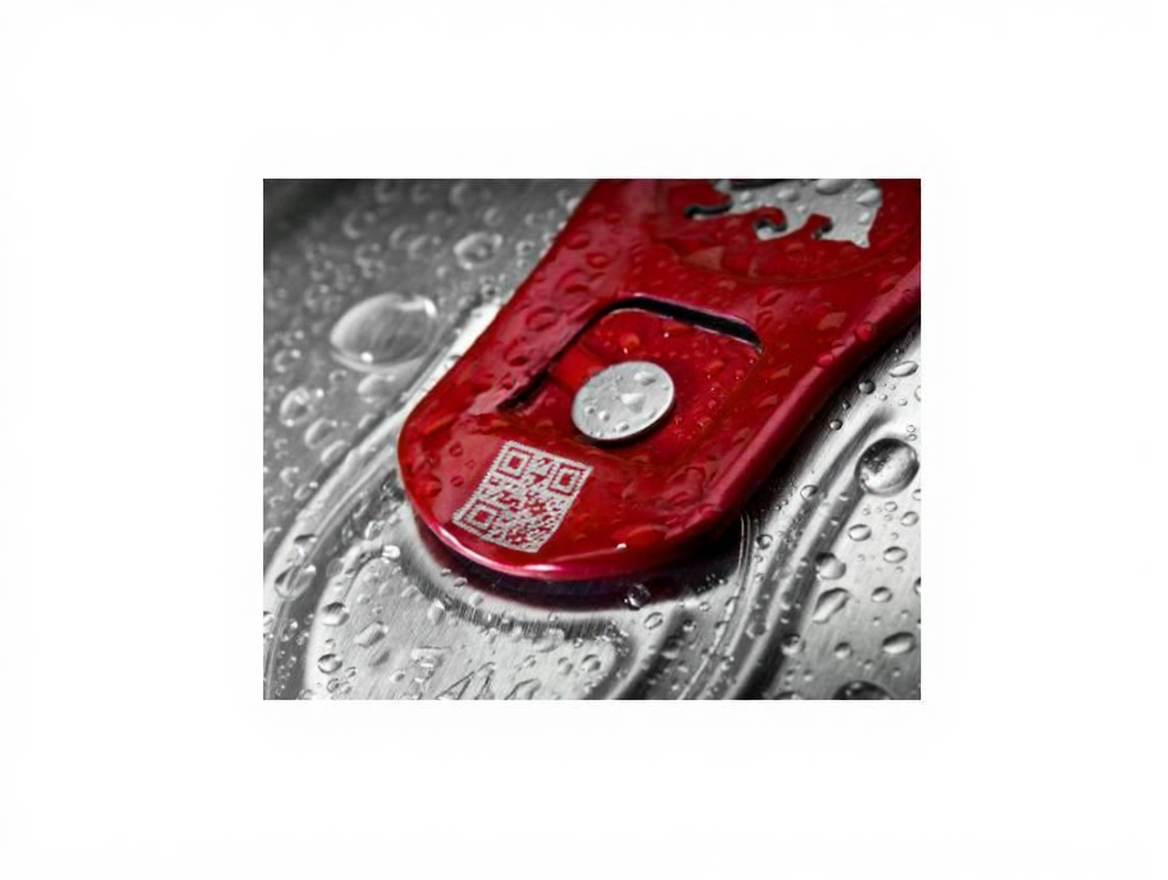

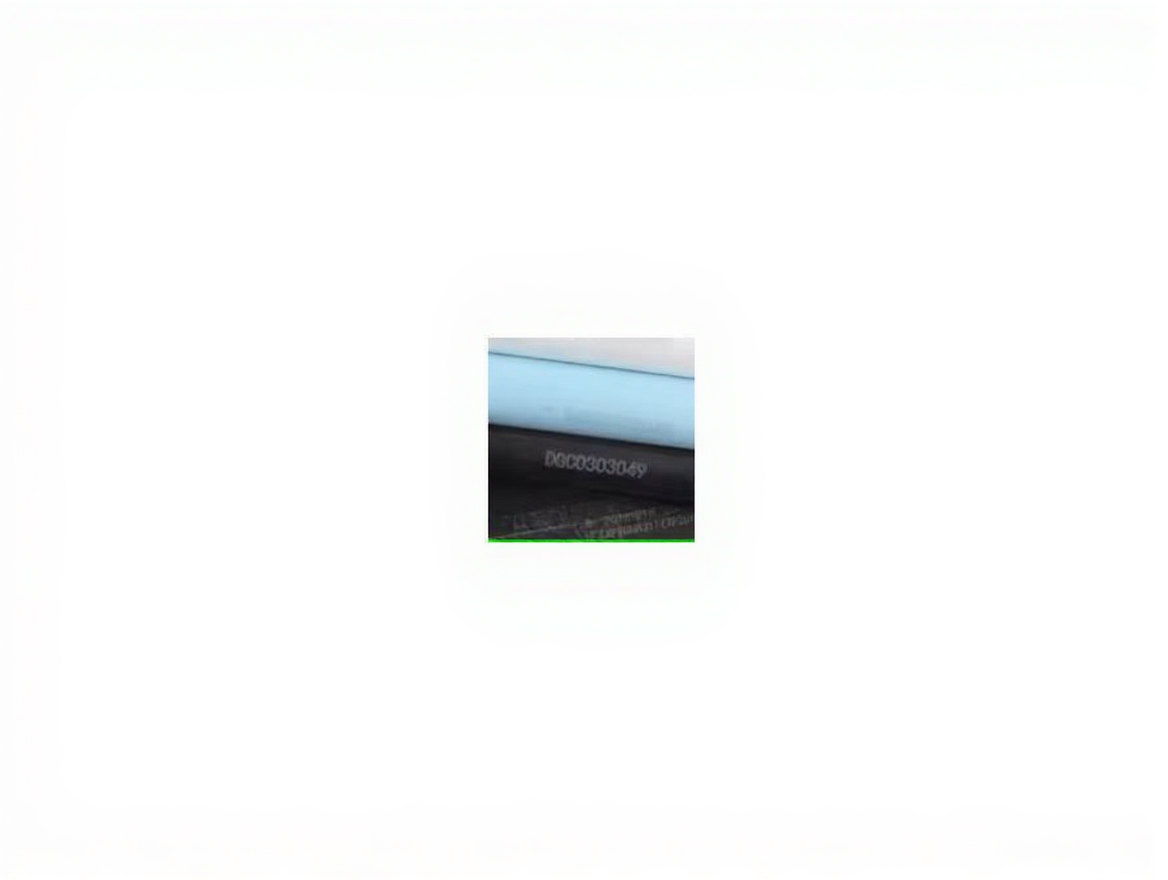

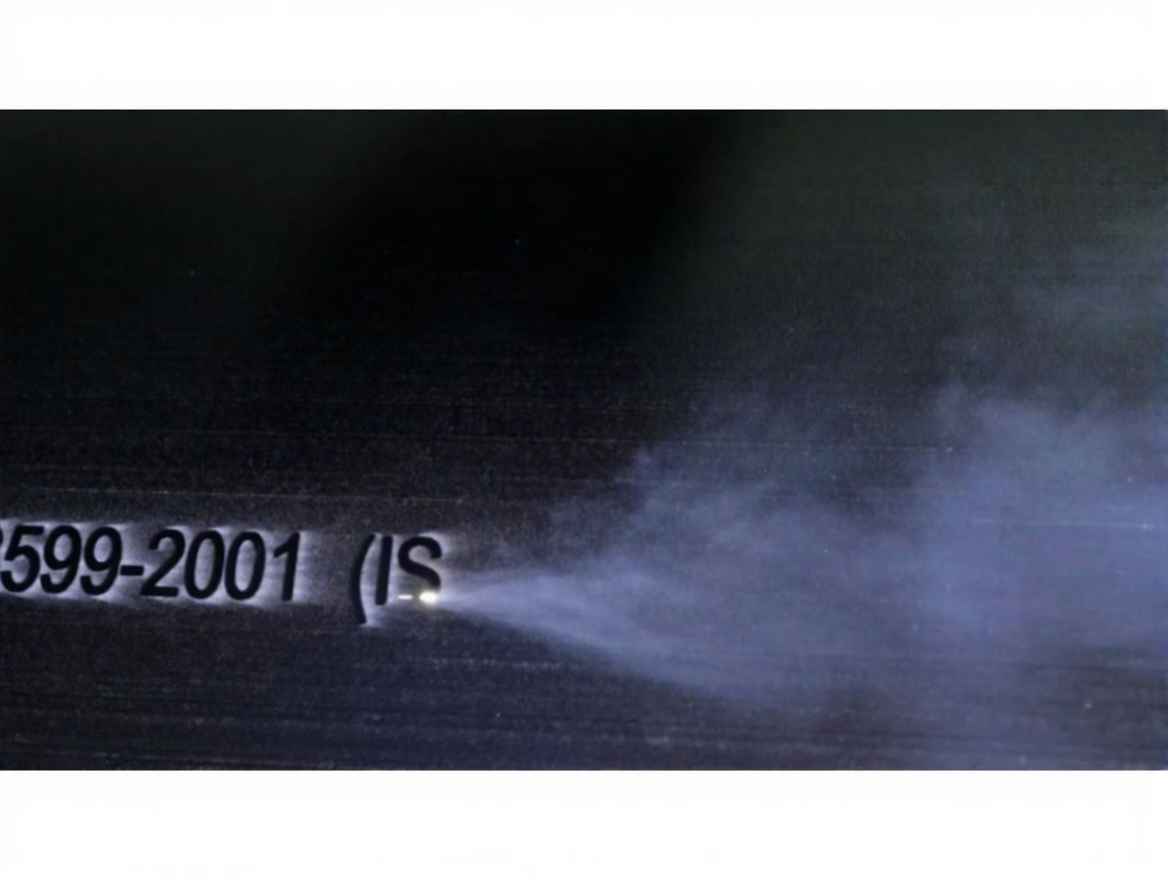

Applications: Can Marking, Tube or cable marking, rubber marking, valve marking, HDPE, LDPE marking, PVC marking, Tin Bottle, Tin Can Marking, Painted Aluminum Marking, automotive part marking, clutch cable marking, and many other materials or products.
| Technical Data | Values |
|---|---|
| Marking Area (X-Y) (On the ground) | 70x70mm / 110x110mm (standard) / 150x150mm |
| Required Voltage – Current Strength Values | AC 220V – 50HZ* |
| Marking Speed | 16000mm/s (High-Speed Scanner Head) |
| Laser Welding Output Power | 30 W / 50 W |
| Laser Welding Lifetime | 100,000* hours – JPT / Raycus Laser Source |
| PRF Rate | 30-60 kHz (for 30W) |
| Pulse Lengths (ns) | 120 – 150ns (for 30kHz) |
| Wavelength | ~1064 nm |
| Cooling Type | Air Cooled (Fan-supported) |
| Power Consumption | 400W (at 20°C for 30 W) |
| Environmental Humidity and Temperature | %80 – 0°C to 45°C |
| Certification and Warranty Period | CE Certified and 2 years Warranty |
| Focus (Focusing) System | Manual |
| Communication Methods | RS232, Ethernet, data reception and marking compatible |
