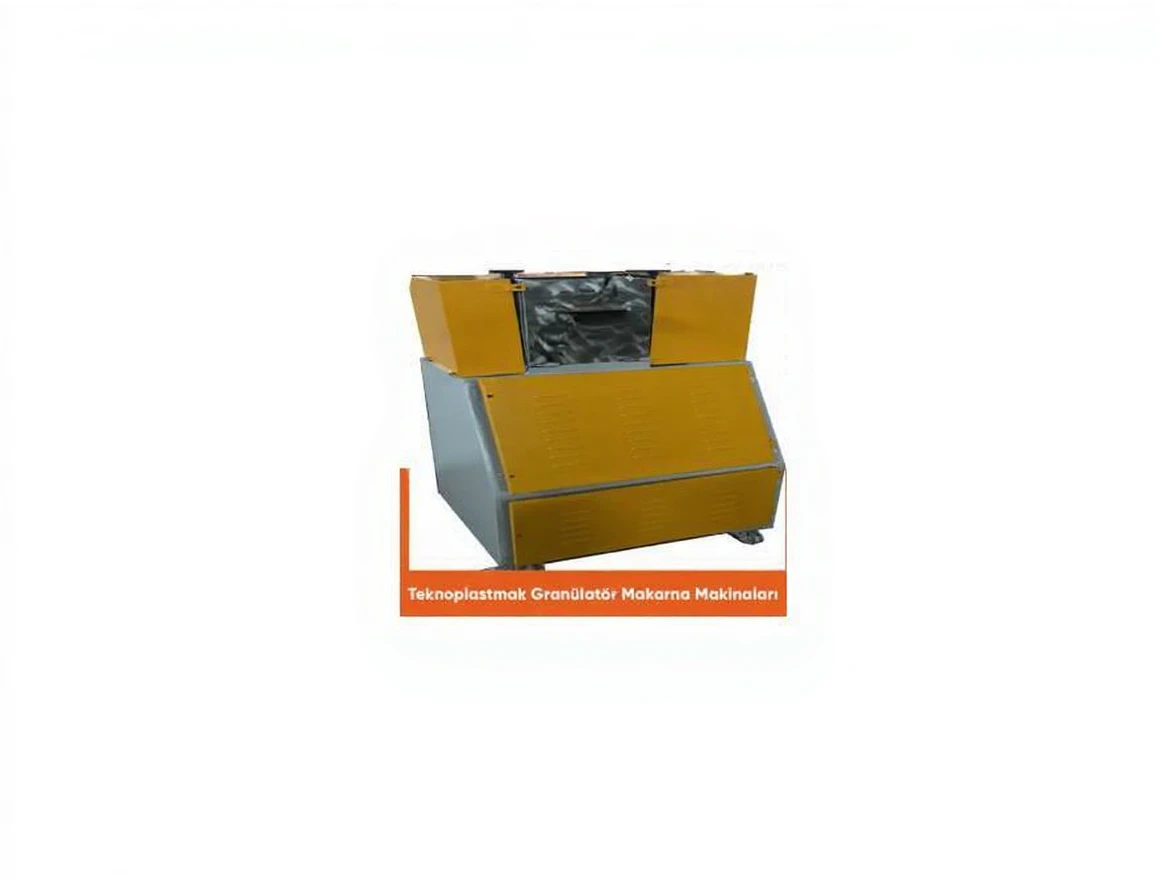

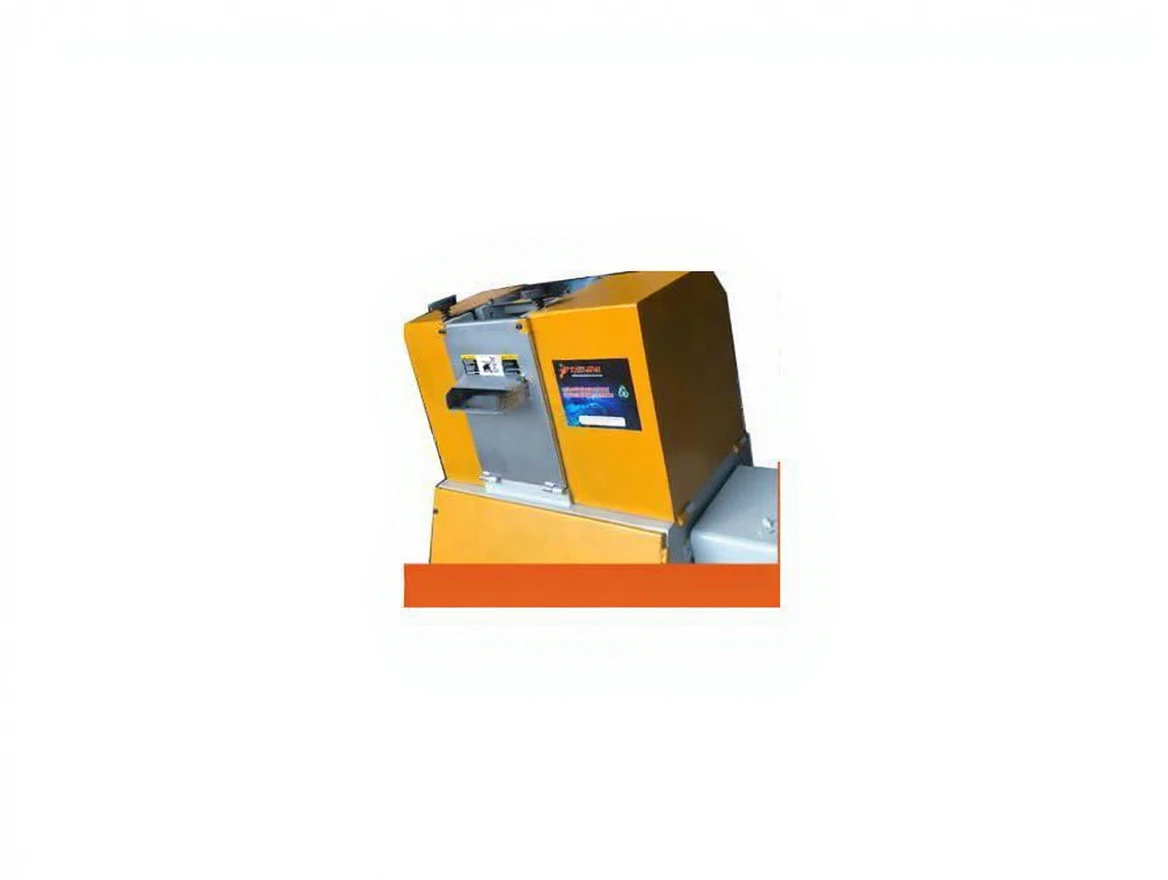

310 Mm 150-200 Kg/Hour Pasta Granule Cutting Machine

Granule Cutting Systems are used to convert plastic materials (ABS-PS-PP-HDPE-LDPE) that become molten in the extruder into granule form. It generally improves the surface quality of very dirty plastics and printed PP sack products. The plastic material is filtered, enters the cooling pool after the sizing mold, cools down, and after passing through the drying fan, it reaches the granulator where it is converted into granules by controlling the size with the blade system.

Granulator Pasta Cutting System Features

It can be adjusted to the desired sizes under inverter control according to granule size demand.

Parts of the granulator that come into contact with water are made of AISI 304 stainless steel.

Easy to adjust blade and control system.

Technical Specifications:

Crusher Mouth (Chamber Calibre): 310 mm

Crusher Capacity (Crush Capacity): 150-200 kg/h

Motor Power: 5.5 kW

Number of Moving Blades (Rotary Cutter): 9 pieces

Number of Fixed Blades (Fixed Blade): 2 pieces

Weight: 450 kg
