3100X30mm – 4 Bulk Hydraulic Cylinder Bending Machine

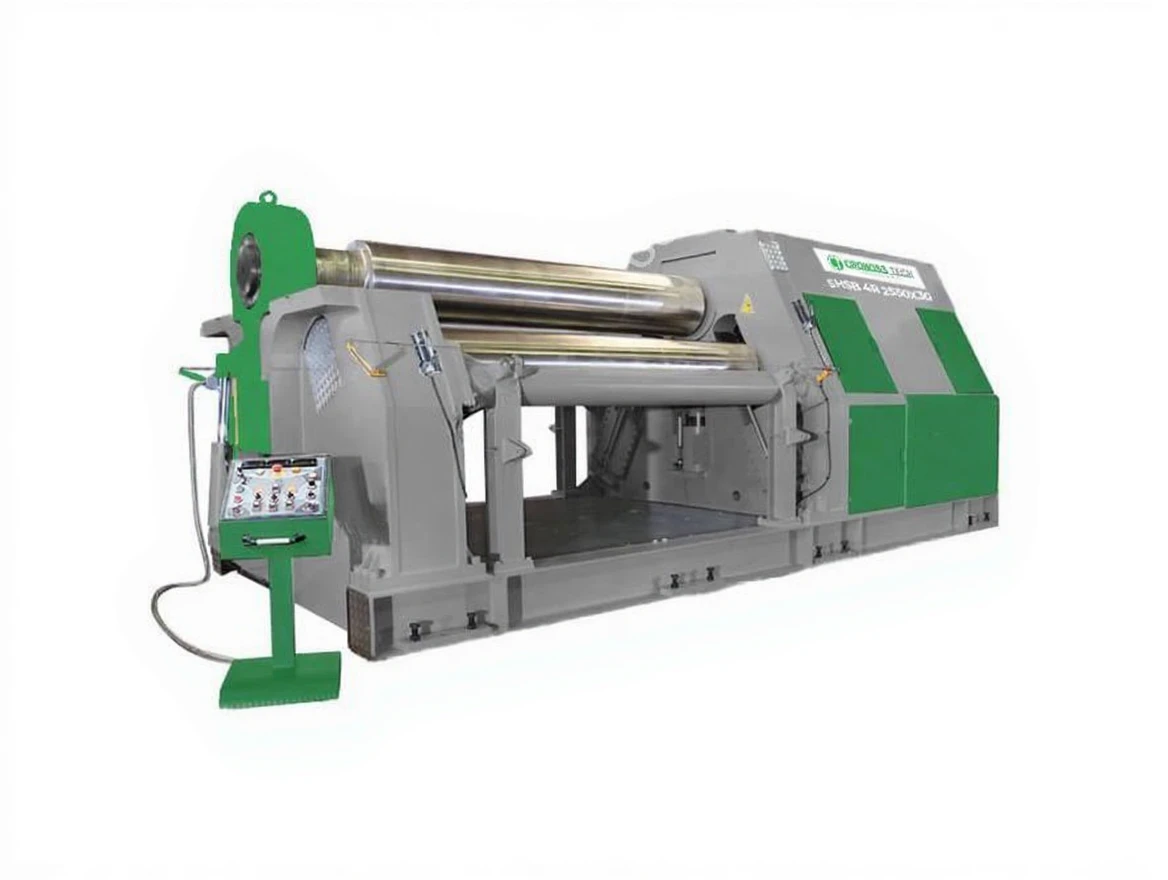

SHSB 4R 3100 × 400 Hydraulic 4 Roll Plate Bending Machine

⚙️ Standard Equipment

• Bottom and side rolls are hydraulically vertically movable with body attached pistons

• Protection against overloading

• Top and side rolls are driven by hydraulic motor and planetary gear reducer
  (3 roll motors are driven)

• Position of rolls are easily readable with three digital indicators

• Curved piece can be easily removed with hydraulically opened head and automatic top lifting pin

• Easy operation with movable control panel

• Welded steel construction body

• SAE 1050 (CK50) induction hardened, forged or rolled steel shafts

• Taper bending system

• Central lubrication system

• Hydraulic balancing system for parallel movement of the shafts
  (Ø280 – 320 – 350 – 380 – 400 – 460)

• Electronic balancing system for parallel movement of the shafts
  (Ø500 – 550 – 580 – 620 – 680)

• Two-speed operation system

🔩 Optional Equipment

• Automation with NC and CNC control

• Upper crane (elevator) for support in large diameter bending

• Hydraulic side supports for support in large diameter bending

• Hydraulic sheet removal system

• Ground and polished rolls for special jobs

• Stepless speed adjustment system

• Electronic balancing system for parallel movement of the shafts
  (Ø280 – 320 – 350 – 380 – 400 – 460)

📊 Technical Specifications

• Bending Length: 3100 mm

• Pre-Bending: 20 / 25 mm

• Bending: 25 / 30 mm

• Upper & Lower Roll Diameter: Ø400 mm

• Side Roll Diameter: Ø300 mm

• Motor Power: 38.5 kW

• Bending Speed: 1.5 – 5 m/min

• Machine Length: 5850 mm

• Machine Width: 2250 mm

• Machine Height: 2350 mm

• Machine Weight: 20,200 kg

🏭 OEM Production Note

This machine is manufactured in Turkey within the scope of OEM production.
Supply, configuration, and commercial management are handled by CRONOSSTECH.
