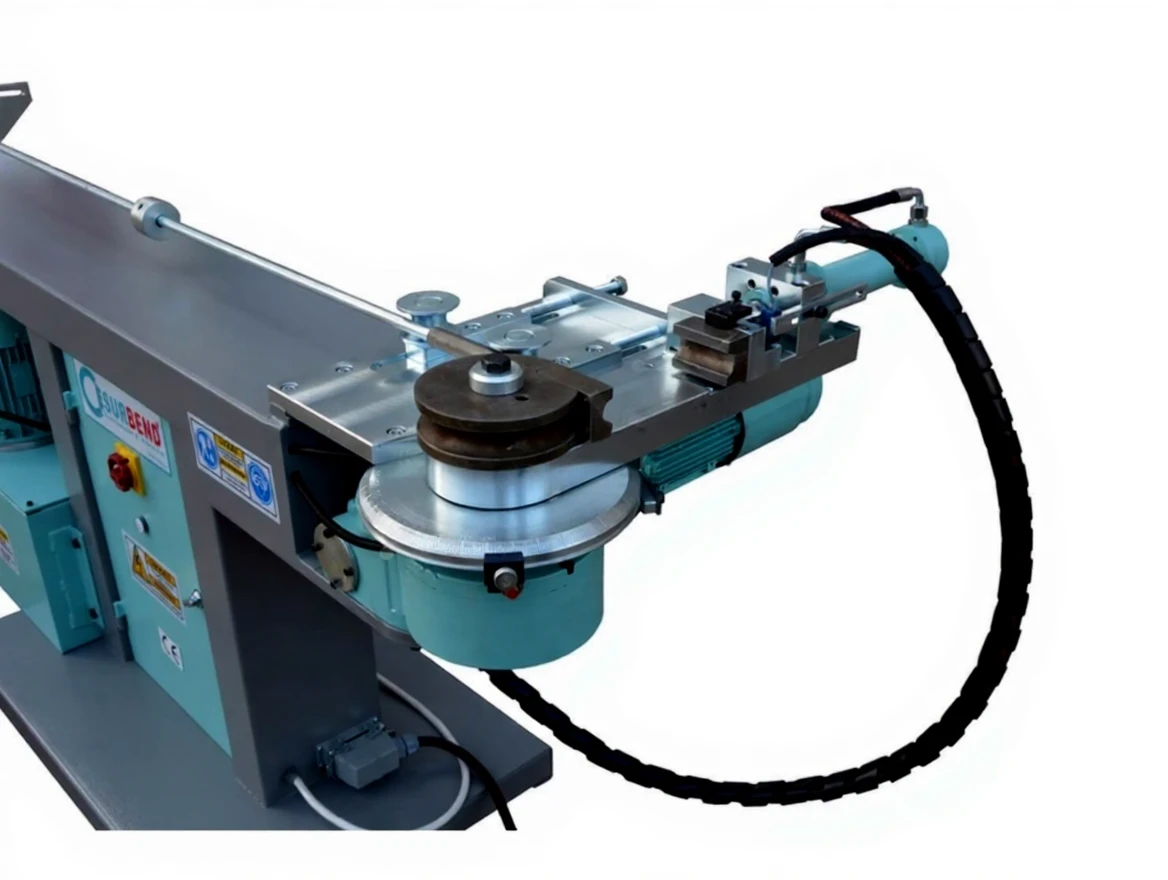

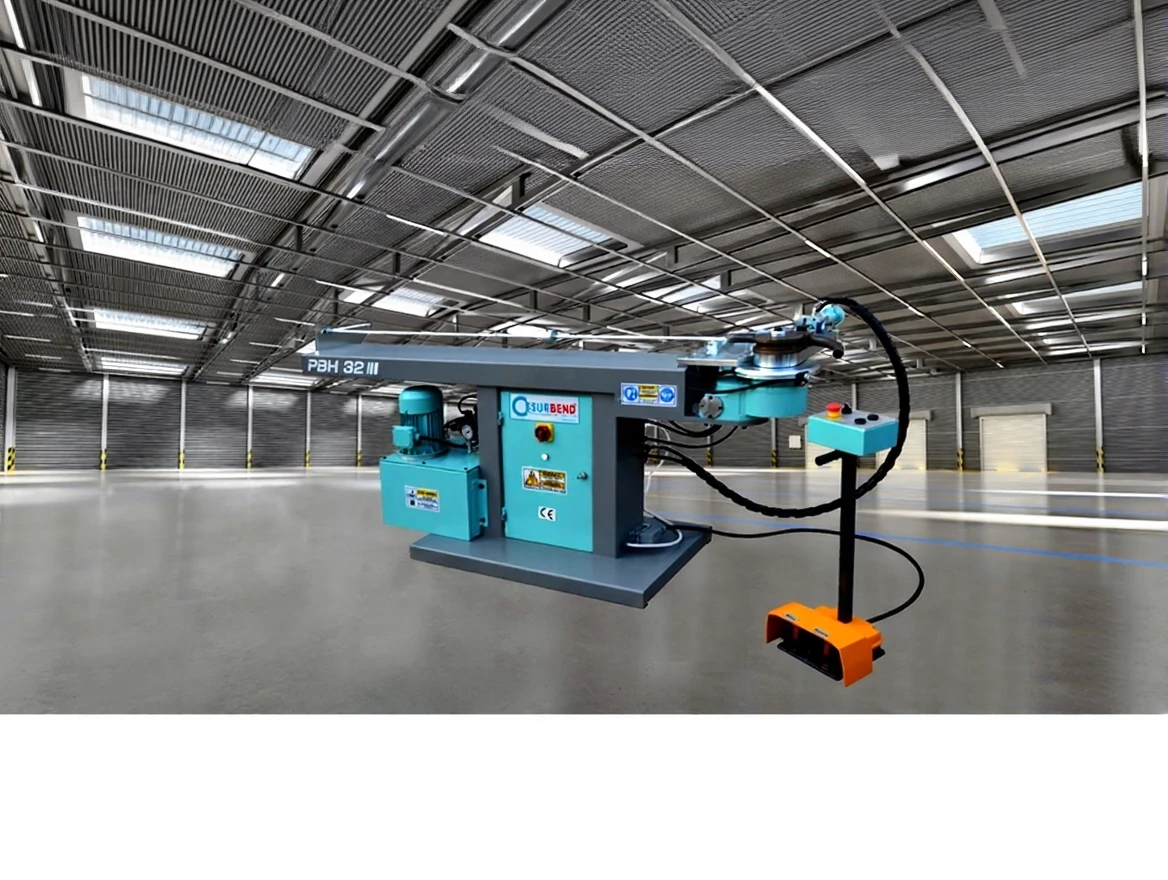

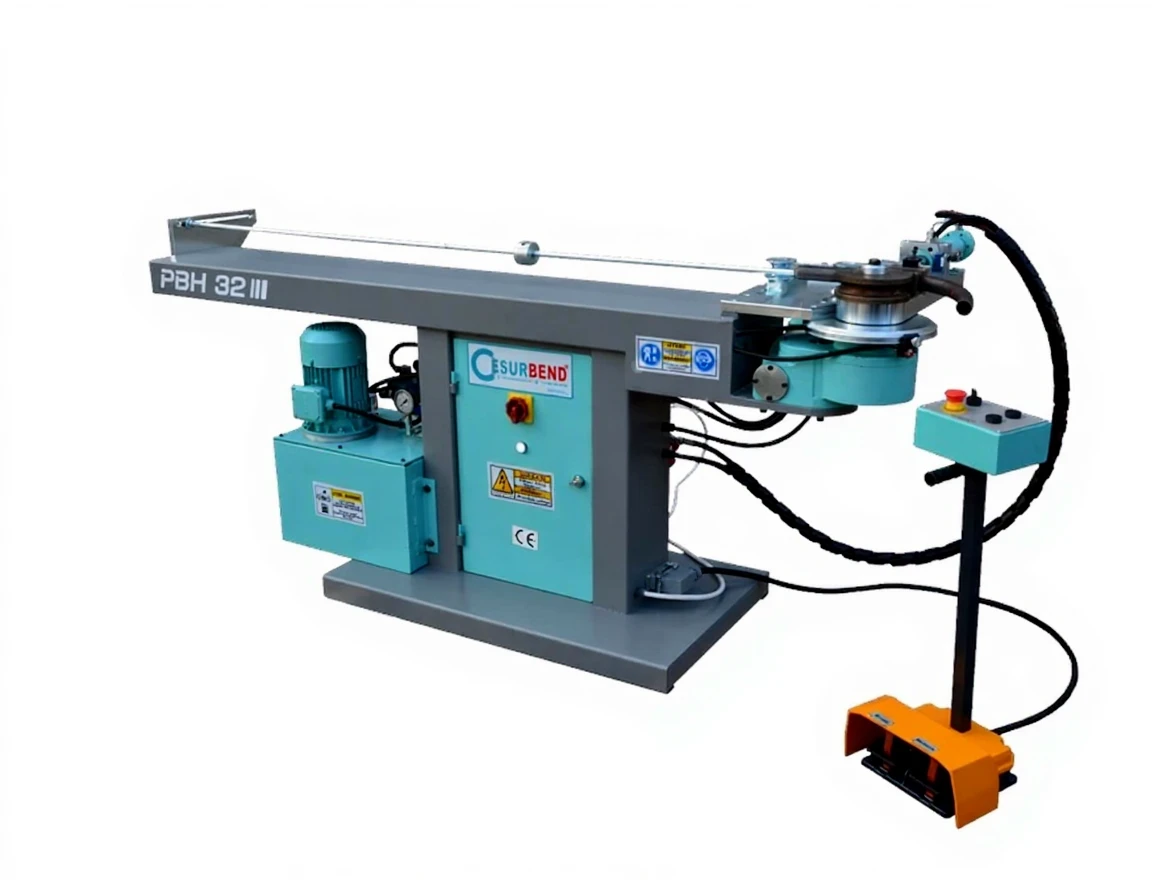

32⌀ Hydraulic Clamping Pipe Profile Bending Machine

Cesurbend PBH-32 | 32⌀ Hydraulic Clamping Pipe Profile Bending Machine

Precise bending of pipes and profiles up to 32 mm diameter and 3 mm wall thicknessIt is a machine that stands out with its compact structure, designed to perform While the pipes are fixed securely thanks to the hydraulic clamping system, the brake motor technologyprecise and repeatable bendsis obtained.

Manual size adjustment offers flexible usage to the operator and provides high efficiency in bending small and medium diameter pipes. With its robust body, compact dimensions and user-friendly design, PBH-32 is the ideal solution for both workshops and production facilities.

Technical Specifications

• Max. Pipe Diameter:Ø32mm

• Max. Pipe Wall Thickness:3mm

• Max. Twist Degree:190°

• Max. Bend Radius:275mm

• Pipe Bending Speed:8.5 rpm

• Pipe Receiving Length:2000mm

• Bending Motor Power:2.2kW

• Hydraulic Motor Power:1.5kW

• Dimensions:1000 x 2300 x 1050mm

• Weight:400kg

Highlights

• Safe fixing with hydraulic clamping system

• Precise bending opportunity with braked motor

• Easy to use with manual measurement adjustment

• Takes up little space thanks to its compact structure

• Reliable and durable design

Areas of Use

PBH-32,furniture manufacturing, decorative metal processing, automotive sub-industry and pipe-profile applicationsSuitable for. Especially in small and medium diameter pipesfast, precise and reliable twistingIt adds efficiency to production processes.
