32 mm Desktop Milling Machine
| Brand | Ozco |
|---|---|
| Model Type |
FM30 Plus |
Description

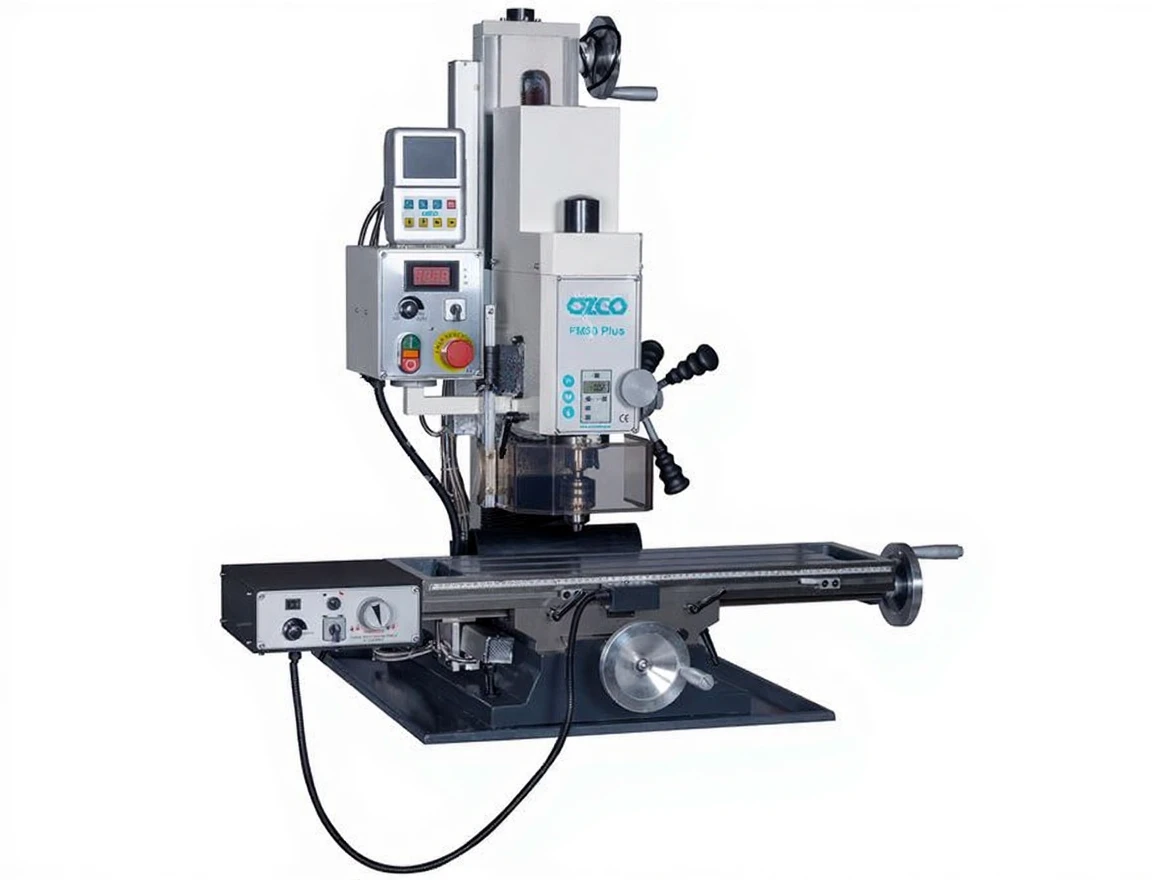

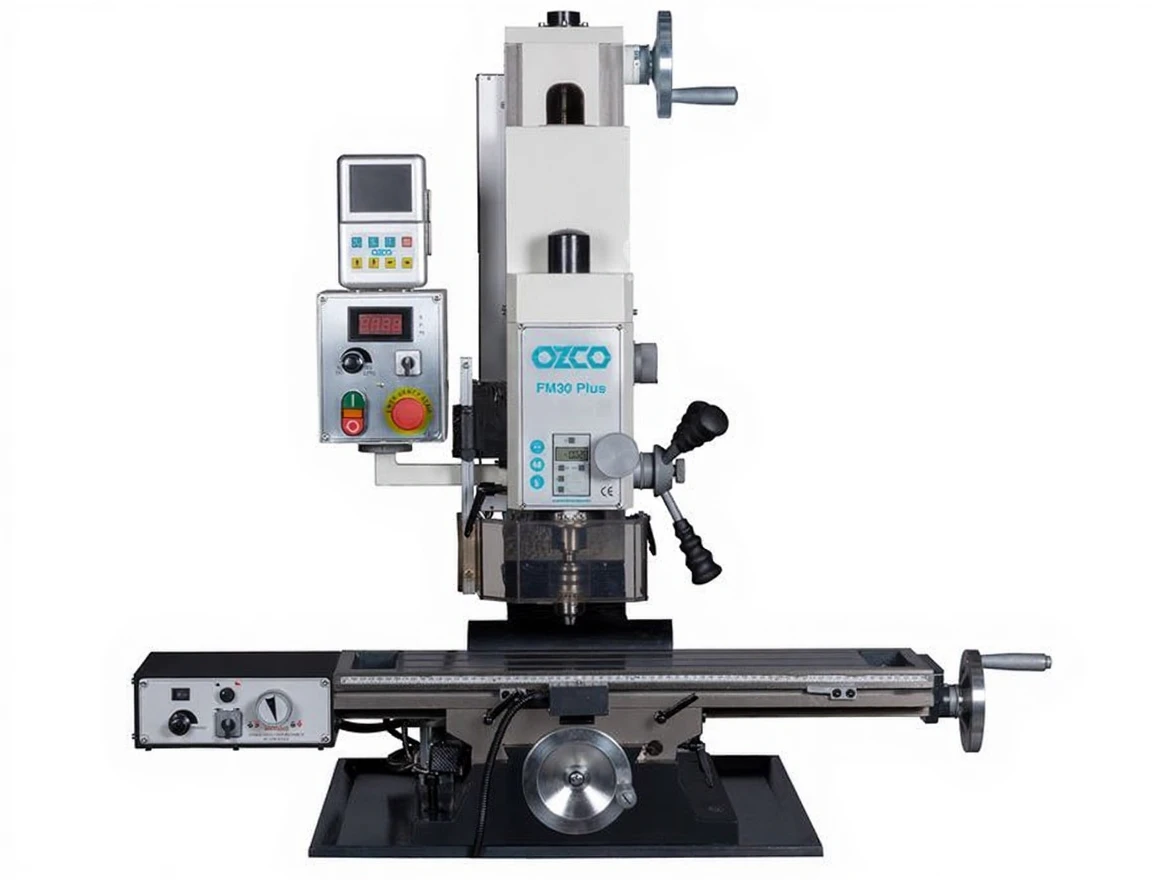

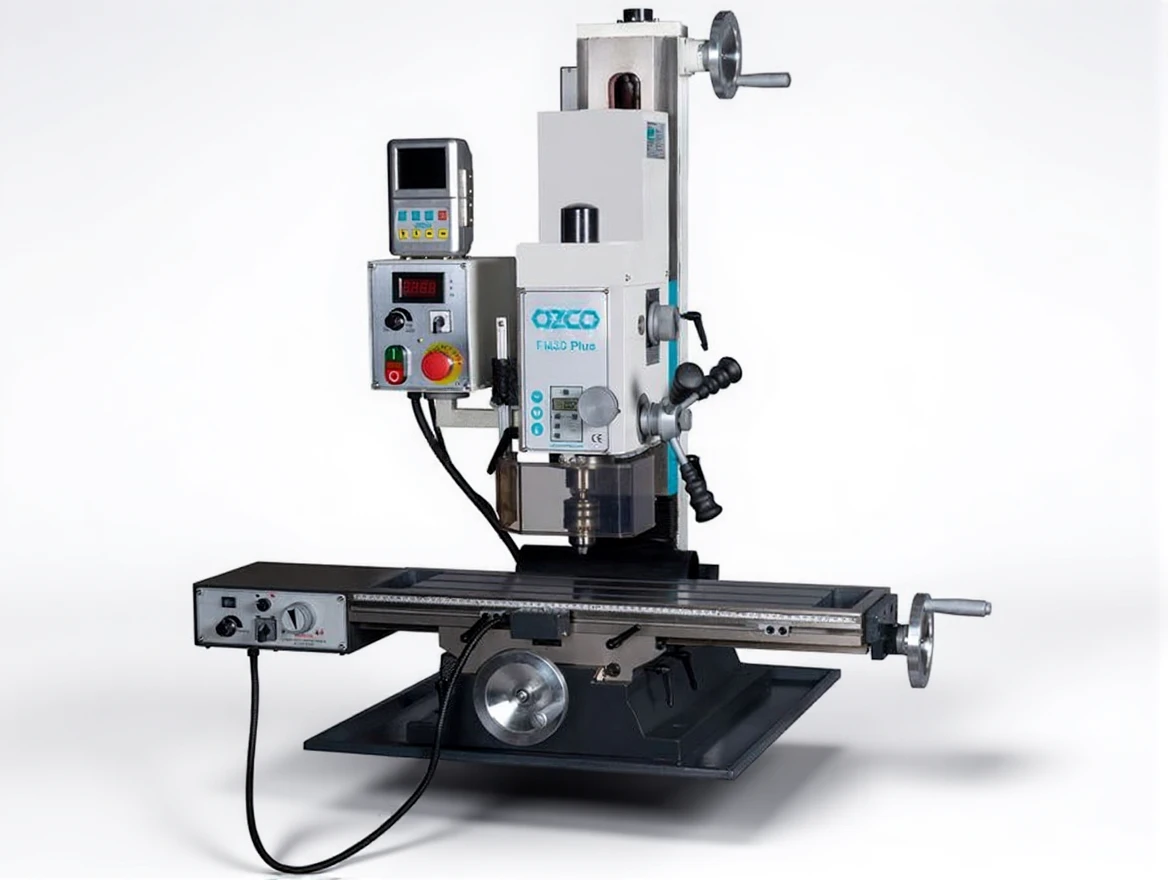

OZCO FM30 Plus Desktop Milling Machine
OZCO FM30 Plus Desktop Milling Capacity
X-axis movement is 425 mm, Y-axis movement is 220 mm, Z-axis movement is 360 mm.
OZCO FM30 Plus Desktop Milling Shipment Scope
MK3 / M12 chuck, Equipment
OZCO FM30 Plus Desktop Milling General Features
Right/Left rotation feature, Vario speed adjustment (stepless), digital speed indicator, height adjustable safety switch guard, X-axis feed motor mounted on the machine, 3-axis digital coordinate reader, Digital depth indicator, head angle up to 345˚, compliant with CE standards
Technical Specifications OZCO FM30 Plus Desktop Milling
Motor Power 1.1 kW, 230 V
Drilling Capacity 32 mm
Finger Milling Capacity 25 mm
Surface Milling Capacity 80 mm
Table Dimensions 700×210 mm
X Axis Movement 425 mm
Y Axis Movement 220 mm
Z Axis Movement 360 mm
T Slot Dimensions 3×14 mm
Spindle Taper MK3
Spindle Speed 50-2250 rpm
Step 2 / Variable
Quill Movement 70 mm
Head Rotation Angle 345°
Distance Between Spindle and Column 90 mm
Machine Dimensions (LxWxH) 1000x800x1200 mm
Net Weight 230 kg
