32 mm Supported Gear Drill

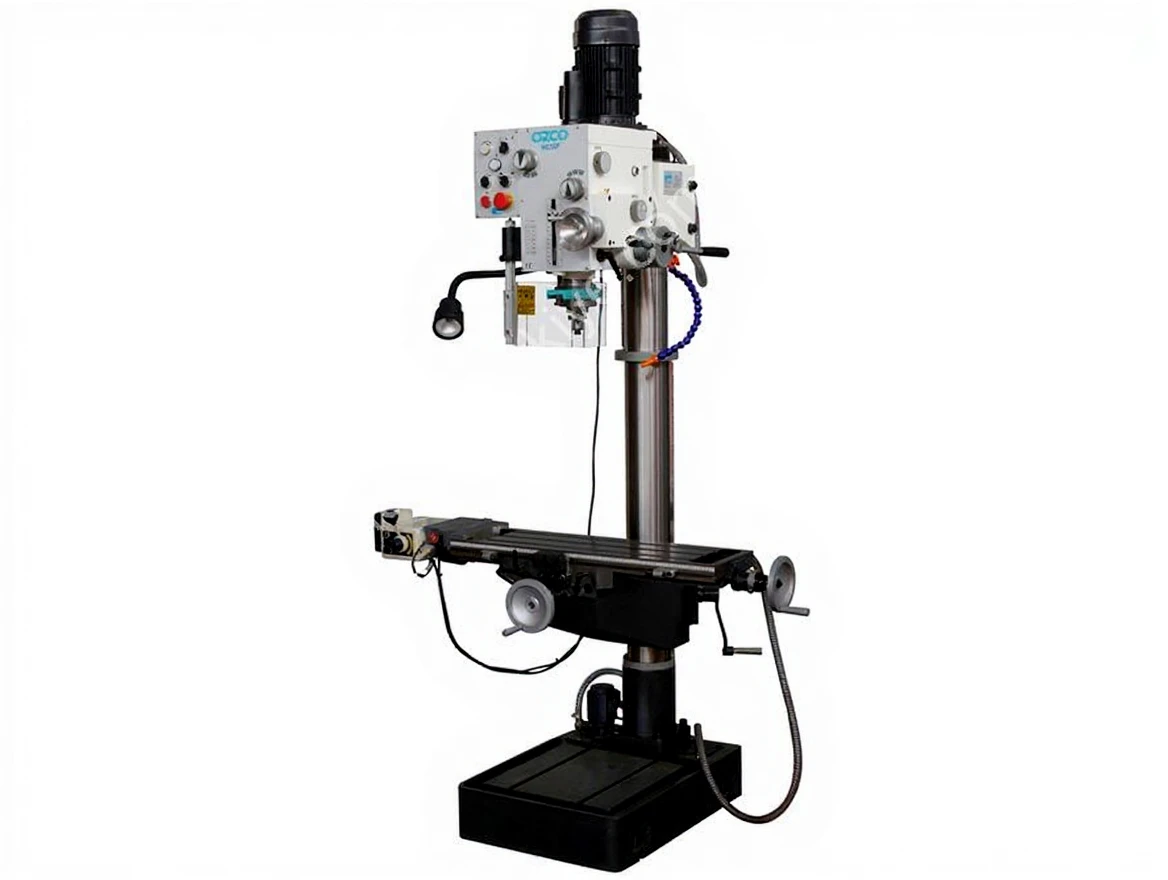

OZCO MC32F SUPPORTED GEAR DRILLING MACHINE

OZCO MC32F SUPPORTED GEAR DRILLING MACHINE Description

730×210 mm support table, X-axis electric motor – automatic, Automatic spindle feed, Guide pull mode, Cooling system, Lighting, CE compliant adjustable height shield

OZCO MC32F SUPPORTED GEAR DRILLING MACHINE Shipment Scope

MK4 B-16 cone, 3-16 mm B-16 chuck, Equipment

Technical Specifications OZCO MC32F SUPPORTED GEAR DRILLING MACHINE

Motor Power 1.5 kW, 400 V

Operation Type Gear-driven

Drilling Capacity 32 mm

Guide Capacity M20

Spindle Cone MK4

Spindle Movement/Stroke 120 mm

Distance Between Spindle and Column 278 mm

Distance Between Spindle and Table 610 mm

Distance Between Spindle and Base 1180 mm

Column Diameter 115 mm

Speed 75-3200 rpm

Stages 12

Table Dimensions 730×210 mm

Base Dimensions 670×470 mm

Spindle Feed 0.10, 0.18, 0.26

Machine Dimensions (LxWxH) 935x560x2280 mm

Packaging Dimensions 700x720x2050 mm

Cooling Pump Power 40 W

Net Weight 350 Kg
