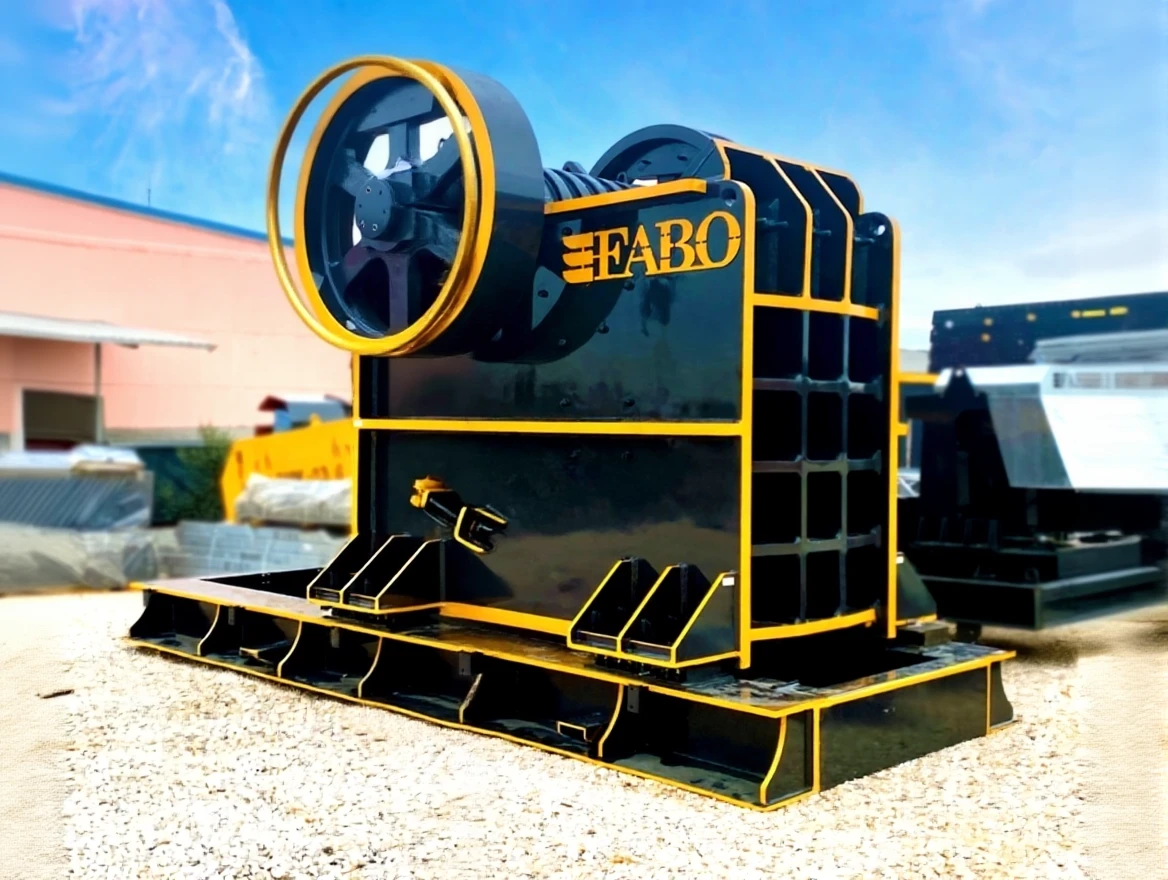

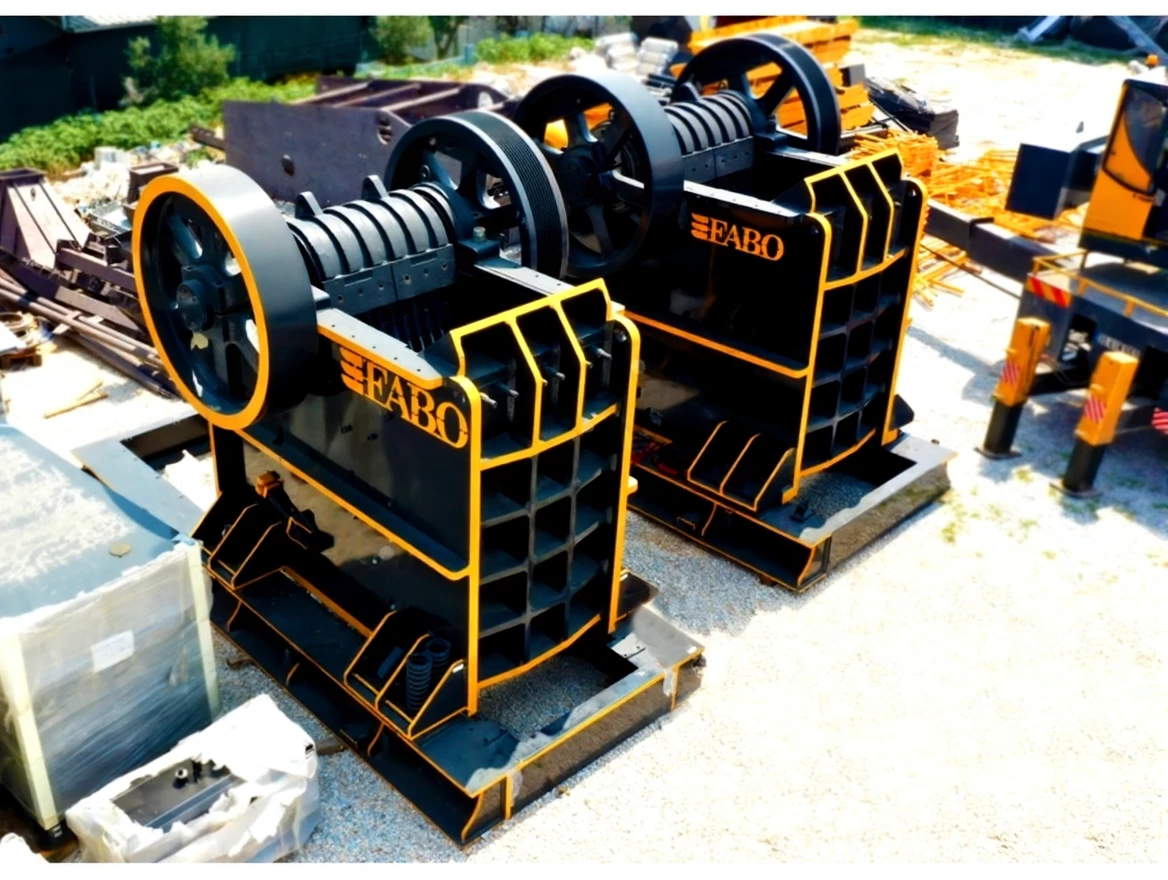

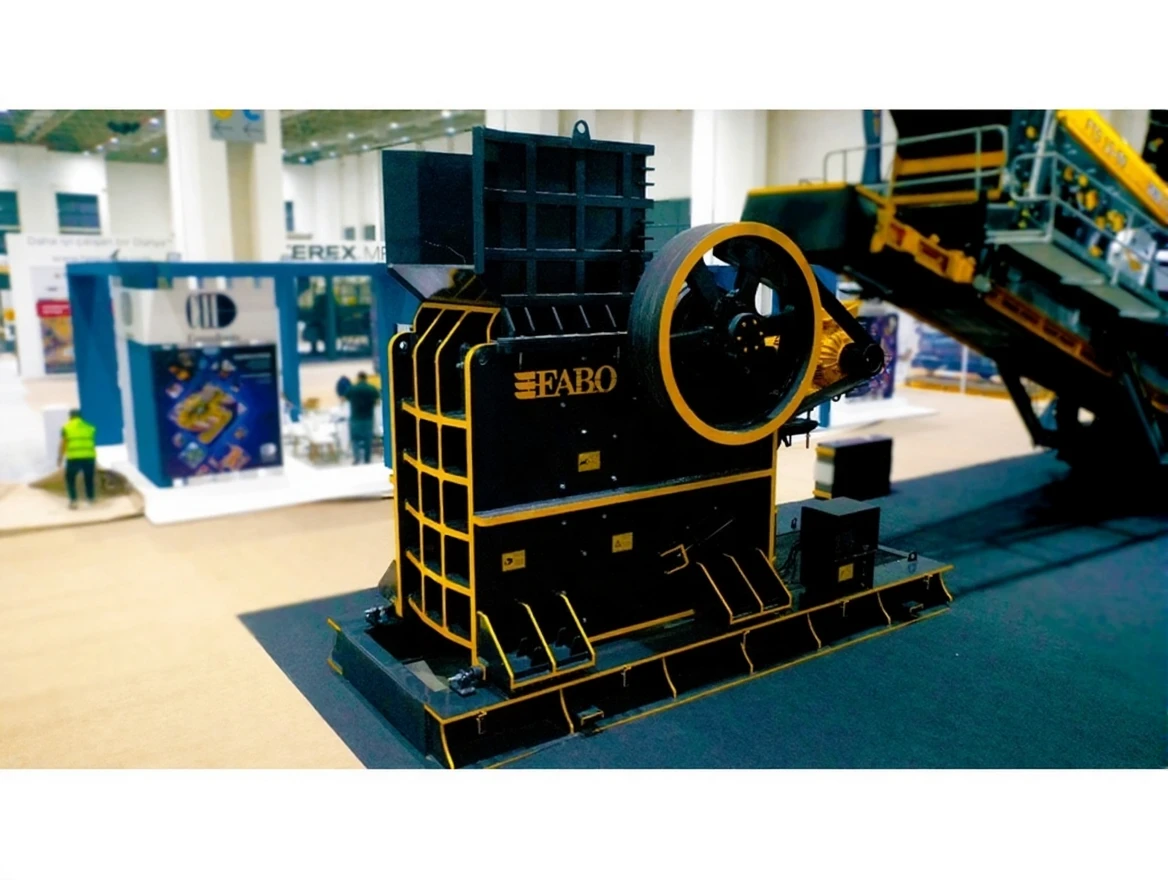

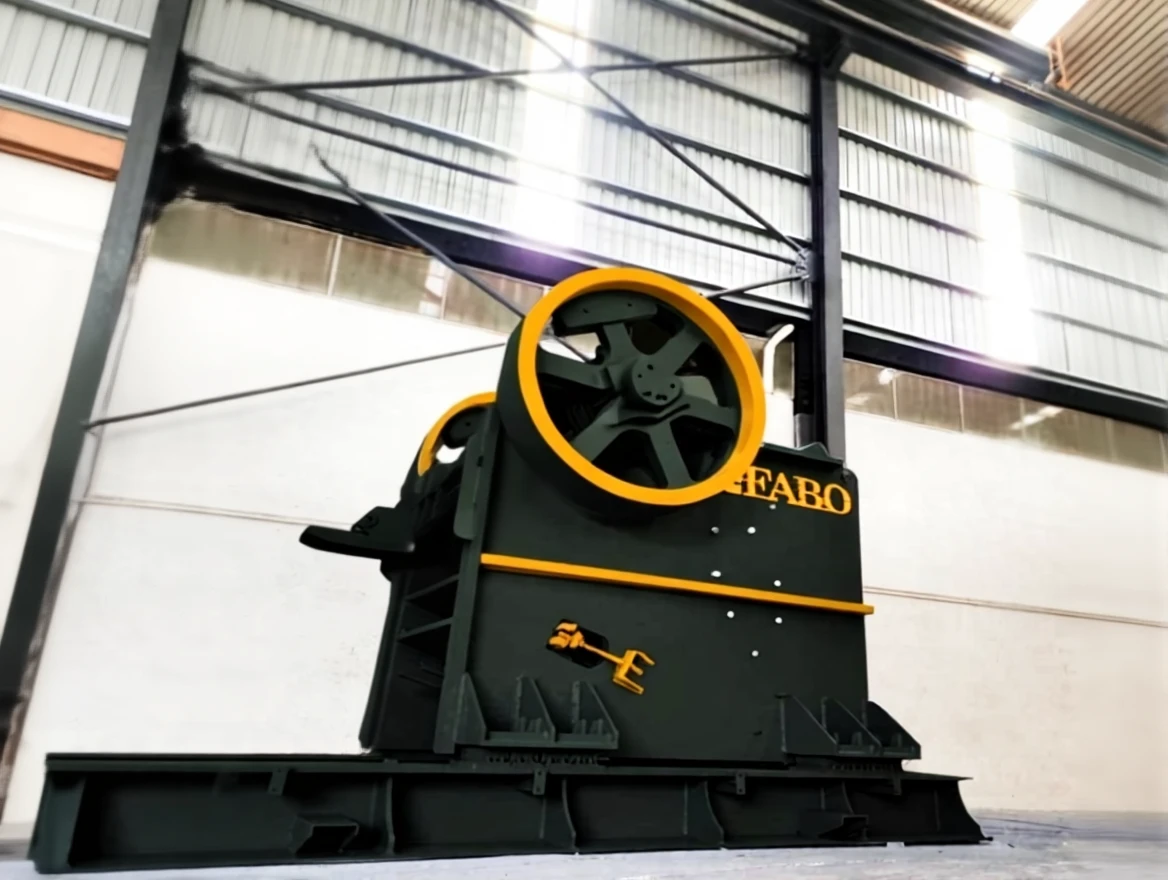

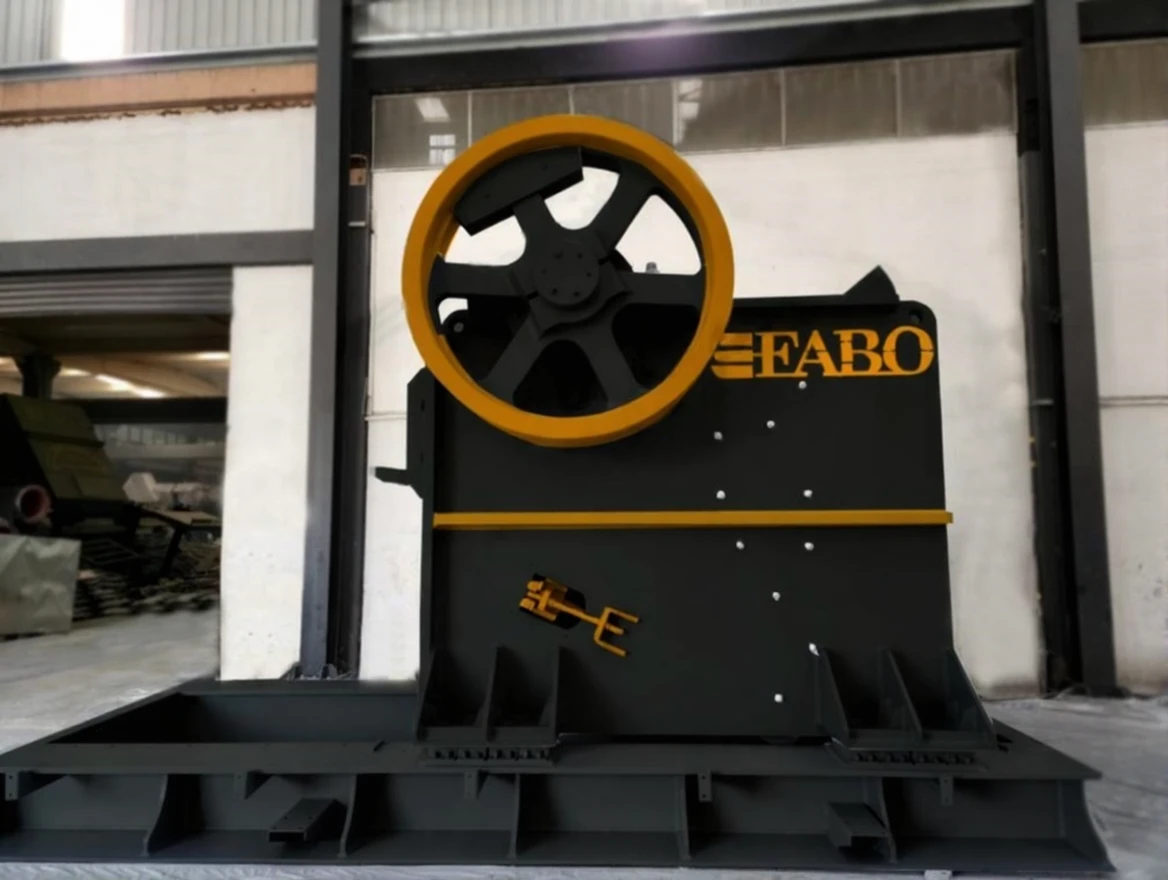

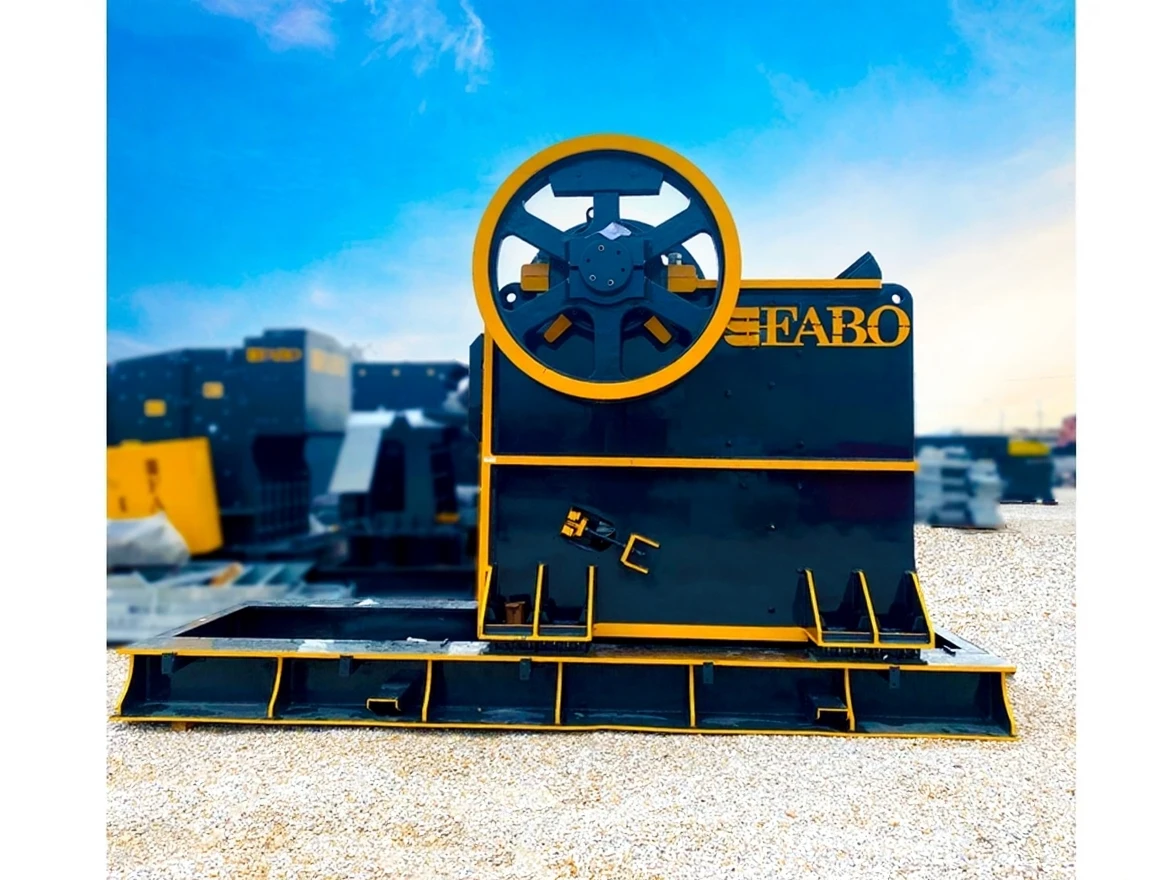

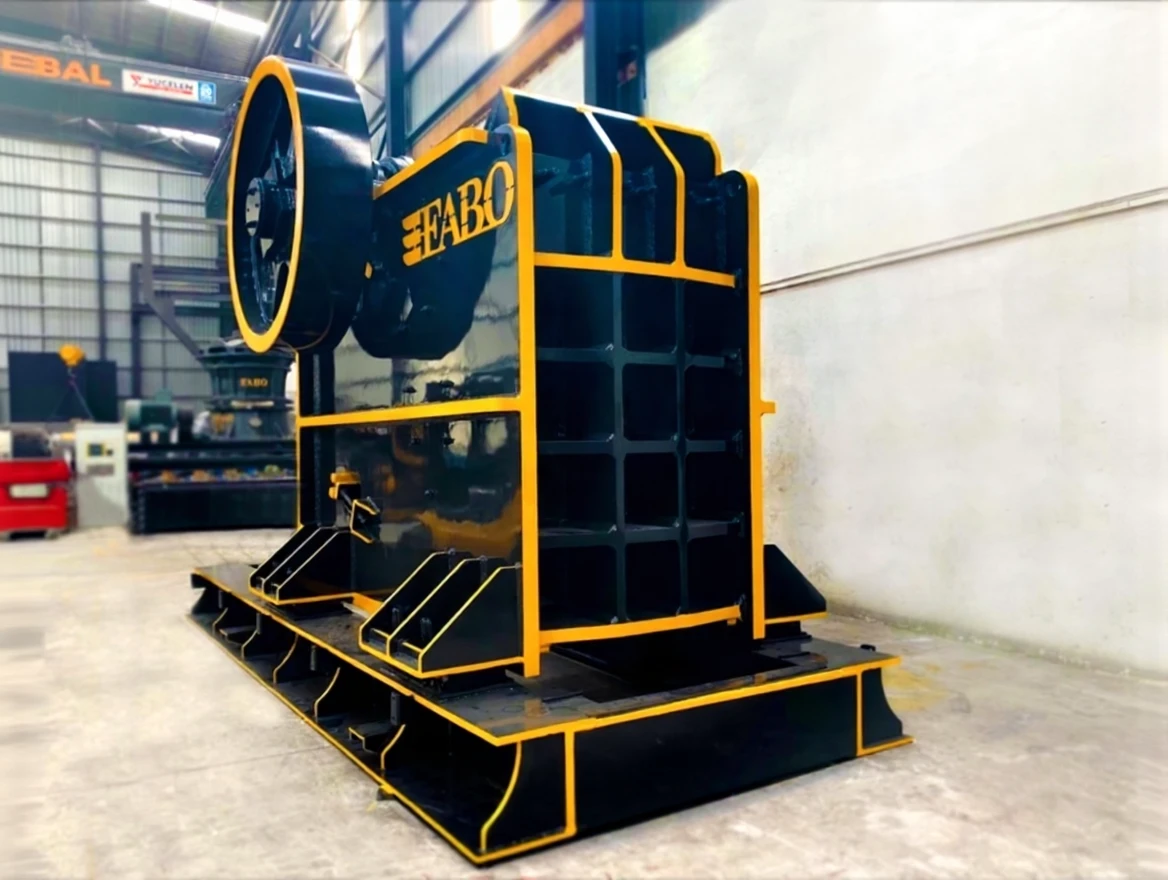

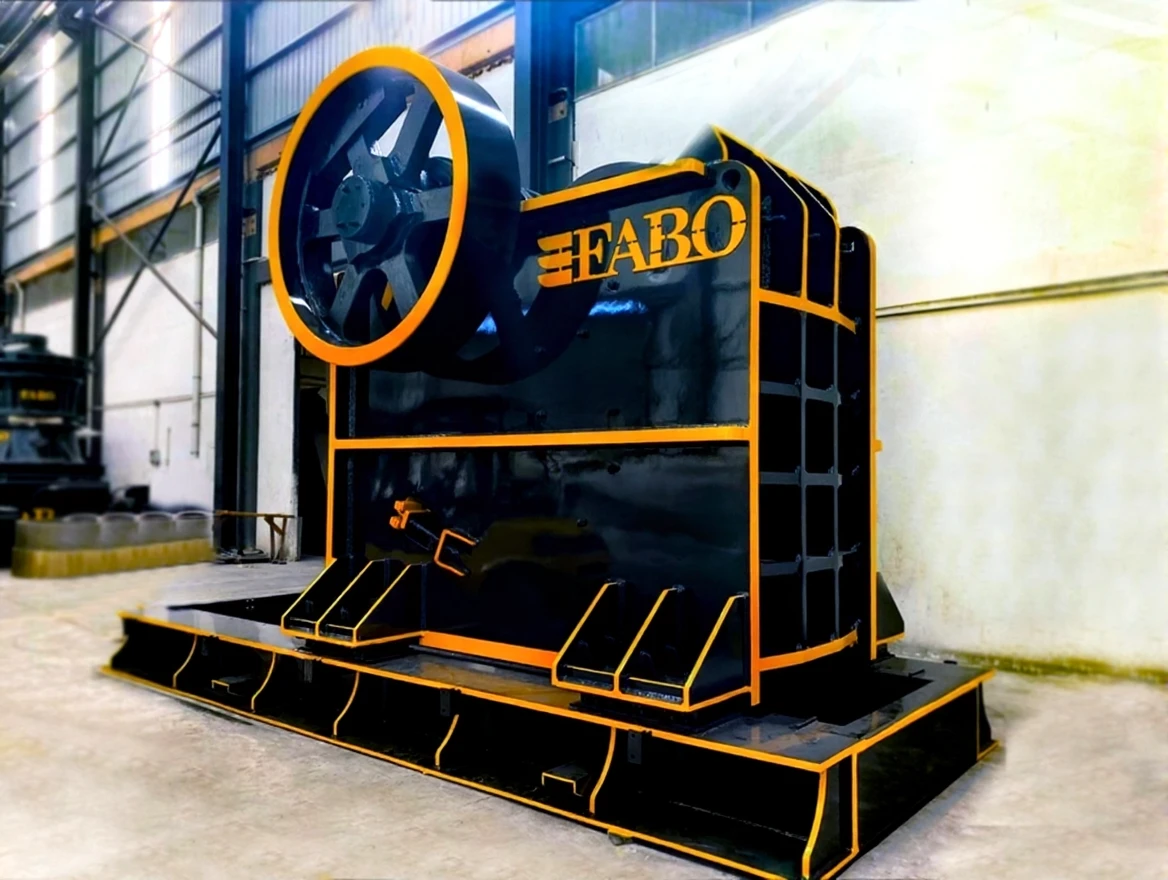

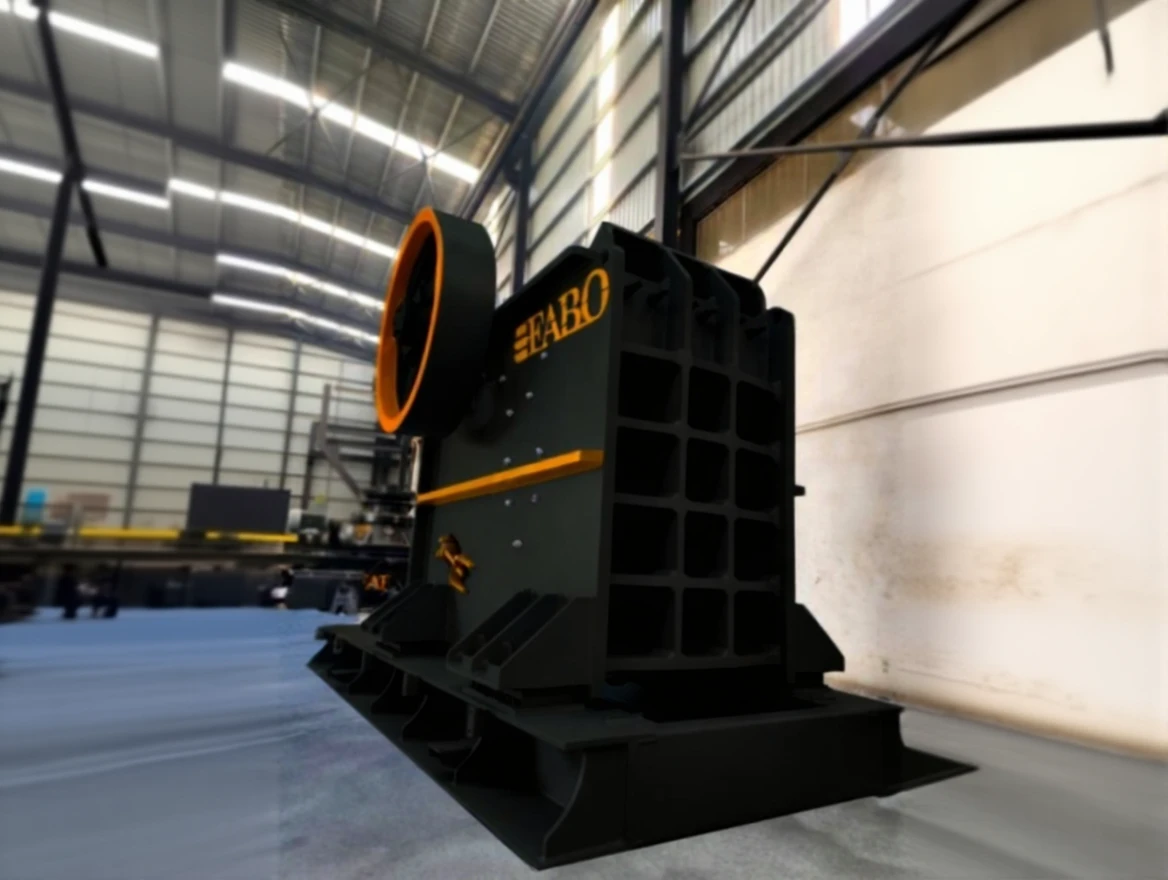

320-600 Ton/Hour Primary Jaw Crusher

Fabo Machine CLK-[ PHONE HIDDEN ] Ton/Hour Primary Jaw Crusher

FABO

THE ONLY ADDRESS FOR QUALITY AND AFFORDABLE PRICES

DO NOT DECIDE TO BUY A JAW CRUSHER WITHOUT GETTING A QUOTE FROM US AND REVIEWING OUR PRODUCTS…

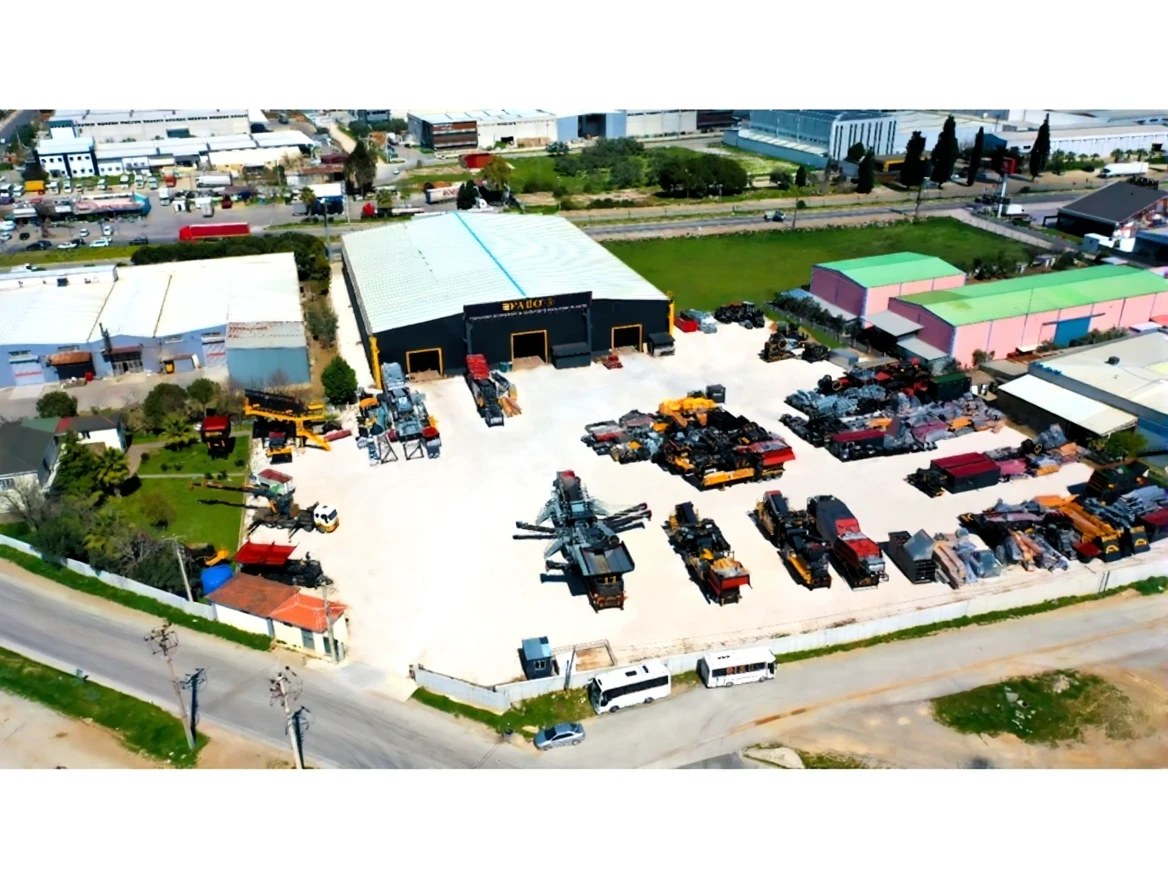

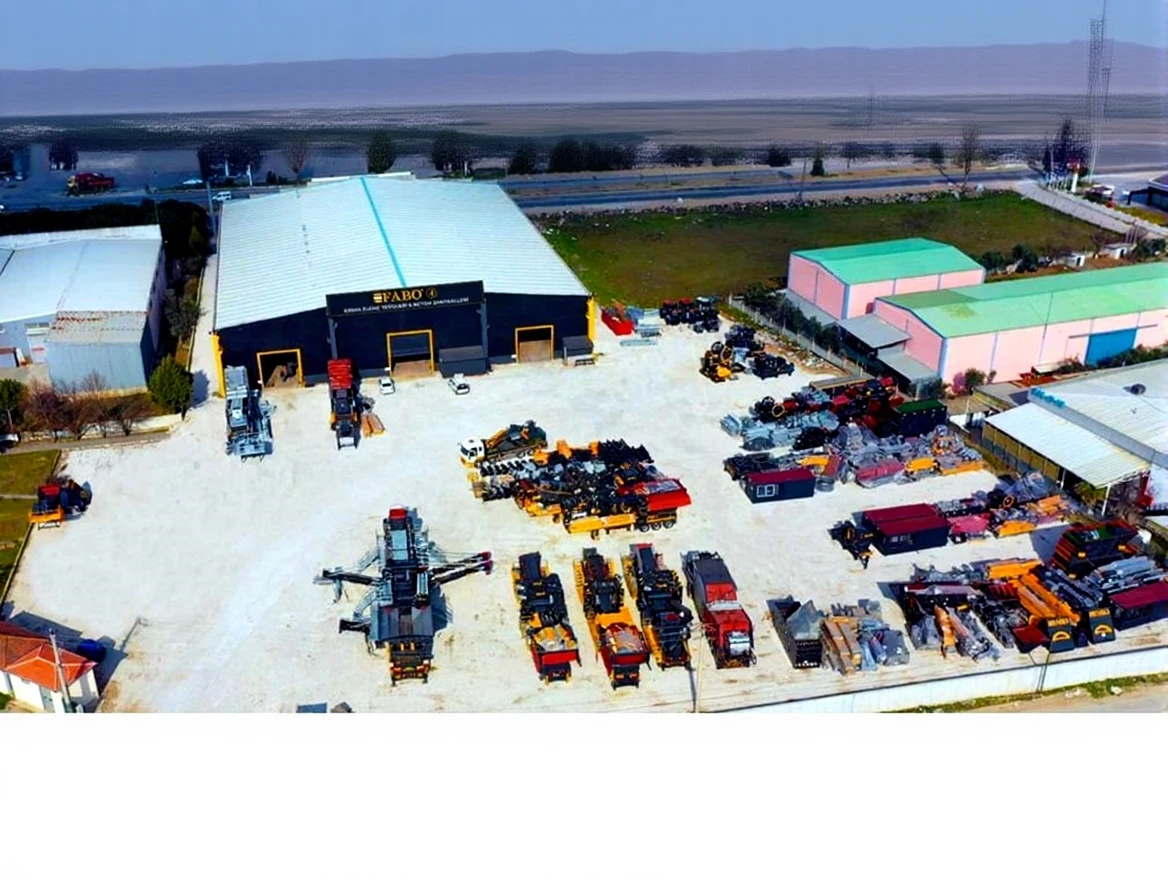

Factory:

24/7 SERVICE LINE:

QUALITY PRODUCTION

AFFORDABLE PRICE

EASY INSTALLATION

LOW OPERATING COST

FAST SERVICE and SPARE PARTS

IMMEDIATE DELIVERY FROM STOCK

*All of our products are carefully made and come with a 1-year warranty!

*Installation and Operator Training are FREE

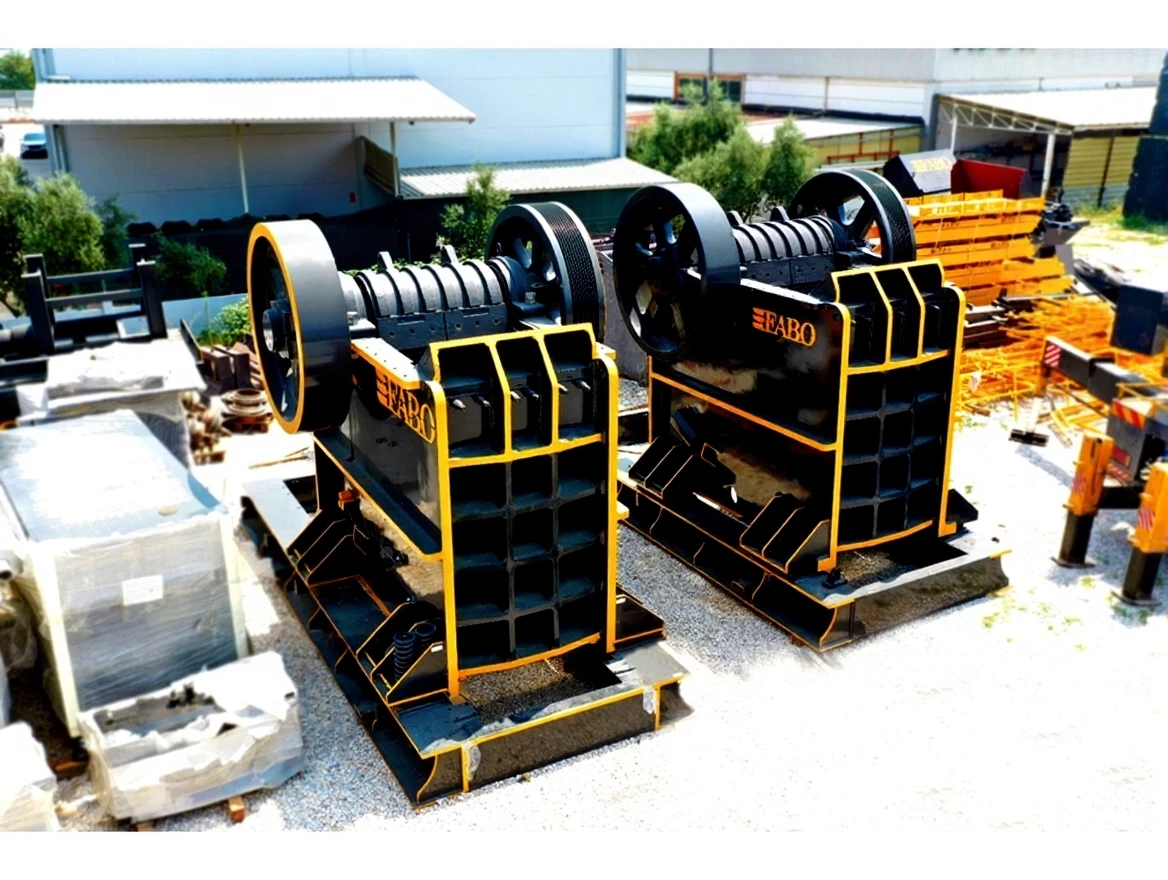

Our jaw crushers operate between 60 tons and 600 tons per hour according to their capacities. If you wish, we can also produce special jaw crushers with higher capacities. Jaw crushers are generally used to crush the hardest rocks such as basalt, granite, and gabbro. With a strong and durable jaw structure, it has been one of the most preferred crushers in the mining sector for many years. You can achieve the desired product and capacities very well with the jaw adjustment. It can be easily adjusted thanks to hydraulic pistons.

GENERAL FEATURES

-Belt pulley drive system

-Jaw Plates made of high manganese steel with high wear resistance

-Excentric shaft made of Cr, Ni, Mo alloyed steel

-Hydraulically adjustable jaw opening

-Use of transition plates for safety in case of overload

-Surfaces exposed to wear are covered with liner plates.

TECHNICAL SPECIFICATIONS:

• Model: FABO CLK-130

• Type: Primary Jaw Crusher

• Inlet Dimensions: 1400 X 1100 mm

• Jaw Opening: 120-280 mm

• Maximum Feed: 1000 mm

• Capacity: 320-600 Tons per Hour

• Motor: Heavy-duty GAMAK, 200 Kw Bearings: Heavy-duty SKF-FAG

• Weight: 50950 kg

• Size: 1300x1100mm

• Includes motor and safety guards.
