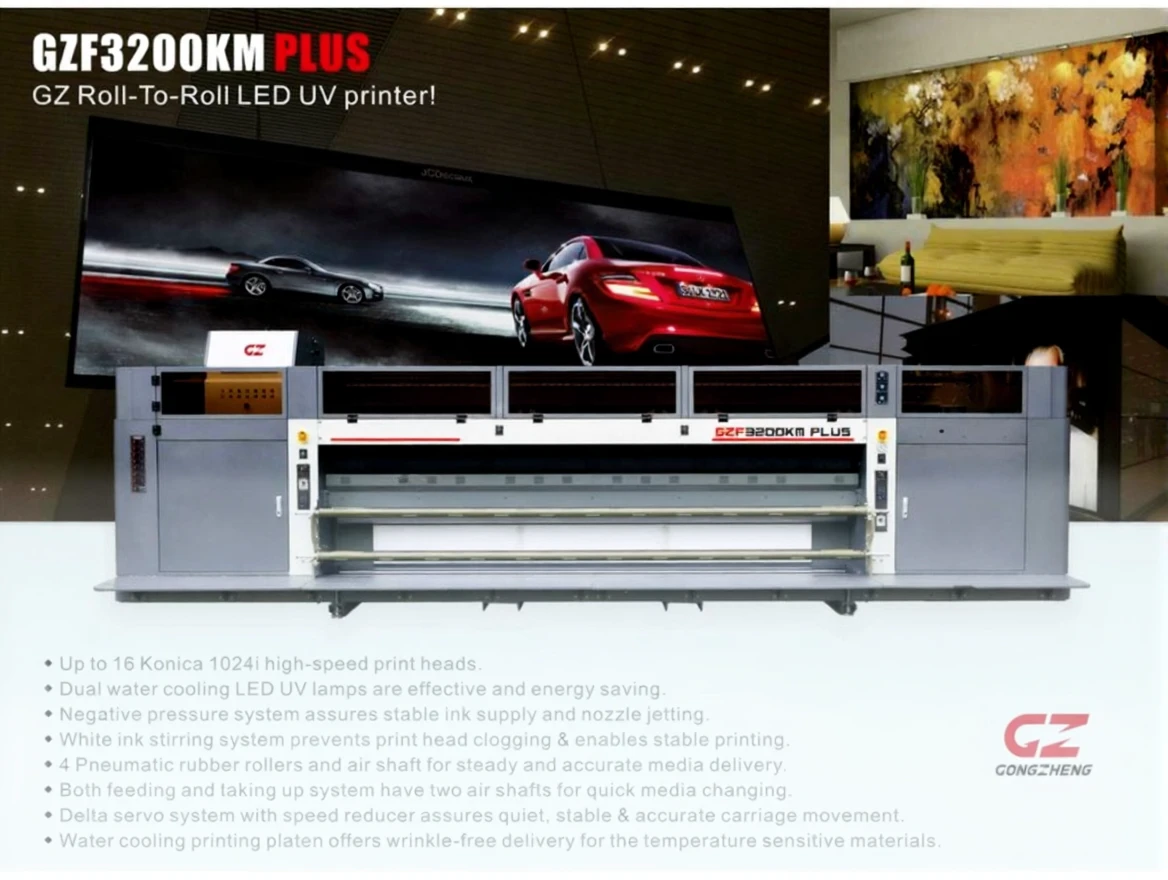

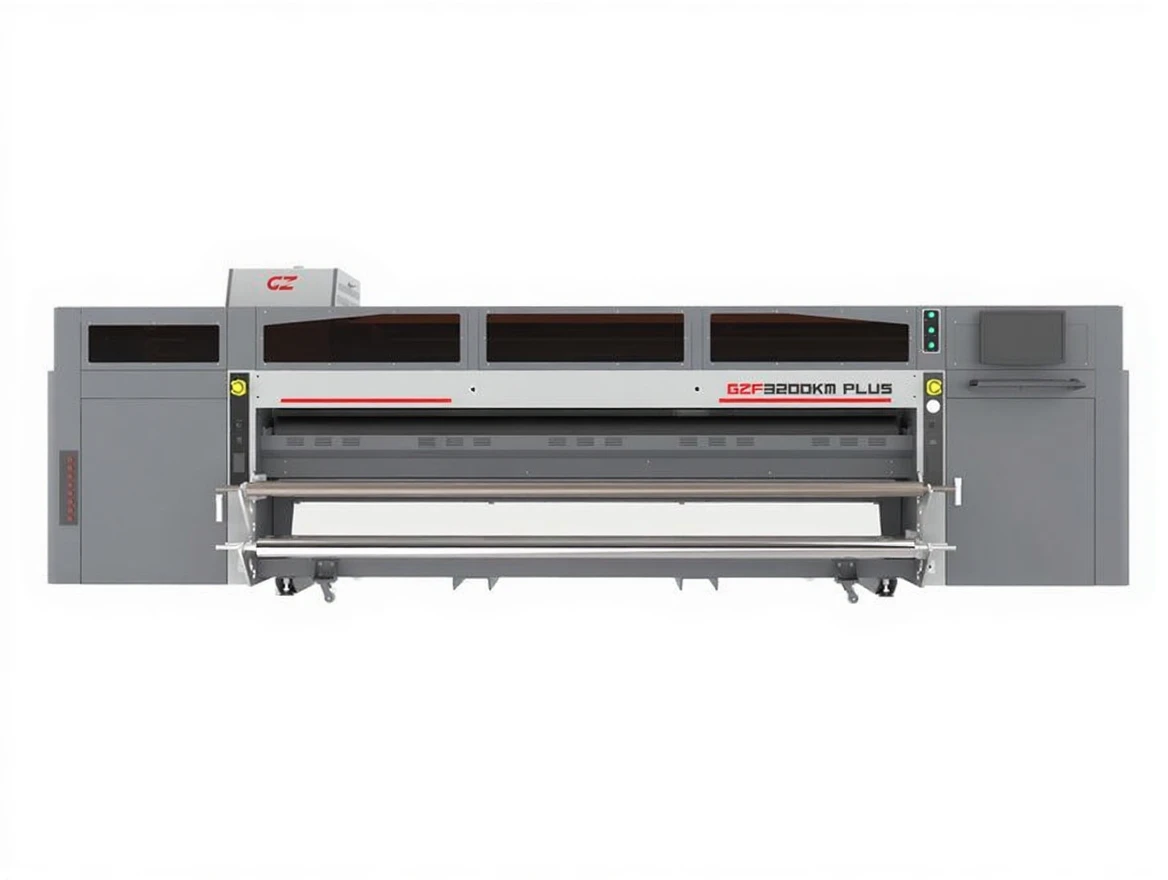

320 Cm 16 Heads Roll to Roll Led UV Printing Machine

GONGZHENG’S NEW MODEL ROLL-TO-ROLL LED UV PRINTING MACHINE PROVIDES THE POSSIBILITY TO PRINT ALL TYPES OF ROLL MATERIALS. FOIL CANVAS, ARTIFICIAL DESIGN, LEATHER, WALLPAPER, CANVAS, TRANSPARENT MATERIALS, ETC.

MAXIMUM 8-16 PIECES KONİCA 1024İ /1024A (6PL) PRINT HEAD (OPTIONAL)

LOW ENERGY HIGH EFFICIENCY WITH DUAL WATER COOLED LED UV LAMPS

NEGATIVE PRESSURE SYSTEM

WHITE PAINT CIRCULATION SYSTEM

FAST, QUIET, AND STABLE OPERATION WITH DELTA SERVO SYSTEM

WATER COOLED PANELS FOR SENSITIVE AND HEAT-SENSITIVE MATERIALS

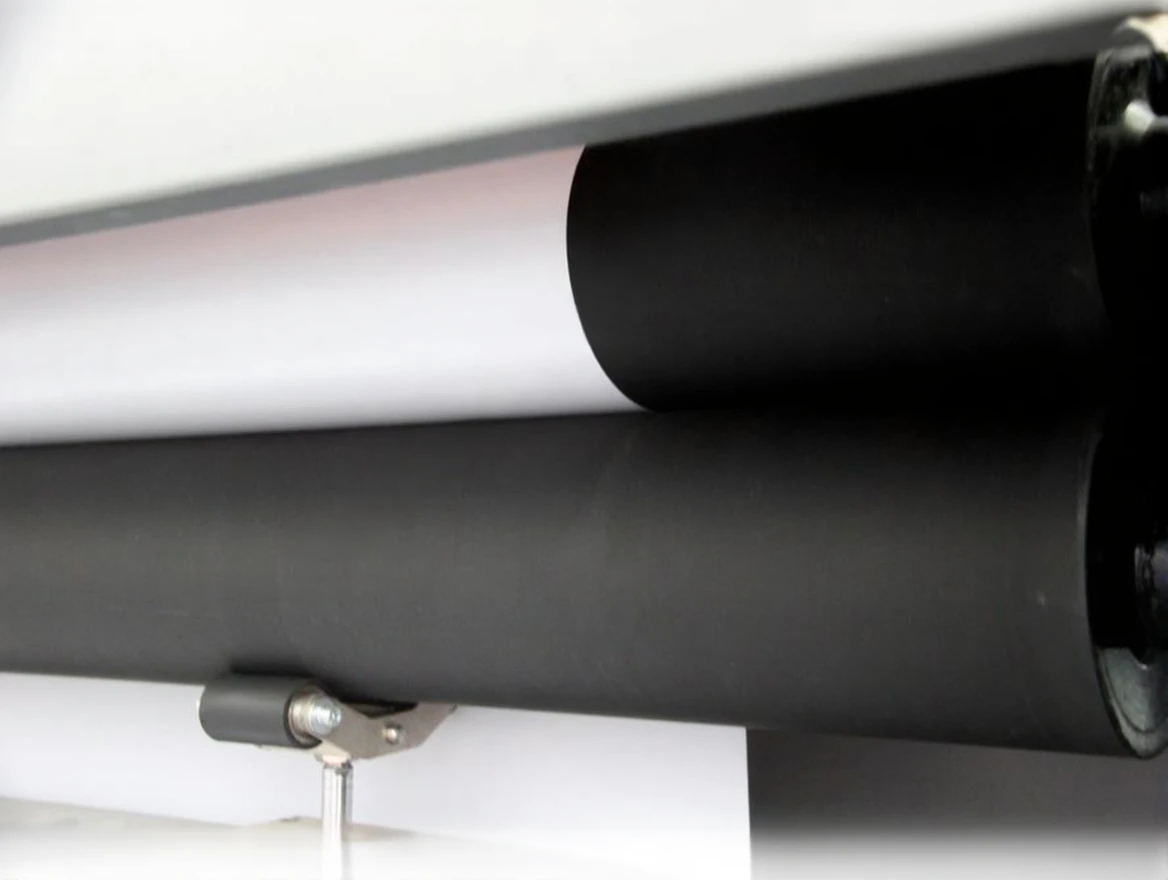

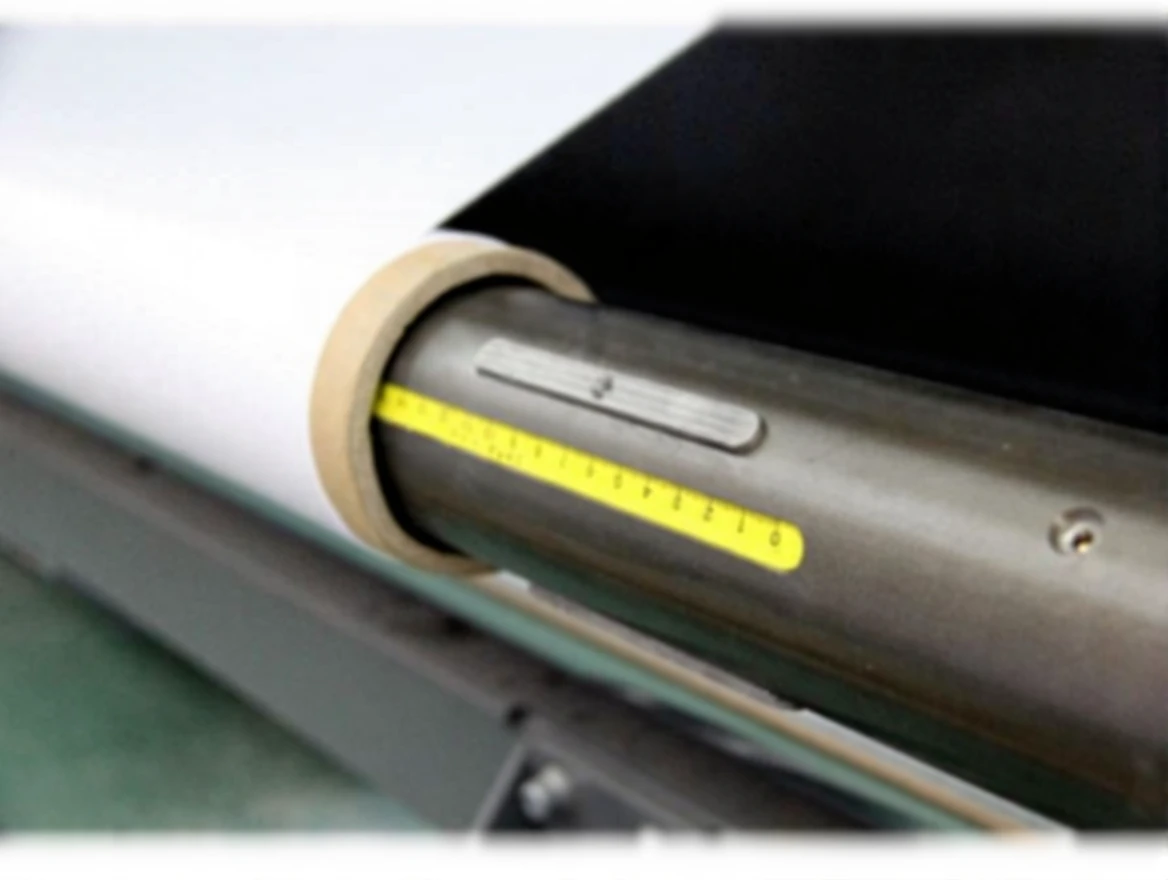

MATERIAL FEEDING AND COLLECTING SYSTEM WITH 2 AIR SHAFT FOR EASY MATERIAL CHANGE

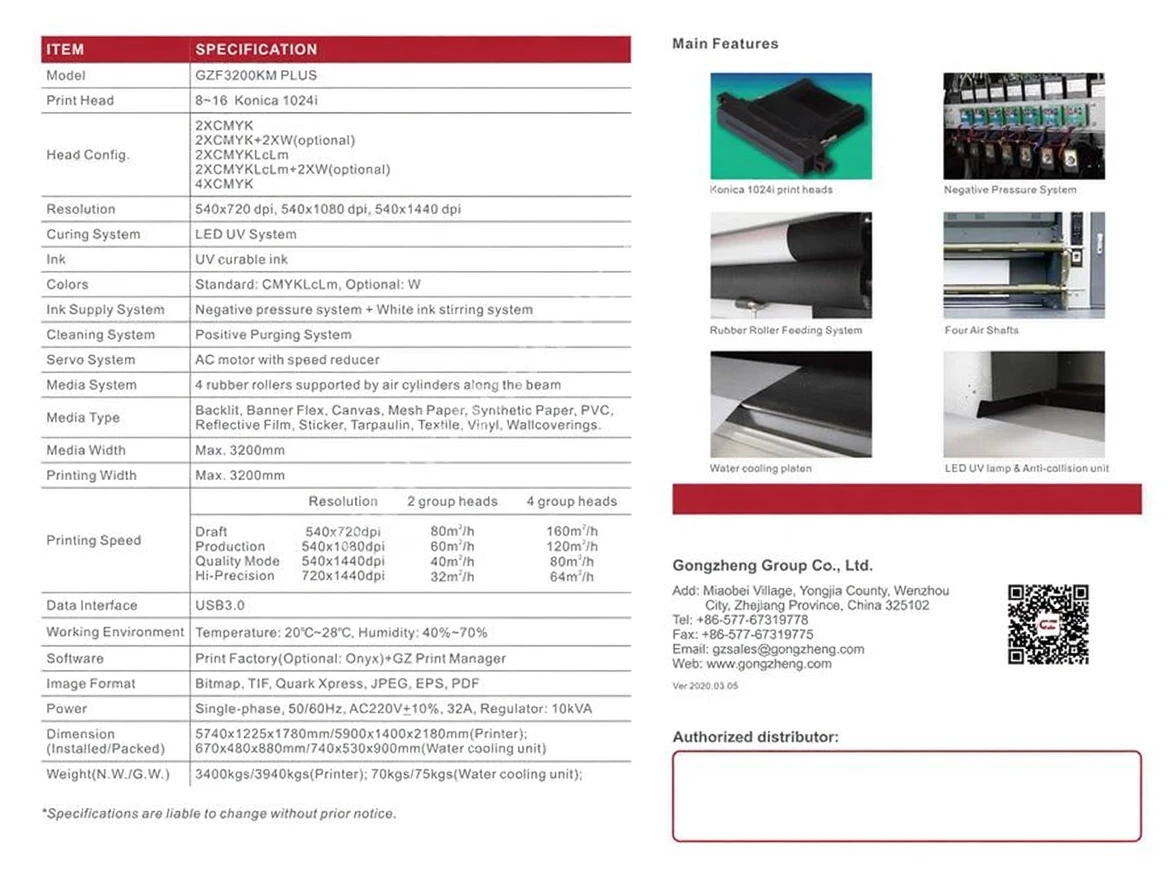

Maximum Print Size: 320 cm

Number of Print Heads: 16 Pieces

Printhead: Konica Minolta 1024i/1024a

Printing Speed: Maximum 160 m² / hour

Print Resolution: 720 X 1440 dpi
