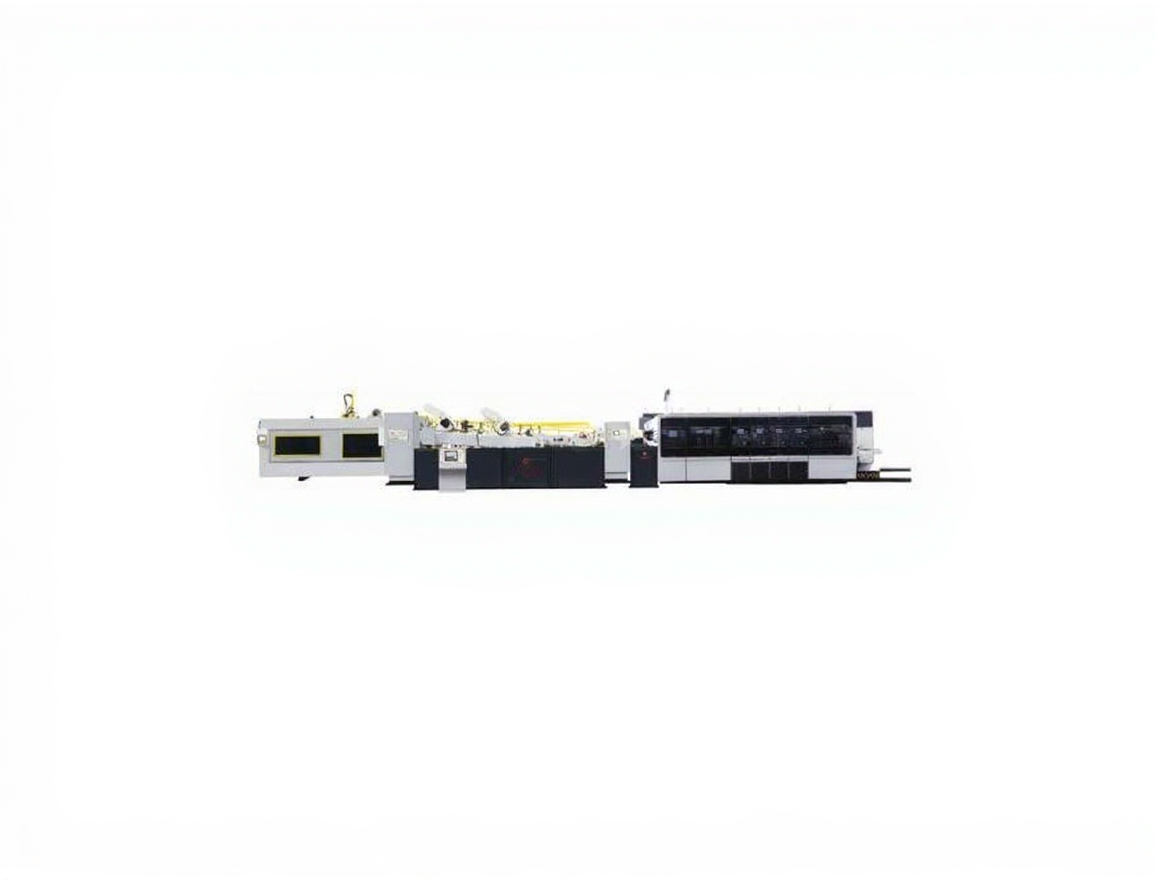

320 Pieces/Minute Box Folding and Box Gluing Machine

320 Pieces / Minute Box Folding and Gluing Machine

BasTürk 920

The entire machine is designed and manufactured based on reliability functions and safety, and complies with European CE standards.

This machine can perform feeding, printing, folding, and gluing processes in a single operation. The operator can save time and effort. It is a high-speed, high-efficiency, low-consumption carton production equipment.

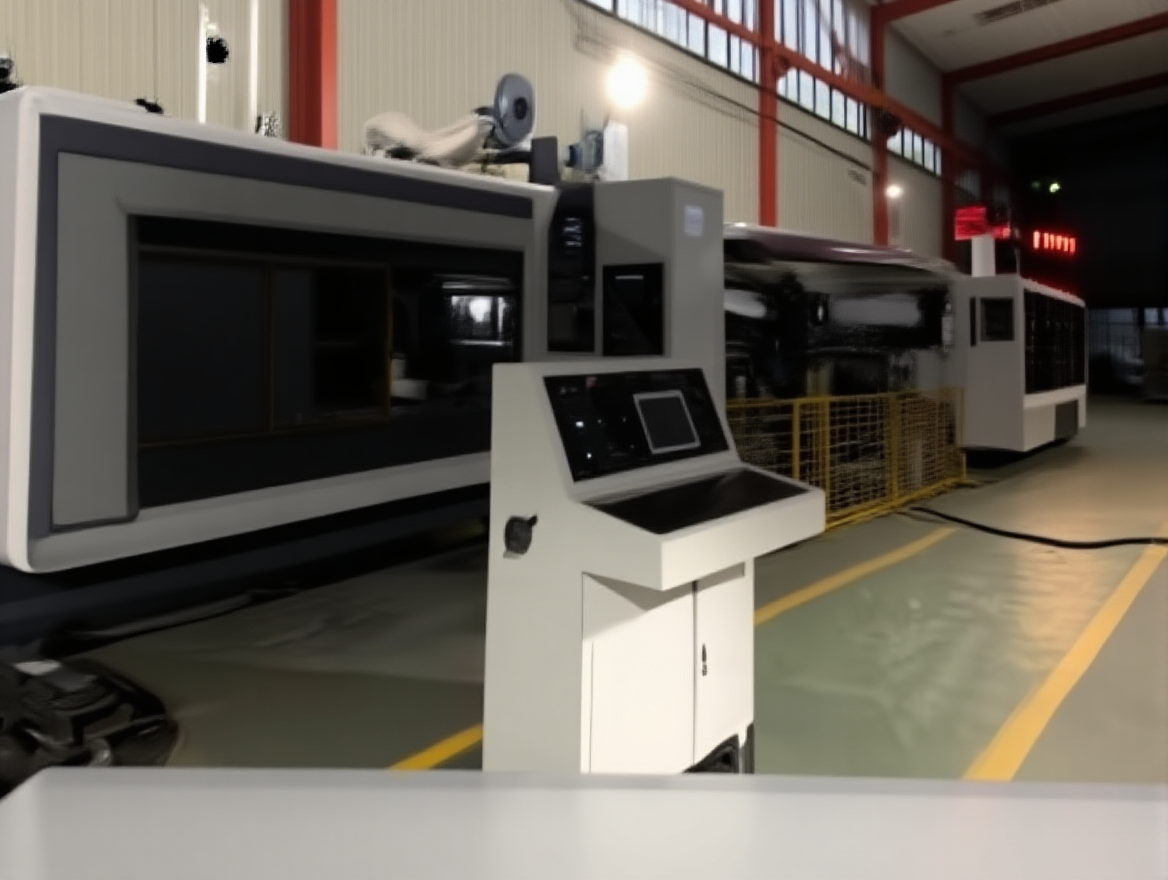

The machine features a human-computer interface and an auxiliary manual electronic control function for better operation.

Internationally renowned electrical parts and computer software are used throughout the machine. The best quality and stability; computer order storage and adjustment, easy operation, and faster order updates (many orders can be stored in the computer in advance).

The entire transmission shaft and cylinder are made of high-quality steel, tempered, thermally treated, and precision-balanced using computer dynamic balance correction; they are ground and coated with hard chrome.

The safety design is in accordance with European CE standards and is humanized during operation.

Using the pioneering paper feeding technology of American Sun Company, the paper feeding is accurate.

Equipped with anti-static brush and ion air knife to completely eliminate static electricity on the carton.

Using the single scraper of American Sun Color Master, the printing is clearer and more perfect.

The vacuum transport and feeding system, with wind balance design, ensures more precise work of the carton, and the cylinder feeding and hot air drying system can be flexibly selected, saving energy by performing the dual functions of cylinder feeding and vacuum transport.

The die-cutting rubber pad is independently driven by servo to compensate for the speed difference of the rubber pad and correct template production errors.

The die-cutting cylinder automatically eliminates the gap in the adjustment mechanism, greatly reducing die-cutting vibration and extending the equipment's service life.

The upper and lower belts in the front part of the folding section are synchronized, and the rear part uses vacuum suction for paper feeding, ensuring smooth transport.

The left and right folding belts are driven by independent motors that can precisely adjust the folding speed difference and reduce the scissor difference.

Carton transport adopts vacuum adsorption positioning.

The forming wheel helps in the folding process and performs secondary folding to stabilize the carton size.

Servo stack control is used for high-speed pile stacking.

The glue spraying method increases gluing reliability and prevents contamination of glue on cartons and conveyor belts.

Automatic demapping, packaging, and batch transport.
