3200 mm 5 Axis Machining Center

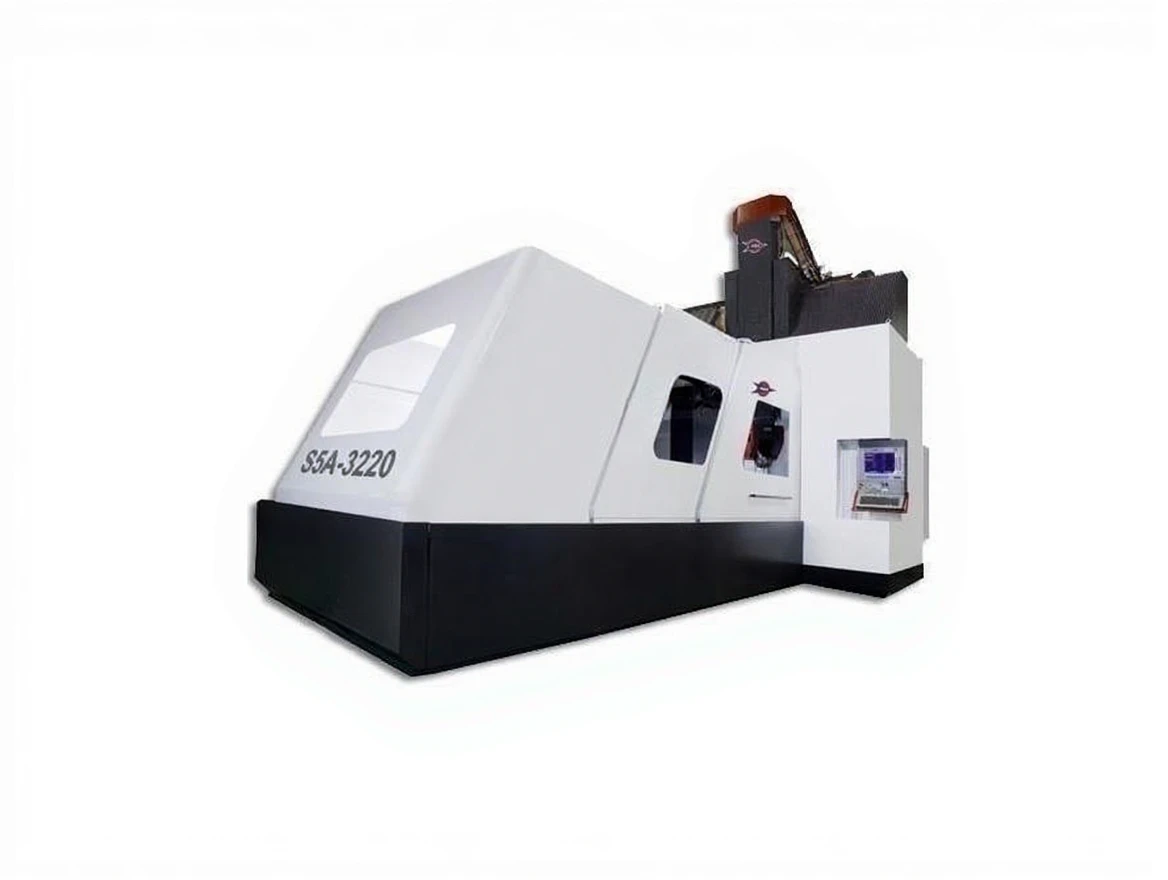

Sanco S5A-3220 3200 mm CNC 5 Axis Machining Center

The Sanco S5A-3220 is a high-performance and precision CNC machining center designed for use in various industrial applications. With its strong structure and wide processing capacity, this machine stands out as an ideal choice for producing high-level workpieces.

Table Specifications:

• Table Dimensions: 3000×1700 mm
• T Slots: 22×10
• Maximum Load Capacity: 9000 kg

Movements:

• X Axis Travel: 3200 mm
• Y Axis Travel: 2400 mm
• Z Axis Travel: 1200 mm
• A Axis: +95° / -110°
• C Axis: ±360°

Spindle:

• Spindle Bearing Diameter: 70 mm
• Spindle Speed: 240-24000 rpm
• Spindle Taper: HSK-63A
• Spindle Outer Diameter: 210 mm

Distances:

• Distance Between Columns: 2020 mm
• Distance from Spindle Nose to Table: 100-1300 mm
• Table Height: 875 mm

Feeds:

• X,Y,Z Rapid Feeds: 24/24/18 m/min
• A Axis Speed: 2000°/min
• C Axis Speed: 1200°/min

Motor:

• Spindle Motor: 55/42 kW
• X/Y/Z Axis Motors: 37/31/31 kW

ATC (Automatic Tool Changer):

• ATC Capacity: 40
• Taper: HSK-63A
• Tool Selection: Absolute
• Tool Change Time: 6.5 seconds
• Tool Diameter: 95 mm/180 mm
• Tool Length: 300 mm
• Tool Weight: 8 kg

Precision:

• X/Y/Z Axis ISO 230-2 Standard: A: 0.025 mm (Positioning), R: 0.015 mm (Repeatability)
• A/C Axis ISO 230-2 Standard: A: 6 ARC-second mm (Positioning), R: 4 ARC-second (Repeatability)

Machine General Specifications:

• Machine Dimensions: 10x6x6.2 m
• Machine Weight: 30 tons
• Control Unit: Fidia C20

This high-performance machining center comes with a Fidia control unit and standard accessories.

Designed to meet various requirements in industrial production, the Sanco S5A-3220 stands out with its superior performance and broad processing capabilities.
