3200 Mm Prestige Lined Horizontal Circular Saw

The prestige striped tilting panel saw is a professional machine developed for precise and smooth panel cuts. Its striped cutting structure reduces tearing, especially in coated and laminated panels, and provides a cleaner cutting surface. With its sturdy body, large working table, and powerful motor performance, it is an ideal choice for furniture manufacturers and carpentry workshops.

Key Features

• Striped cutting system for cleaner and error-free results

• Powerful motor performance for stable operation during cutting

• Adjustable cutting depth and angle options

• Wide cutting table for easy use on large panels

• Vibration-reducing body structure for smooth and controlled cutting

• Professional safety features for a secure working environment

Technical Details

Model: MZK 3200
Serial No: 00…
Production Year: 201…
Air Pressure: 6 BAR

Motor Power: 4 kW – 5.5 HP – 3000 rpm
Noise Level: 80 dBA

Voltage: 380 – 400 V A.C.P 50–60 Hz

Standard Blade Diameter: Ø 350 / 300 mm
Spindle Diameter: Ø 30 mm

Cutting Capacity

Max. Cutting Height (Ø350 / Ø300): 100 / 75 mm
Max. Cutting Height at 45° (Ø350 / Ø300): 75 / 55 mm
Max. Cutting Width – Front: 1300 mm / 3000 mm

Table Dimensions

Main Table Dimensions: 620 × 930 mm
Additional Table – Back Table Part: 700 × 880 mm
Additional Table – Side Table Part: 690 × 350 mm

Machine Settings

Blade Tilt Angle: Direct. Tilt 0° – 45°
Blade Speed: 4750 – 5250 rpm
Cutting Speed: 60–80 m/s

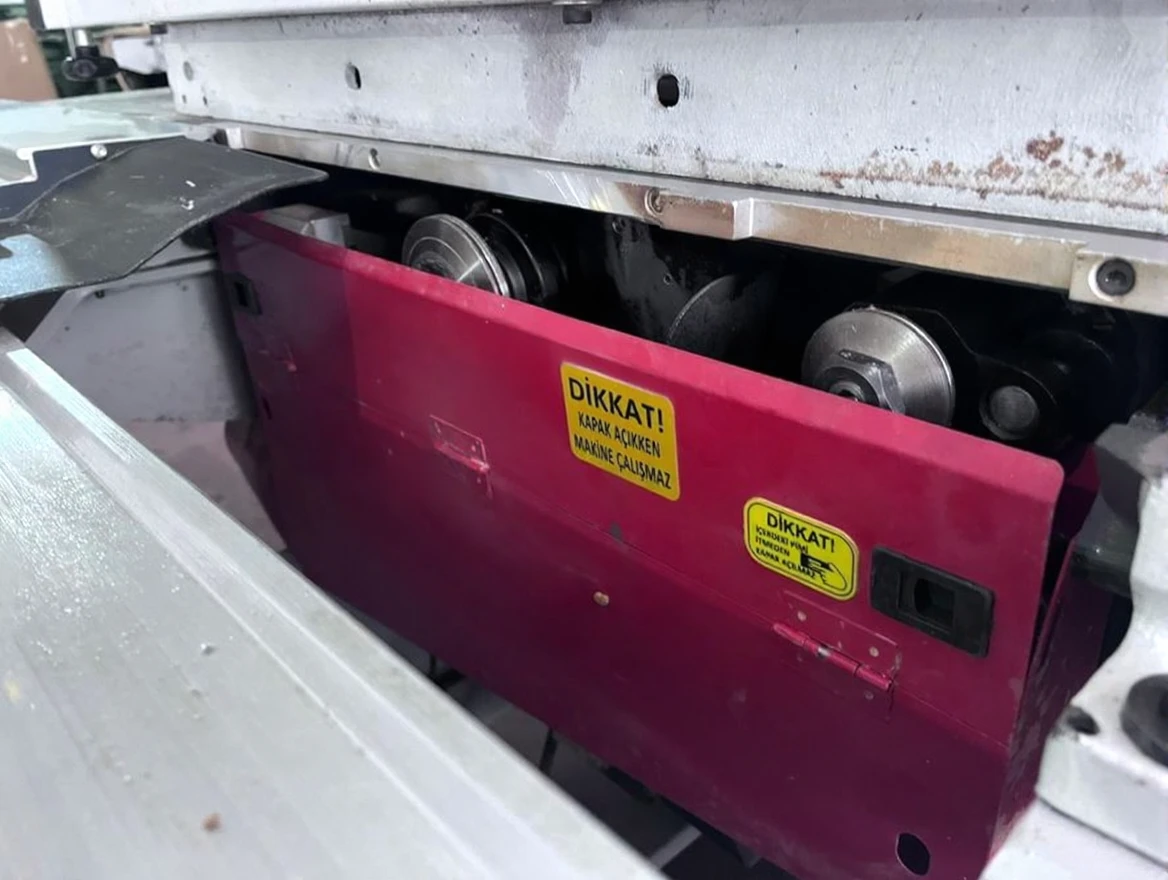

Scoring Saw Information

Spindle Diameter: Ø 20 mm
Blade Diameter: Ø 120 mm
RPM of the Spindle: 6800 rpm
Motor Power: 0.75 kW – 1 HP

Machine Dimensions and Weight

Machine Dimensions: 3200 × 1950 × 845 mm
Weight: 806 kg
