33,193 kCal/h Atmospheric Burner Hot Air Generator
| Brand | Termonem |
|---|---|
| Model Type |
A39 |

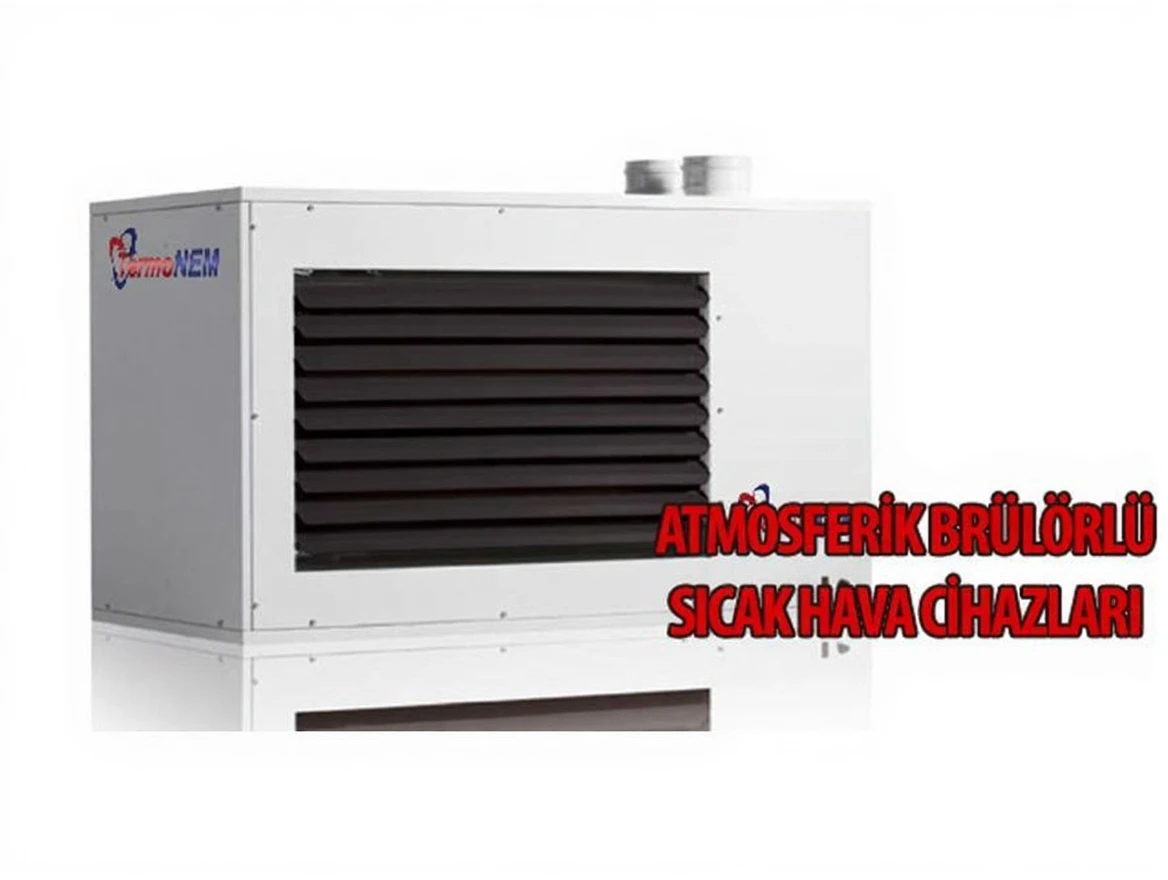

Termonem 33,193 kCal/h Atmospheric Burner Hot Air Generator (Model A39)
Termonem A39 is an atmospheric burner hot air generator that provides safe and efficient hot air. It generates heat at the required point and time; transfers directly from air to air without the need for any intermediary such as water or steam.
Features
-
Electronically ignited, ionization-based flame detection for quiet and comfortable combustion
-
Presostat controlled solenoid valve for safe combustion and air supply
-
Thermostatic control to activate the fan as needed
-
-
Level safety limit thermostat: 80 °C
-
-
-
Level safety limit thermostat: 100 °C
-
Advantages
-
No need for boilers, pipes, or hot water distribution lines; minimum energy loss
-
No preheating required; instant and on-demand hot air production
-
Saves space as it is mounted on the wall
-
Mounted 2.5 m or higher from the ground to avoid space loss in the production area
Technical Specifications (Model A39)
|
Feature |
Value |
|---|---|
|
Nominal Heat Power |
33,193 kcal/h (38.6 kW) |
|
Nominal Output Power |
30,000 kcal/h (34.9 kW) |
|
Efficiency (%) |
90.4 |
|
Air Flow (20 °C) |
3,250 m³/h |
|
Delta T |
34 °C |
|
Air Blowing Distance |
20 m |
|
Gas Consumption (Methane G20, 20 mbar) |
4.08 m³/h |
|
Gas Consumption (Propane 0 °C, 1013 mbar) |
2.94 kg/h |
|
Fan Motor Power (1F 230 VAC) |
220 W |
|
Fan Speed/Minute |
1,300 rpm |
|
Noise Level (5 m) |
58 dB(A) |
|
Gas Pipe Diameter |
1/2" |
|
Exhaust Pipe Diameter |
100 mm |
|
Clean Air Inlet Diameter |
130 mm |
|
Length (A) |
865 mm |
|
Width (B) |
495 mm |
|
Height (C) |
750 mm |
|
Net Weight |
82 kg |
Applications
-
Factories, production, and warehouse areas
-
Workshops and large indoor spaces
-
Industrial environments where heat needs to be distributed quickly and effectively
Termonem A39 provides a reliable heating solution with low operating costs and high energy efficiency.
